20. Planetary Ring Gear Disassemble




Planetary Ring Gear Disassemble

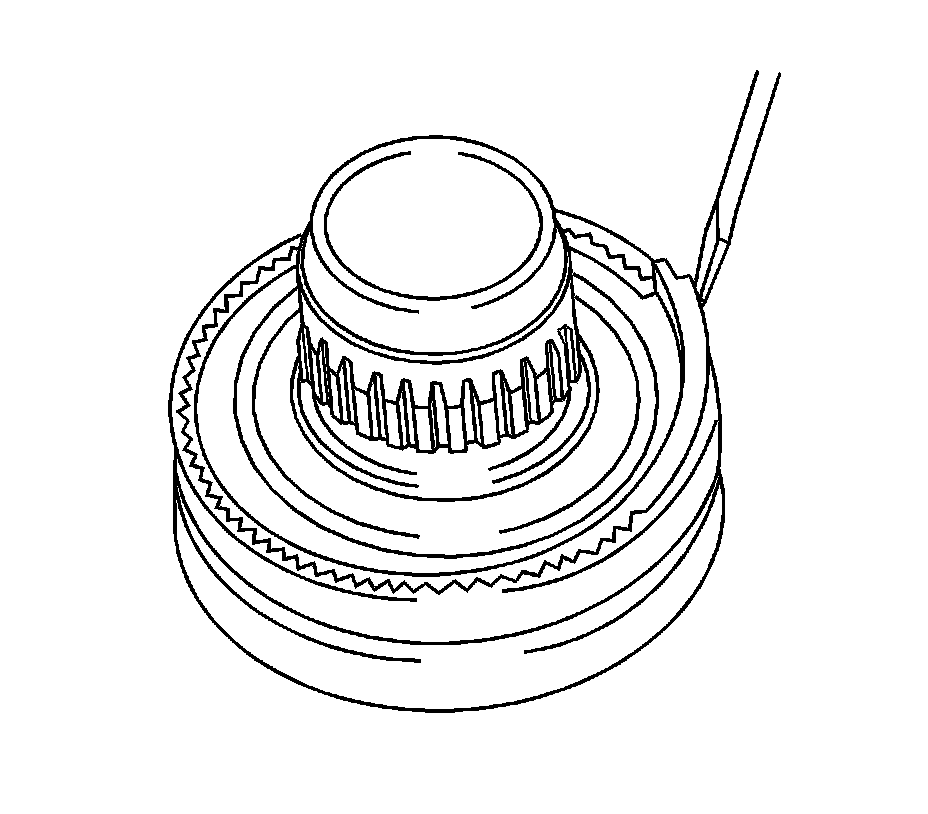

1. Using a screwdriver, remove the snap ring.

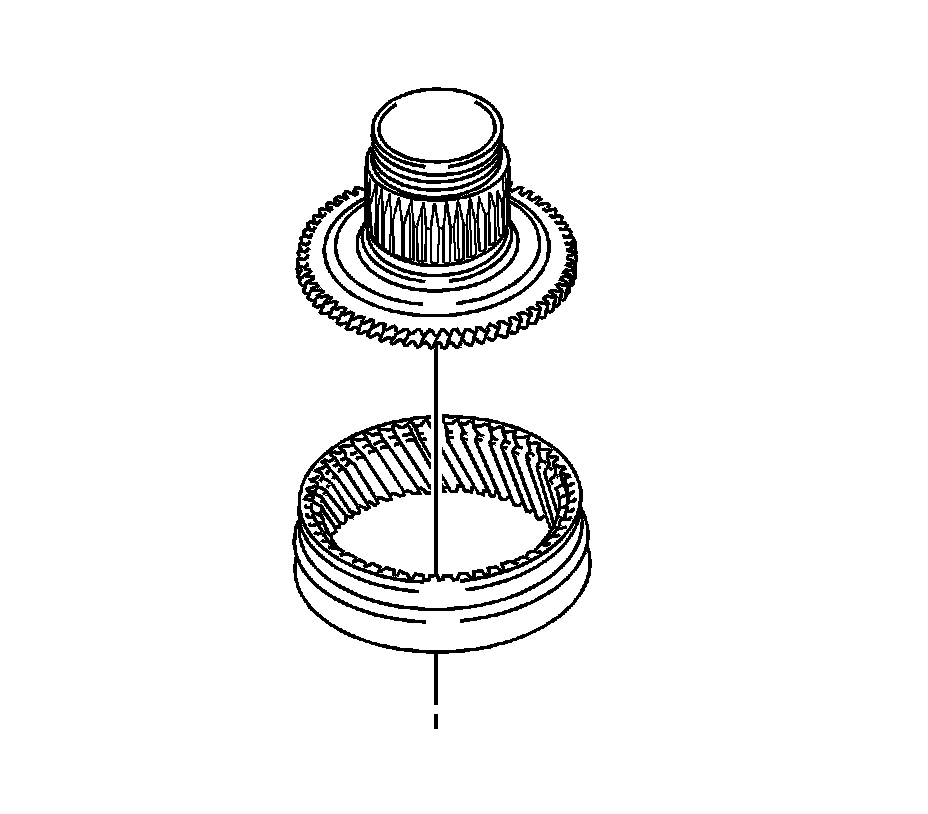

2. Remove the planetary ring gear flange from the planetary ring gear.
