2. Cooler Pipe Bending and Choke Inspection

Cooler Pipe Bending and Choke Inspection





Important: Inspect if there is abnormal pipe bending in the cooler pipe, pipe deformation and small cross-section area of pipe line.


1. Replace failured parts.

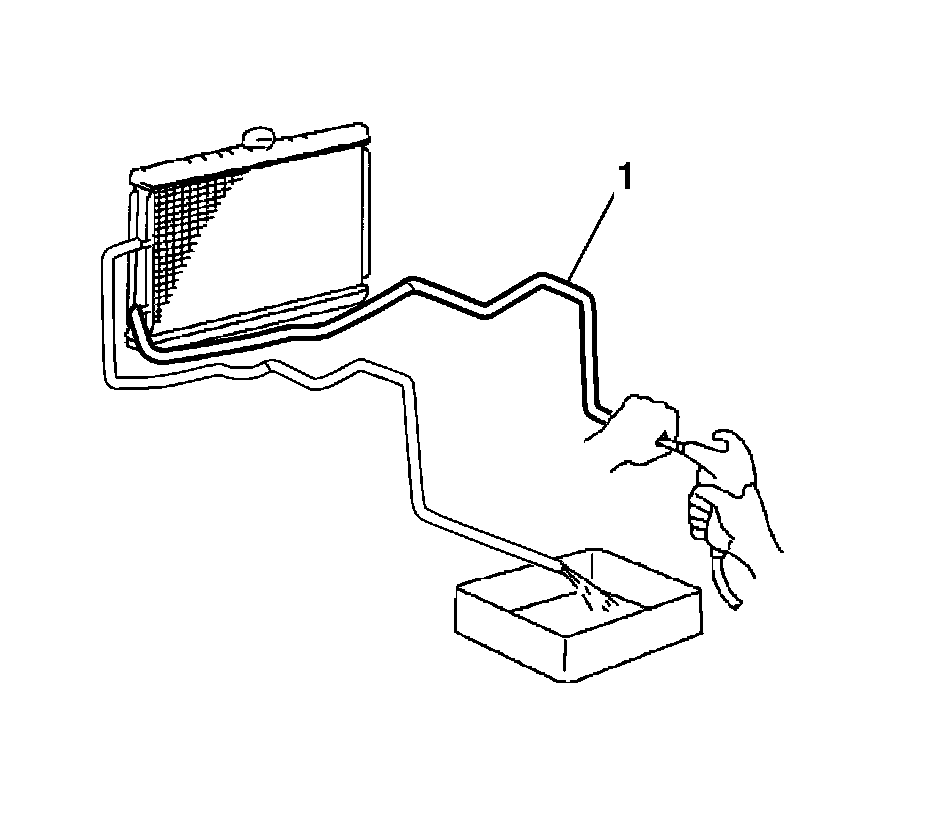

2. Apply compressed air of 2 kg/cm2 from cooler pipe inlet side (1), inspect whether there is not cooler pipe choke by confirming air flow smooth.
3. Remove foreign particles and clean inside of pipe line.
