Parking Lock Installation




Parking Lock Installation

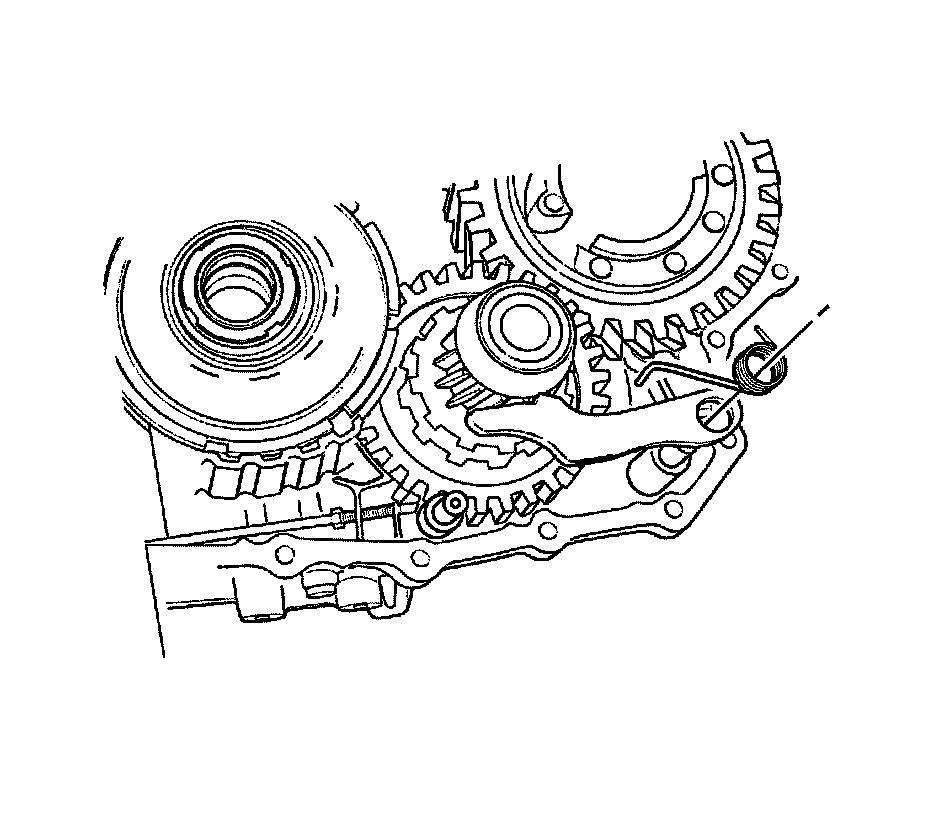

Install the parking lock assembly, consisting of the following components:

* The parking pawl
* The leg spring
* The support bolt
