Transmission Cooler Pipes and Hoses Replacement (Outlet)

Transmission Cooler Pipes and Hoses Replacement (Outlet)

Removal Procedure




1. Drain the transaxle fluid.

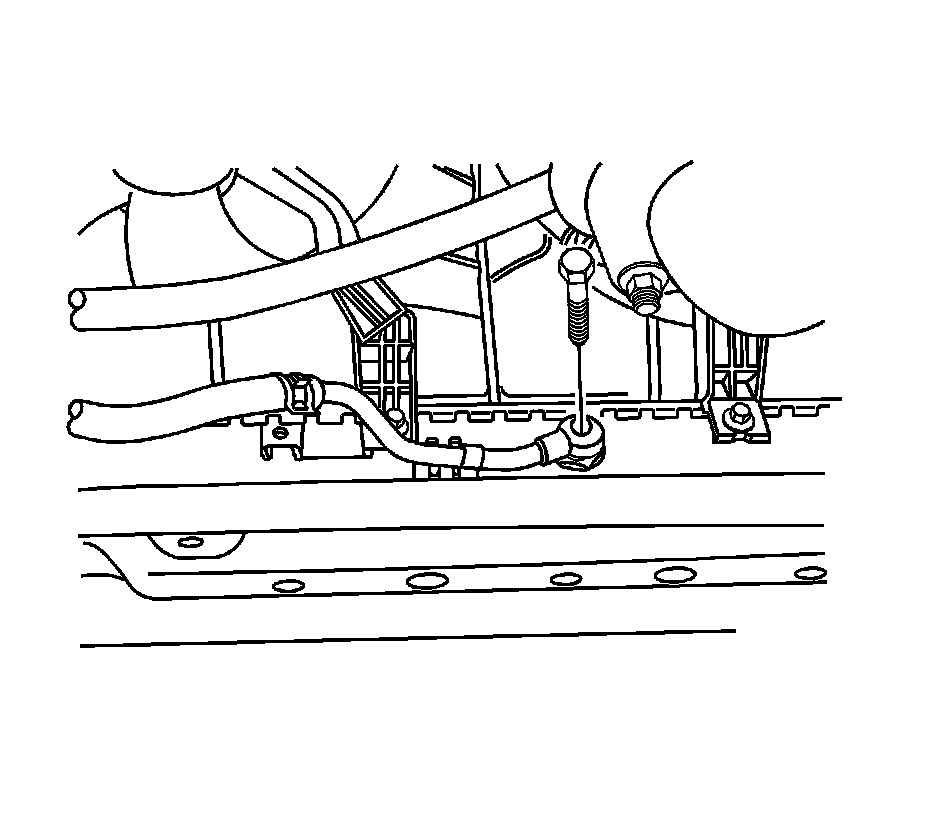

2. Remove the front outlet pipe union bolt from the radiator.
3. Remove the front outlet pipe clip bolt from the radiator.




4. Remove the rear outlet pipe clip bolt from the transaxle.
5. Remove the rear outlet pipe fitting nut from the transaxle.
6. Remove the fluid cooler outlet pipe and hoses.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the fluid cooler rear outlet pipe fitting nut.

Tighten the fluid cooler rear outlet pipe fitting nut to 35 Nm (26 lb ft).

2. Install the fluid cooler rear outlet pipe clip bolt.

Tighten the fluid cooler rear outlet pipe clip bolt to 9 Nm (80 lb in).




3. Install the front outlet pipe union bolt into the radiator.

Tighten the front outlet pipe union bolt to 35 Nm (26 lb ft).

4. Install the front outlet pipe clip bolt into the radiator.

Tighten the front outlet pipe clip bolt to 9 Nm (80 lb in).

5. Fill the transaxle with the fluid.
