Transmission Cooler Pipes and Hoses Replacement (Inlet)

Transmission Cooler Pipes and Hoses Replacement (Inlet)

Removal Procedure





Notice: Refer to Vehicle Lifting and Jacking Notice Vehicle Damage Warnings.

1. Raise and support the vehicle.
2. Drain the transaxle fluid.
3. Remove the clip from the hose, then disconnect the hose from the fluid cooler inlet pipe.

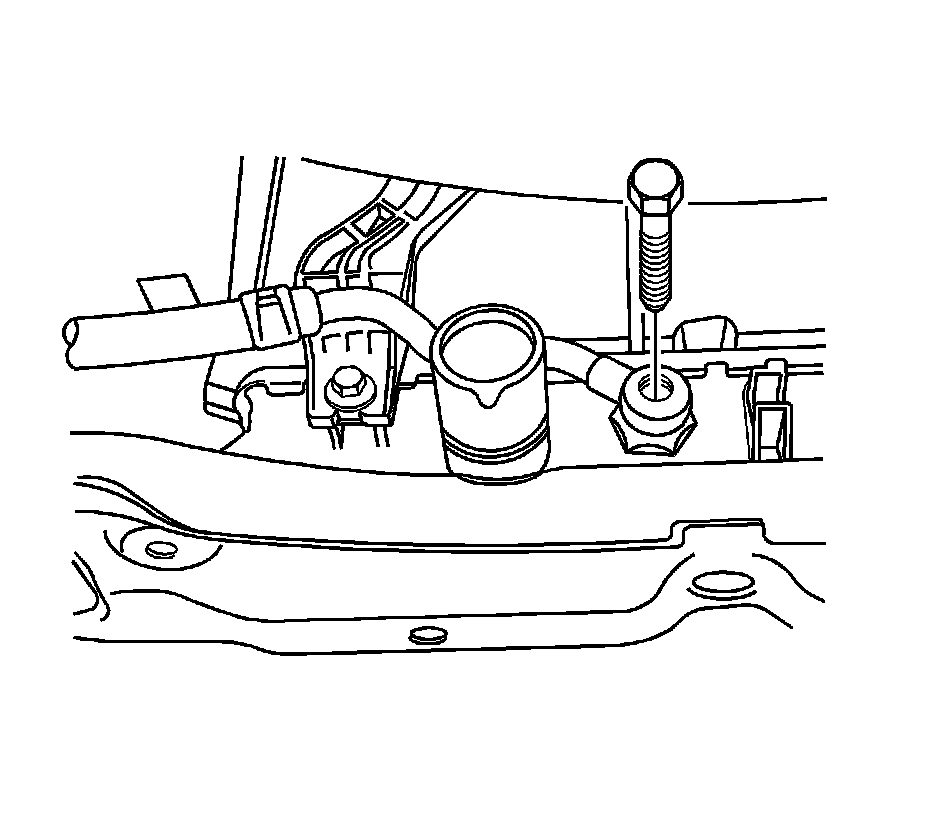

4. Remove the inlet pipe union bolt from the radiator.

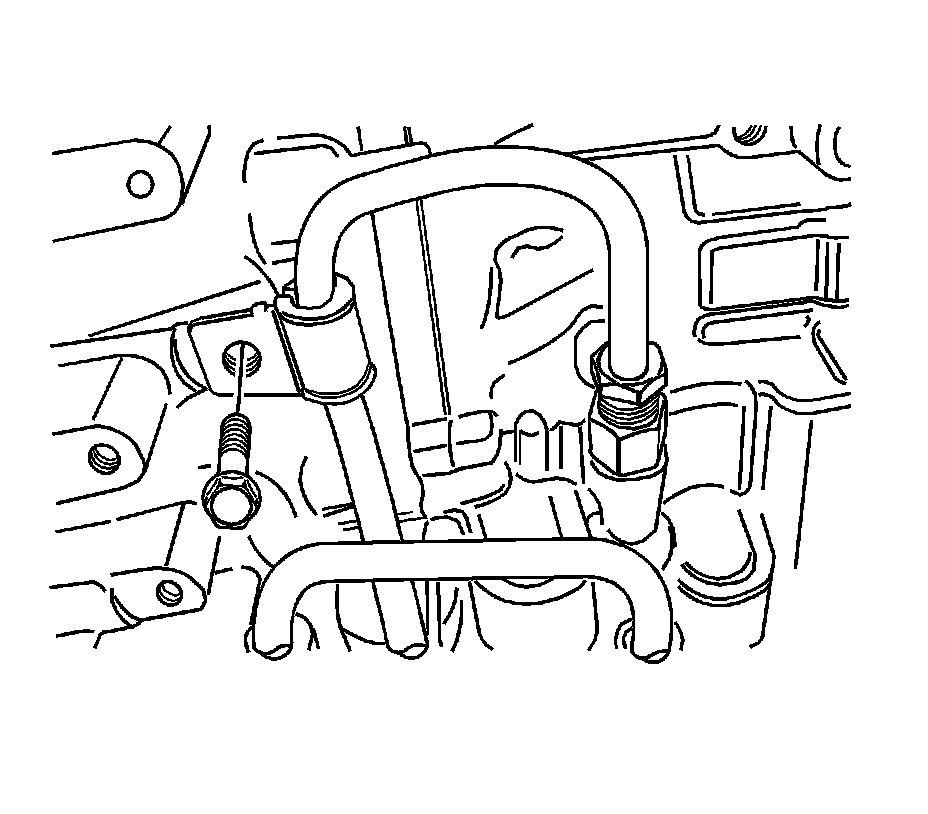

5. Remove the fluid cooler inlet pipe bolt from the transaxle.
6. Remove the inlet pipe fitting nut from the transaxle.
7. Remove the fluid cooler inlet pipe and hoses.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the fluid cooler inlet pipe fitting nut into the transaxle.

Tighten the fluid cooler inlet pipe fitting nut to 35 Nm (26 Ib ft).

2. Install the fluid cooler inlet pipe bolt into the transaxle.

Tighten the fluid cooler inlet pipe bolt to 9 Nm (80 Ib in).




3. Connect the fluid cooler hoses and install the clip into the radiator threaded connector.
4. Lower the vehicle.
5. Fill the transaxle with the fluid.
