Ride Diagnosis




Ride Diagnosis

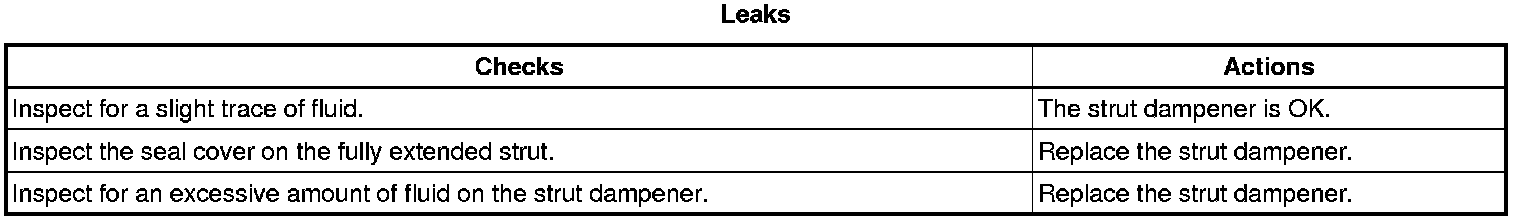

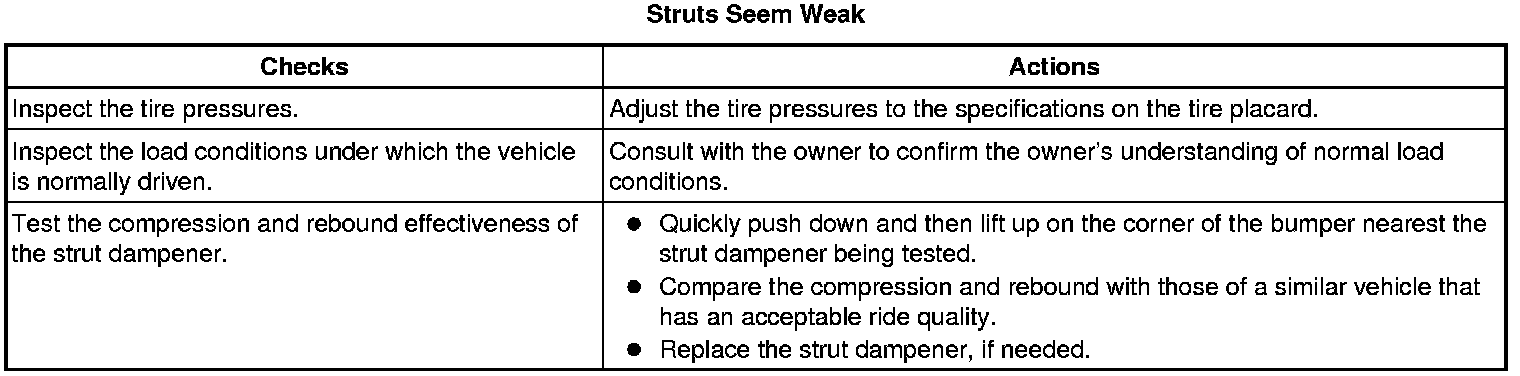

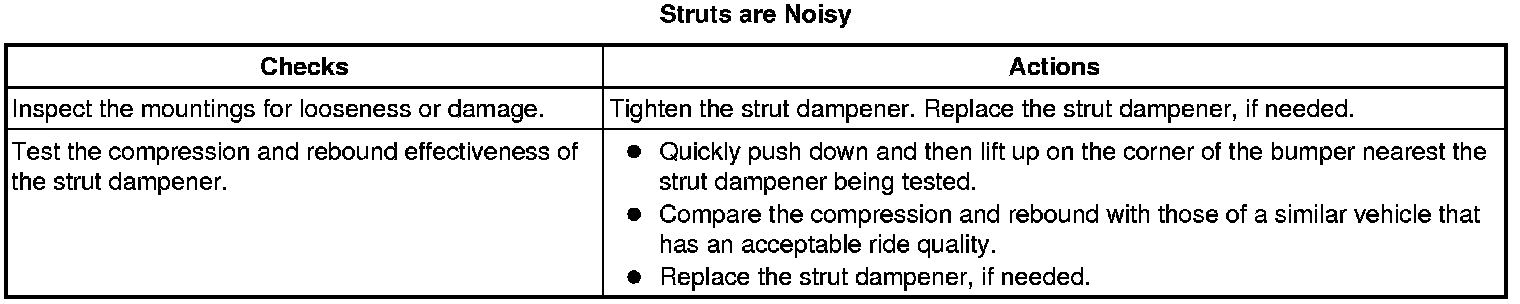

Strut Dampener

A strut dampener is basically a shock absorber. However, strut dampeners are easier to extend and retract by hand than are shock absorbers.
