Rear Suspension

Stabilizer Shaft Link Replacement

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.
2. Remove the wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

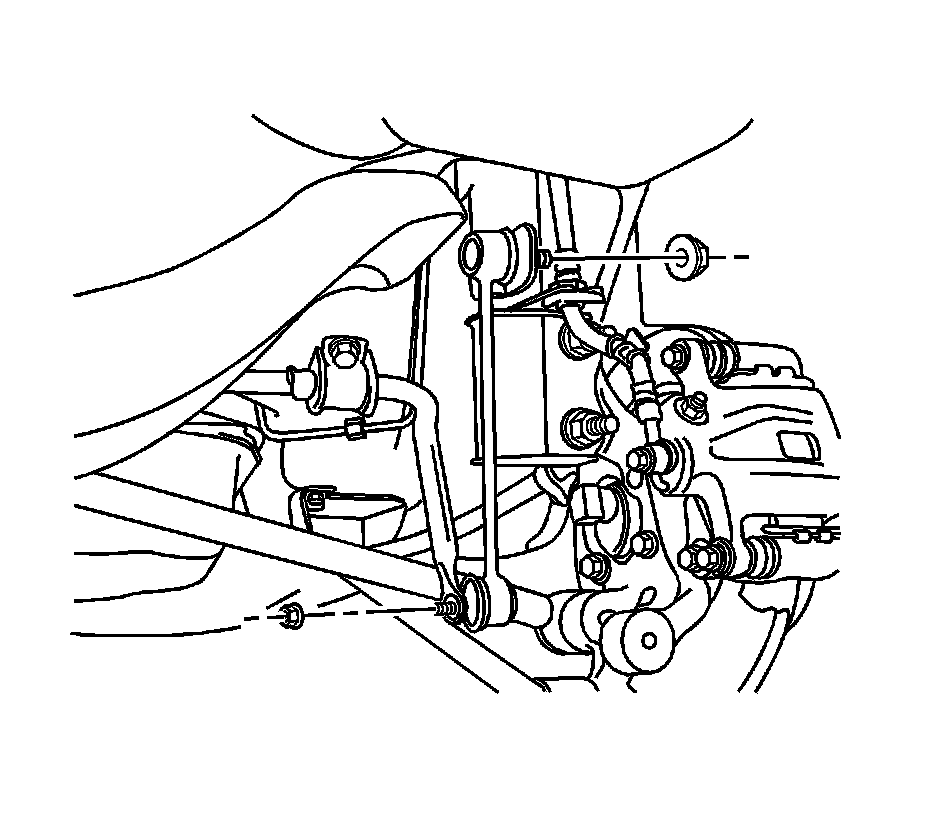

3. Remove the stabilizer shaft-to-stabilizer link nut.
4. Remove the stabilizer link-to-strut assembly nut.
5. Remove the stabilizer link.

Installation Procedure




1. Install the stabilizer link.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the stabilizer link-to-strut assembly nut.

Tighten the stabilizer link-to-strut assembly nut to 47 Nm (35 lb ft).

3. Install the stabilizer shaft-to-stabilizer link nut.

Tighten the stabilizer shaft-to-stabilizer link nut to 47 Nm (35 lb ft).

4. Install the wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.
5. Lower the vehicle.
