Tie Rod Boot: Service and Repair

Rack and Pinion Boot Replacement

Tools Required

J 22610 Keystone Clamp Pliers

Removal Procedure





Caution: Refer to Vehicle Lifting Caution Technician Safety Information.

1. Raise and suitably support the vehicle.
2. Remove the wheels. Refer to Tire and Wheel Removal and Installation Service and Repair.
3. Remove the outer tie rod. Refer to Rack and Pinion Outer Tie Rod End Replacement Service and Repair.

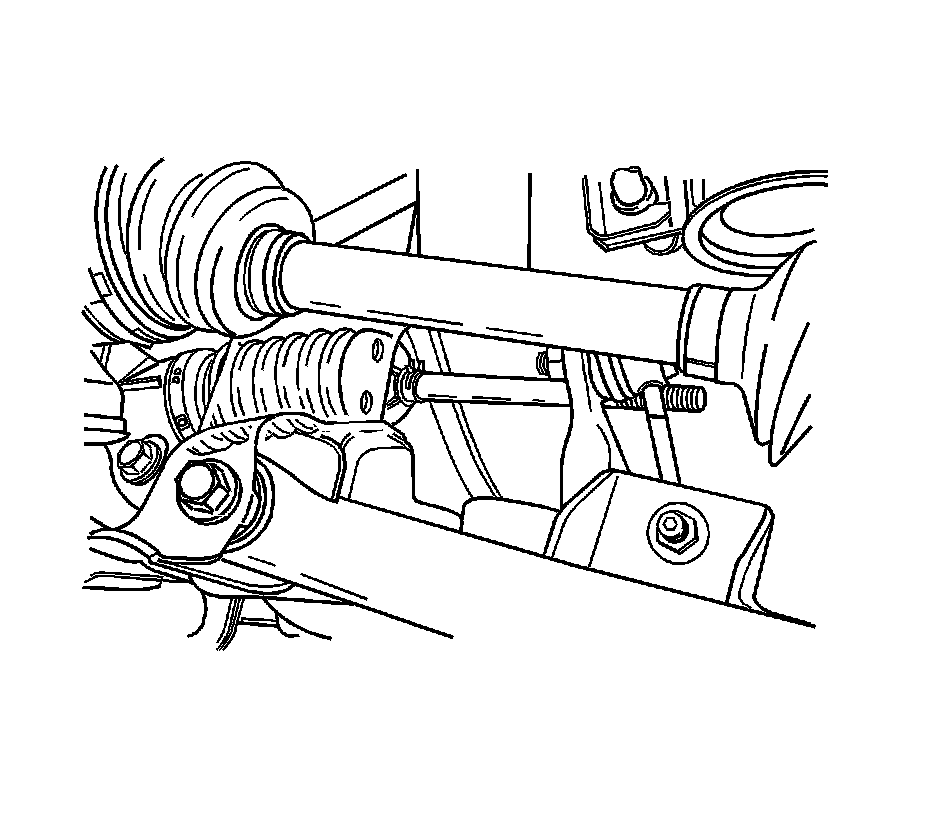

4. Remove the dust boot retaining clamps.
5. Remove the dust boot.

Installation Procedure




1. Install the dust boot.
2. Install the tie rod end dust boot retaining clamp.

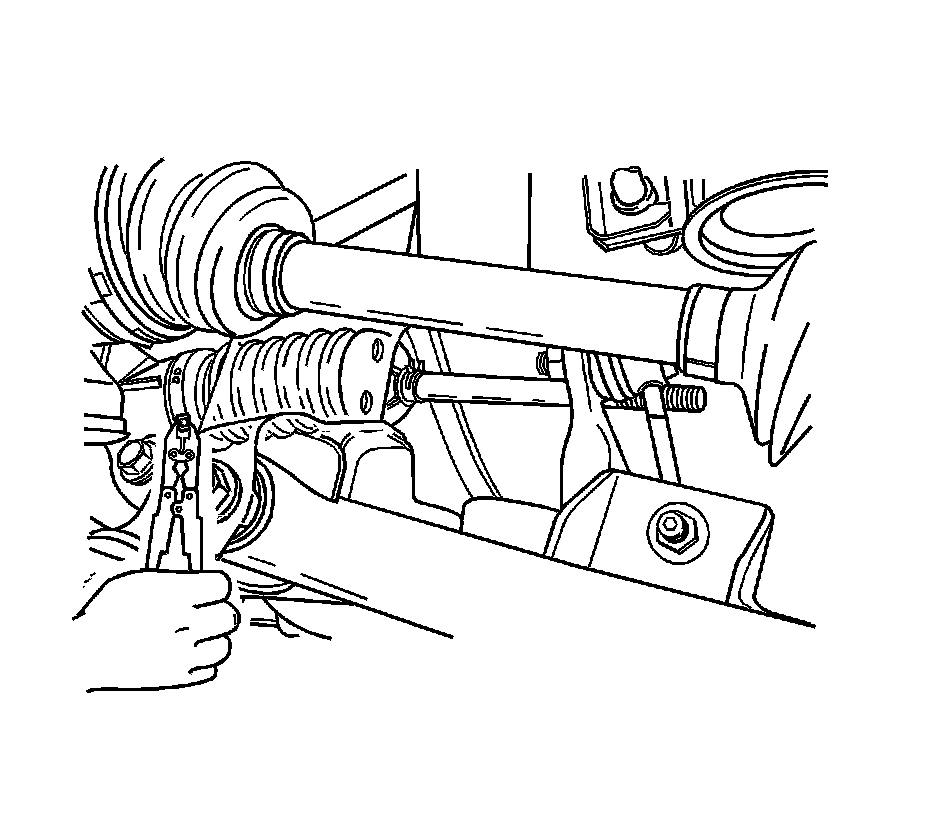

Install the cylinder end dust boot retaining clamp with J 22610 .
3. Install the outer tie rod. Refer to Rack and Pinion Outer Tie Rod End Replacement Service and Repair.
4. Install the wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.
5. Lower the vehicle.
