Solar Sensor: Service and Repair

Sun Load Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

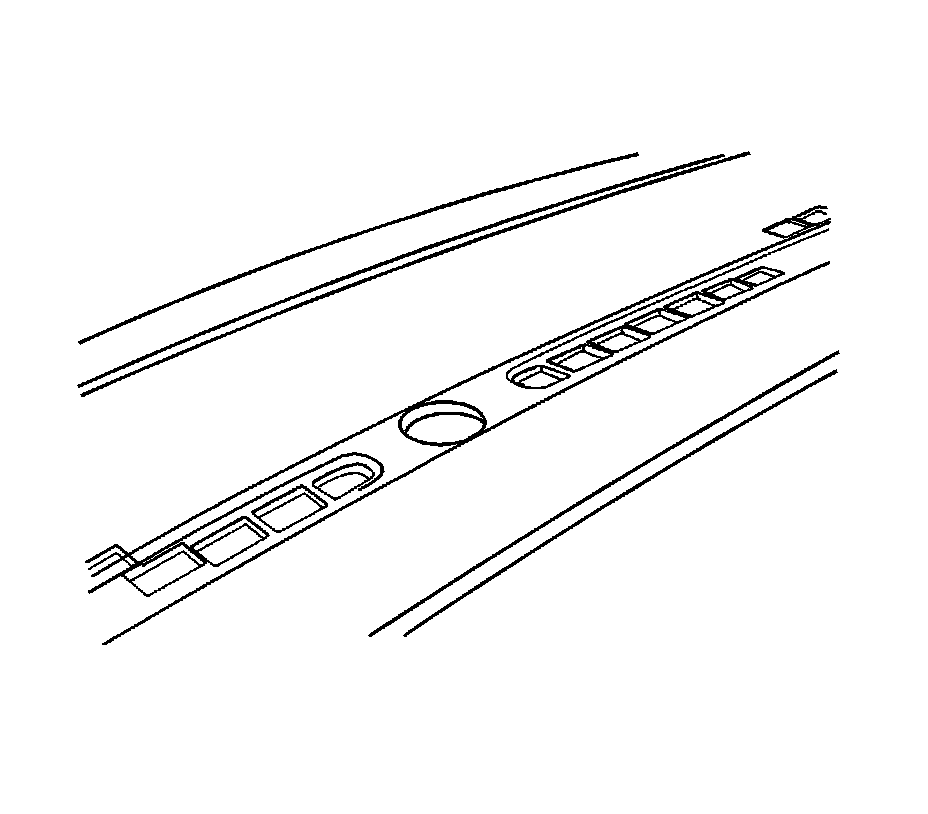

2. Gently pry up on the sun sensor to remove it.
3. Secure the electrical connector to prevent it from falling beneath the dash.

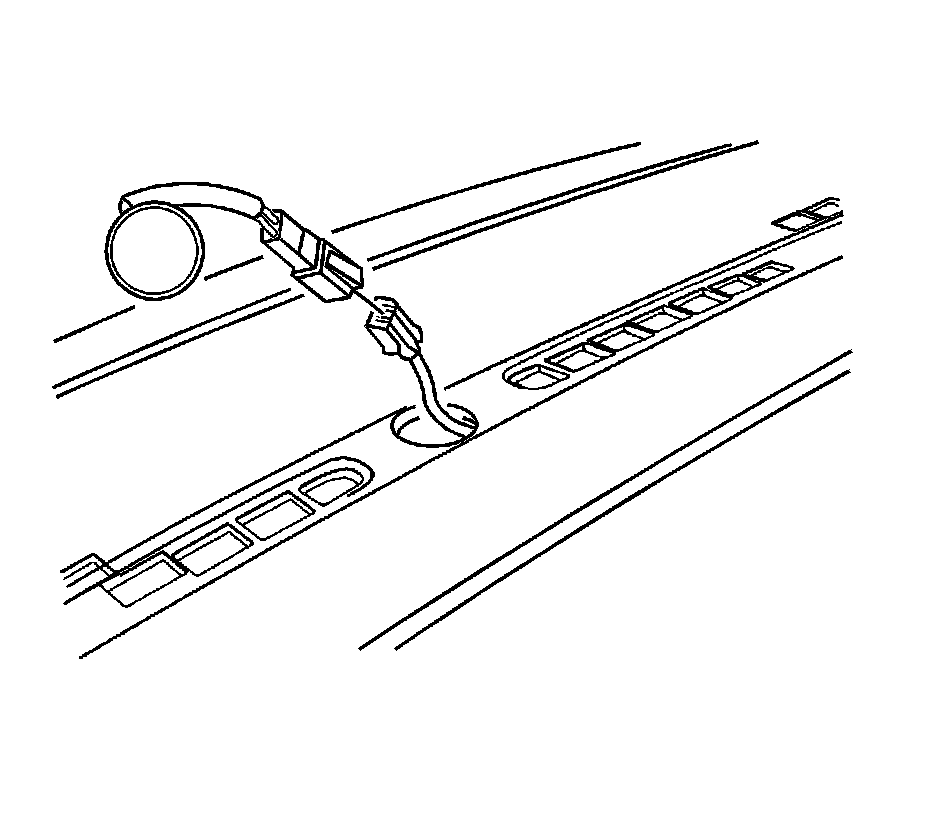

4. Disconnect the electrical connector and remove the sun sensor.

Installation Procedure




1. Connect the electrical connector.
2. Insert and press the sun sensor into position in the dash.
3. Connect the negative battery cable.
