Wheel Speed Sensor Jumper Harness Replacement - Front

Wheel Speed Sensor Jumper Harness Replacement - Front

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

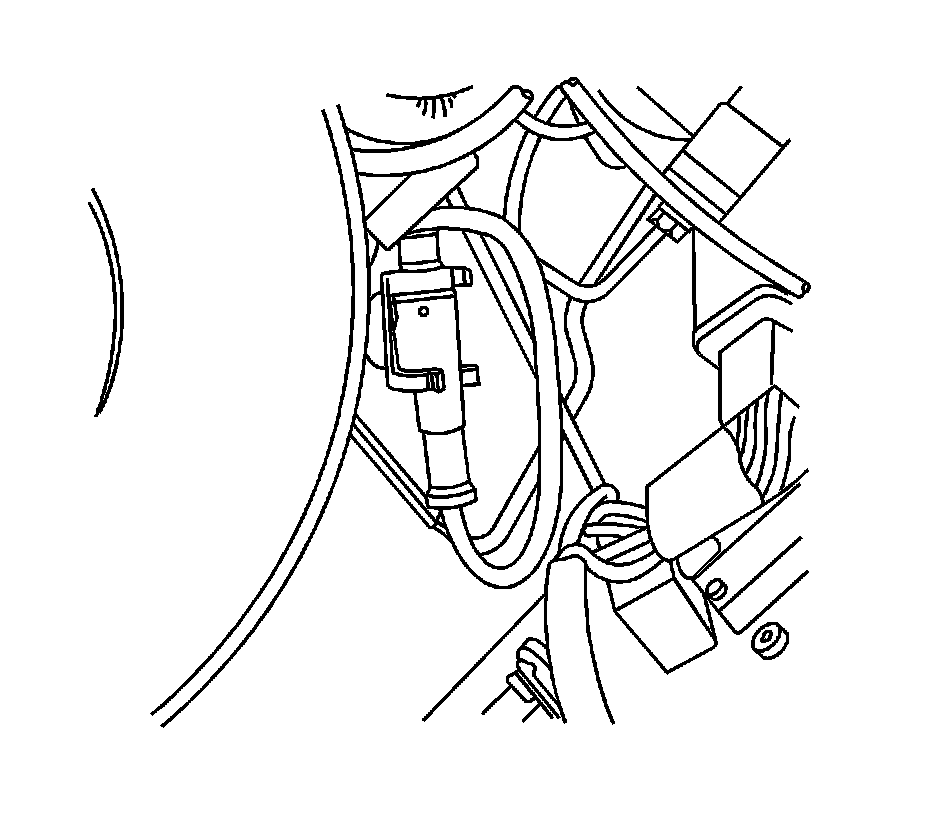

2. Disconnect connector from the electronic brake control module (EBCM).

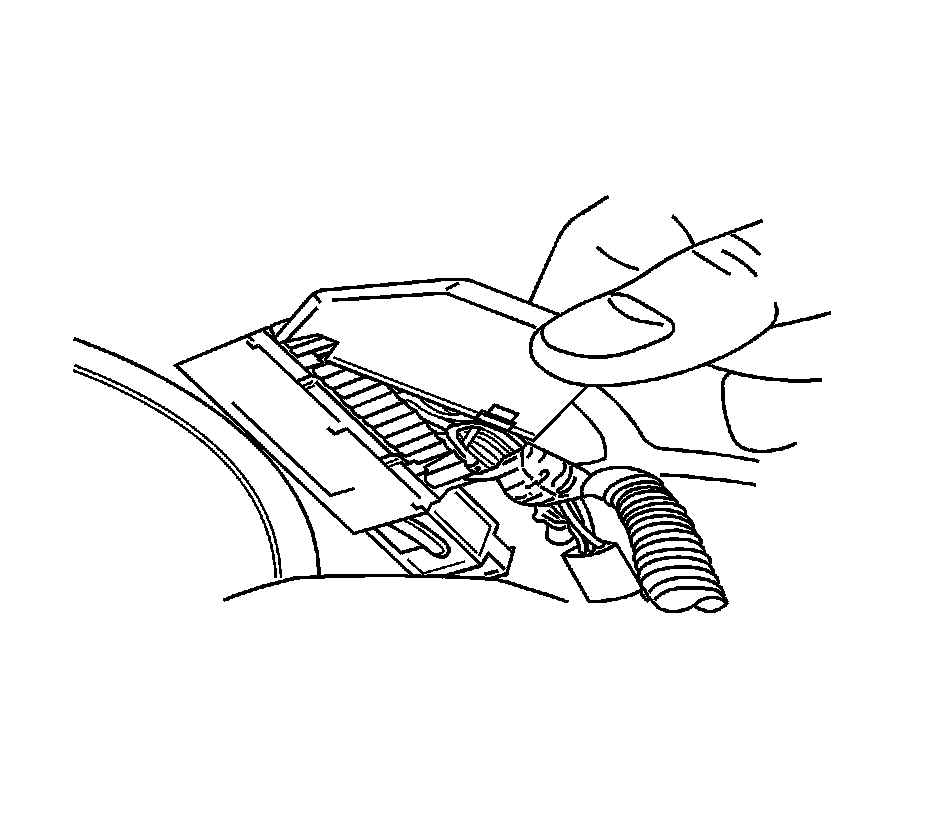

3. Remove the appropriate terminals from connector:

* Right-side-terminals 4, WH, and 5, GY
* Left-side-terminals 6, BN, and 7, L-BU




4. Both speed sensor harnesses break out of the antilock brake system (ABS) wiring harness just beyond the ABS connector. The right-side speed sensor harness crosses the top of the fire wall to the right-side fender area. The left-side speed sensor harness goes directly to the left-side fender area.
5. Free the speed sensor harness from the wiring harness.

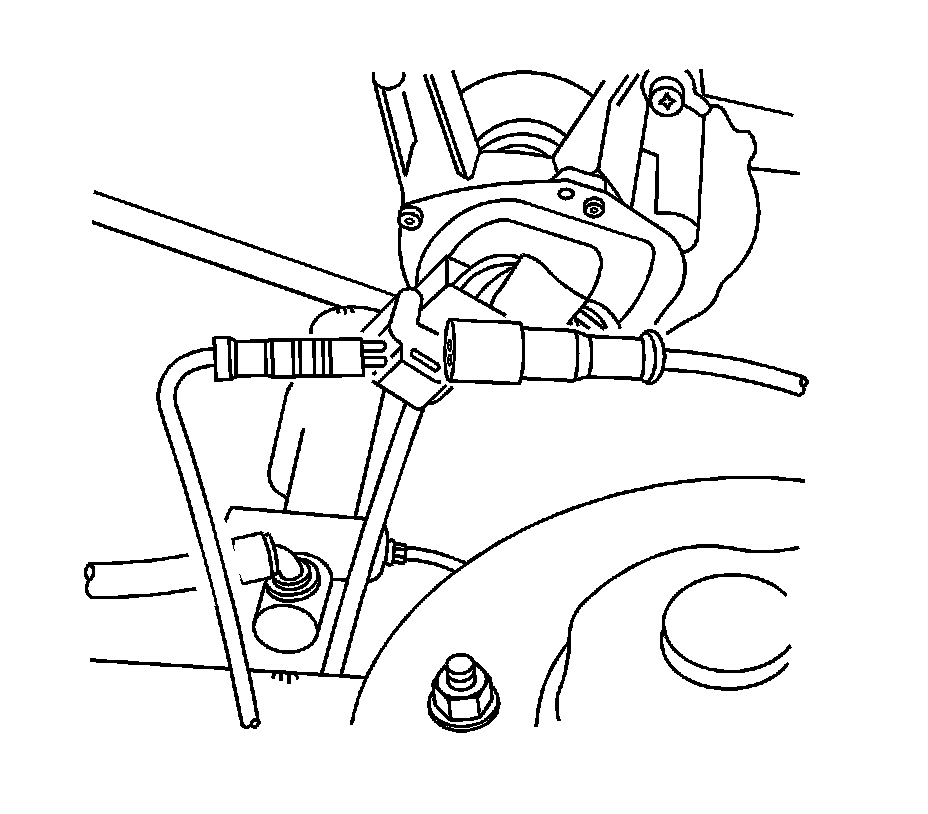

6. Remove the front wheel speed sensor electrical connector from the retaining clamps and disconnect the harness from the sensor connector.

Installation Procedure




1. Install the front wheel speed sensor jumper harness.
2. Connect the front wheel speed sensor electrical connector and secure it into the clamps.




3. Replace the jumper harness into the wiring harness.
4. Insert the terminals into connector as they had been removed:

* Right-side-terminals 4, WH, and 5, GY
* Left-side-terminals 6, BN, and 7, L-BU

5. Connect EBCM connector.
6. Connect the negative battery cable.
