Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

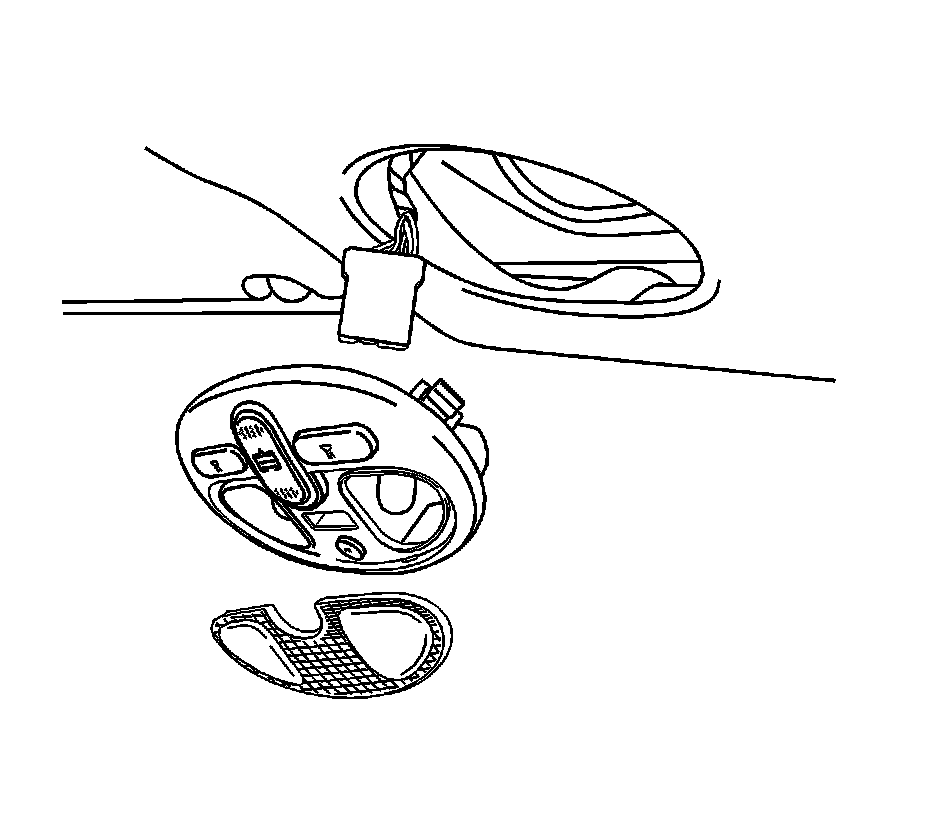

2. Pry off the interior courtesy lamp lens.
3. Remove the screws and the switch.
4. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the sunroof control switch with the screws.

Tighten the power sunroof control switch screws to 2 Nm (18 lb in).

3. Install the interior courtesy lamp lens.
4. Connect the negative battery cable.
