Steering Mounted Controls Assembly: Service and Repair

Steering Wheel Control Switch Assembly Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

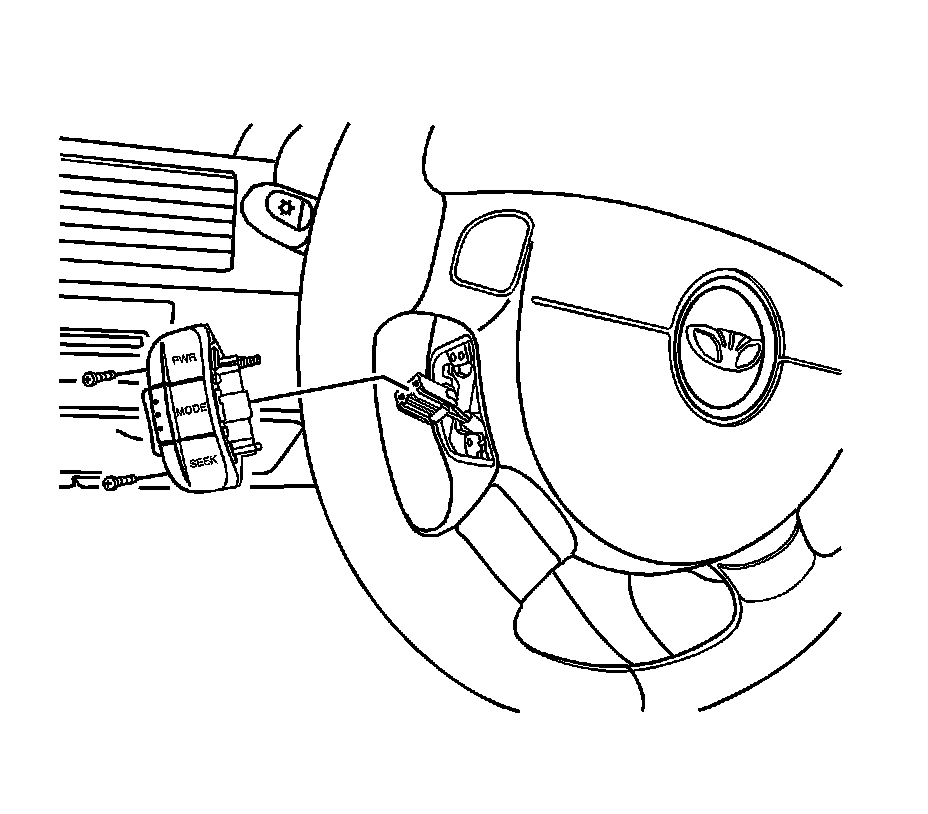

2. Remove the screws and the audio remote controller.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the audio remote controller with the screws.
2. Connect the negative battery cable.
