Seat Belt Buckle: Service and Repair

Front Seat Belt Buckle Replacement

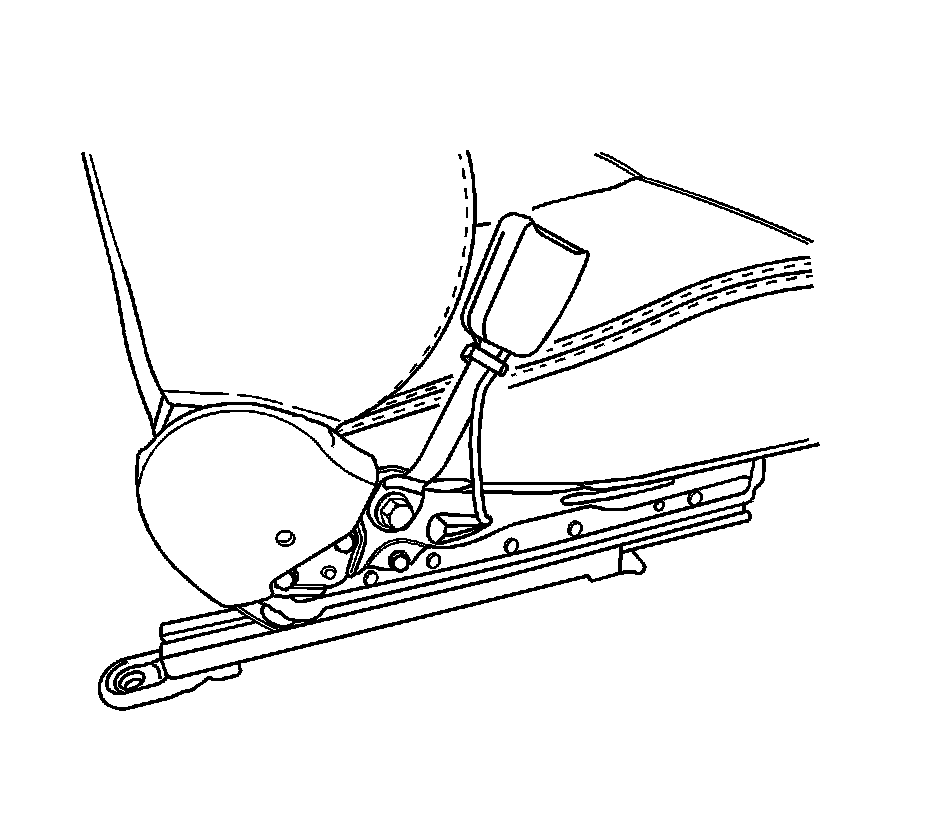

Removal Procedure

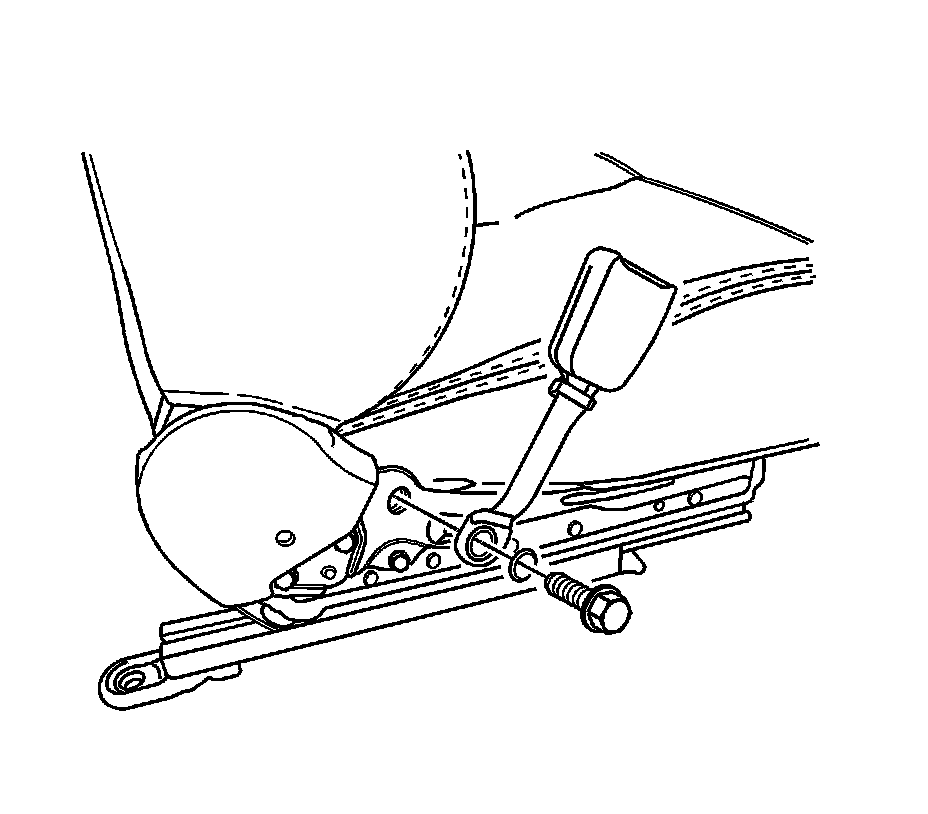

1. Remove the front seat belt bolt and washer.
2. For driver seat belt buckle, remove the electrical connector.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the front seat belt bolt and washer.

Tighten the front seat belt bolt to 42 Nm (31 lb ft).

2. For driver seat belt buckle, connect the electrical connector.
