Child Restraint Tether Anchor Replacement (Five Door)




Child Restraint Tether Anchor Replacement (Five Door)

Removal Procedure

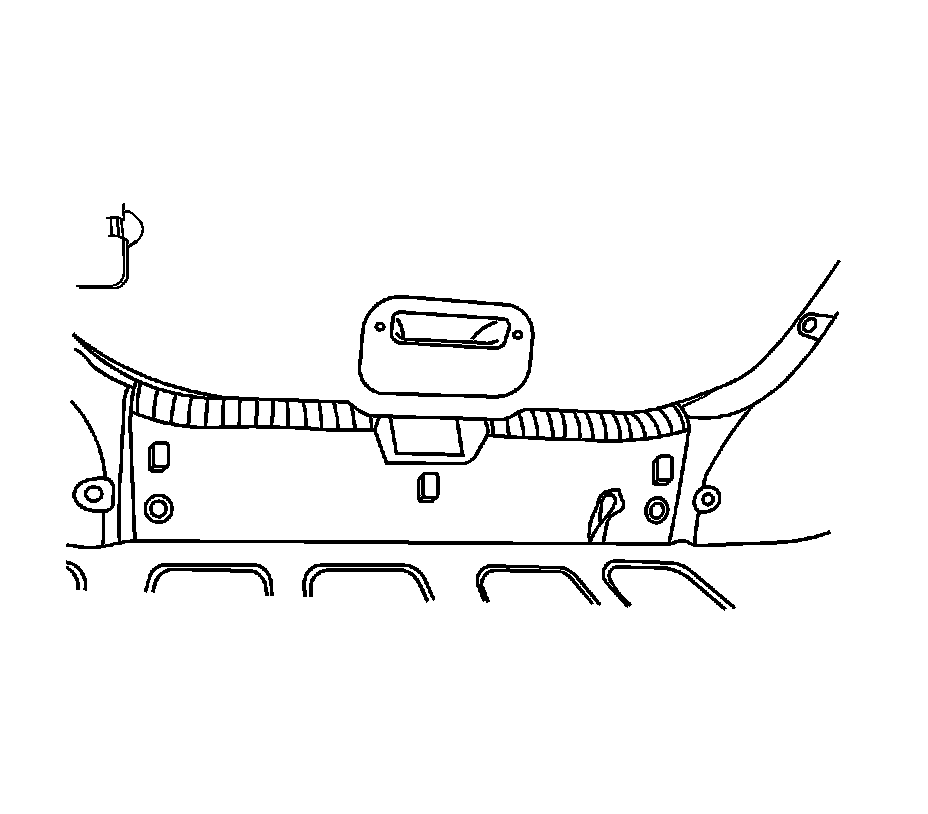

1. Remove child seat anchorage cover.
2. Remove bolt and the child seat anchorage.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the child seat anchorage with the bolt.

Tighten the child seat anchorage bolt to 10 Nm (89 lb in).

2. Install the child seat anchorage cover.
