Head Rest: Service and Repair

Head Restraint Replacement

Removal Procedure

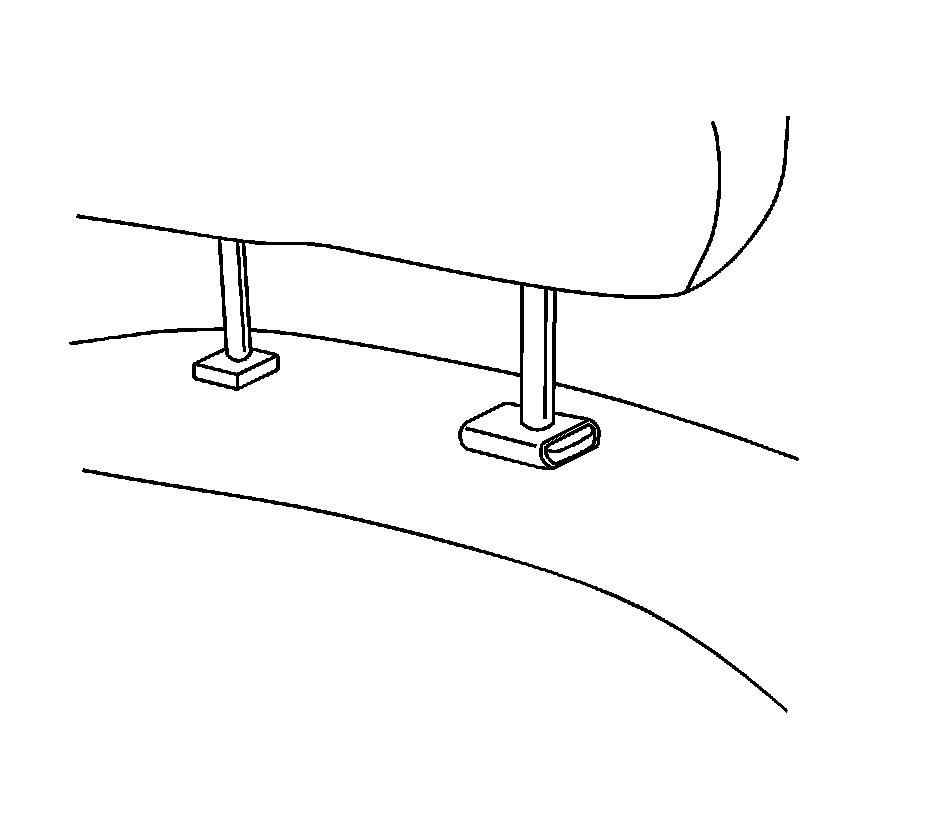

1. Press in the head restraint adjust button and remove the head restraint from the seatback.

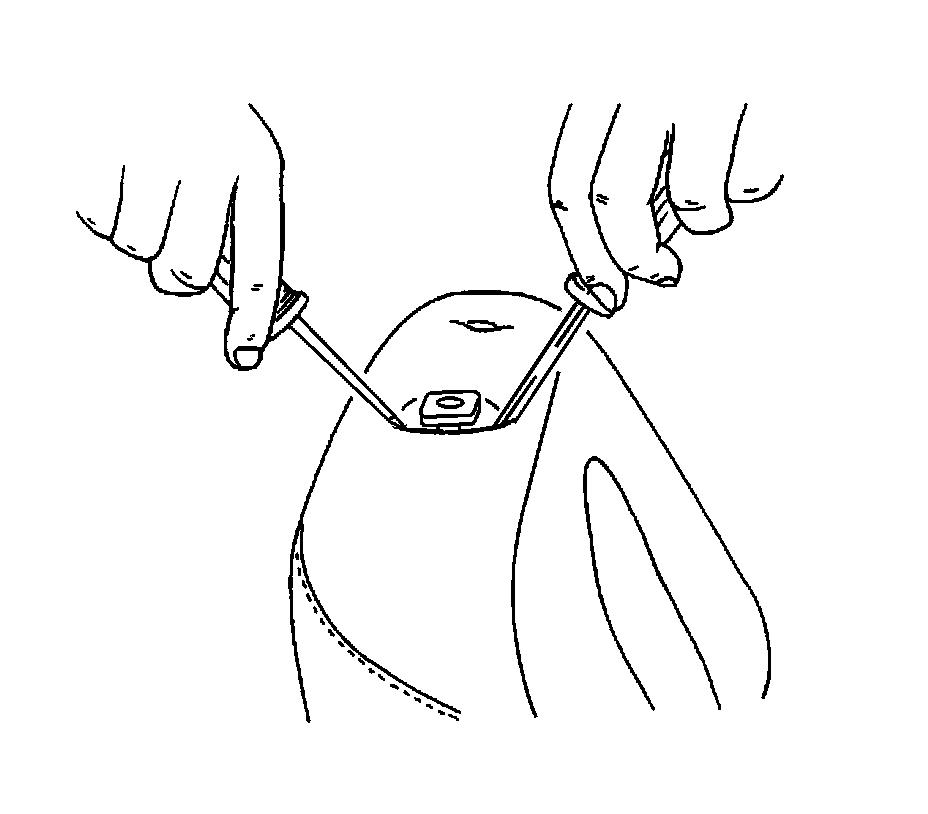

2. Insert 2 flat head screwdrivers down the front and back side of the guide sleeves.
3. With the screwdrivers, press in the retaining latches and remove the guide sleeves.

Installation Procedure




1. Install the guide sleeves into the seatback and press them down to engage the guide sleeve retaining latches.

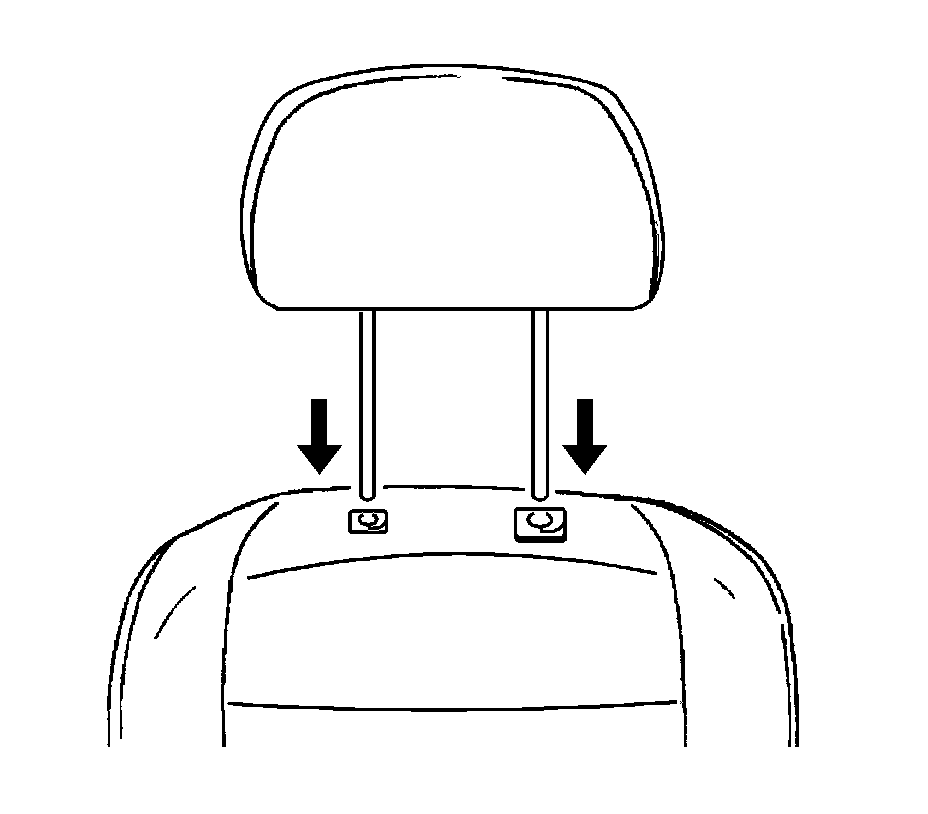

2. Install the head restraint into the guide sleeves.
