SIR Schematics
SIR Schematics
SIR Schematics

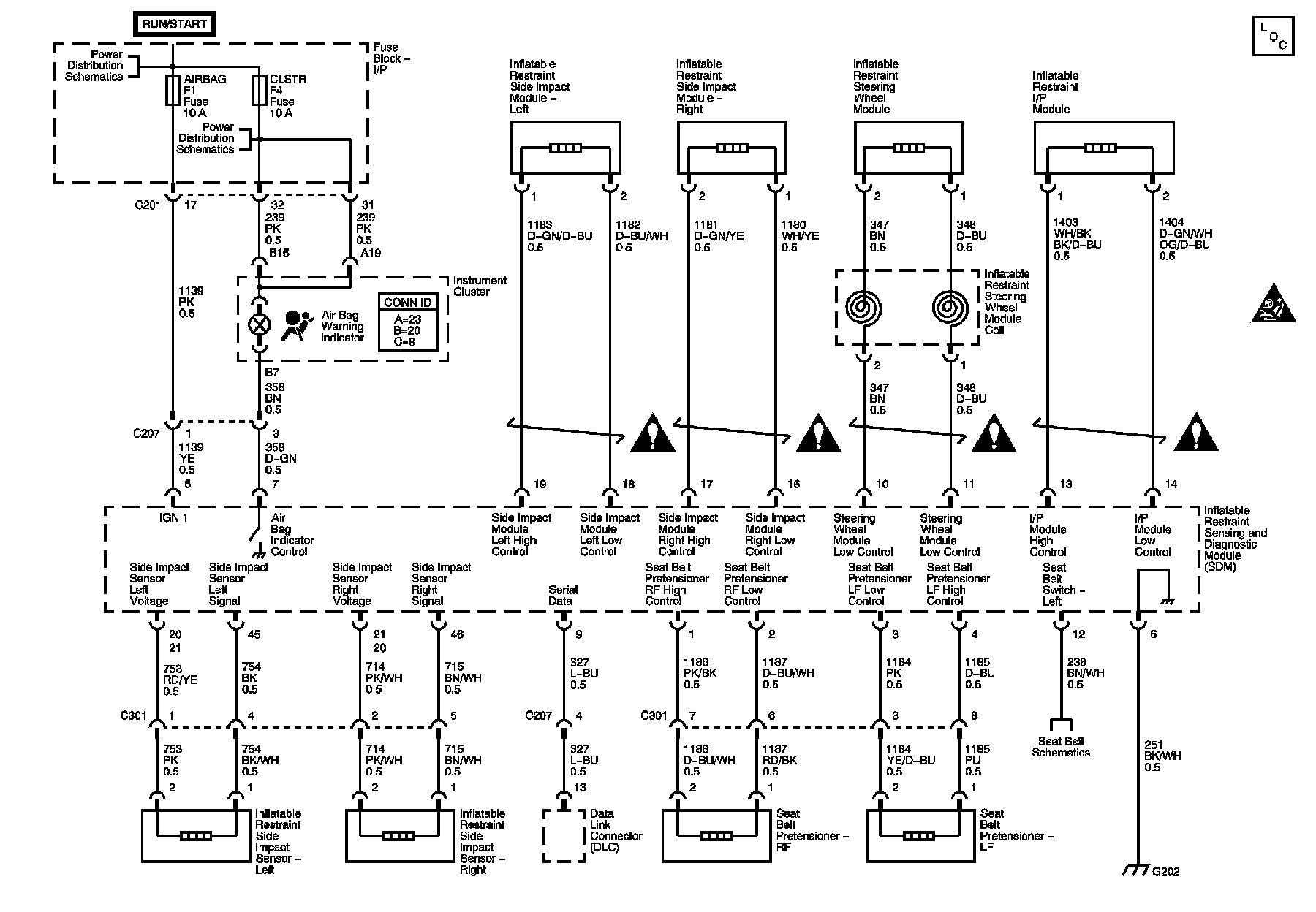

Dual Stage SIR 1 of 2
Dual Stage SIR 2 of 2
Single Stage SIR System
