Exploded Views

Automatic Transmission Electronic Component Views

Electronic Component Views

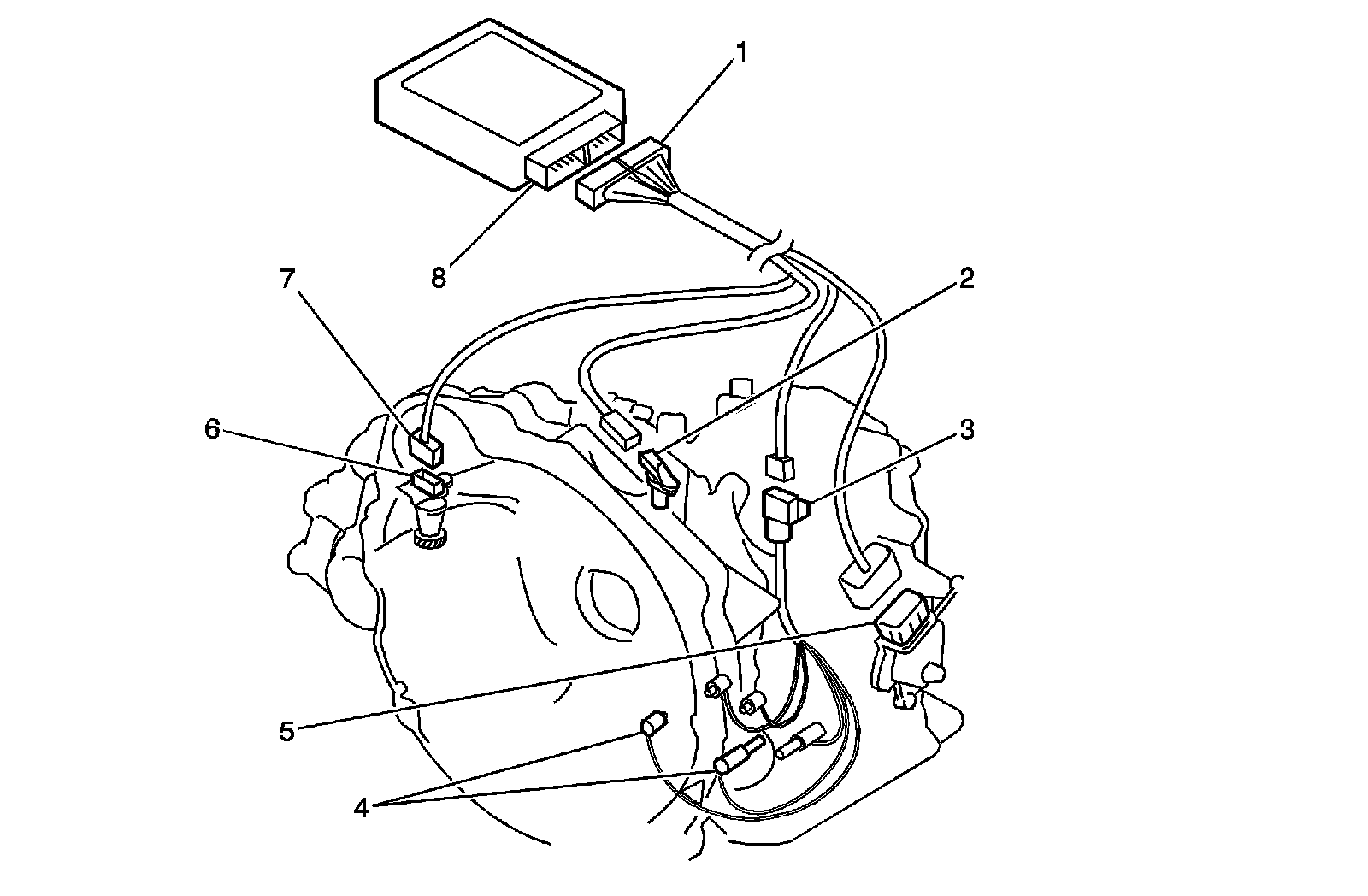

1 - Transmission Control Module (TCM) Harness Connector
2 - Input Speed Sensor (ISS) Connector
3 - Transaxle Harness
4 - Solenoid Connectors
5 - Park/Neutral Position (PNP) Switch
6 - Output Shaft Speed (OSS) Sensor (Vehicle Speed Sensor (VSS))
7 - Output Shaft Speed (OSS) Connector
8 - TCM

Transmission Control Module (TCM)

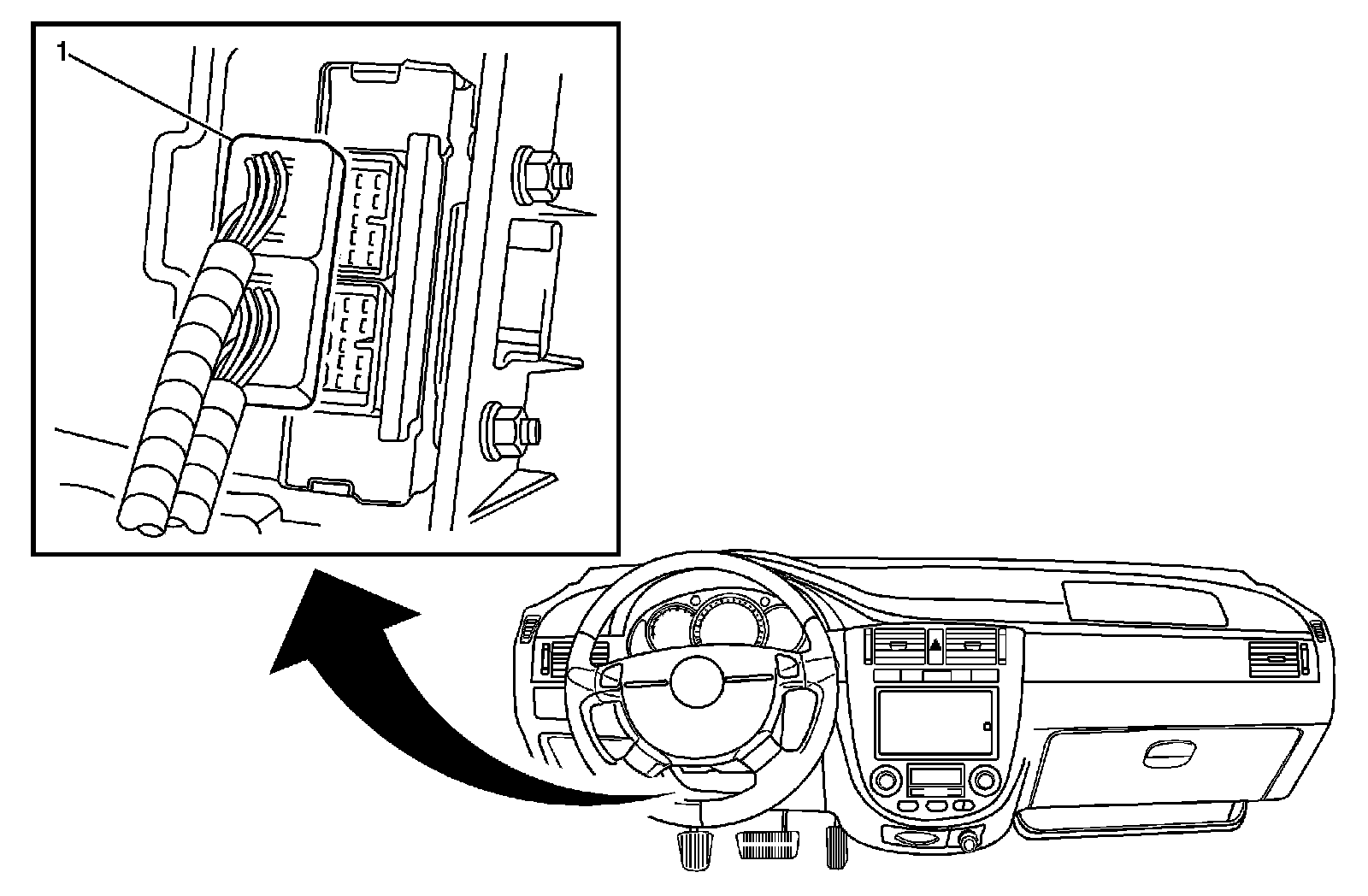

1 - Transmission Control Module (TCM) Aisin

Hold Mode Switch




1 - Shift Program Switch (Hold Mode)
