Aisin 81-40LE - Automatic Transaxle




Automatic Transmission Controls Schematics

Module Power, Ground, Malfunction Indicator Lamp (MIL), Hold Lamp and Serial Data

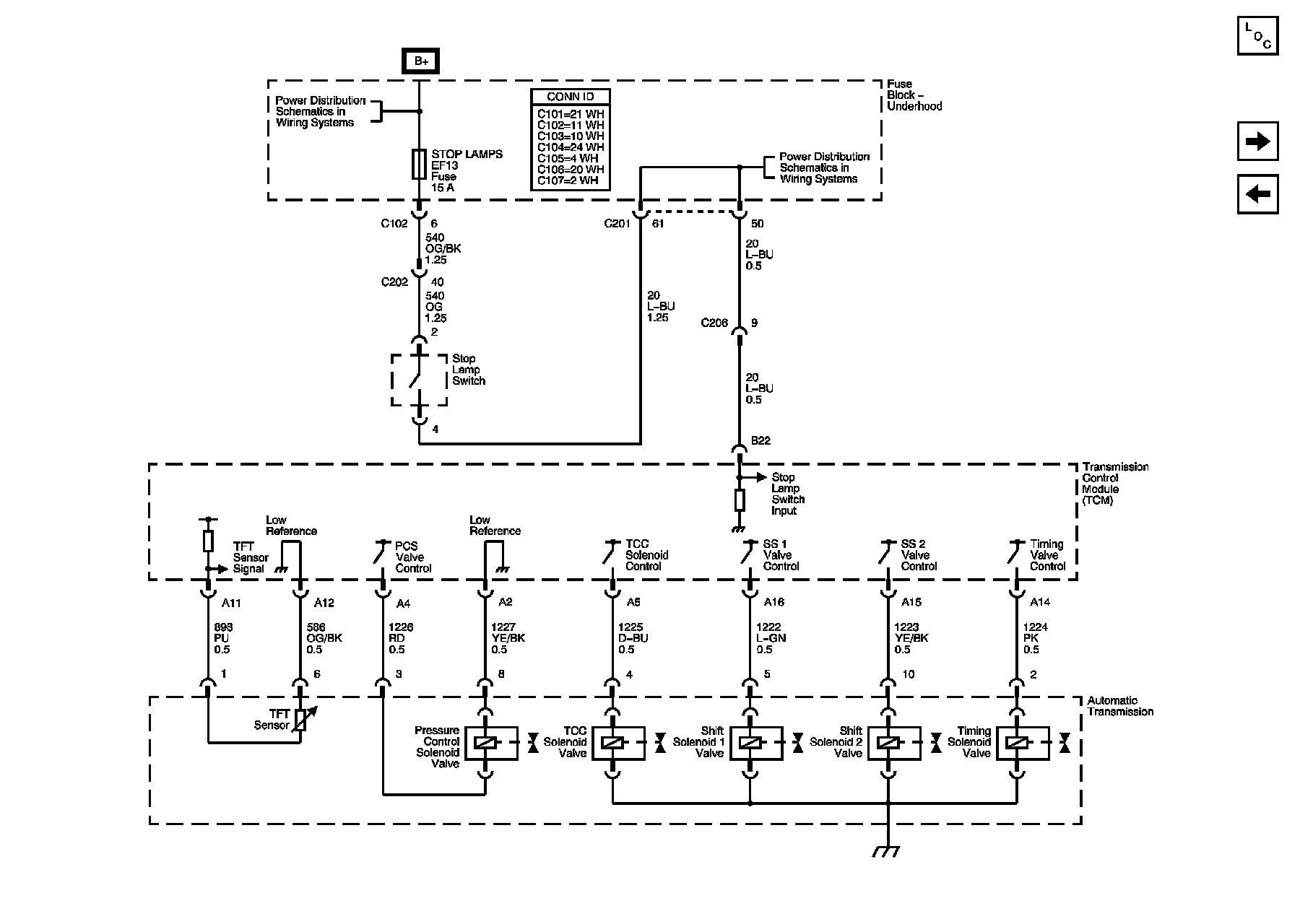

Torque Converter Clutch (TCC) and Transmission Solenoids

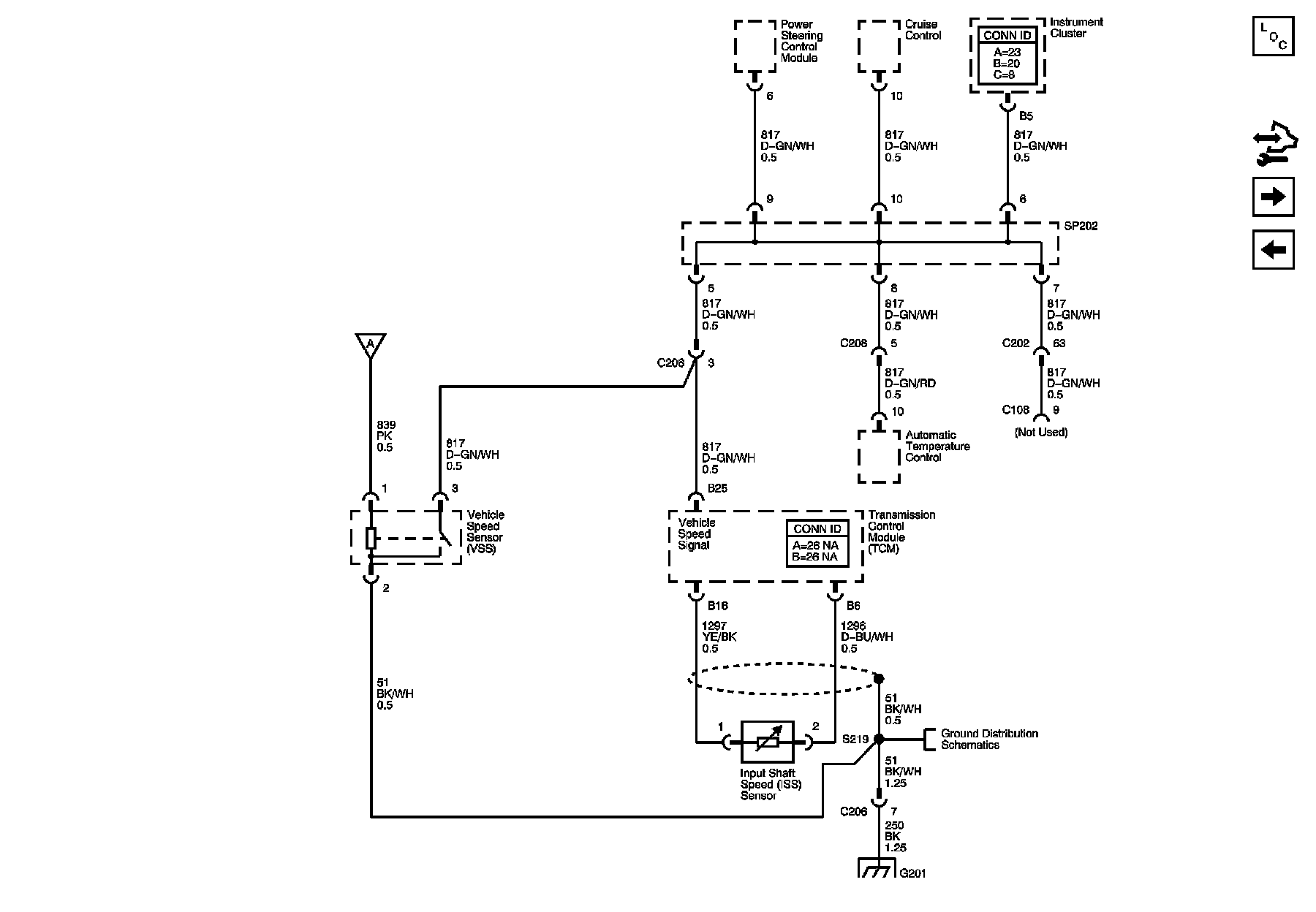

Vehicle Speed and Input Speed Sensors





Park/Neutral Position (PNP) Switch
