Evaporative Emission Control Canister: Service and Repair

Evaporative Emission Canister Replacement

Removal Procedure





Caution: Fuel Vapors can collect while servicing fuel system parts in enclosed areas such as a trunk. To reduce the risk of fire and increased exposure to vapors:

* Use forced air ventilation such as a fan set outside of the trunk.
* Plug or cap any fuel system openings in order to reduce fuel vapor formation.
* Clean up any spilled fuel immediately.
* Avoid sparks and any source of ignition.
* Use signs to alert others in the work area that fuel system work is in process.

Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the fuel tank. Refer to Fuel Tank Replacement Removal and Replacement.

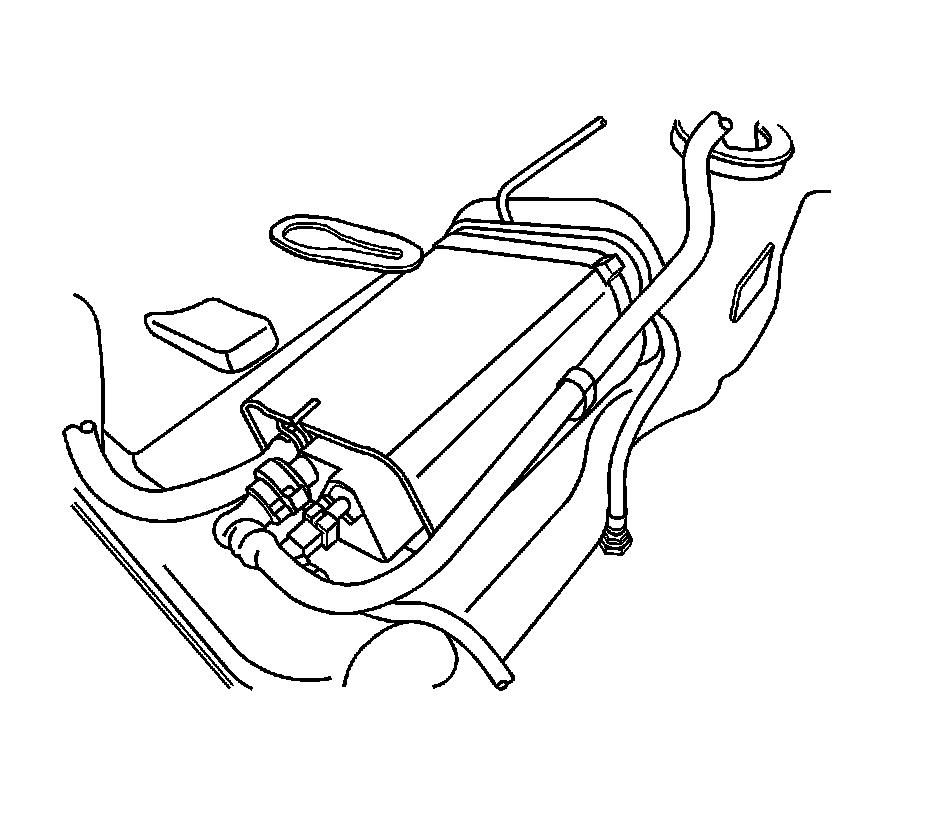

3. Disconnect the canister fuel vapor hoses.
4. Remove the tie from the canister.
5. Remove the canister.

Installation Procedure




1. Install the new tie from the canister.
2. Connect the canister fuel vapor hoses.
3. Install the fuel tank. Refer to Fuel Tank Replacement Removal and Replacement.
4. Connect the negative battery cable.
