Wiper/Washer - Back Window Washer Inop/Electrical Issues: Overview

# 08-08-43-001: Rear Windshield Washer Inoperative/Washer Fluid Leak into Left Rear Passenger Compartment, Various Electrical Concerns (Inspect for Cracked Rear Washer Hose,Washer Fluid Intrusion/Replace Washer Hose) - (Jul 1, 2011)

Subject: Rear Windshield Washer Inoperative, Washer Fluid Leak into Left Rear Passenger Compartment, Various Electrical Conditions (Inspect for Cracked Rear Washer Hose, Washer Fluid Intrusion and Replace Washer Hose)

Models:
2004-2007 Chevrolet Optra (Hatchback and Station Wagon)

Condition
Some customers may comment that the rear windshield washer is inoperative and washer fluid is leaking in to the left rear passenger compartment. In rare cases, the following possible electrical conditions may occur.

^ Illumination of instrument panel (IP) check lamps.

^ IPC lights dimming.

^ Rear wiper inoperative.

^ Rear wiper won't turn off.

^ Rear wiper starts by itself.

^ Engine won't turn off after ignition key removed.

^ IP backlighting fuse blows.

^ Brake lamp and backup lamps operate together.

^ Door lock/unlock inoperative.

^ Rear fog lamp and brake lamp operate together.

^ "Tailgate Open" IP telltale malfunction.

^ Rear defroster malfunction.

Cause

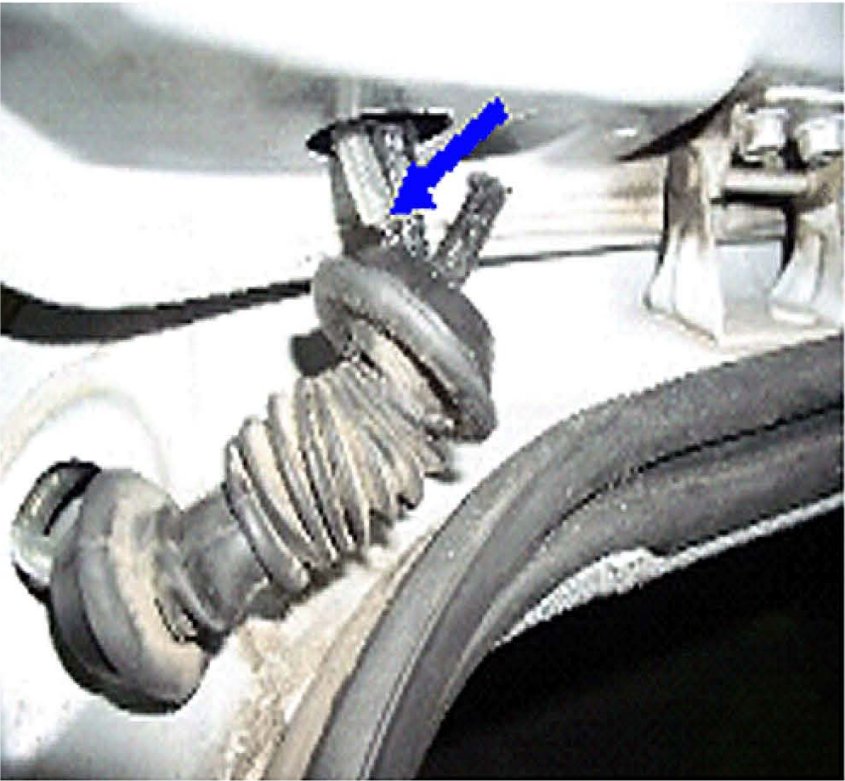

Washer Hose Crack Location inside Grommet

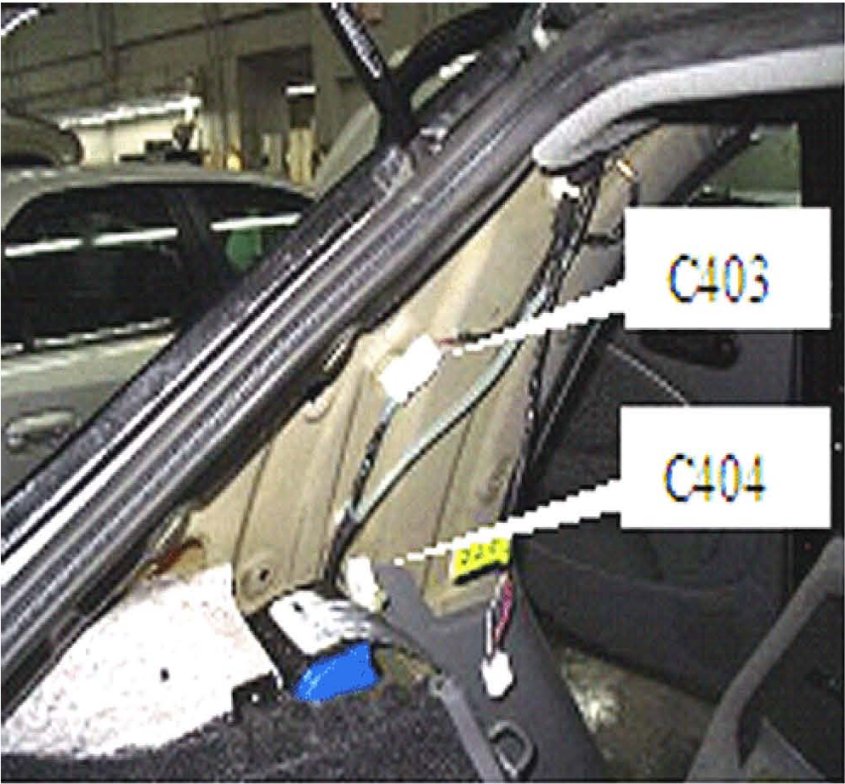

Location of Connectors C403 and C404

The rear washer hose inside the tailgate grommet may be cracked or broken, resulting in fluid leakage into the inside of the left rear "C" pillar. As a result, washer fluid may penetrate into electrical connectors C403 or C404 mounted inside the left rear interior trim "C" pillar.

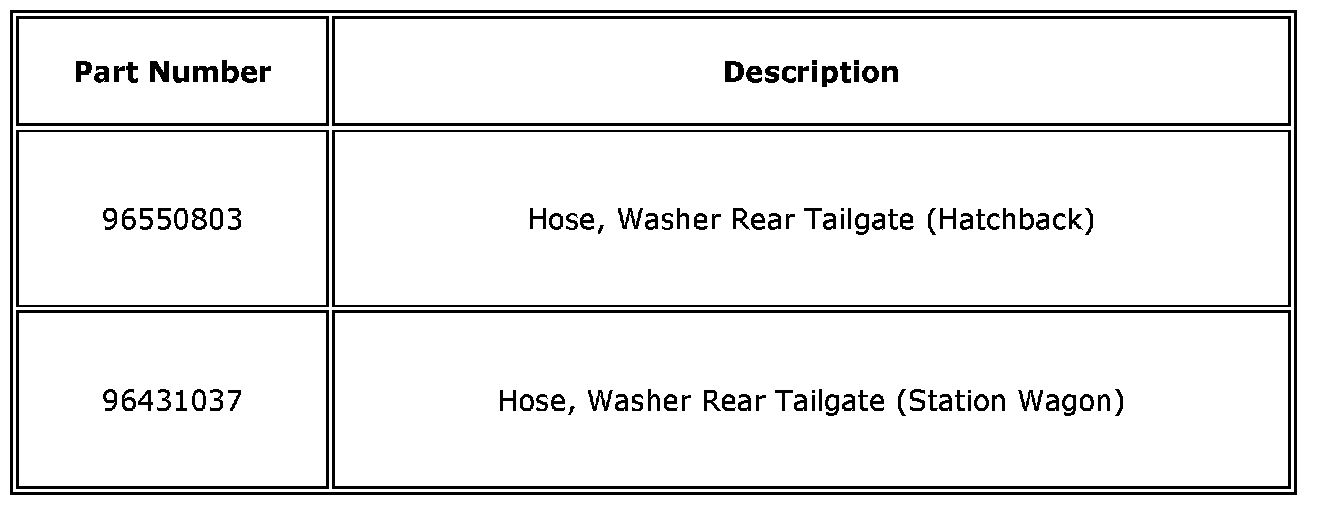

Parts Information

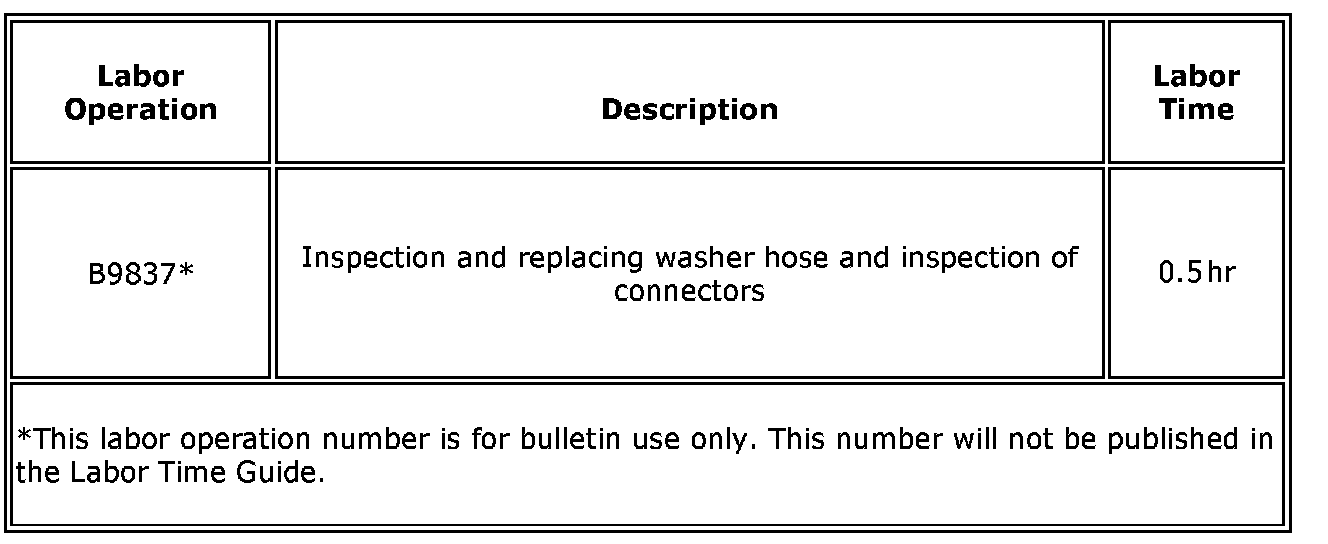

Warranty Information
For vehicles repaired under warranty, use the above chart.
