Cabin Air Filter / Purifier: Service and Repair

Passenger Compartment Air Filter Replacement

Removal Procedure

Left-Hand Drive Shown, Right-Hand Drive Similar




1. Remove the glove box. Refer to Instrument Panel Storage Compartment Replacement Instrument Panel Storage Compartment Replacement.

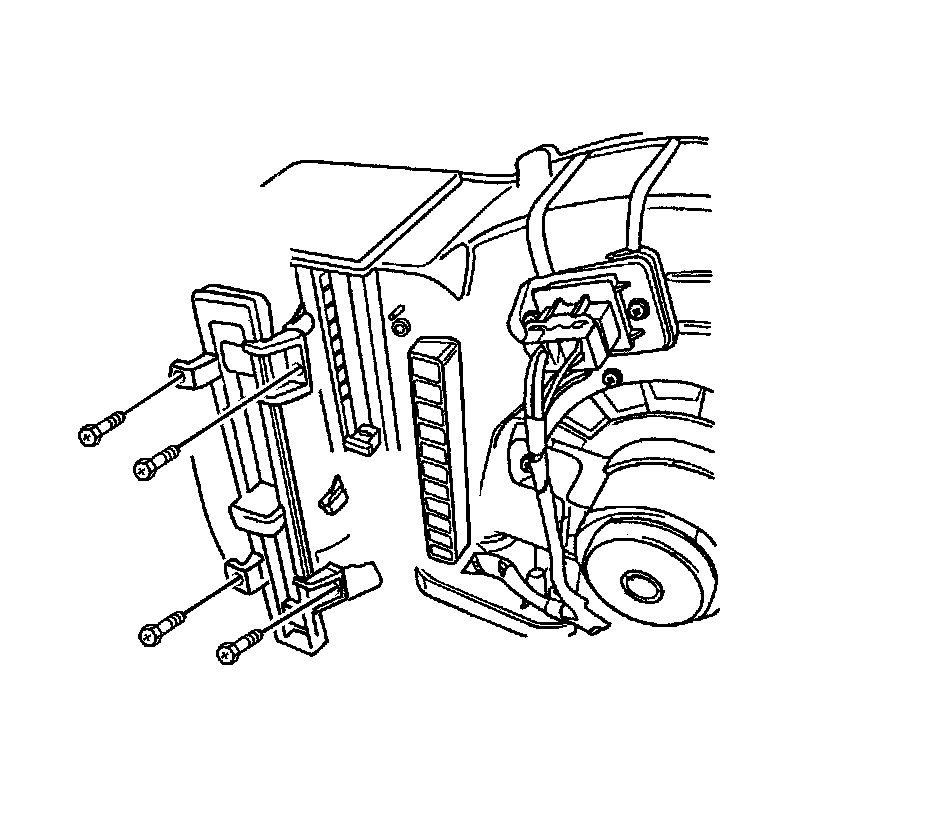

2. Remove the screws and the air filter.

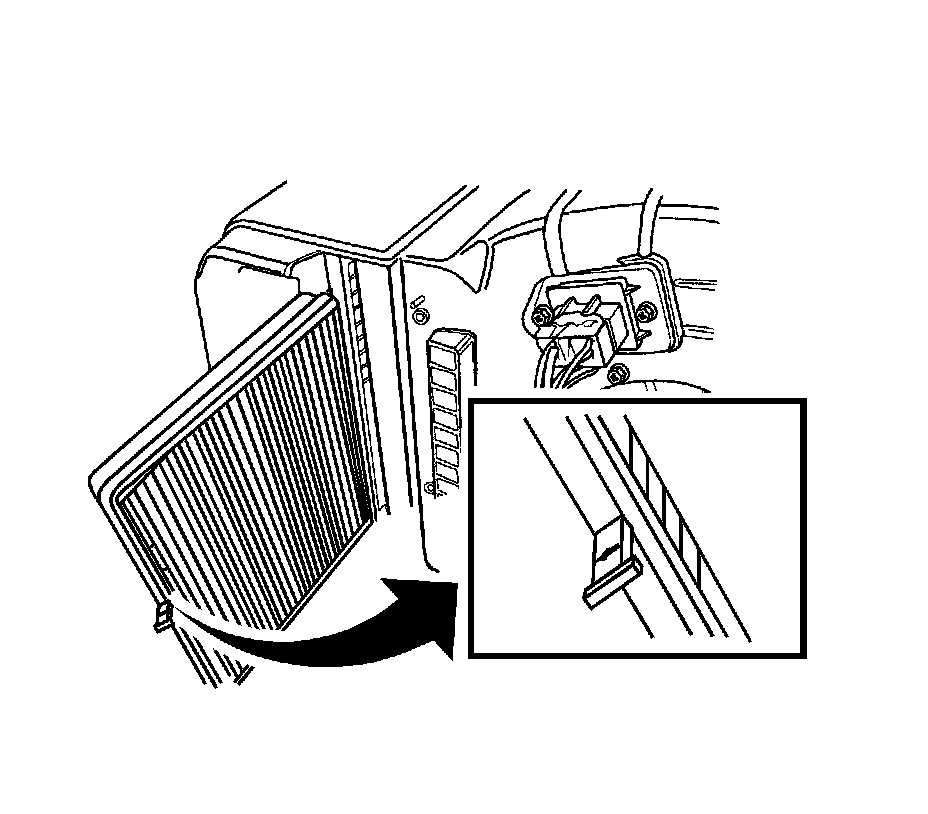

3. Remove the air filter.

Installation Procedure




1. Install the air filter.
2. Install the air filter cover and the screws.
3. Install the glove box. Refer to Instrument Panel Storage Compartment Replacement Instrument Panel Storage Compartment Replacement.
