Turn Signal Bulb: Service and Repair

Park/Turn Signal Lamp Bulb Replacement

Removal Procedure





Notice: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the headlamp. Refer to Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon)Headlamp Replacement (Hatchback) Headlamp Replacement (Hatchback).

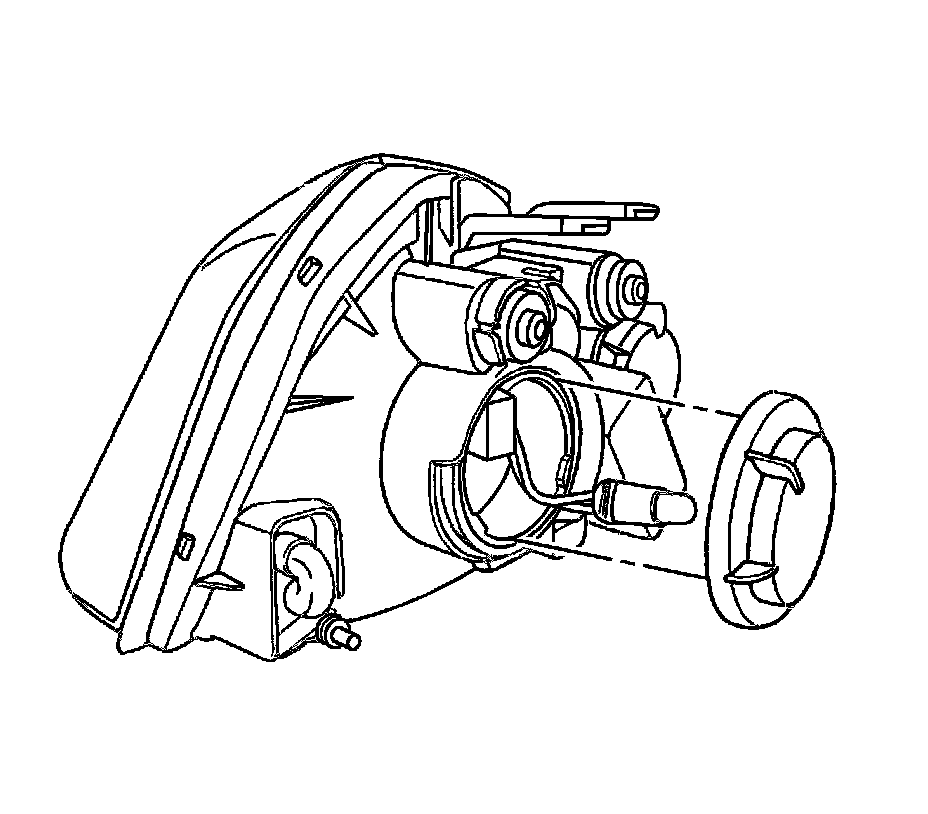

3. Remove the parking lamp bulb.

Installation Procedure




1. Install the parking lamp bulb.
2. Install the headlamp. Refer to Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon)Headlamp Replacement (Hatchback) Headlamp Replacement (Hatchback).
3. Connect the negative battery cable.
