Tail Lamp Replacement (Wagon)

Tail Lamp Replacement (Wagon)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

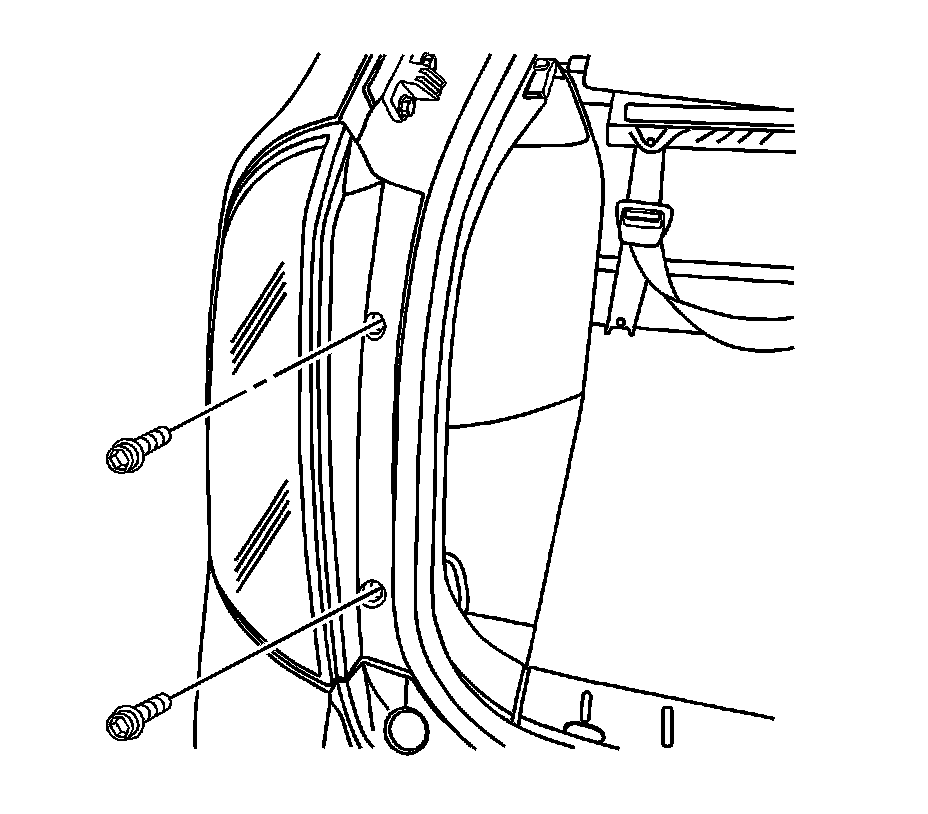

2. Remove the tail lamp assembly screws.
3. Remove the tail lamp assembly.
4. Remove the bulbs.

Installation Procedure




1. Install the bulbs.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the lamp assembly with the screws.

Tighten the tail lamp assembly screws to 3 Nm (27 lb in).

3. Connect the negative battery cable.
