Tail Lamp Replacement (Four Door)

Tail Lamp Replacement (Four Door)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

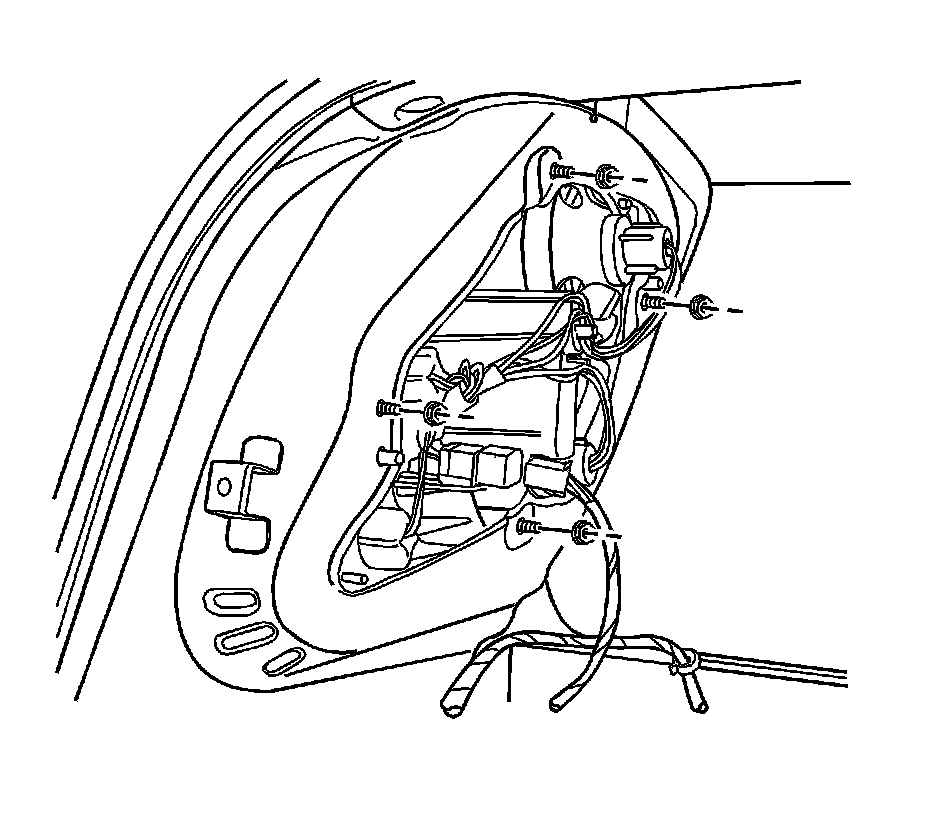

2. Remove the nuts and the lamp assembly.
3. Remove the bulbs.

Installation Procedure




1. Install the bulbs.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the lamp assembly with the nuts.

Tighten the tail lamp assembly nuts to 4 Nm (35 lb in).

3. Connect the negative battery cable.
