Marker Lamp: Service and Repair

Side Marker Lamp Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the headlamp. Refer to Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon)Headlamp Replacement (Hatchback) Headlamp Replacement (Hatchback).

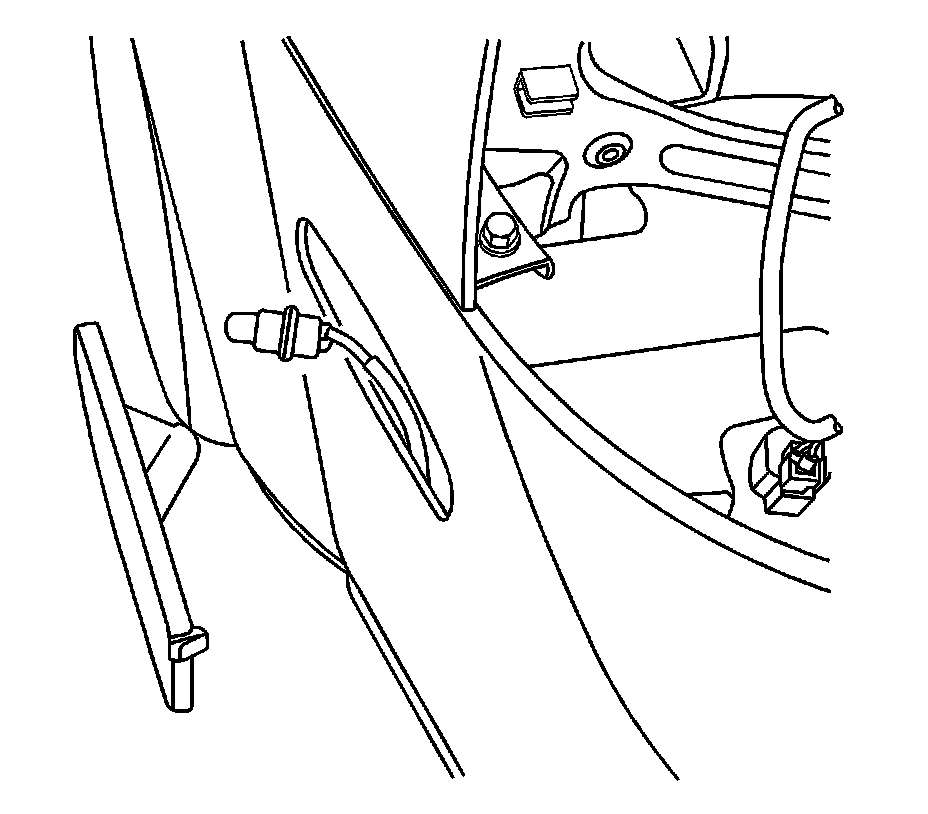

3. Disconnect the electrical connector.
4. Remove the side marker lamp.

Installation Procedure




1. Connect the electrical connector.
2. Install the side marker lamp.
3. Install the headlamp. Refer to Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon)Headlamp Replacement (Hatchback) Headlamp Replacement (Hatchback).
4. Connect the negative battery cable.
