Horn: Service and Repair

Horn Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Disconnect the electrical connector.

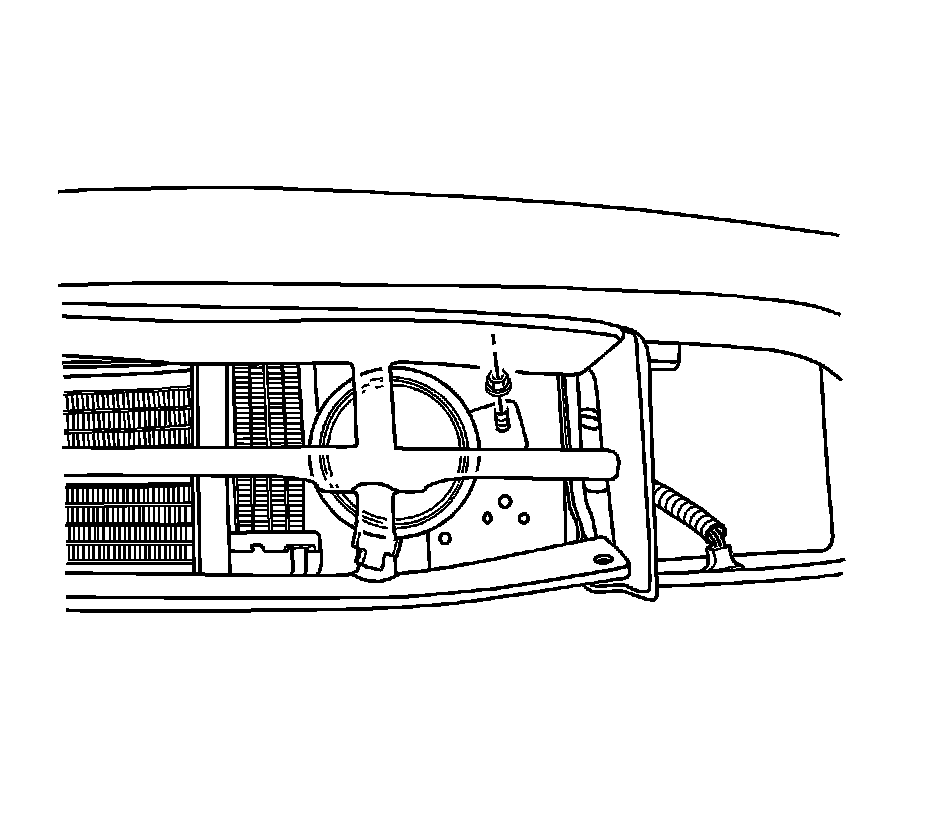

3. Remove the bolt and the horn.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the horn with the bolt.

Tighten the horn bolt to 20 Nm (15 lb ft).

2. Connect the electrical connector.
3. Connector the negative battery cable.
