Fog/Driving Lamp: Service and Repair

Front Fog Lamp Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

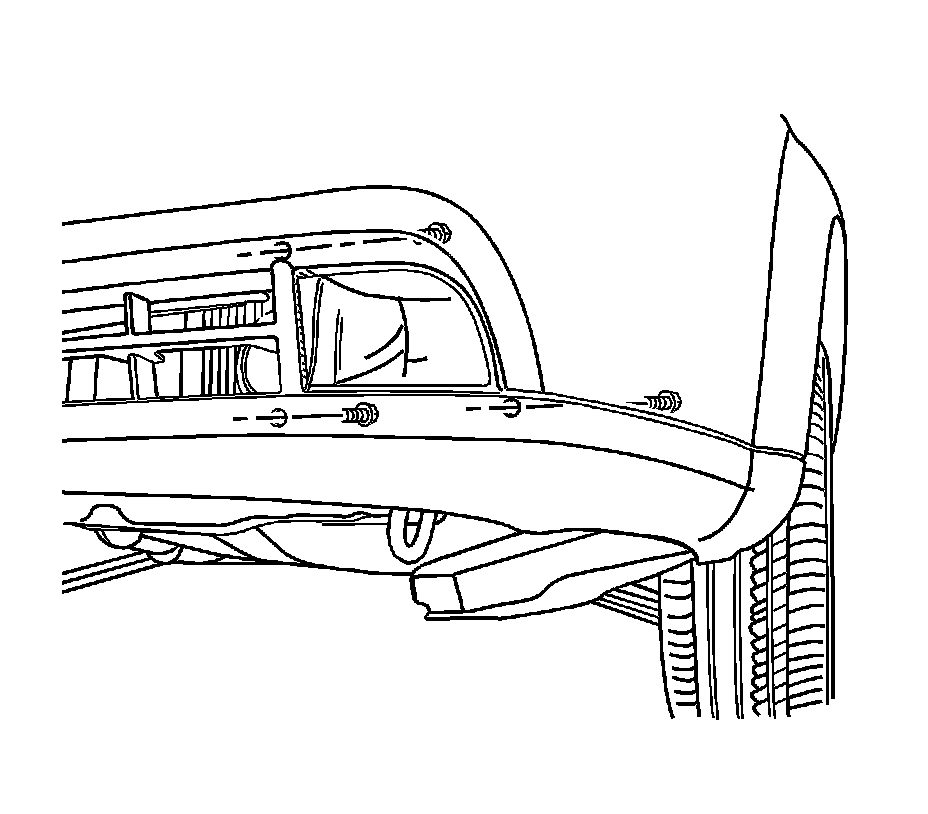

2. Remove the bolts and the front fog lamp.
3. Disconnect the electrical connector.

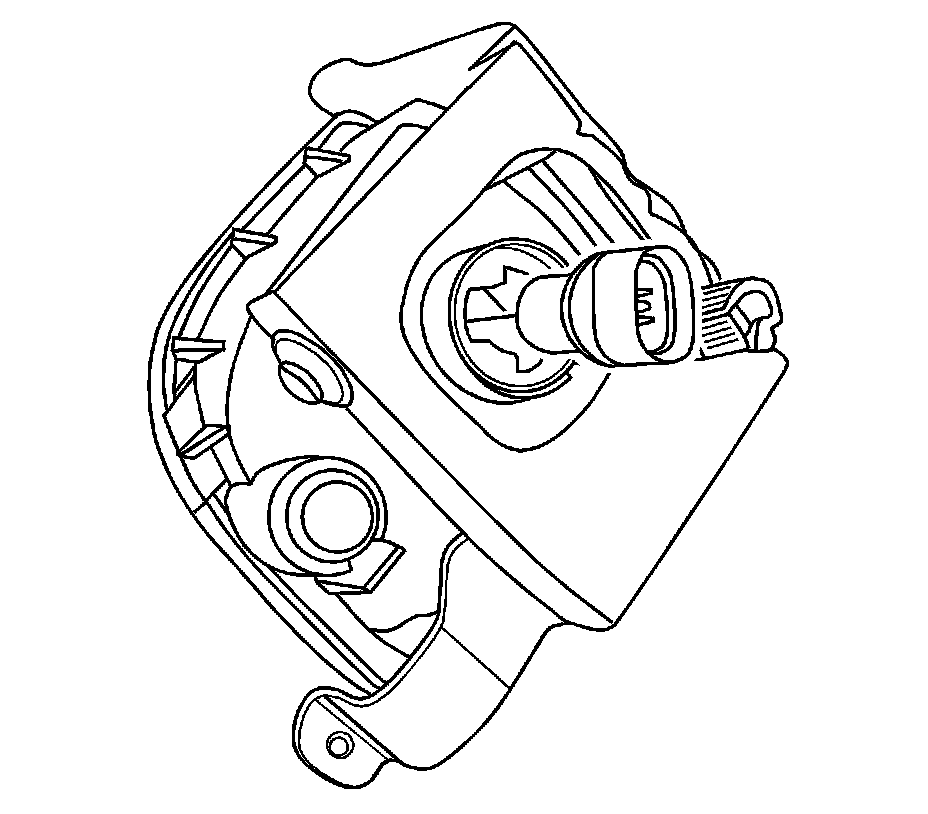

4. Remove the fog lamp access cover.
5. Remove the retaining wire.
6. Remove the bulb.

Installation Procedure




1. Install the bulb.
2. Install the retaining wire.
3. Install the fog lamp access cover.




4. Connect the electrical connector.

Notice: Refer to Fastener Notice Fastener Notice.

5. Install the front fog lamp with the bolts.

Tighten the front fog lamp bolts to 4 Nm (35 lb in).

6. Connect the negative battery cable.
