High Mounted Stop Lamp Replacement (Four Door)

High Mounted Stop Lamp Replacement (Four Door)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Open the rear deck lid.

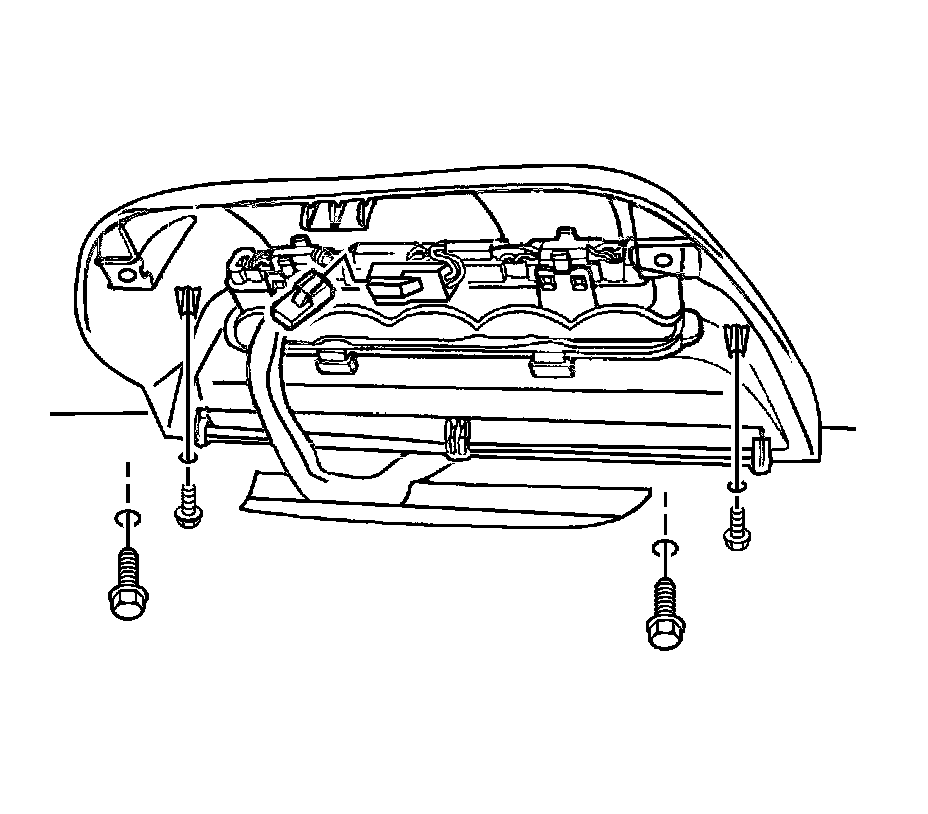

3. Remove the bolts and the center high-mounted stop lamp (CHMSL).

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the CHMSL with the bolts.

Tighten the CHMSL mounting bolts to 4 Nm (35 lb in).

2. Connect the negative battery cable.
