Instrument Panel, Gauges and Warning Indicators: Locations

Displays and Gages Component Views

Stop Lamp Switch, A/T Select Lever, Ignition Lock Cylinder Control Actuator, Ignition Switch




1 - Stop Lamp Switch
2 - A/T Select Lever
3 - Ignition Lock Cylinder Control Actuator
4 - Ignition Switch

Instrument Panel




1 - Instrument Cluster
2 - Ignition Key Alarm Switch
3 - Clock
4 - Turn Signal Switch
5 - Headlamp Switch

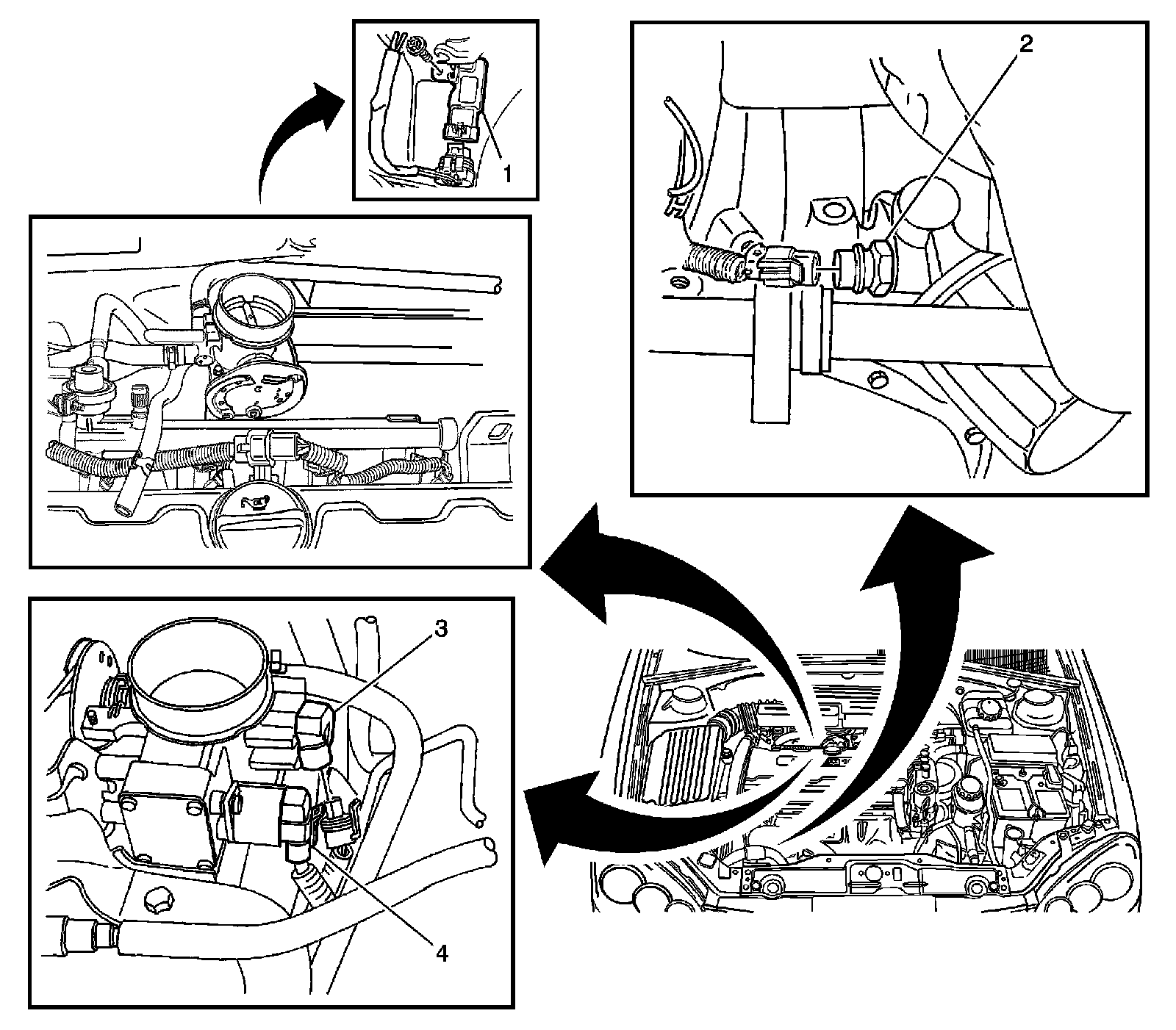

Manifold Absoulte Pressure (MAP), Oil Pressure, Throttle Position (TP) Sensors




1 - Manifold Absoulte Pressure (MAP) Sensor
2 - Engine Oil Pressure Switch
3 - Throttle Position (TP) Sensor
4 - Idle Air Control (IAC)
