Clock Replacement (Four Door)

Clock Replacement (Four Door)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the Instrument panel center molding. Refer to Instrument Panel Center Trim Panel Replacement (Five Door/Wagon) Instrument Panel Center Trim Panel Replacement (Five Door/Wagon)Instrument Panel Center Trim Panel Replacement (Four Door) Instrument Panel Center Trim Panel Replacement (Four Door).
3. Disconnect the electrical connector.

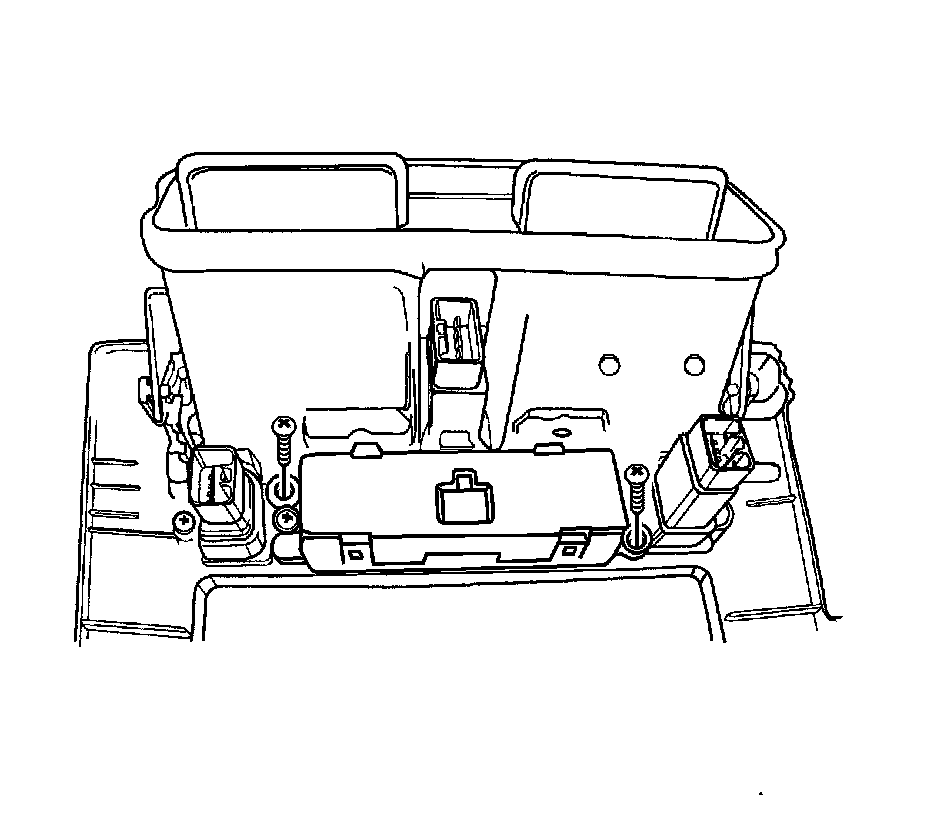

4. Remove the screws and digital clock.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the digital clock with the screws.
2. Connect the electrical connector.
3. Install the Instrument panel center molding. Refer to Instrument Panel Center Trim Panel Replacement (Five Door/Wagon) Instrument Panel Center Trim Panel Replacement (Five Door/Wagon)Instrument Panel Center Trim Panel Replacement (Four Door) Instrument Panel Center Trim Panel Replacement (Four Door).
4. Connect the negative battery cable.
