Clock Replacement (Five Door/Wagon)

Clock Replacement (Five Door/Wagon)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

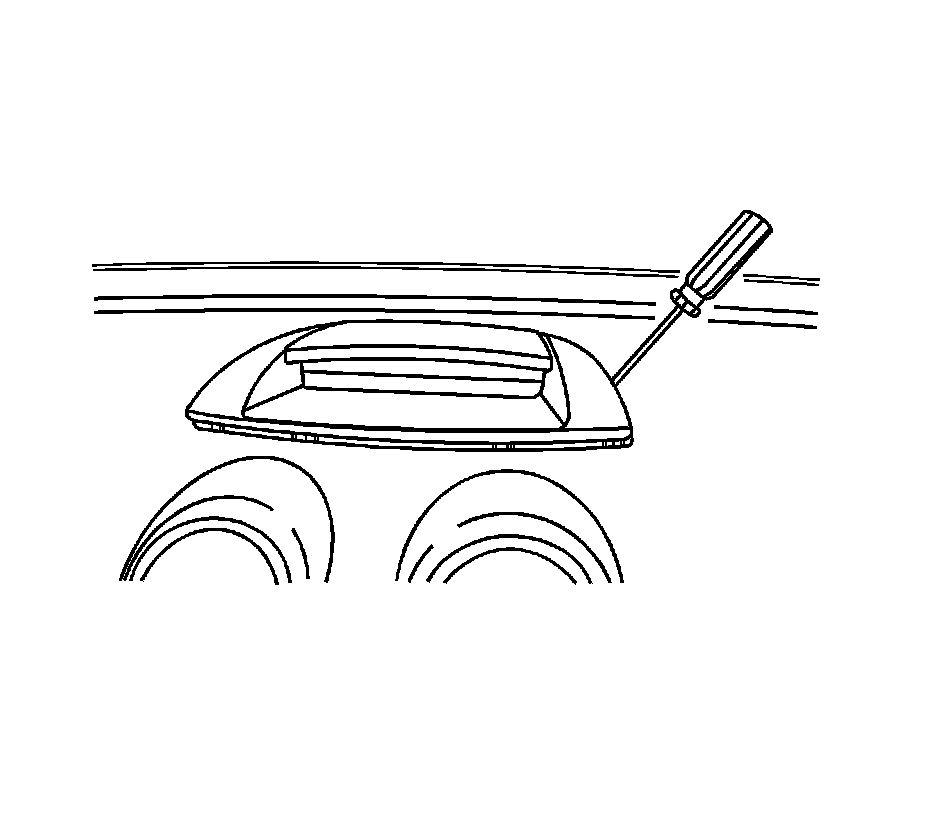

2. Remove the instrument panel center upper cover.




3. Remove the screws and digital clock.
4. Disconnect the electrical connector.

Installation Procedure

1. Connect the electrical connector.





Notice: Refer to Fastener Notice Fastener Notice.

2. Install the digital clock with the screws.

Tighten the screws to 3 Nm (27 lb in).




3. Install the center molding.
4. Connect the negative battery cable.
