Blower Motor Relay: Service and Repair

Blower Motor Relay Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the glove box housing. Refer to Instrument Panel Storage Compartment Replacement Instrument Panel Storage Compartment Replacement.

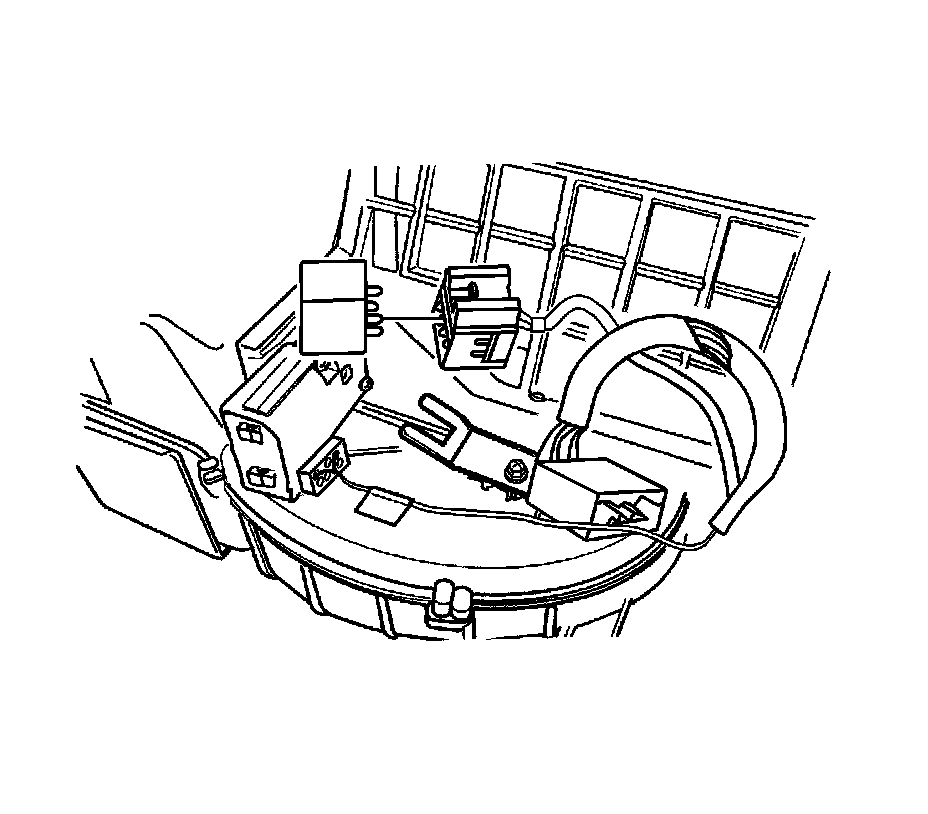

3. Separate the connector from the bracket.
4. Disconnect the relay from the connector.

Installation Procedure

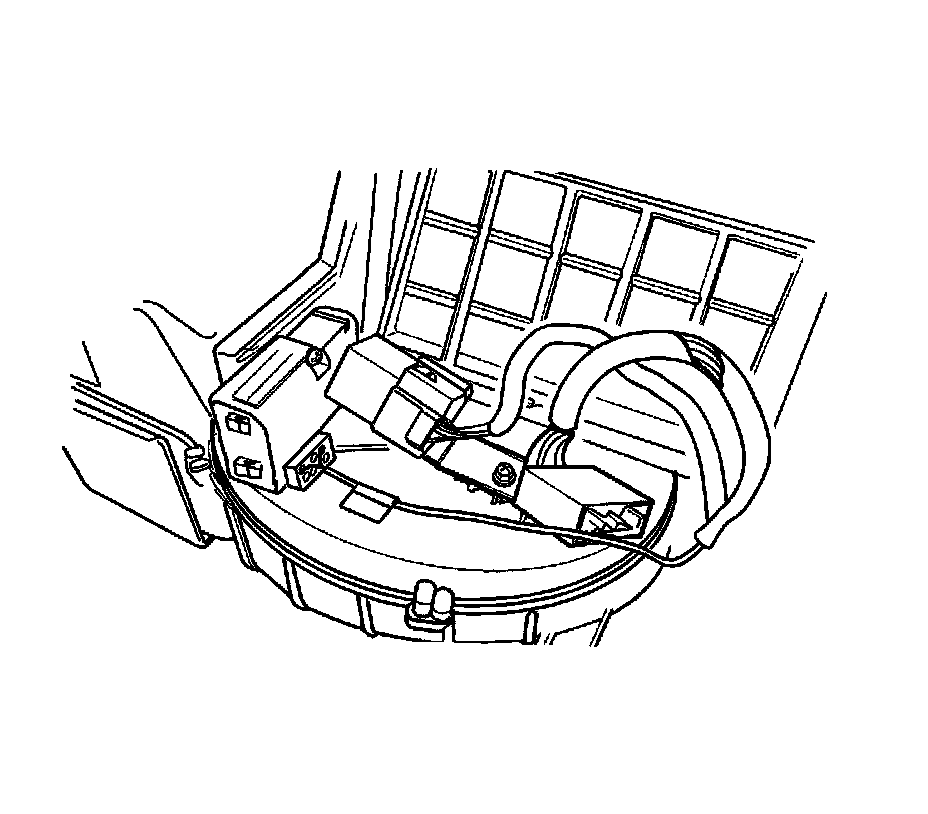

1. Connect the relay to the connector.
2. Insert the connector to the bracket.
3. Install the glove box. Refer to Instrument Panel Storage Compartment Replacement Instrument Panel Storage Compartment Replacement.
