HVAC - Manual

HVAC Component Views

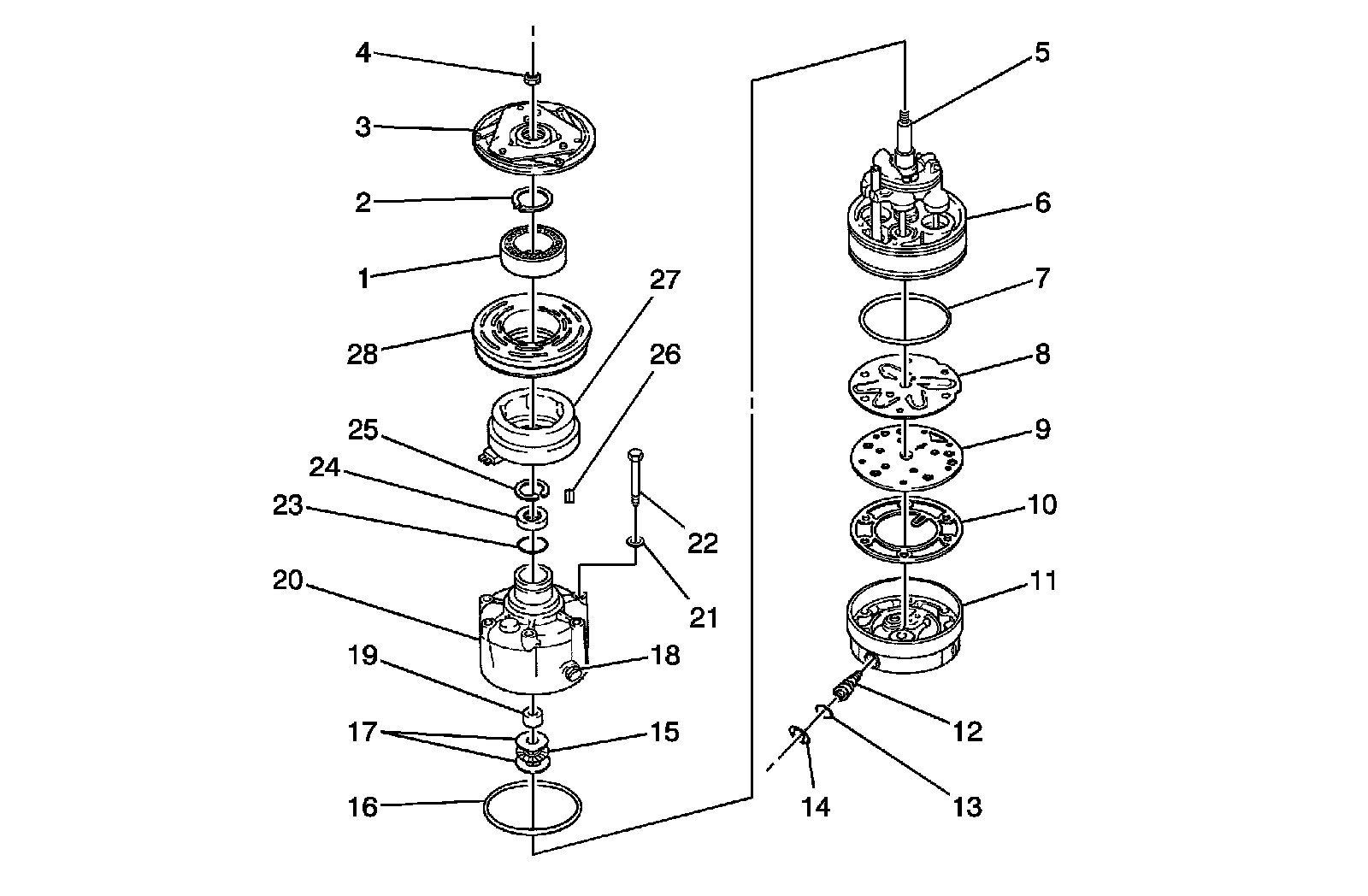

A/C Compressor




1 - Pulley Bearing
2 - Pulley Bearing-to-Head Retaining Ring
3 - Drive Plate Clutch
4 - Shaft Nut
5 - Compressor Shaft
6 - Shaft and Guide Pin Assembly Cylinder
7 - Rear Head O-Ring
8 - Suction Reed
9 - Valve Plate
10 - Rear Head Gasket
11 - Rear Head Compressor
12 - Compressor Control Valve
13 - Control Valve O-Ring
14 - Retaining Ring
15 - Bearing
16 - Compressor Housing-to-Cylinder O-Ring
17 - Race
18 - Oil Drain Plug
19 - Thrust Washer
20 - Compressor Housing
21 - Through-Gasket
22 - Through-Bolt
23 - Shaft Seal O-Ring
24 - Shaft Lip Seal
25 - Seal Retaining Ring
26 - Clutch Hub Key
27 - Clutch Coil
28 - Rotor Pulley

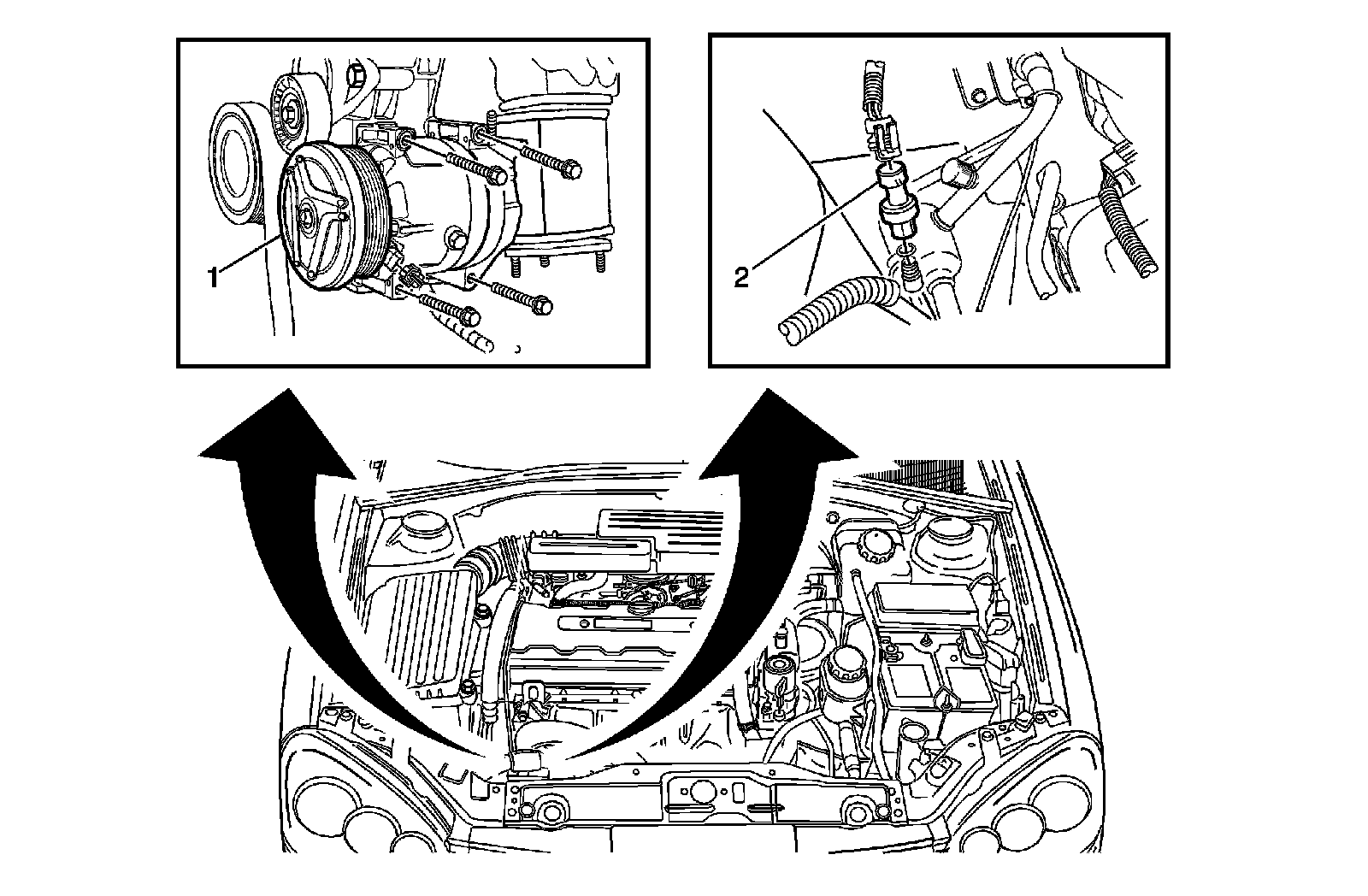

A/C Compressor and Refrigerant Pressure Sensor




1 - A/C Compressor Clutch Coil
2 - A/C Refrigerant Pressure Sensor

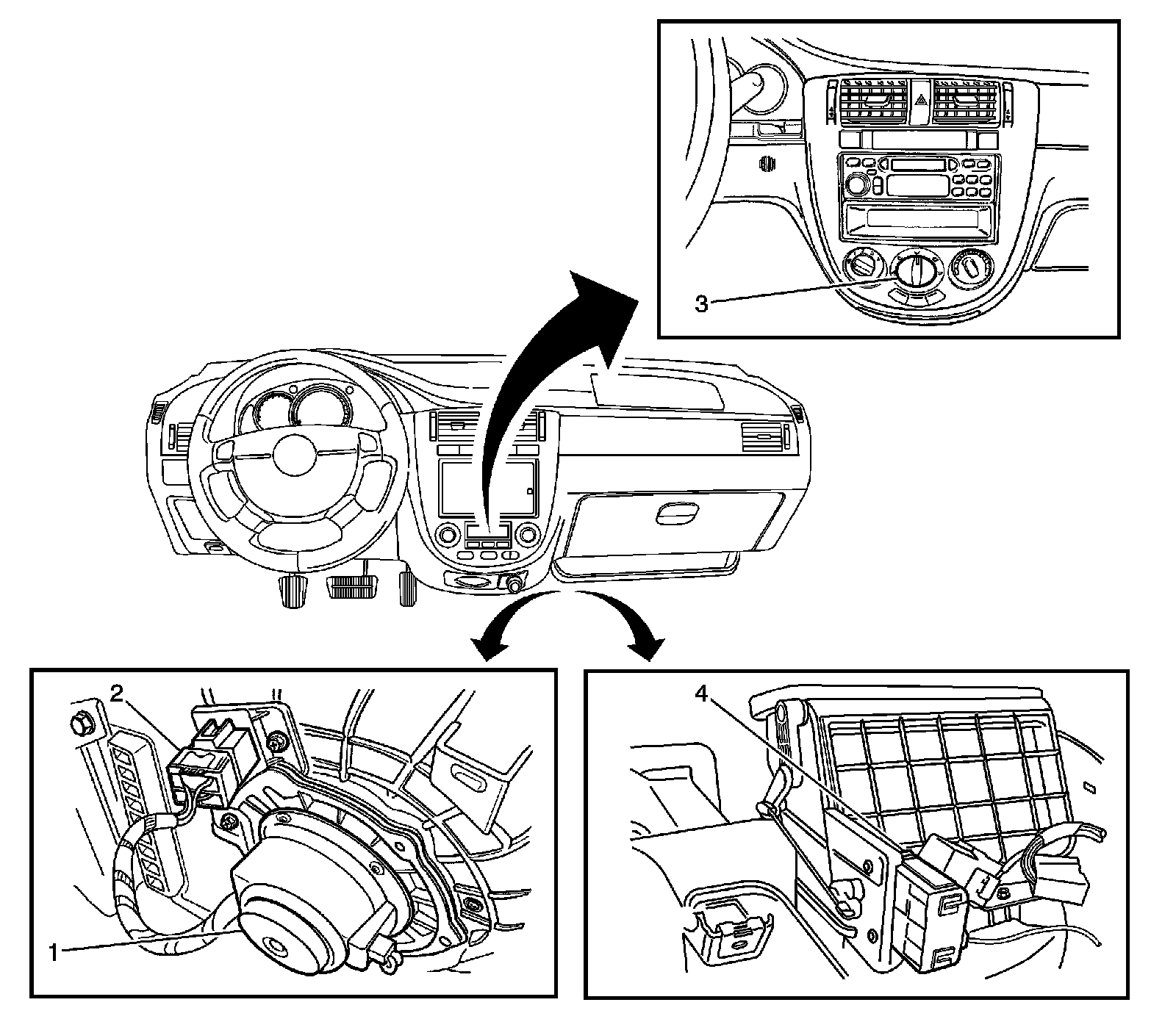

HVAC IP Components




1 - Blower Motor
2 - Blower Motor Resistor
3 - HVAC Control (Switch)
4 - Recirculation Actuator
