HVAC - Automatic

HVAC Component Views

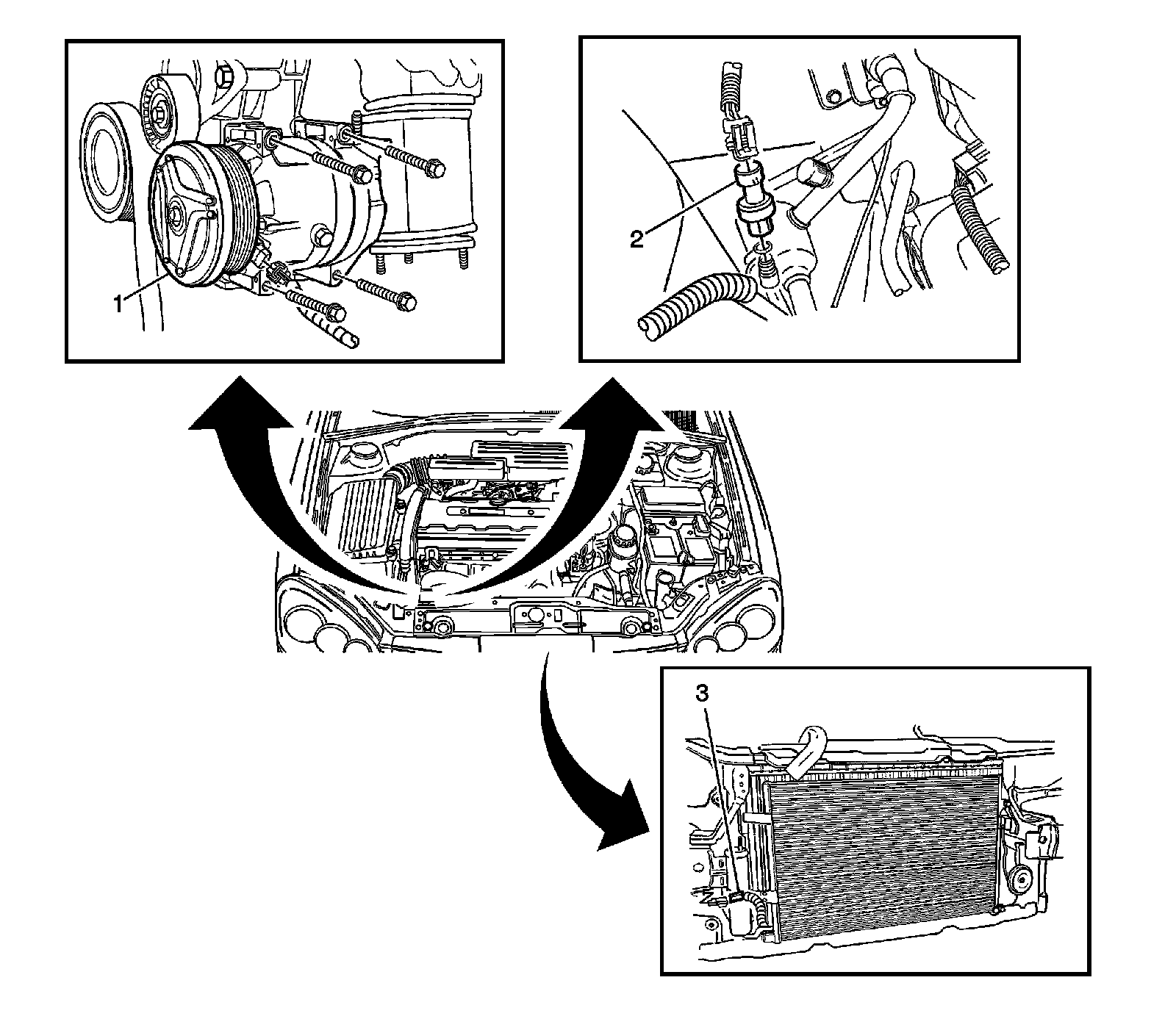

HVAC Underhood Components




1 - A/C Compressor Clutch Coil
2 - A/C Refrigerant Pressure Sensor
3 - Ambient Air Temperature Sensor

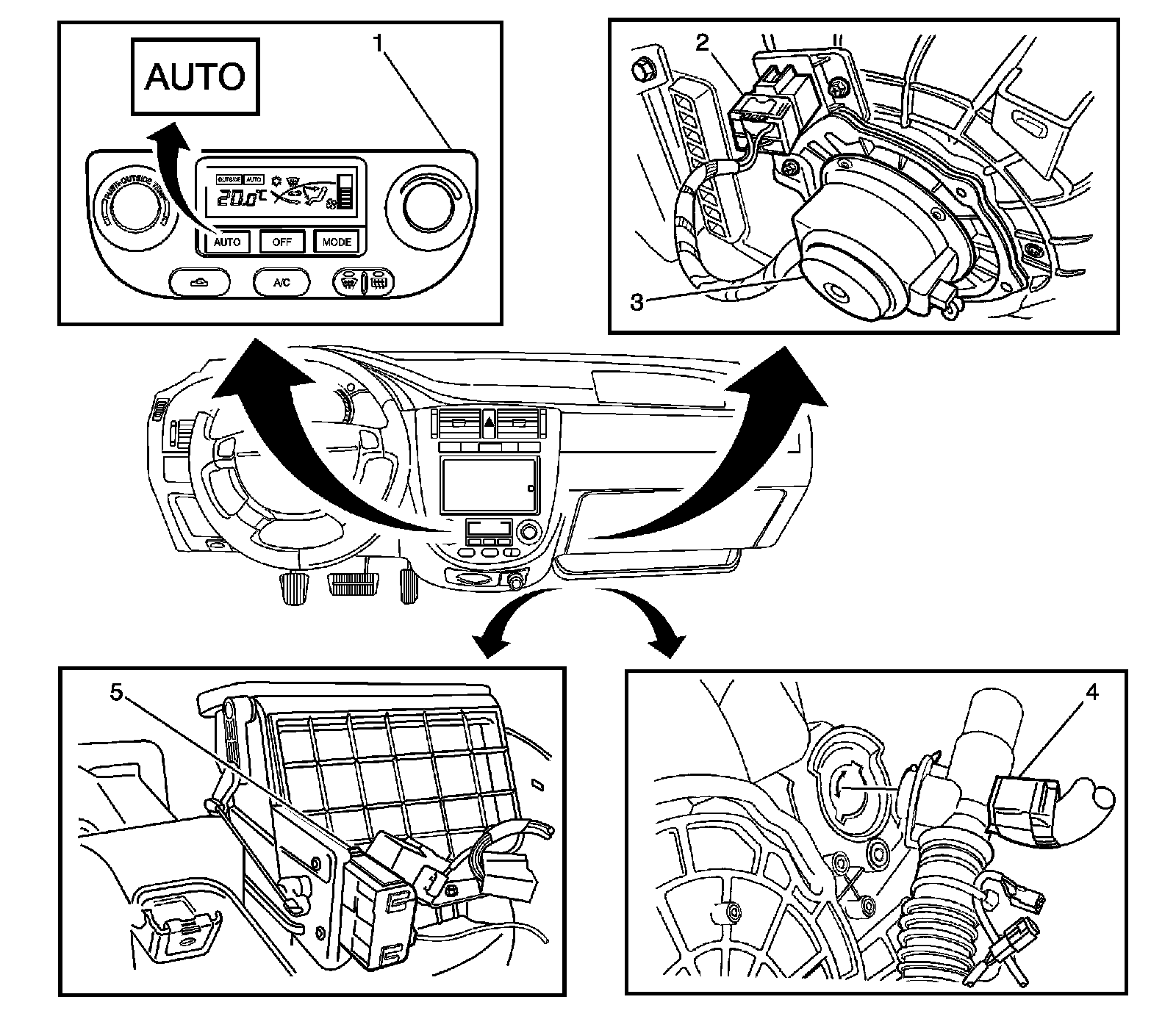

HVAC IP Components




1 - HVAC Control Module - Auto
2 - Blower Motor Control Module
3 - Blower Motor
4 - Air Temperature Sensor - Inside
5 - Recirculation Actuator

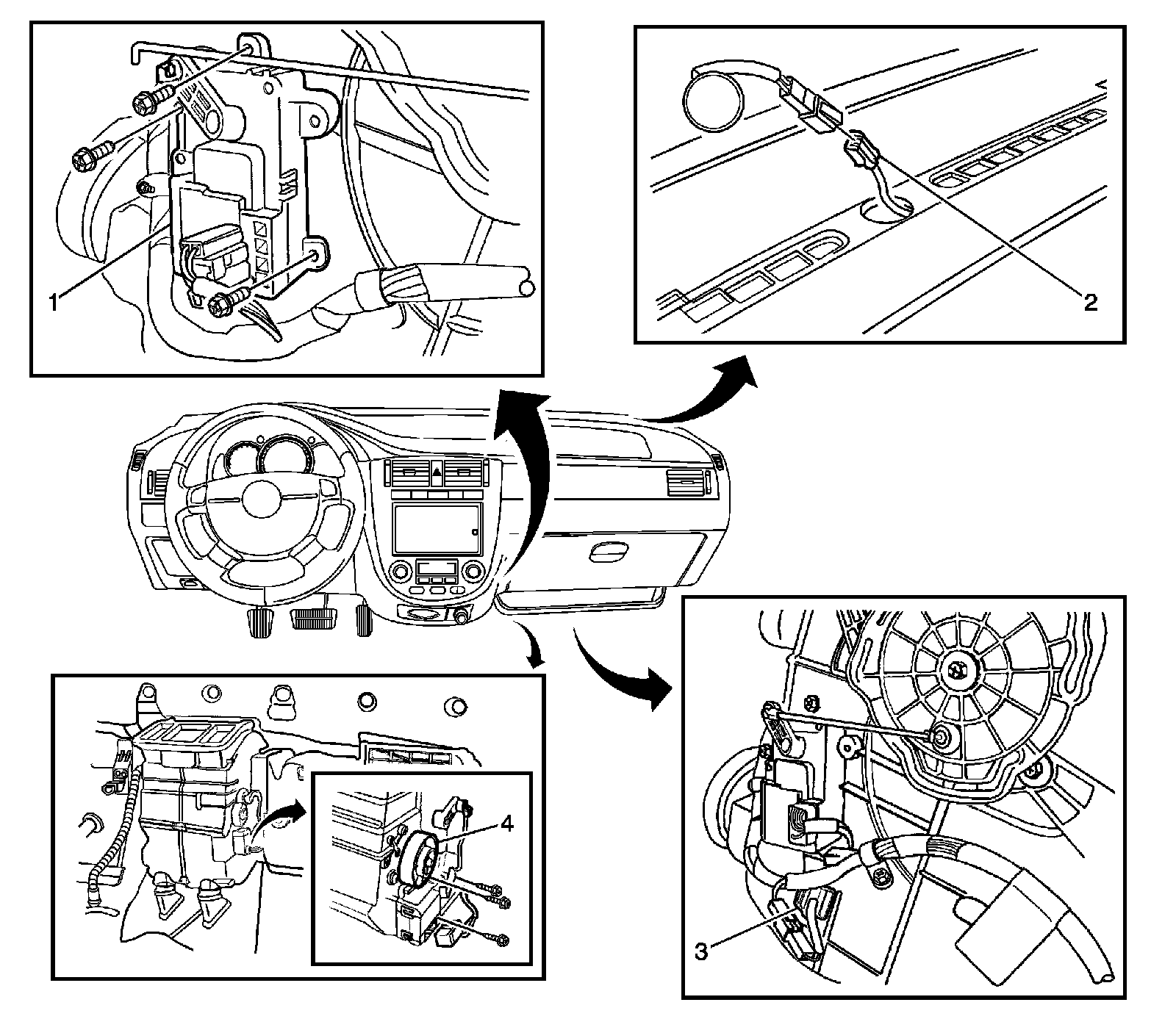

HVAC Module Components




1 - Mode Actuator
2 - Sun Load Sensor Assembly
3 - Coolant Temperature Sensor
4 - Temperature Actuator
