Refrigerant Tubes Replacement

Refrigerant Tubes Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging Service and Repair.
3. Remove the nut at the discharge hose block connected to the compressor.




4. Remove the headlamp housing at the left-hand side. Refer to Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon)Headlamp Replacement (Hatchback) Headlamp Replacement (Hatchback).

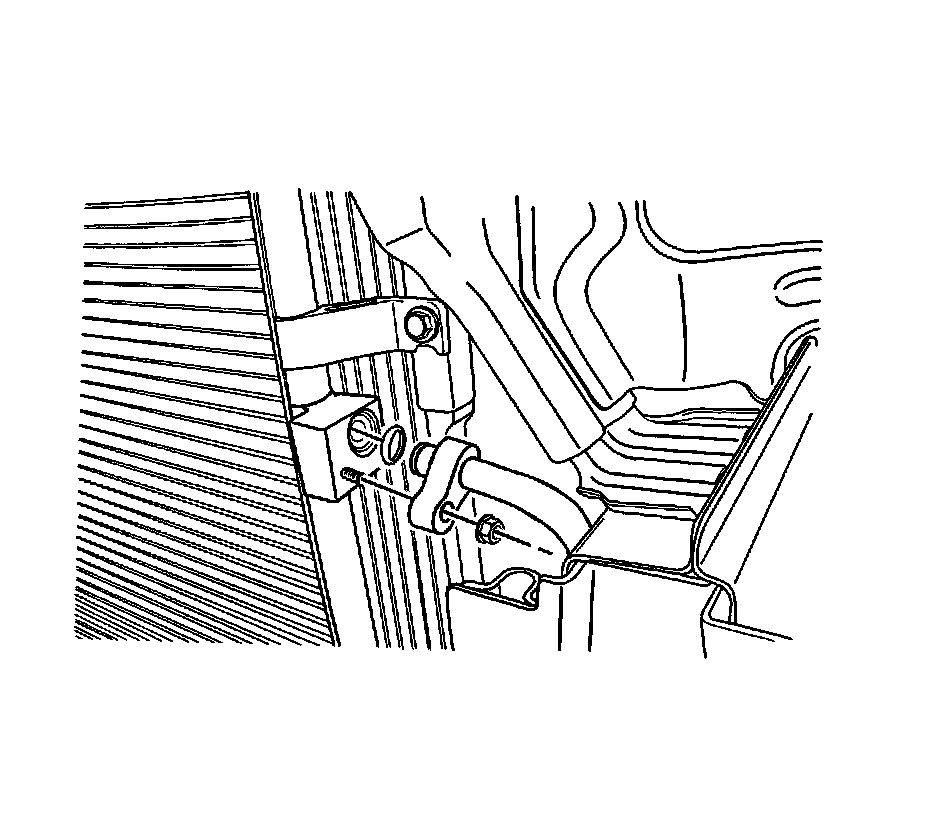

5. Remove the nut at the condenser connecting block.
6. Remove the refrigerant discharge hose.




7. Remove the air cleaner housing bolts and the air filter housing assembly.
8. Disconnect the electrical connector at the pressure transducer.
9. Remove the liquid pipe block-to-expansion valve retaining nut at the fire wall.




10. Remove the headlamp housing at the left-hand side. Refer to Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon)Headlamp Replacement (Hatchback) Headlamp Replacement (Hatchback).
11. Remove the liquid pipe block-to-receiver dryer retaining nut.




12. Remove the bolts which secure the support clamps that hold the liquid pipe to the vehicle.
13. Remove the liquid pipe from the vehicle.
14. Cap the opening at the receiver-dryer to prevent contamination.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Position the liquid pipe into the vehicle.
2. Install the liquid pipe support clamp bolts.

Tighten the liquid pipe support clamp bolts to 4 Nm (35 lb in).




3. Install a new O-ring on the pipe at the receiver dryer.
4. Install the liquid pipe block-to-receiver-dryer retaining nut.

Tighten the liquid pipe block-to-receiver-dryer retaining nut to 14 Nm (10 lb ft).

5. Install the headlamp housing at the right-hand side. Refer to Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon)Headlamp Replacement (Hatchback) Headlamp Replacement (Hatchback).




6. Install the liquid evaporator pipe block retaining nut to the fire wall.

Tighten the liquid pipe block-to-expansion valve retaining nut to 14 Nm (10 lb ft).

7. Connect the electrical connector at the pressure transducer.
8. Install the air cleaner housing bolts and the air filter housing assembly.




9. Position the refrigerant discharge hose into the vehicle.
10. Install the nut at the condenser connecting block.

Tighten the refrigerant discharge hose block-to-condenser retaining nuts to 16 Nm (12 lb ft).

11. Install the handlamp housing at the left-hand side. Refer Front Fog Lamp Replacement Service and Repair.




12. Install the nut at the discharge hose block connected to the compressor.

Tighten the refrigerant discharge hose block-to-compressor retaining nut to 33 Nm (24 lb ft).

13. Connect the negative battery cable.
14. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging Service and Repair.
