Home >> Chevrolet >> 2007 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> HVAC - Manual

HVAC - Manual




HVAC Schematics

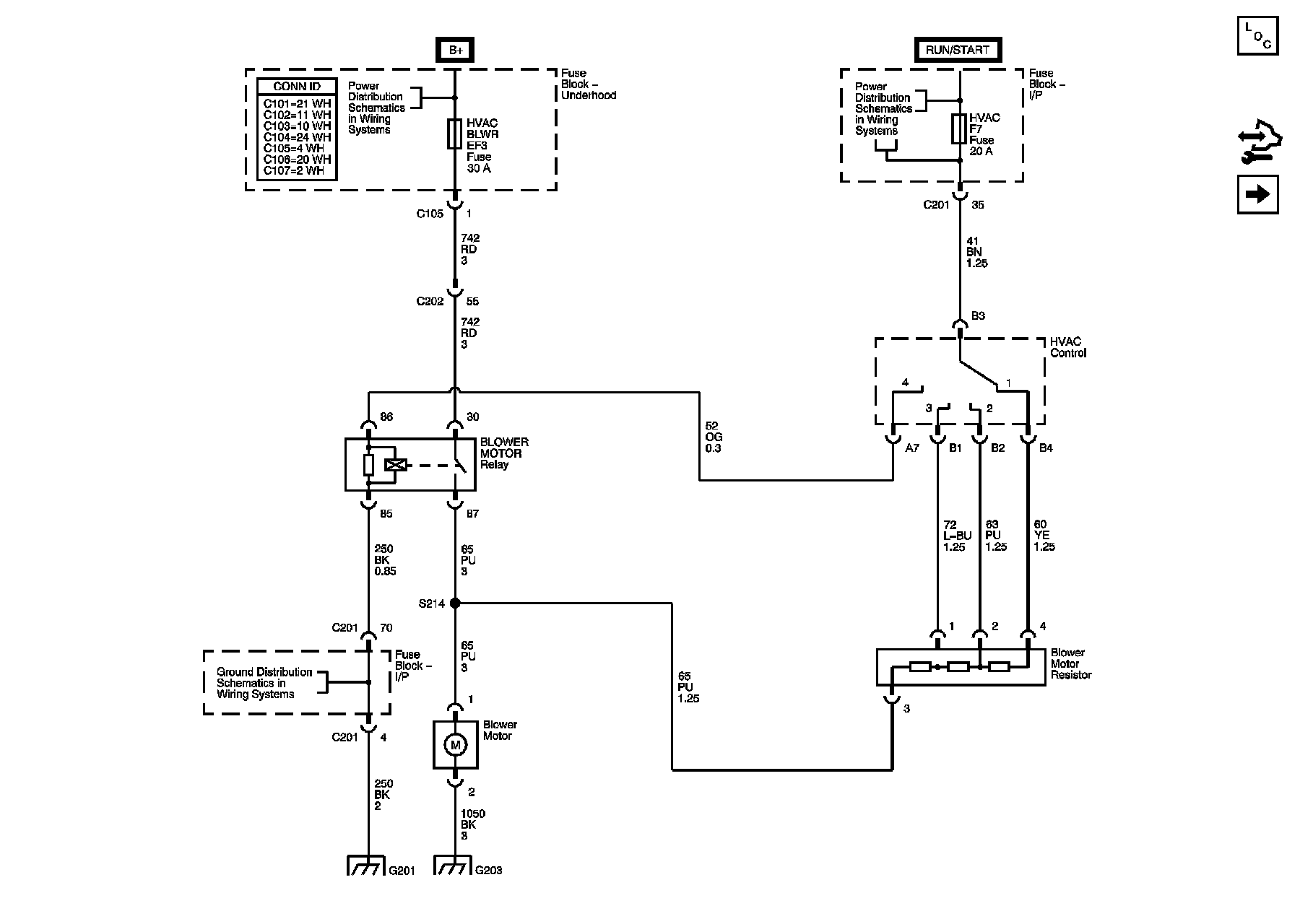

Blower Controls

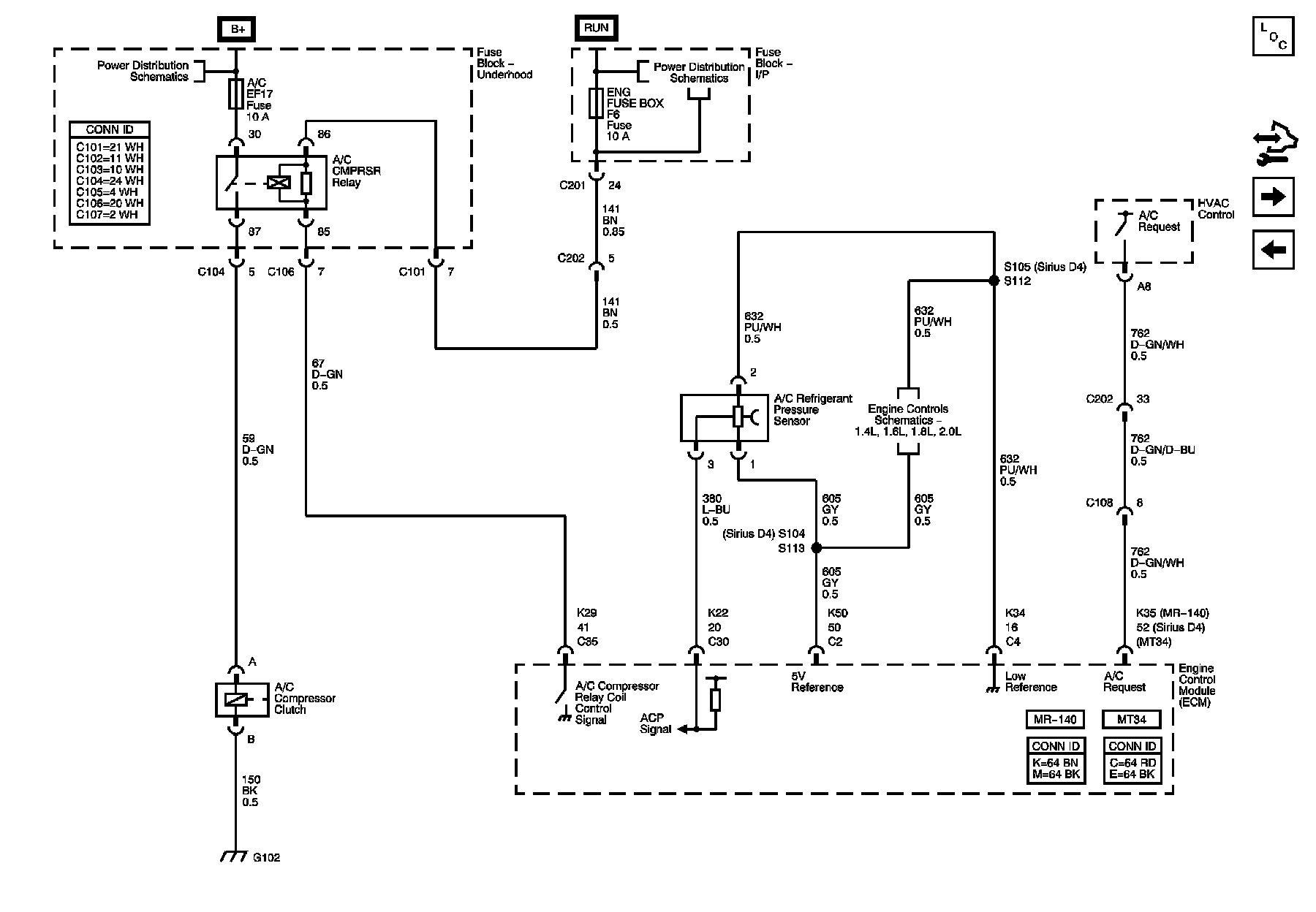

Compressor Controls - Sirius D4, MR 140, MT 34

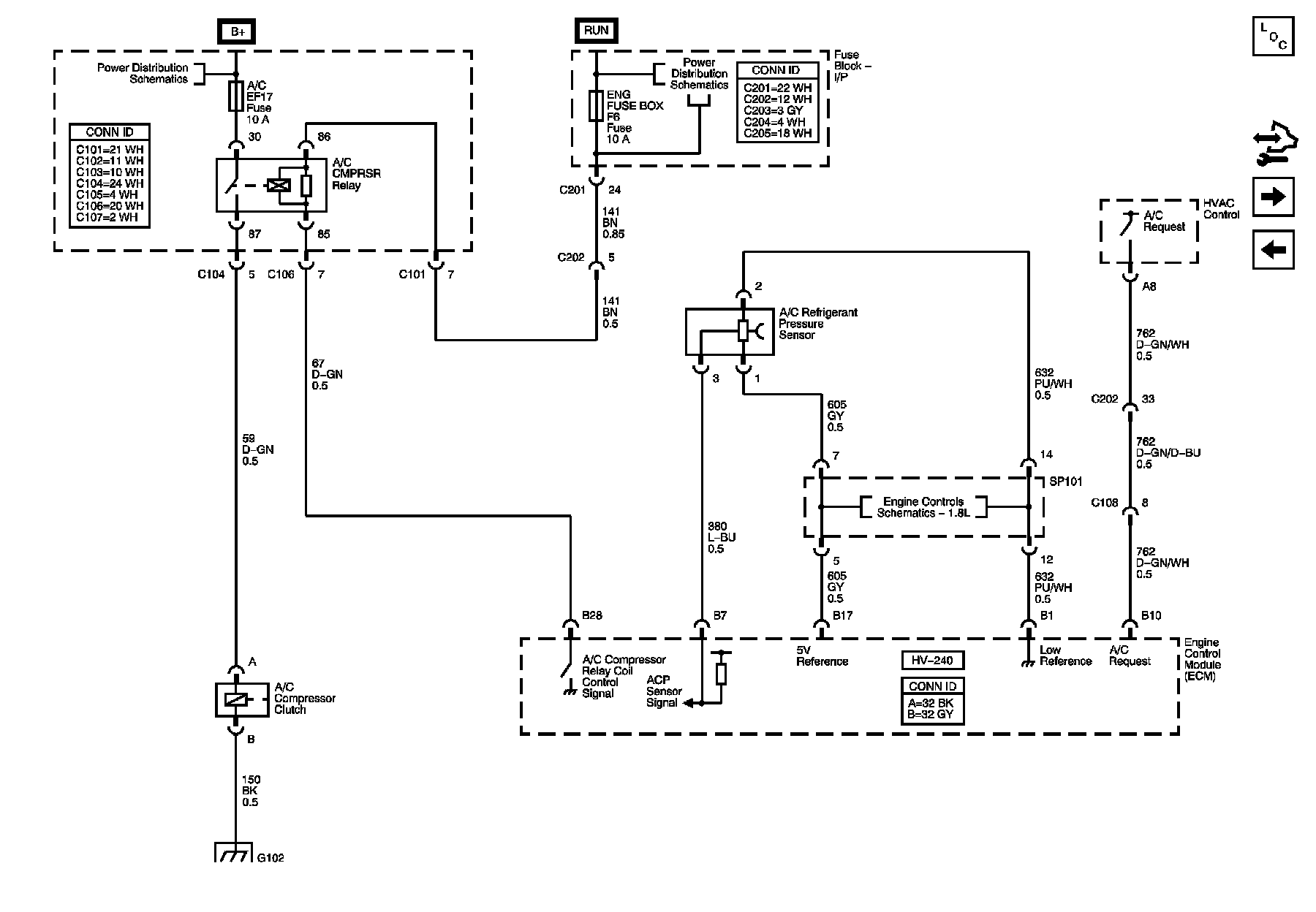

Compressor Controls - HV-240

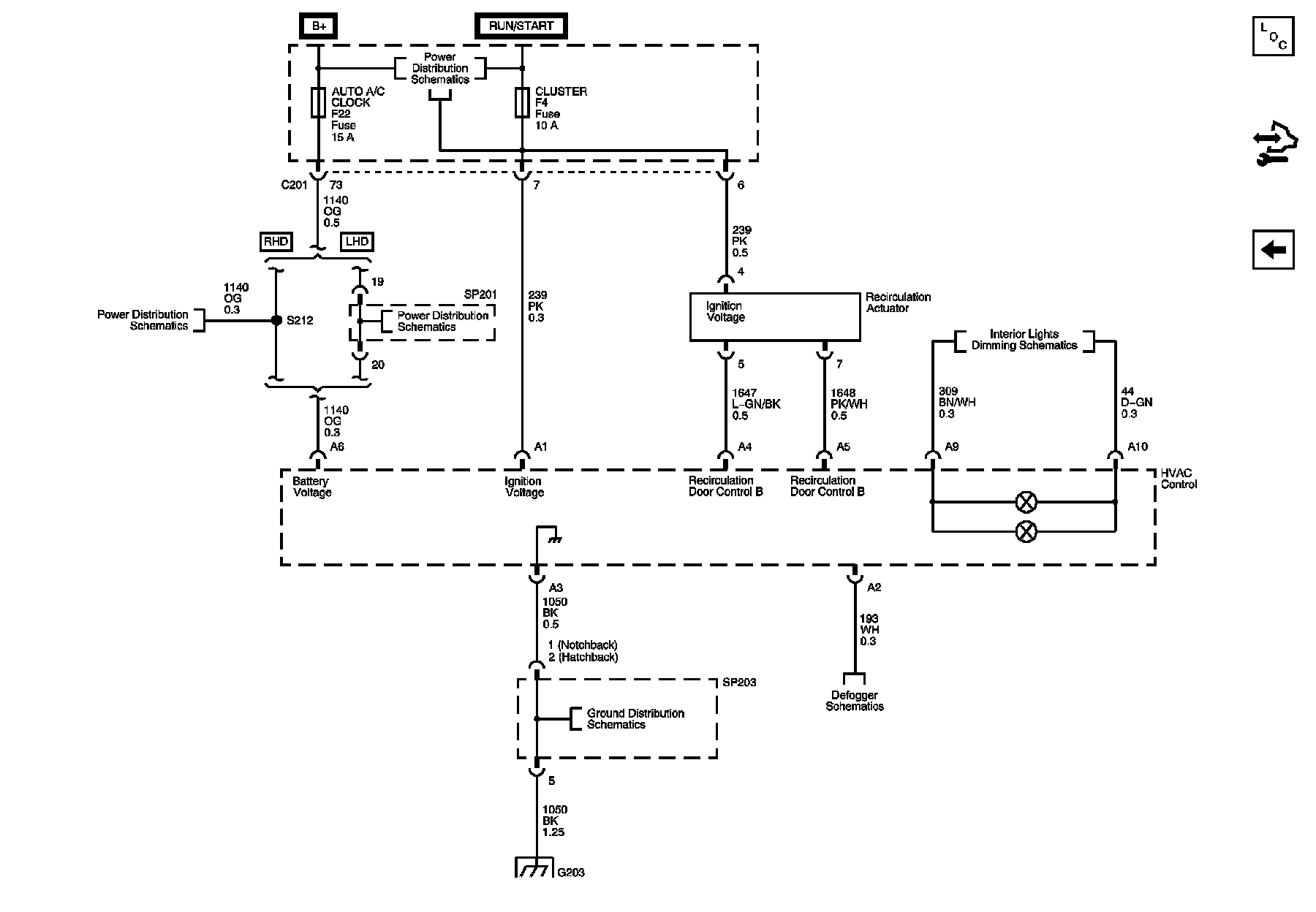

Temperature Controls/Air Delivery
