HVAC - Automatic




HVAC Schematics

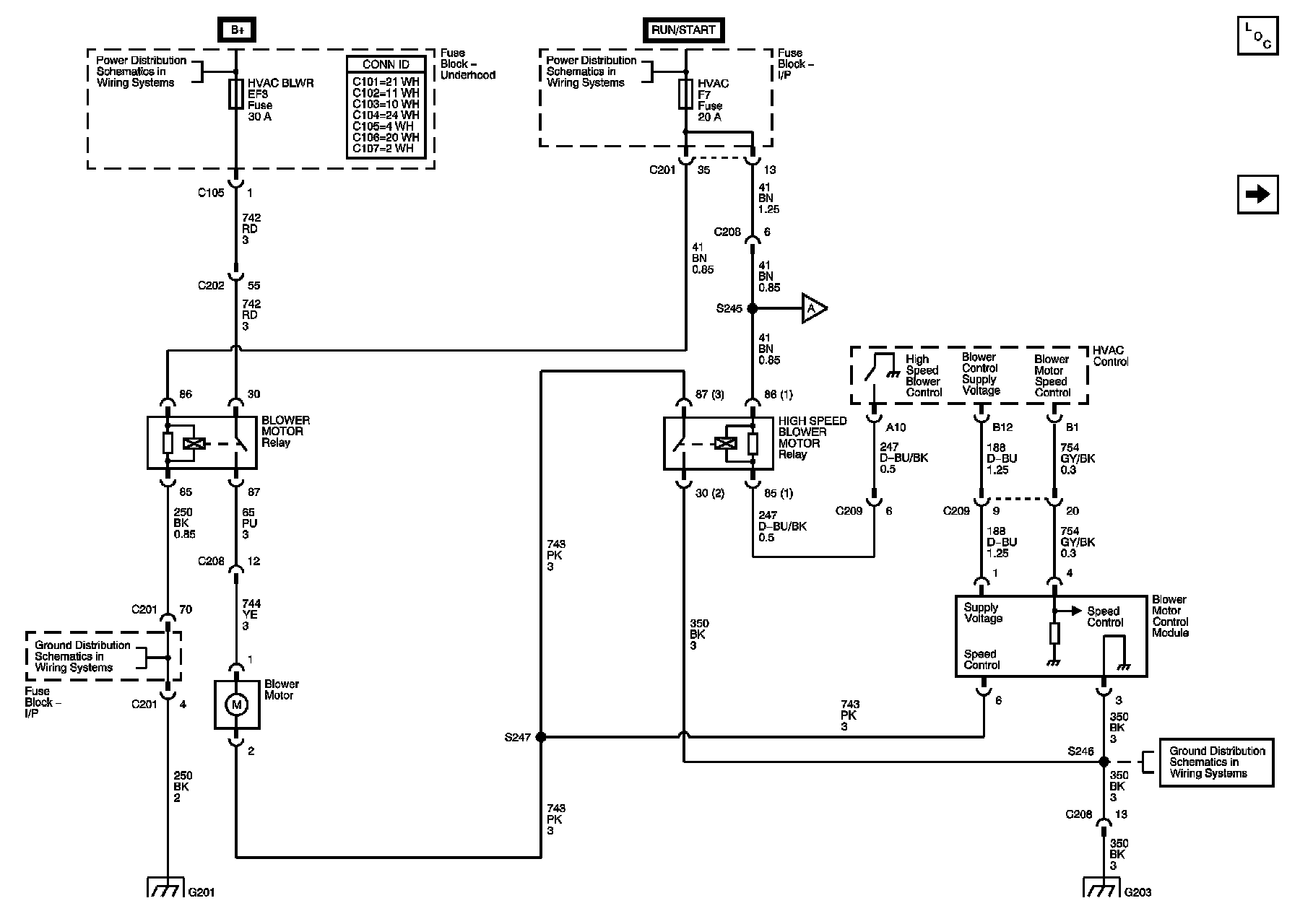

Blower Controls

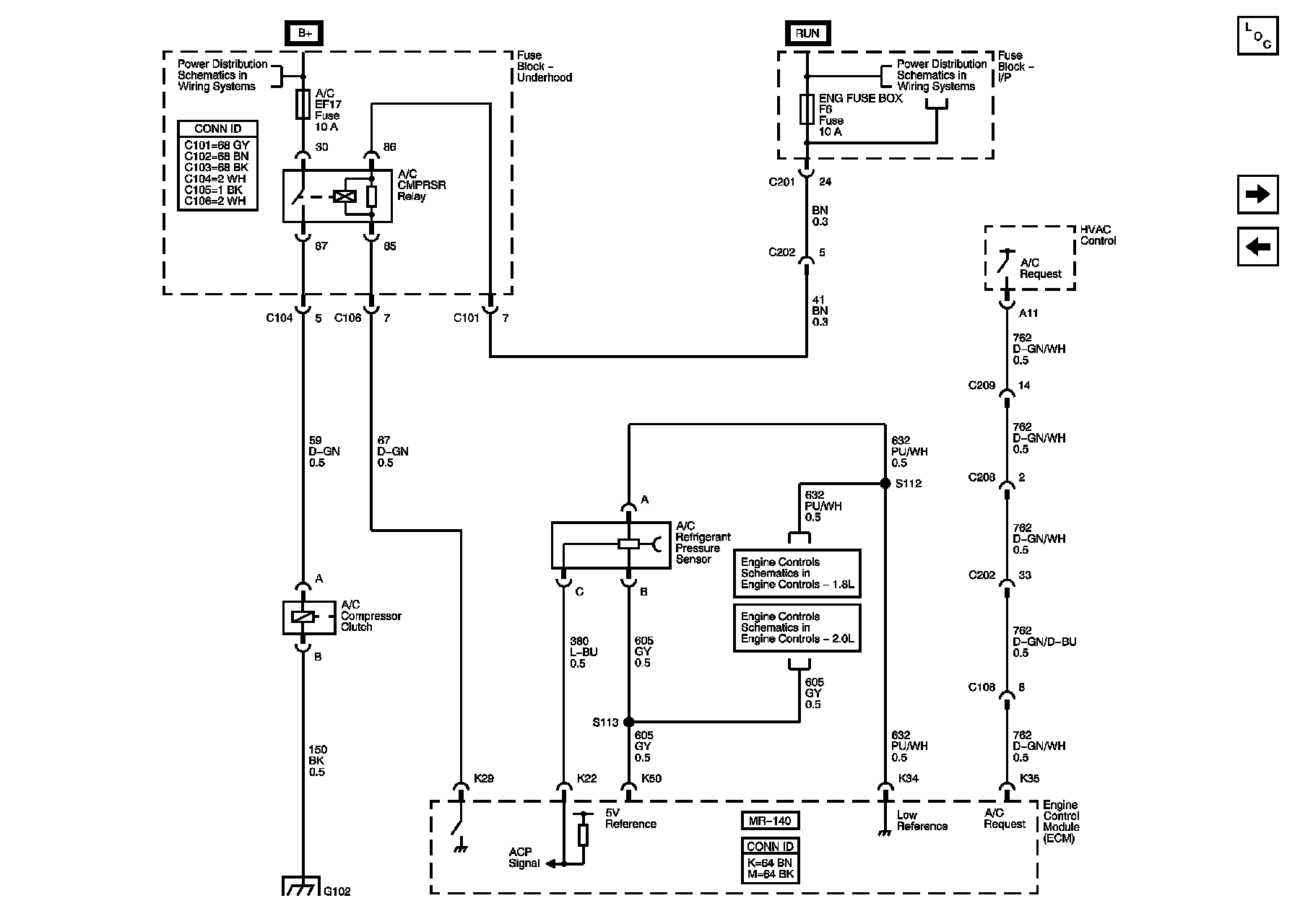

Compressor Controls - Sirius D4

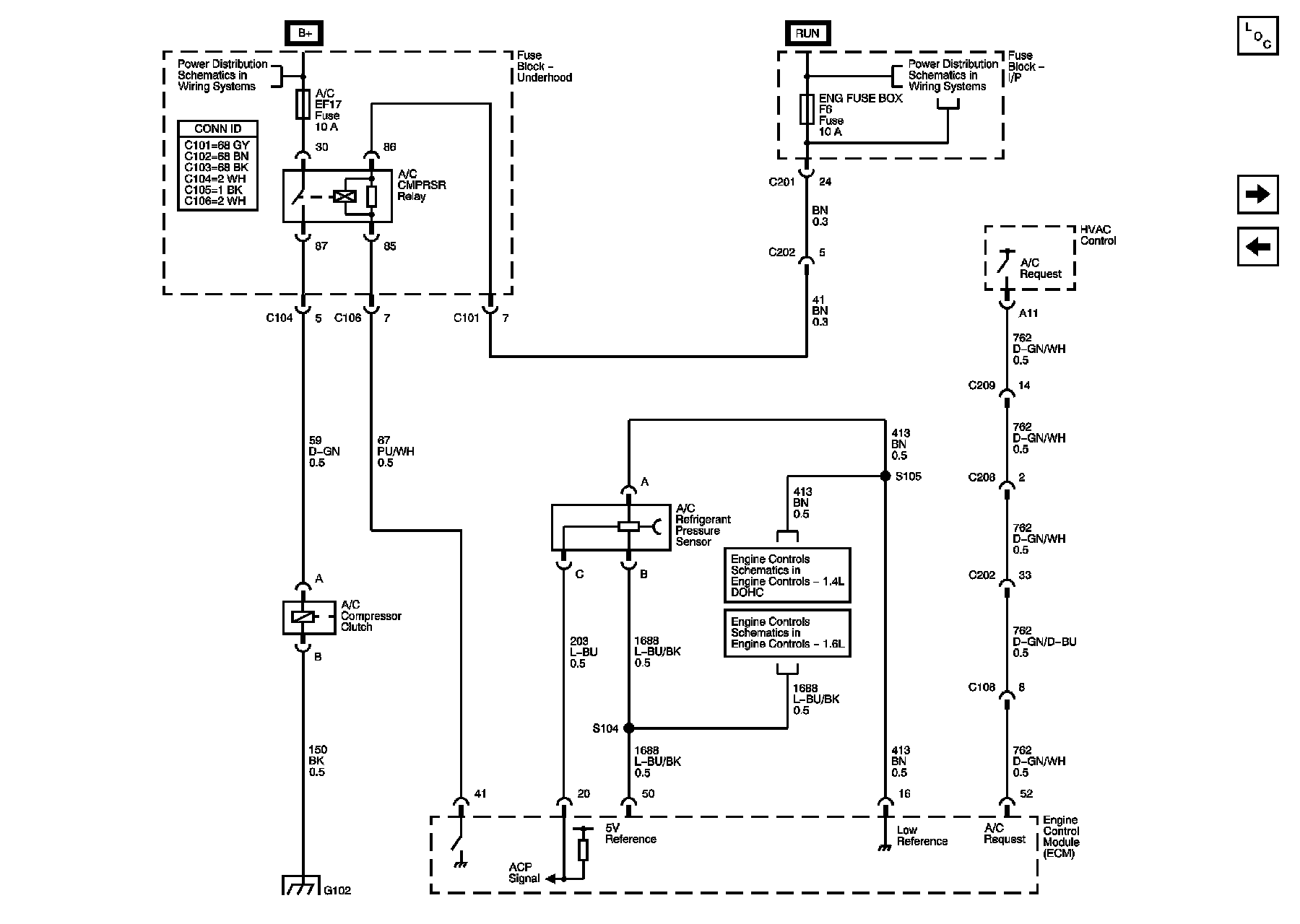

Compressor Controls - MR-140

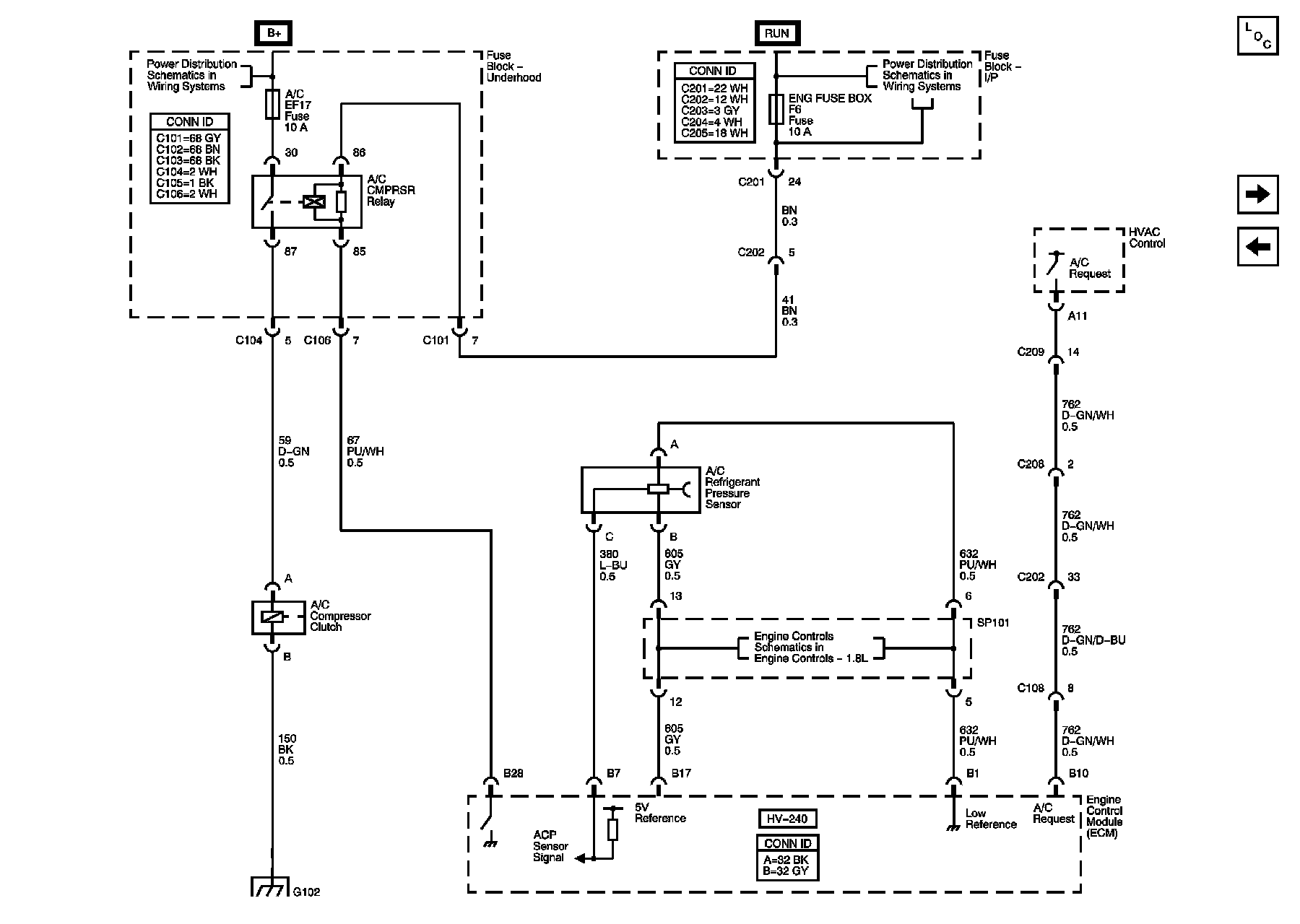

Compressor Controls - HV-240





Air Delivery and Temperature Controls

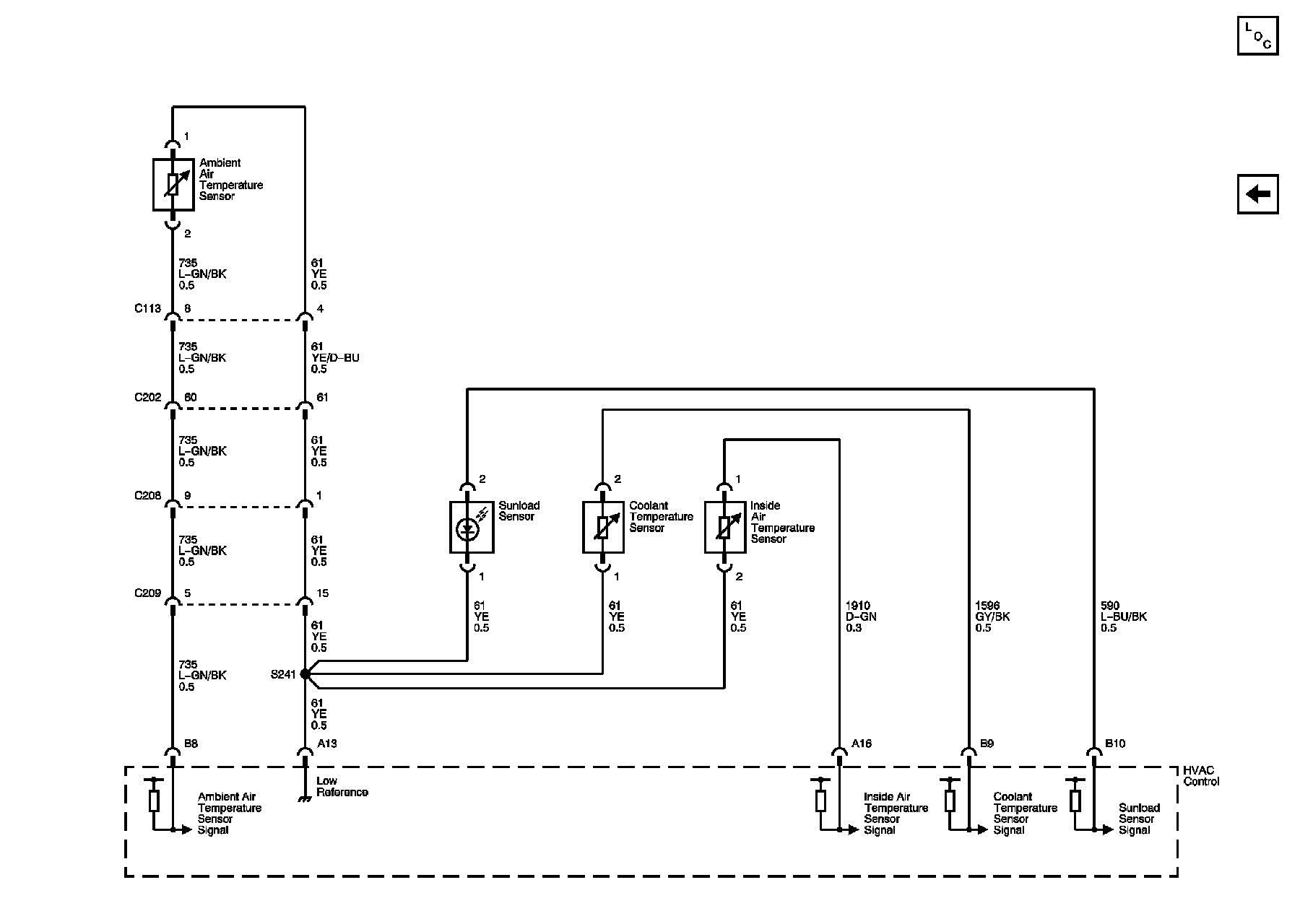

HVAC Sensors
