12. Exhaust Manifold Installation

Exhaust Manifold Installation




1. Install the exhaust manifold gasket.
2. Install the exhaust manifold.

Notice: Refer to Fastener Notice Fastener Notice.

3. Install the exhaust manifold retaining nuts and tighten in the sequence shown.

Tighten the exhaust manifold retaining nuts 22 Nm (16 lb ft).




4. Install the exhaust flex pipe retaining nuts to the exhaust manifold studs.

Tighten the exhaust flex pipe to exhaust manifold retaining nuts to 35 Nm (26 lb ft).

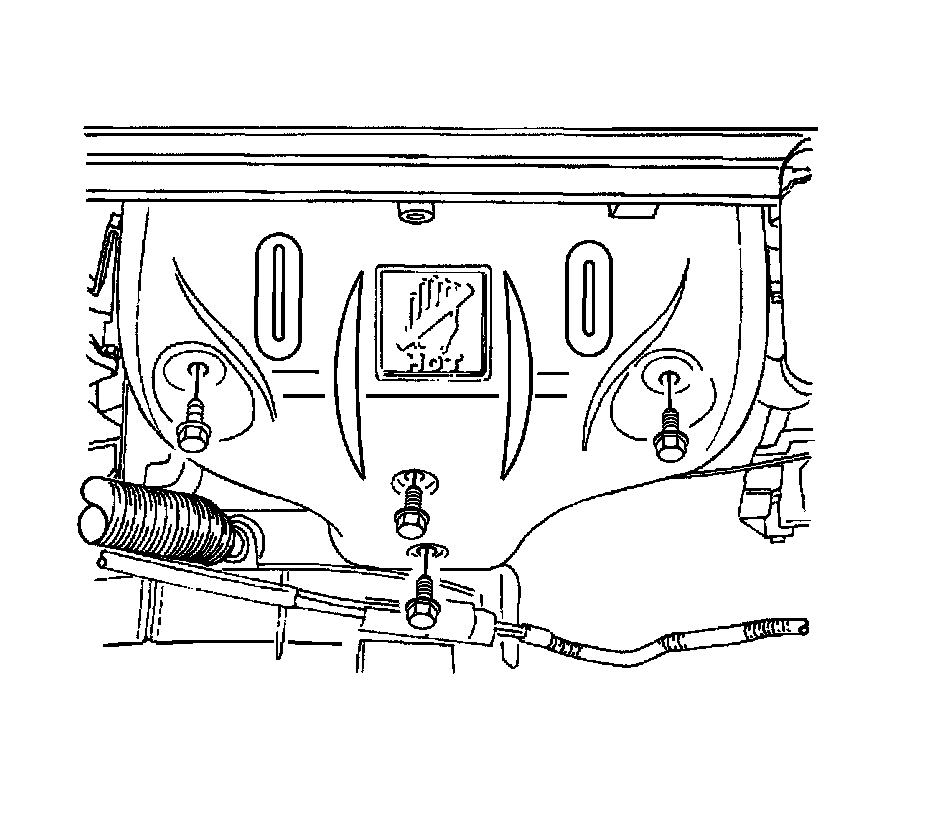

5. Install the exhaust manifold heat shield.
6. Install the exhaust manifold heat shield bolts.

Tighten the exhaust manifold heat shield bolts to 8 Nm (71 lb in).

7. Connect the oxygen sensor connector.
8. Connect the negative battery.
