Cooling System: Locations

Cooling System Component Views

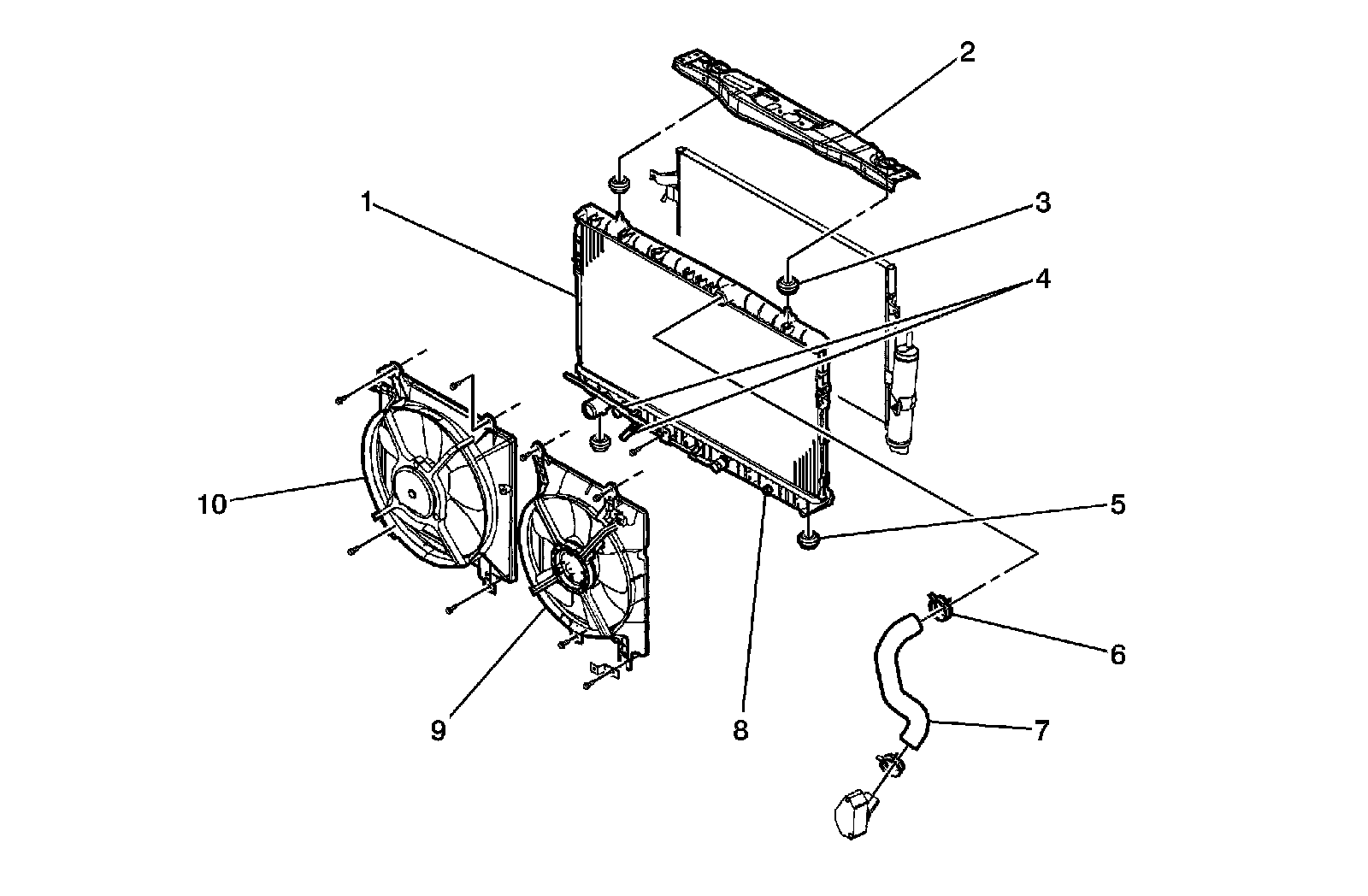

Radiator and Cooling Fan




1 - Radiator
2 - Front Upper Center Panel
3 - Upper Radiator Bumper
4 - Holder Transmission Fluid Pipe - Automatic Transmission Only
5 - Lower Radiator Bumper
6 - Spring Clamp
7 - Upper Radiator Hose
8 - Drain Cock
9 - Auxiliary Cooling Fan
10 - Main Cooling Fan

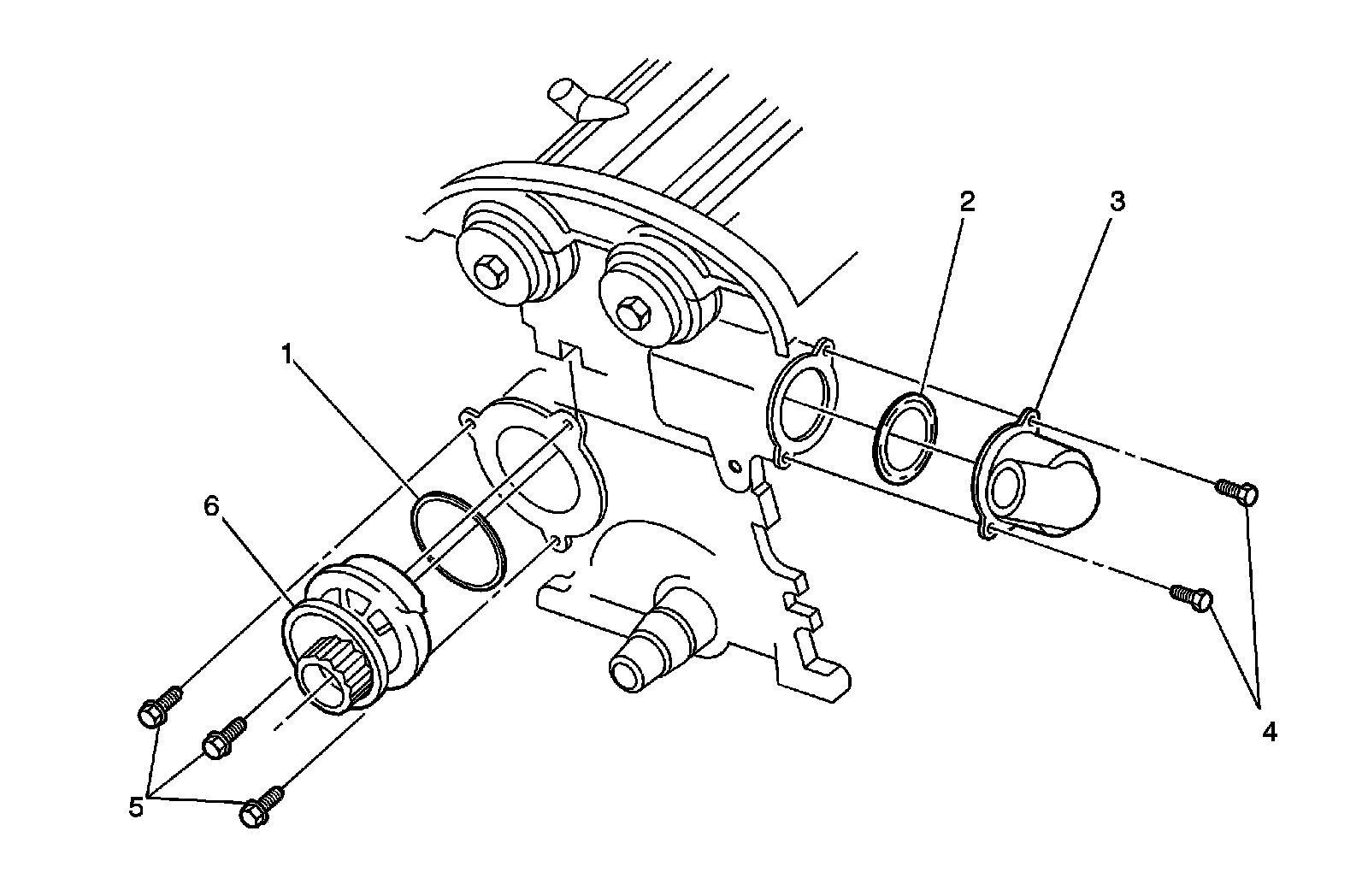

Water Pump/Thermostat (1.4L/1.6L)




1 - Cylinder Block Seal Ring
2 - Seal Ring
3 - Thermostat Housing
4 - Bolt
5 - Bolt
6 - Water Pump

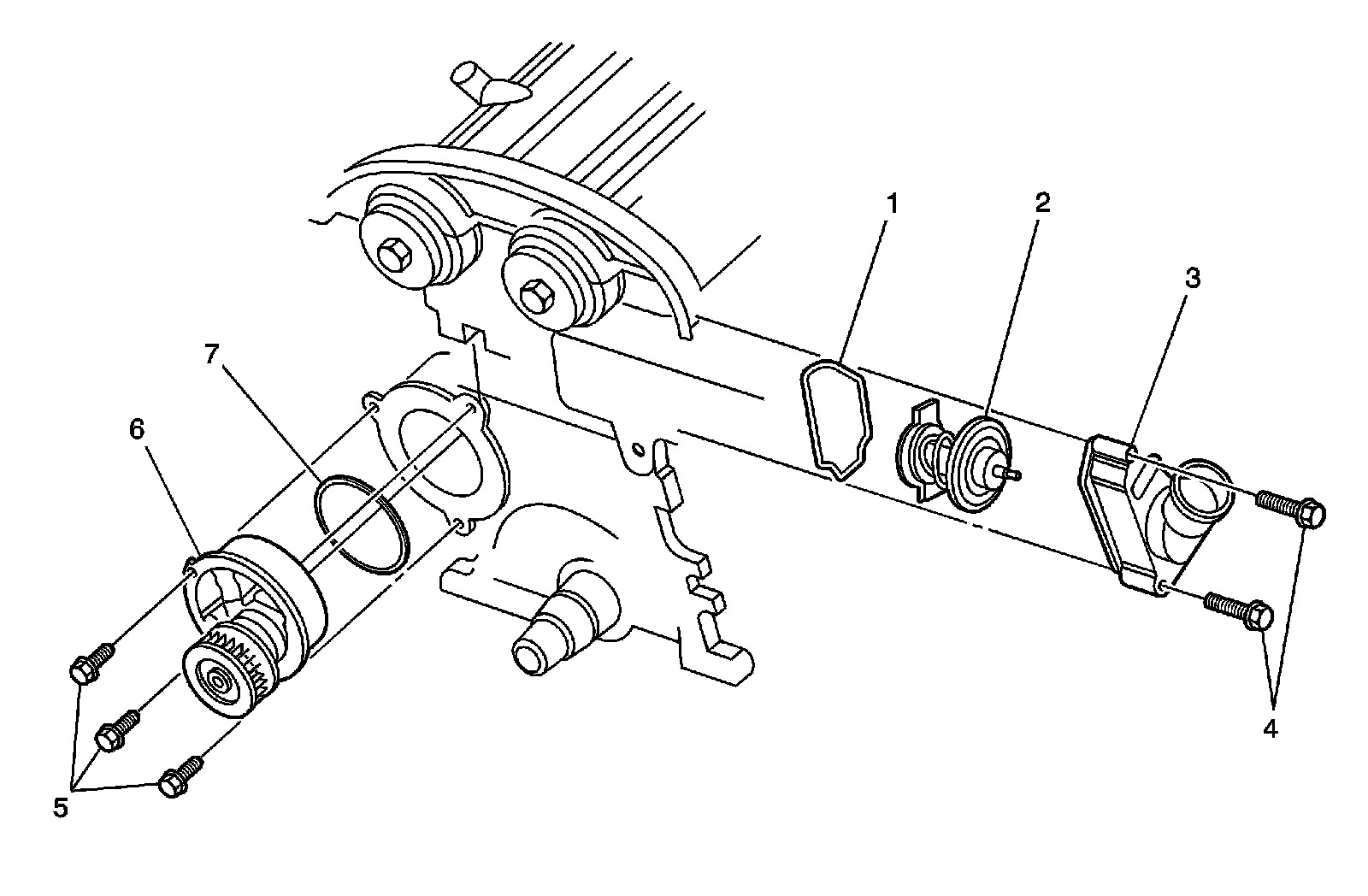

Water Pump/Thermostat (1.8L/2.0L)




1 - Seal Ring
2 - Thermostat
3 - Thermostat Housing
4 - Thermostat Housing Mounting Bolt
5 - Coolant Pump Mounting Bolt
6 - Coolant Pump
7 - Seal Ring
