Clutch, M/T

Clutch Component Locator View

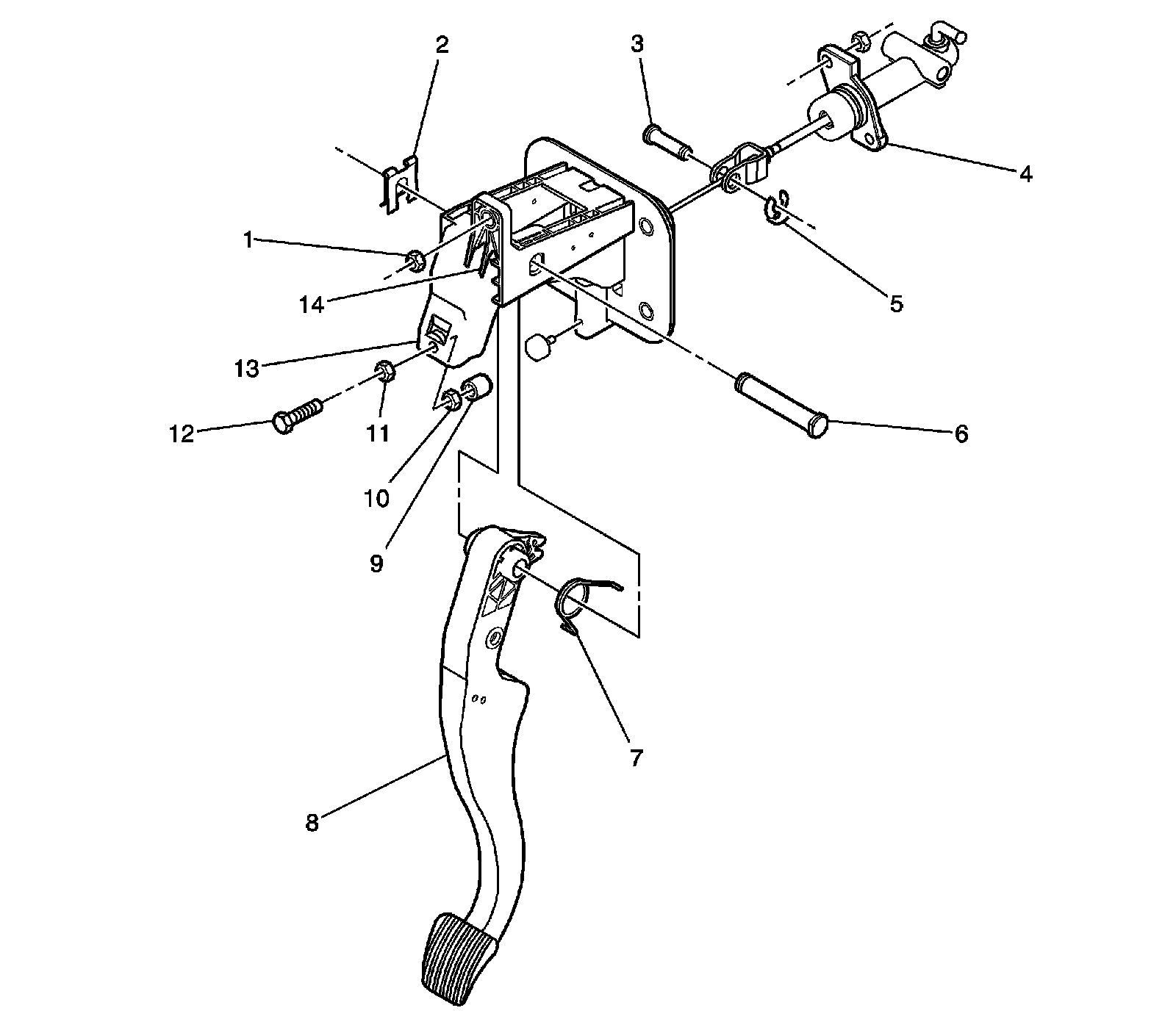

Clutch Pedal




1 - Nut
2 - E-Ring
3 - Pin
4 - Clutch Master Cylinder
5 - E-Ring
6 - Clutch Pedal Shaft
7 - Turn-Over Spring
8 - Clutch Pedal
9 - Clutch Pedal Buffer
10 - Lock Nut
11 - Nut
12 - Bolt
13 - Clutch Pedal Brace
14 - Clutch Switch

Clutch Assembly




1 - Clip
2 - Reservoir Hose
3 - Clutch Master Cylinder
4 - Gasket
5 - Nut
6 - Clutch Master Cylinder Pipe
7 - Clip
8 - Bolt
9 - Pressure Plate
10 - Clutch Disc
11 - Bolt
12 - Concentric Slave Cylinder
13 - Clip
14 - Bracket
15 - Bolt
16 - Concentric Slave Cylinder Pipe
17 - Clip
18 - Hose
