Disassembled Views

Disassembled Views

Transaxle Cutaway View




1 - Input Shaft
2 - Torque converter
3 - Oil Pump
4 - Brake F
5 - Valve Body
6 - Output Speed Sensor
7 - Brake D
8 - Brake C
9 - Clutch C
10 - Input Speed Sensor
11 - Clutch E
12 - Rear Planetary Gear Set
13 - Front Planetary Gear Set
14 - Helical Lock Gear
15 - Sun Gear
16 - Side Shaft
17 - Differential

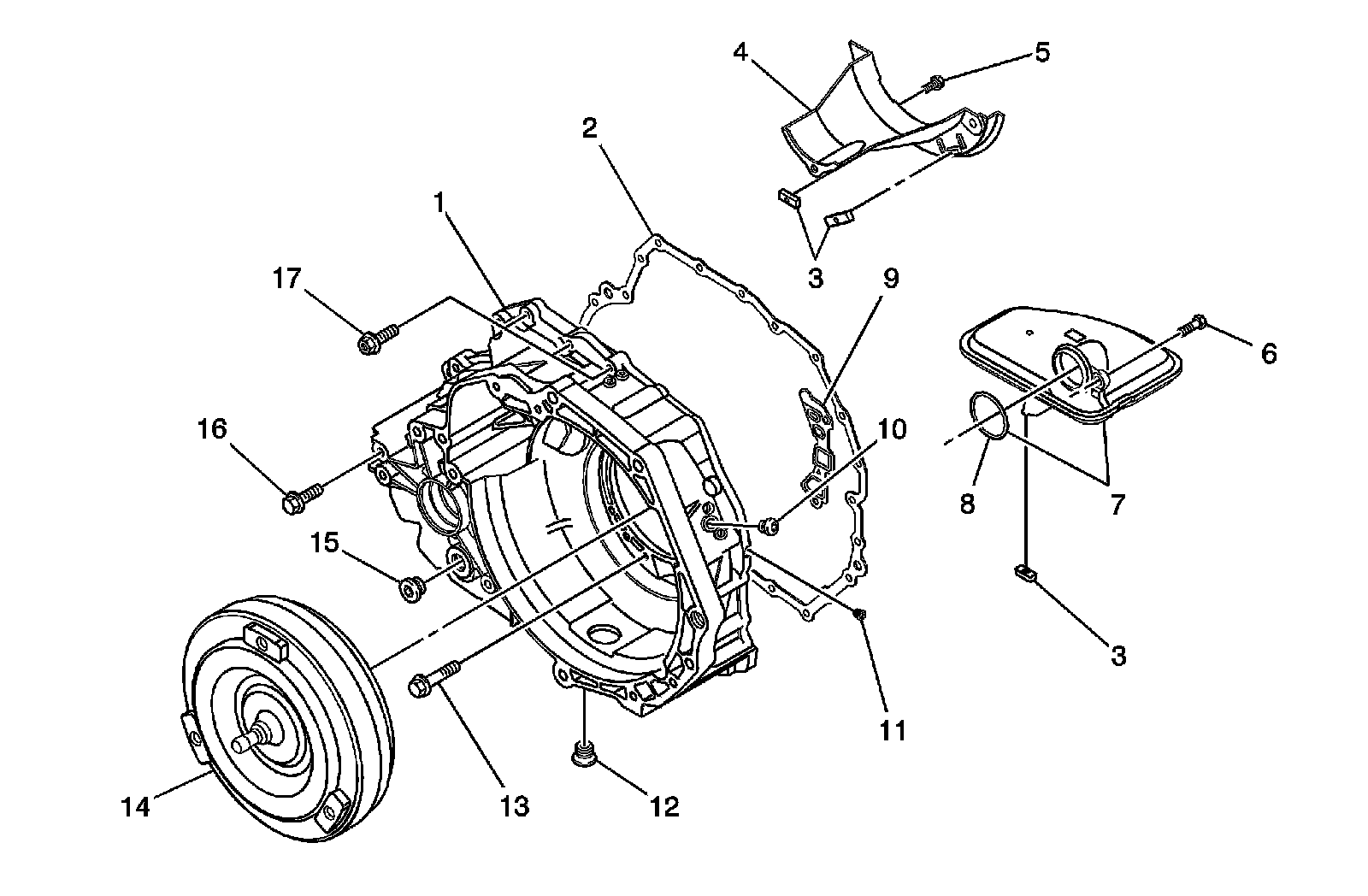

Torque Converter




1 - Torque Converter Housing
2 - Torque Converter Gasket
3 - Magnet
4 - Oil Baffle Plate
5 - Bolt
6 - Screw
7 - Oil Filter
8 - O-Ring
9 - Steel Gasket
10 - Pressure Plug
11 - Pressure Plug
12 - Oil Drain Plug
13 - Bolt
14 - Torque Converter
15 - Oil Level Plug
16 - Bolt
17 - Screw

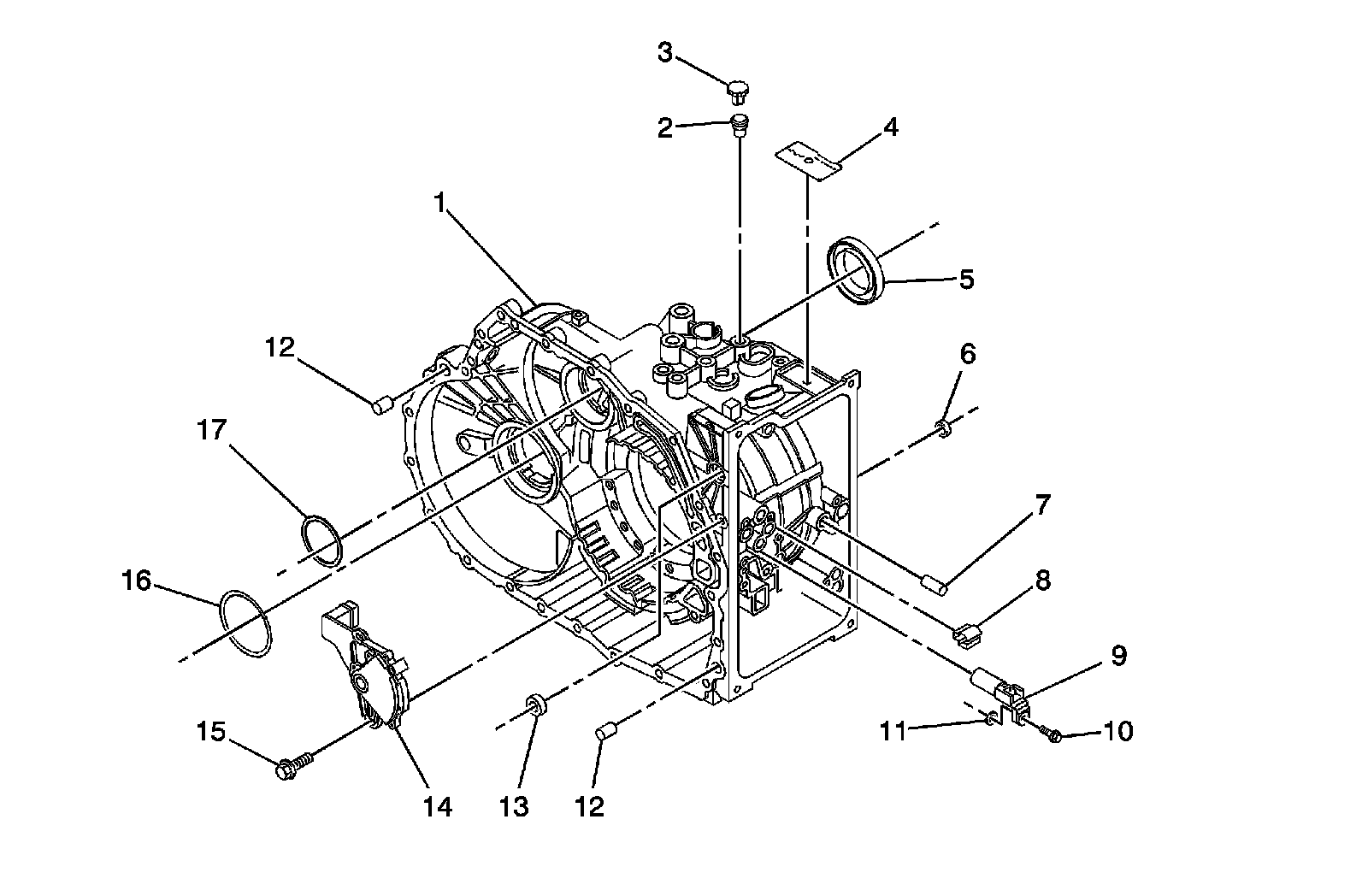

Transaxle Housing




1 - Transaxle Housing
2 - Breather Pipe
3 - Sleeve Protector
4 - Type Plate
5 - Axle Shaft Seal
6 - Sealing Sleeve
7 - Sealing Sleeve
8 - Cable Terminal
9 - Output Speed Sensor
10 - Bolt
11 - Washer
12 - Bushing
13 - Shaft Seal
14 - Park/Neutral Position Switch
15 - Bolt
16 - Shim
17 - Shim

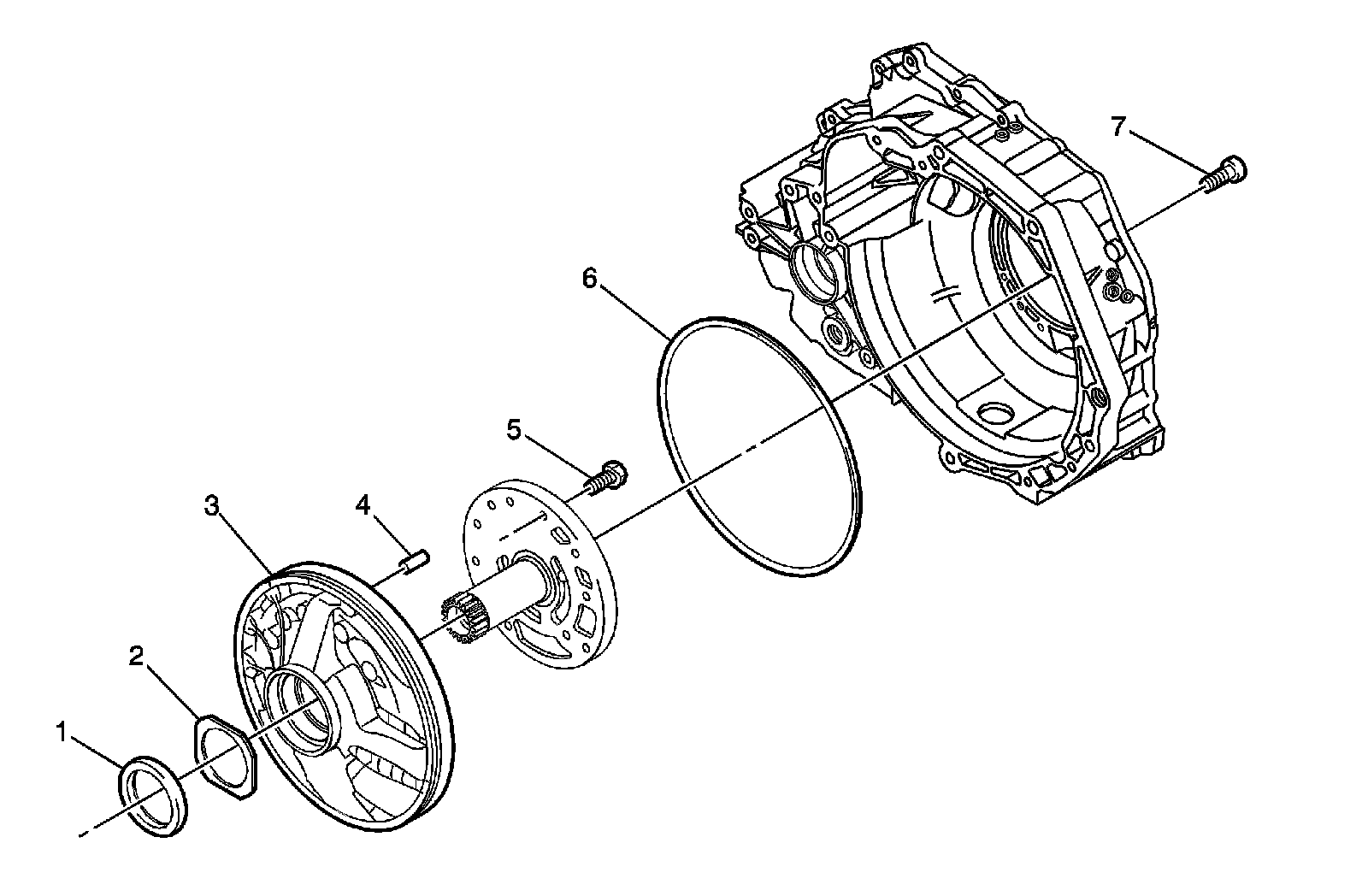

Oil Pump




1 - Oil Pump Seal
2 - Washer
3 - Oil Pump Housing
4 - Dowel Pin
5 - Bolt
6 - O-Ring
7 - Bolt

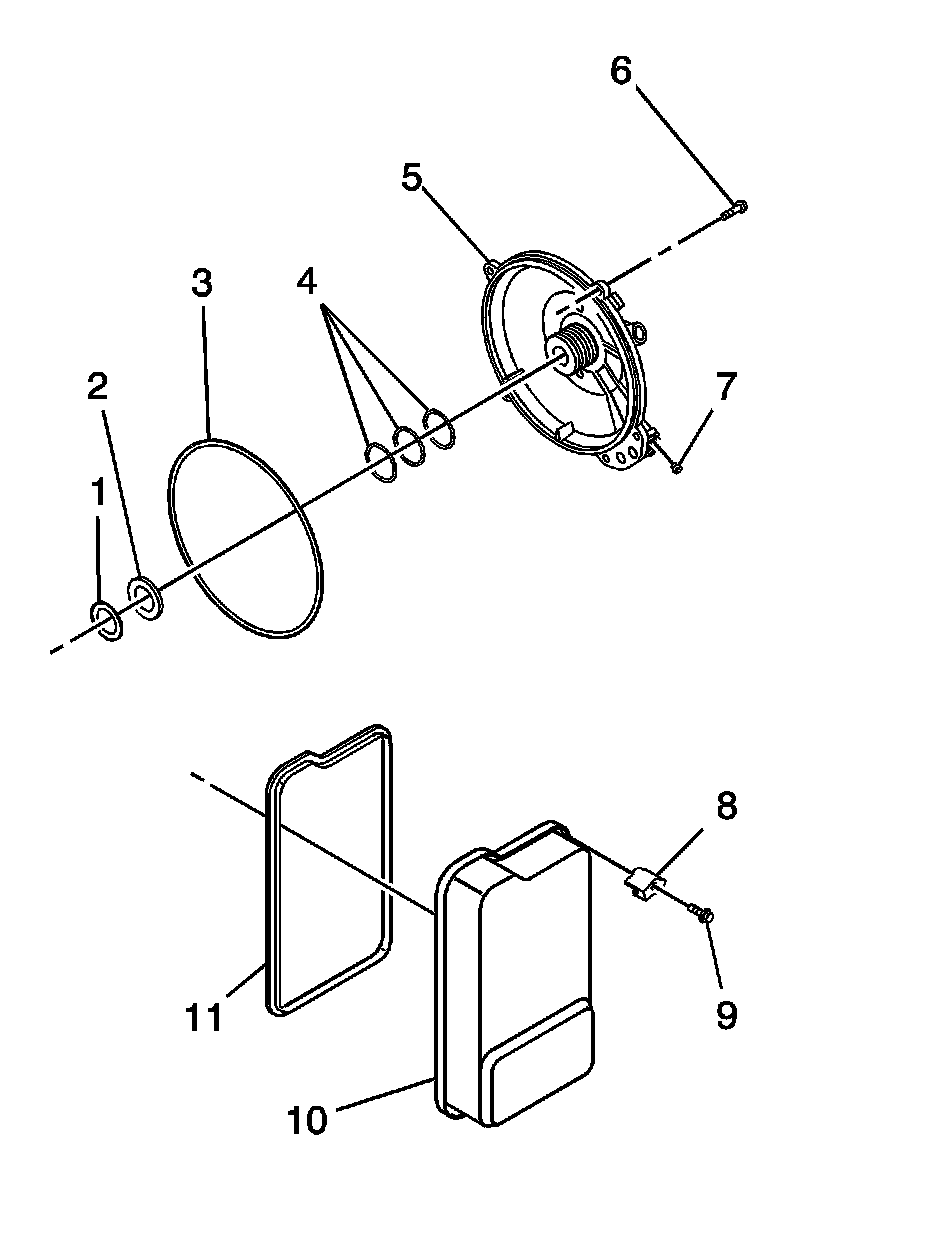

Rear Cover and Oil Pan Cover




1 - Shim
2 - Needle Bearing
3 - O-Ring
4 - Piston Ring
5 - Rear Cover
6 - Bolt
7 - Screw Plug
8 - Oil Pan Bracket
9 - Bolt
10 - Oil Pan
11 - Oil Pan Gasket

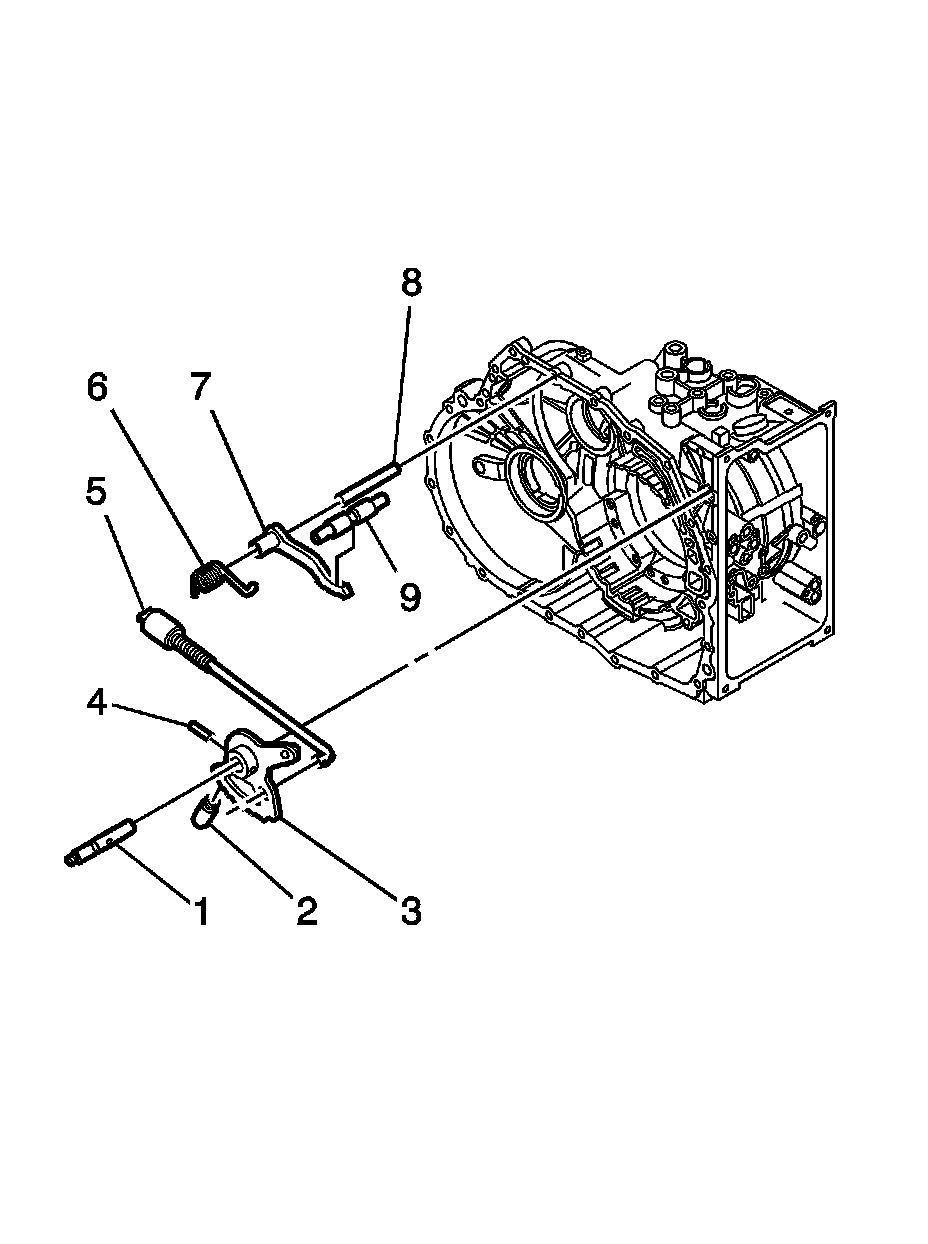

Parking Lever




1 - Selector Shaft
2 - Stop Bushing
3 - Detent Disc
4 - Clamping Sleeve
5 - Connecting Bar
6 - Leg Spring
7 - Pawl
8 - Pin
9 - Support Bolt

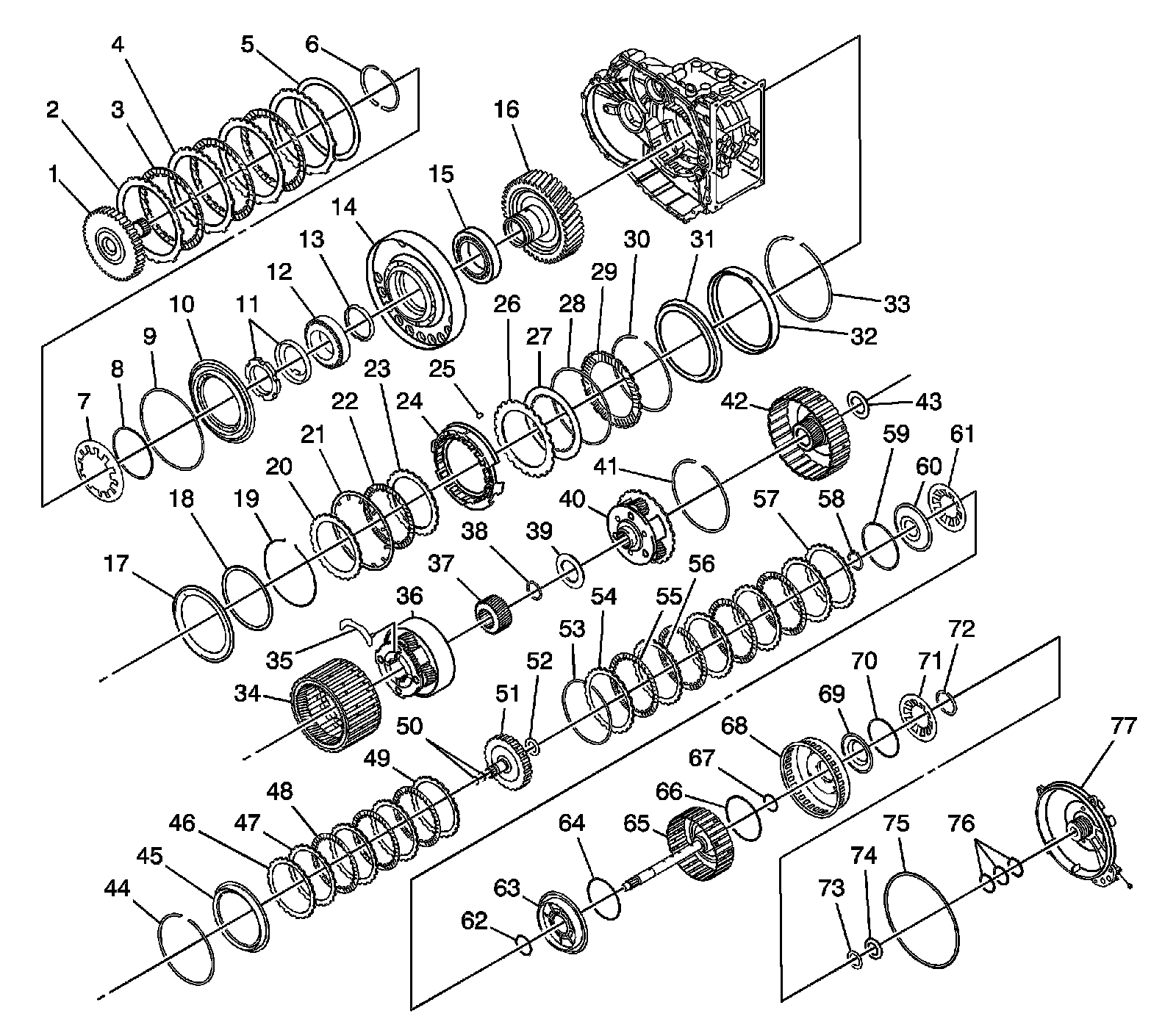

Input Shaft and Shift Gear




1 - Inner Disc Carrier F
2 - Clutch Plate F
3 - Line Clutch Disc F
4 - Clutch Outer Disc F
5 - Spring Disc
6 - Stop Ring
7 - Cup Spring
8 - O-Ring
9 - O-Ring
10 - Piston D
11 - Slotted Nut
12 - Roller Bearing
13 - Adjust Ring
14 - Bearing Plate
15 - Roller Bearing
16 - Spur Gear
17 - Piston D
18 - Spring Disc
19 - Snap Ring
20 - Clutch Plate D
21 - Cup Spring
22 - Line Clutch Disc D
23 - Spring Disc
24 - Disc Carrier C/D
25 - Pitting Key
26 - Line Clutch Disc C
27 - Clutch Outer Disc C
28 - Cup Spring
29 - Line Clutch Disc C
30 - Snap Ring
31 - Piston C
32 - Cylinder C
33 - Snap Ring
34 - Front Ring Gear
35 - Oil Tray
36 - Front Planetary Gear
37 - Front Sun Gear
38 - Snap Ring
39 - Needle Bearing
40 - Rear Planetary Gear Set
41 - Snap Ring
42 - Rear Sun Gear
43 - Needle Bearing
44 - Snap Ring
45 - Piston B
46 - Clutch Plate B
47 - Clutch Outer Disc B
48 - Line Clutch Disc B
49 - Spring Disc
50 - Piston Ring
51 - Inner Disc Carrier E
52 - Needle Bearing
53 - Snap Ring
54 - Clutch Plate Disc E
55 - Line Clutch Disc E
56 - Clutch Outer Disc E
57 - Spring Disc
58 - Retainer Ring
59 - O-Ring
60 - Oil Dam
61 - Cup Spring
62 - O-Ring
63 - Piston E
64 - O-ring
65 - Input Shaft
66 - O-Ring
67 - O-Ring
68 - Piston
69 - Oil Dam
70 - O-Ring
71 - Cup Spring
72 - Stop Ring
73 - Shim
74 - Needle Bearing
75 - O-Ring
76 - Piston Ring
77 - Rear Cover

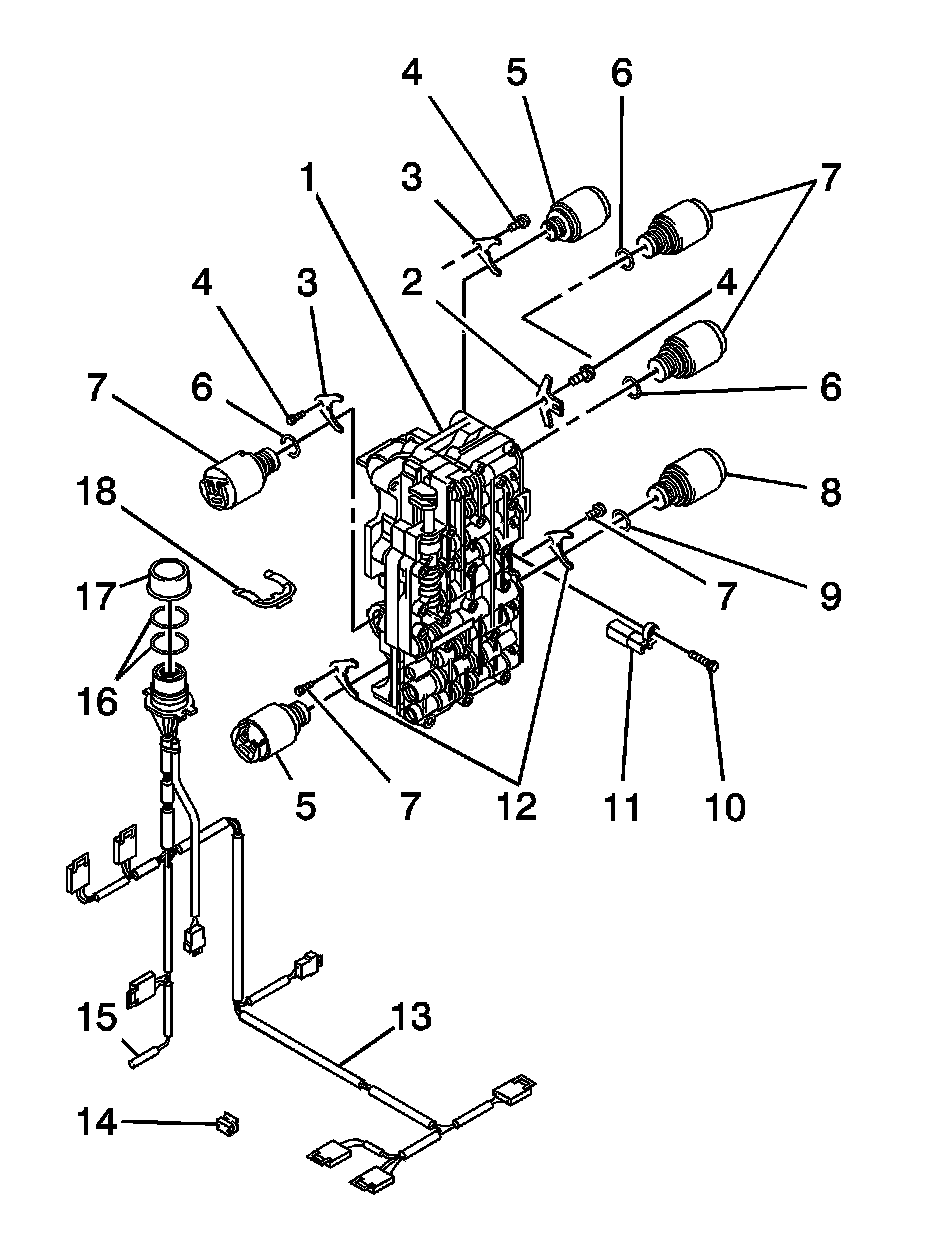

Valve Body




1 - Control Valve Body
2 - Cap Screw
3 - Fixing Plate
4 - Bolt
5 - Solenoid Valve
6 - Cap Screw
7 - Solenoid Valve
8 - Solenoid Valve
9 - O-Ring
10 - Cap Screw
11 - Input Shaft Speed (ISS) Sensor
12 - Fixing Plate
13 - Valve Body Wiring Harness
14 - Cable Terminal
15 - Transmission Fluid Temperature (TFT) Sensor
16 - O-Ring
17 - Plug
18 - Retaining Clip
