Power Distribution Schematics
Power Distribution Schematics

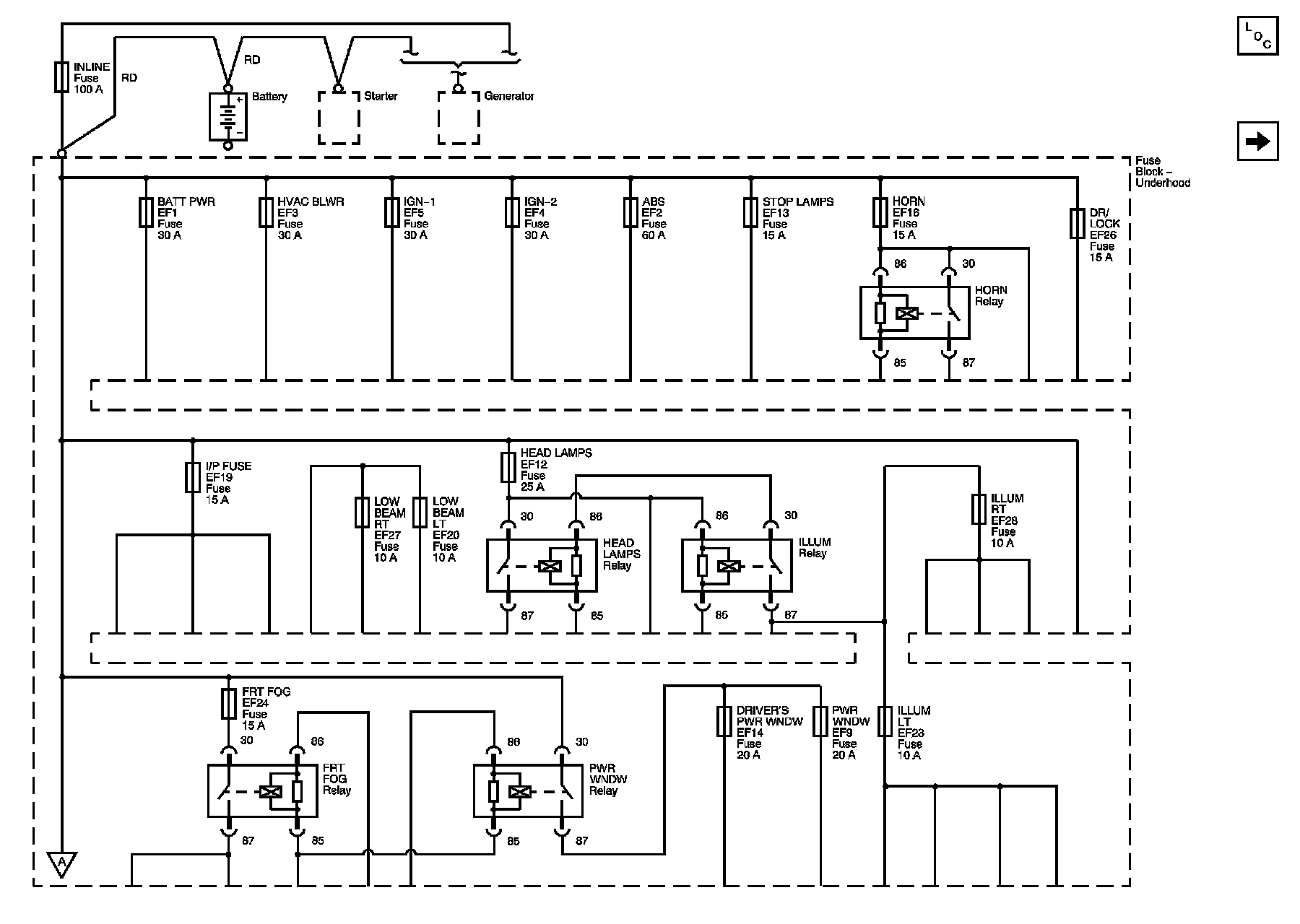

Underhood Fuse Block - Battery Feeds 1 of 3
Underhood Fuse Block - Battery Feeds 2 of 3
Underhood Fuse Block - Battery Feeds 3 of 3

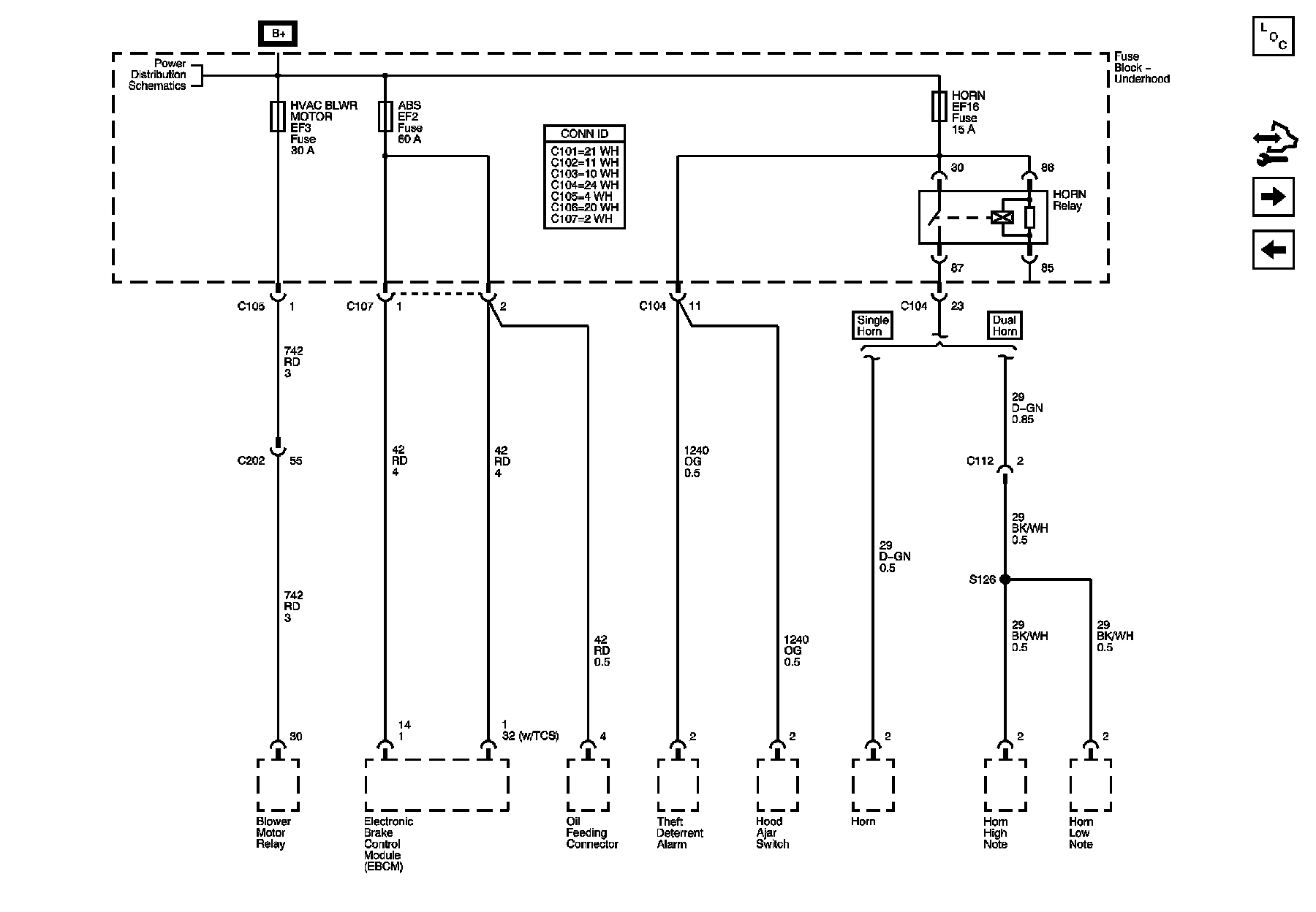

Underhood Fuse Block - HVAC BLWR, ABS and HORN Fuses

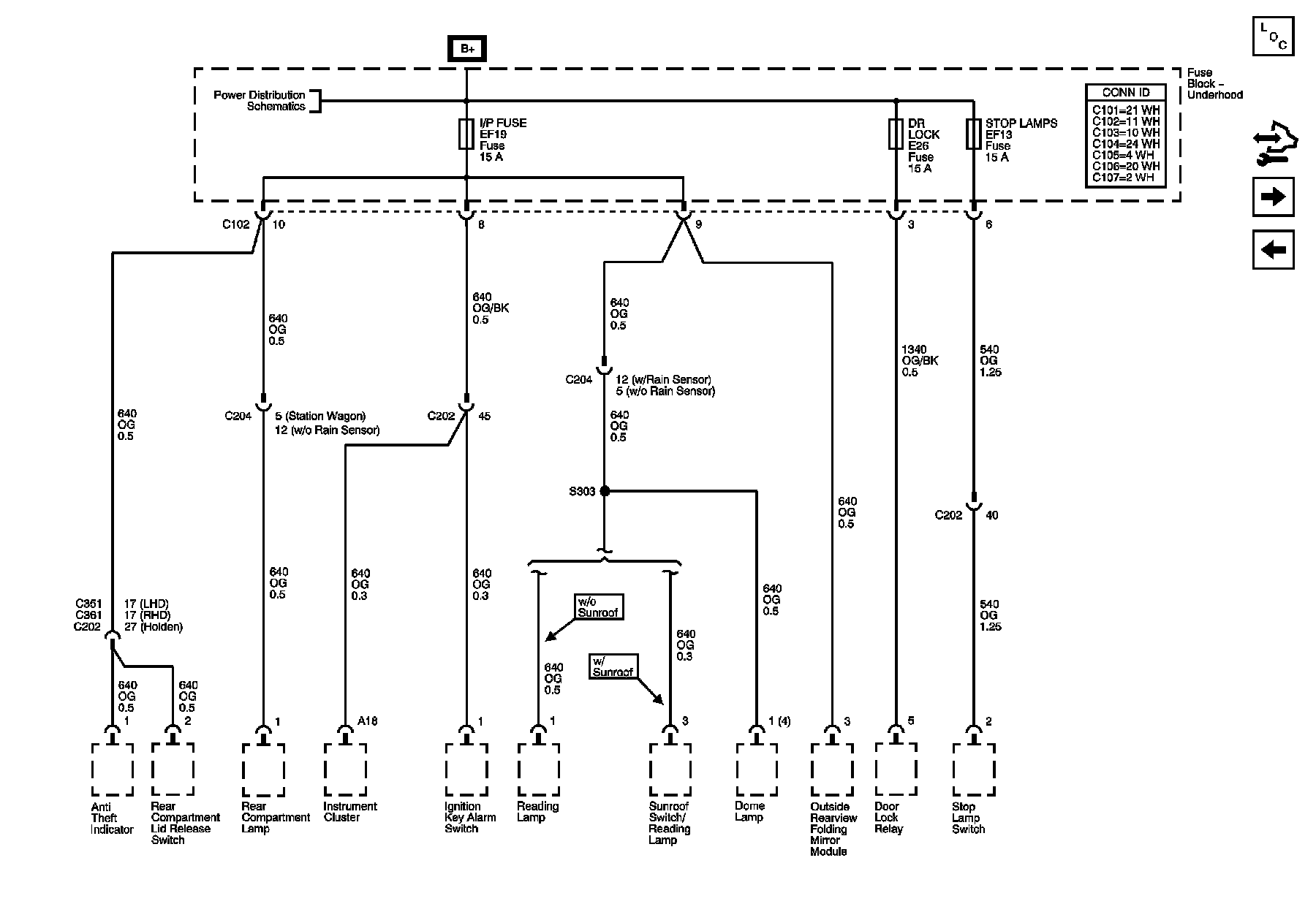

Underhood Fuse Block - IP FUSE, DR/LOCK and STOP LAMPS Fuses
Underhood Fuse Block - FRT FOG, DRIVER'S PWR W/DW and PWR WNDW Fuses

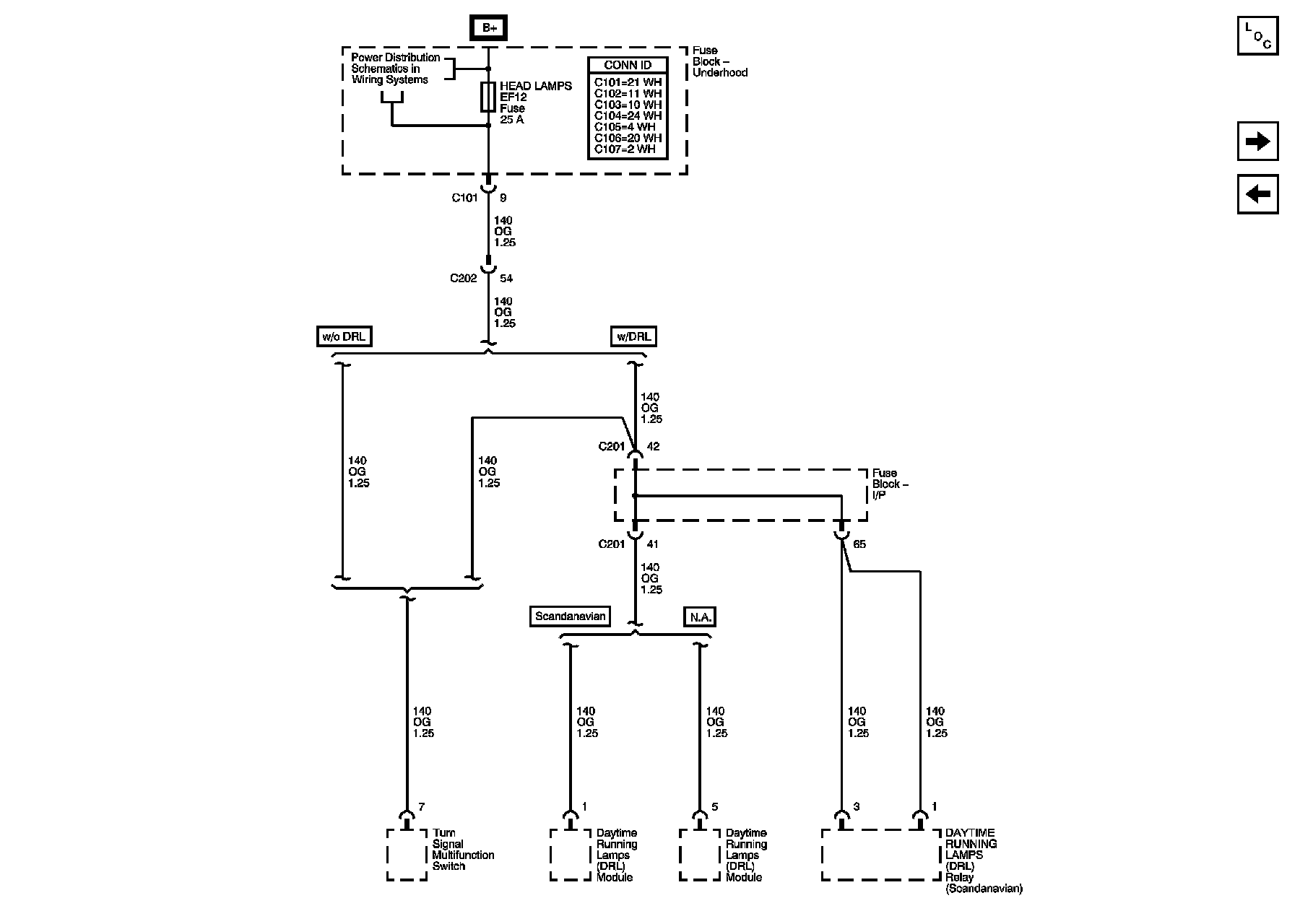

Underhood Fuse Block - HEAD LAMPS FUSE

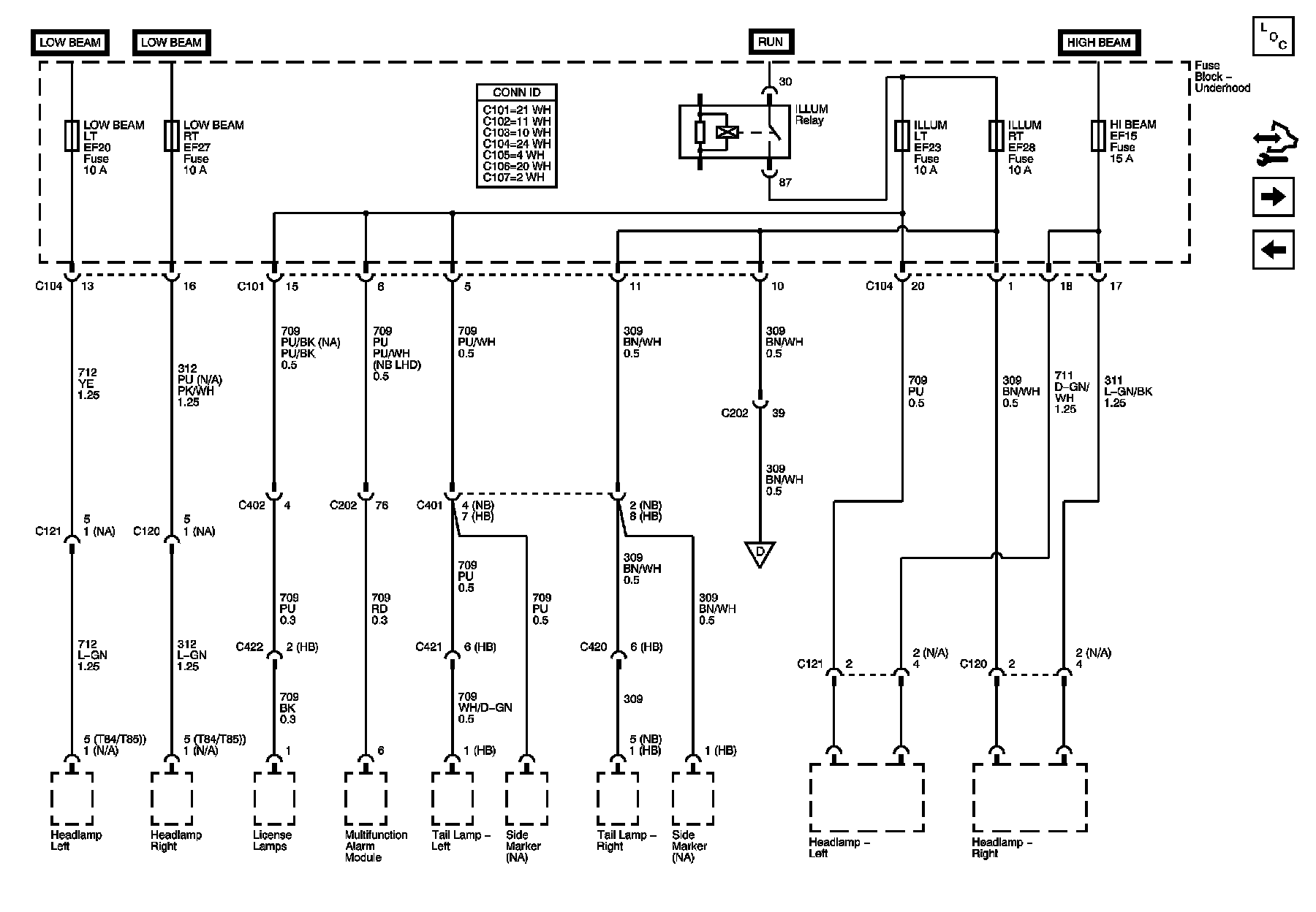

Underhood Fuse Block - LOW BEAM LT, LOW BEAM RT, ILLUM LT, ILLUM RT, and HI BEAM Fuses

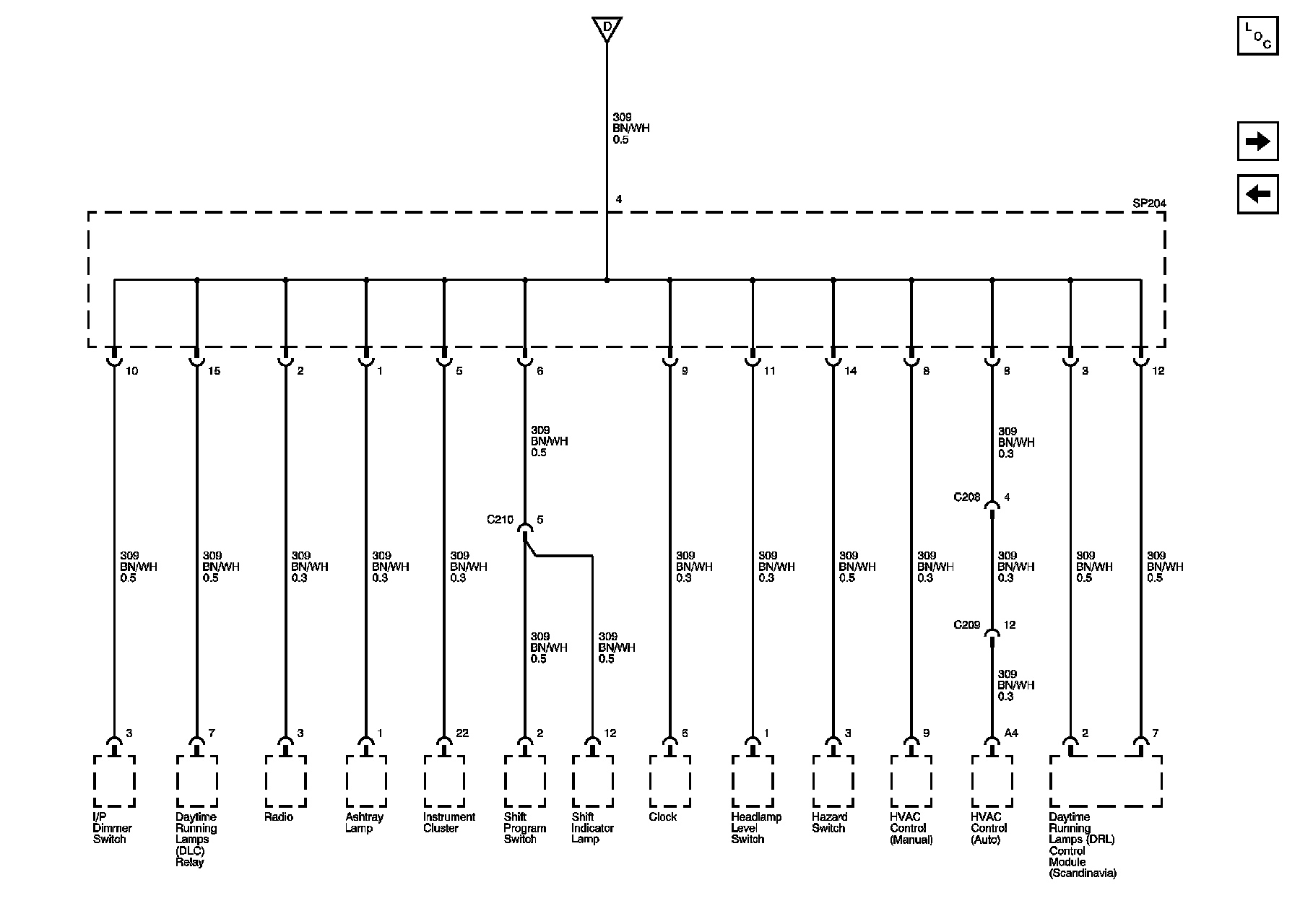

SP204

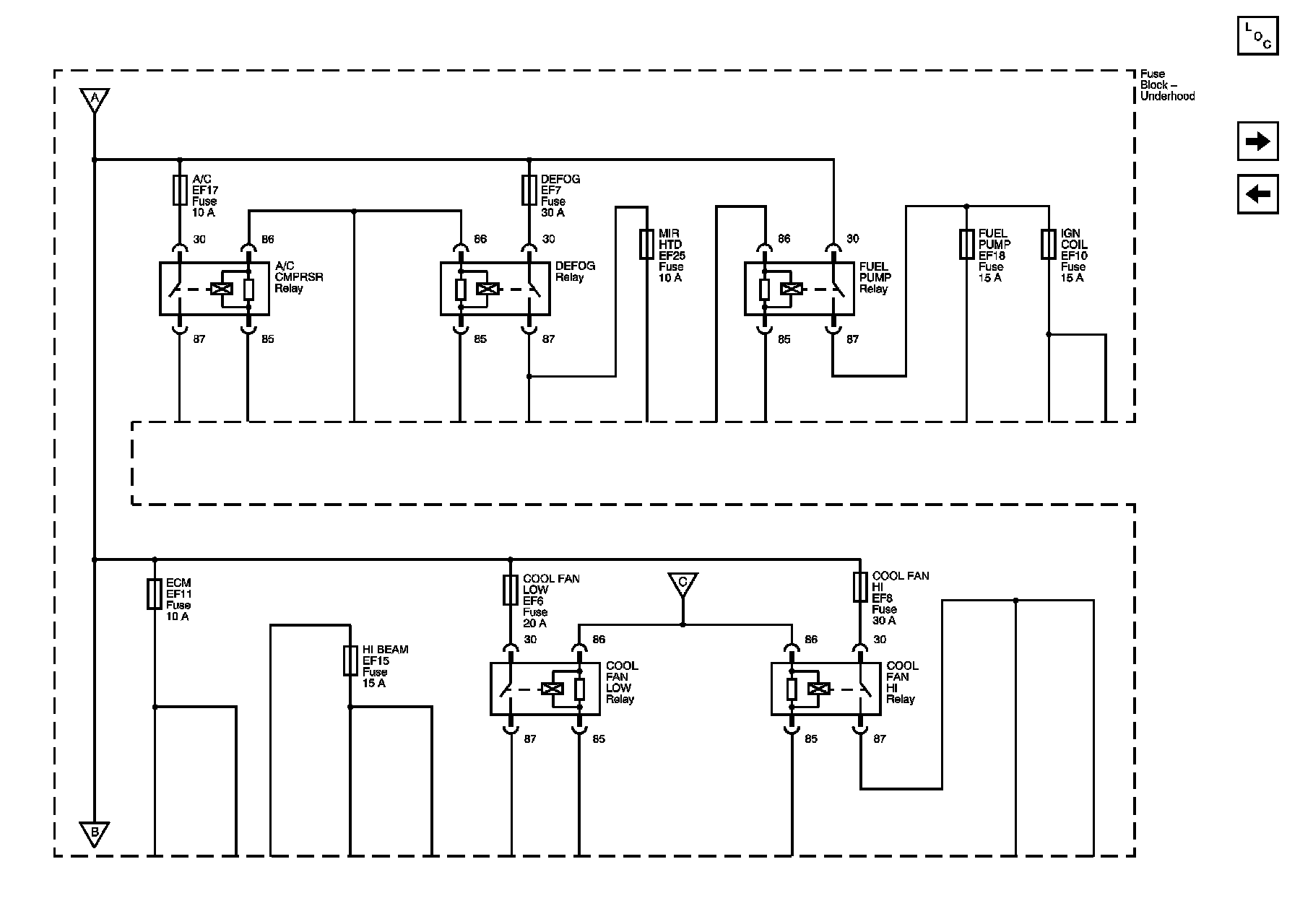

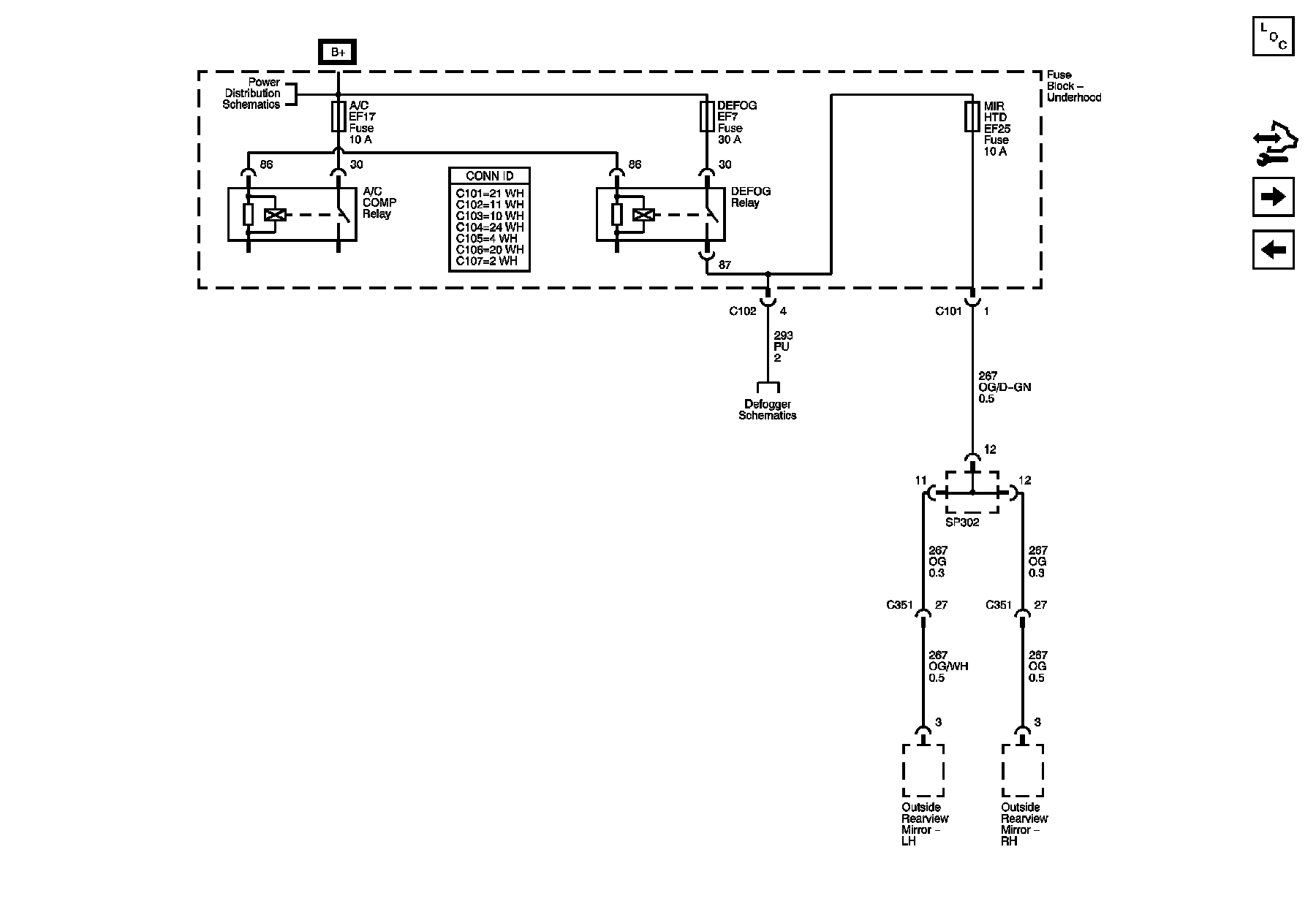

Underhood Fuse Block - A/C, DEFOG, and MIR HTD Fuses

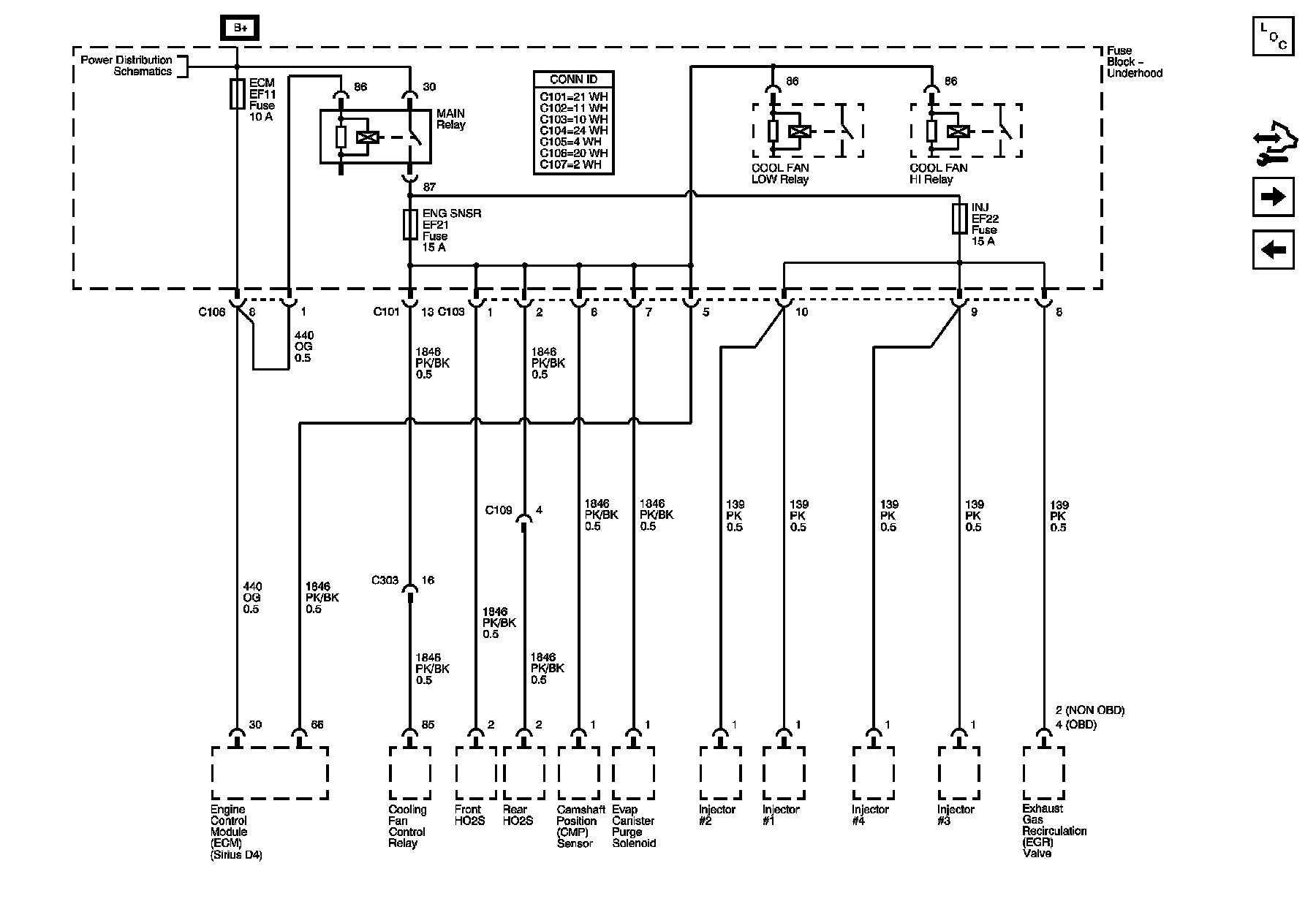

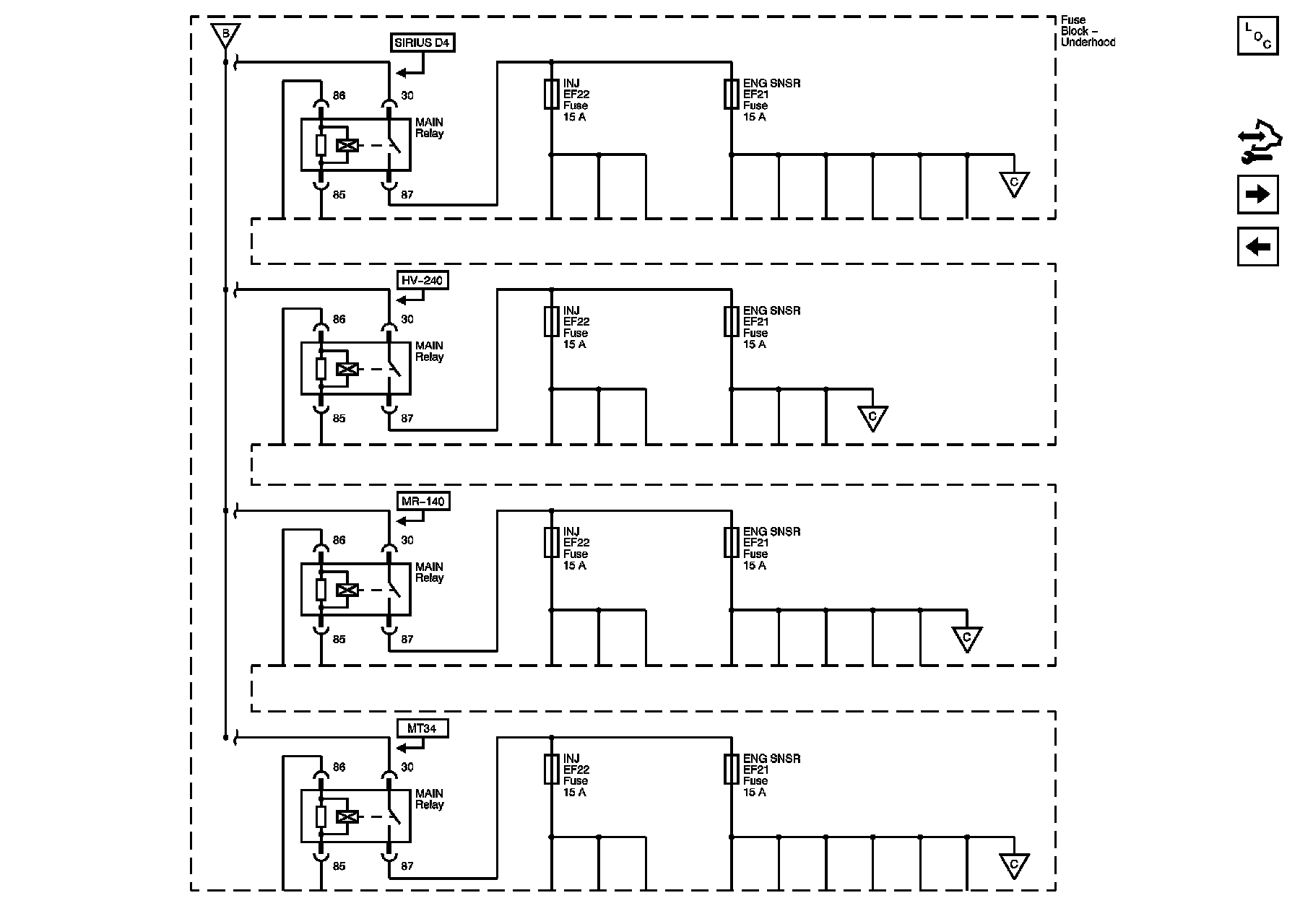

Underhood Fuse Block - MAIN Relay and ECM, ENG SNSR, and INJ Fuses - Sirius D4

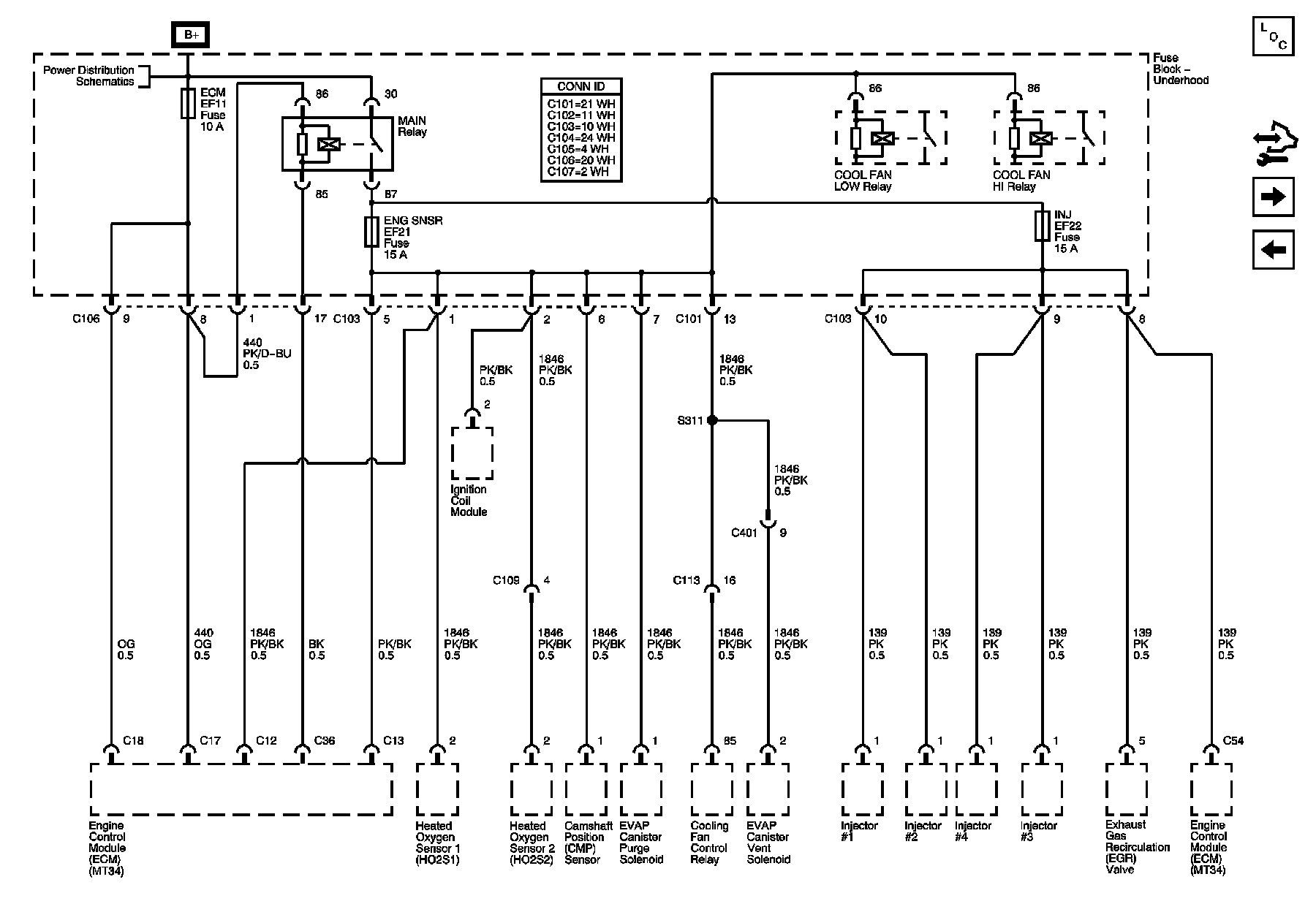

Underhood Fuse Block - MAIN Relay and ECM, ENG SNSR, and INJ Fuses - MR-140

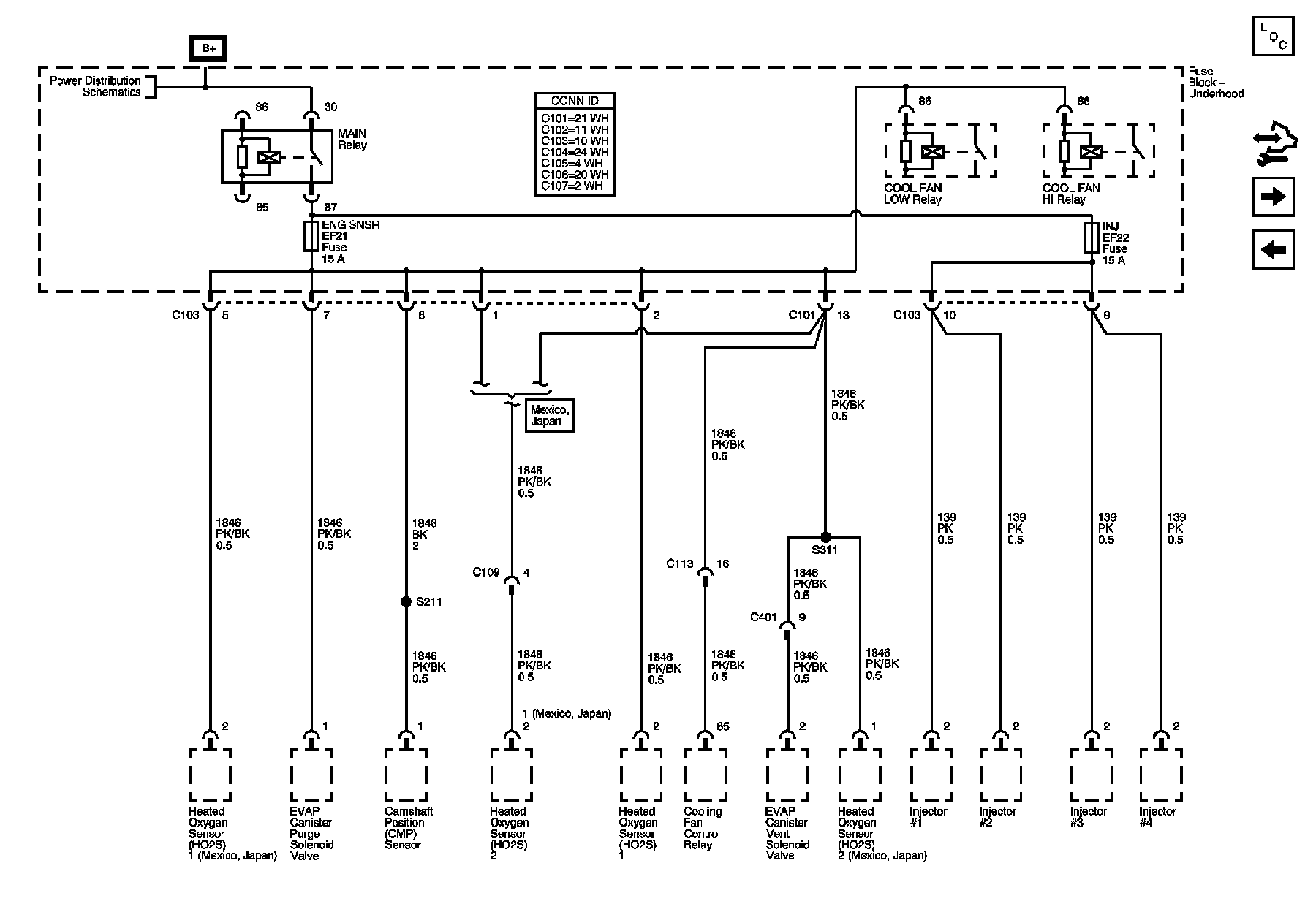

Underhood Fuse Block - MAIN Relay and ECM, ENG SNSR, and INJ Fuses - HV240

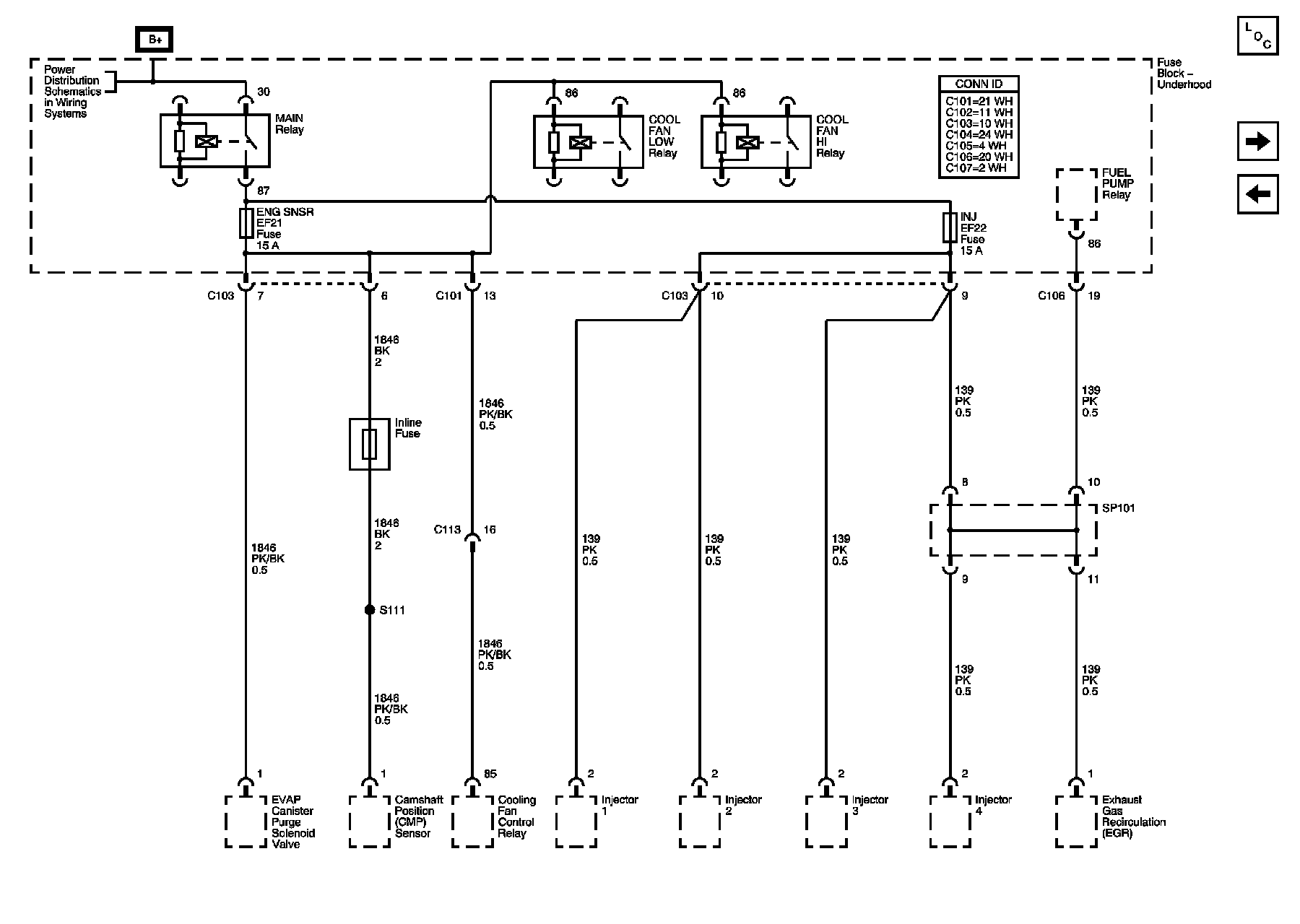

Underhood Fuse Block - MAIN Relay and ECM, ENG SNSR, and INJ Fuses - MT 34

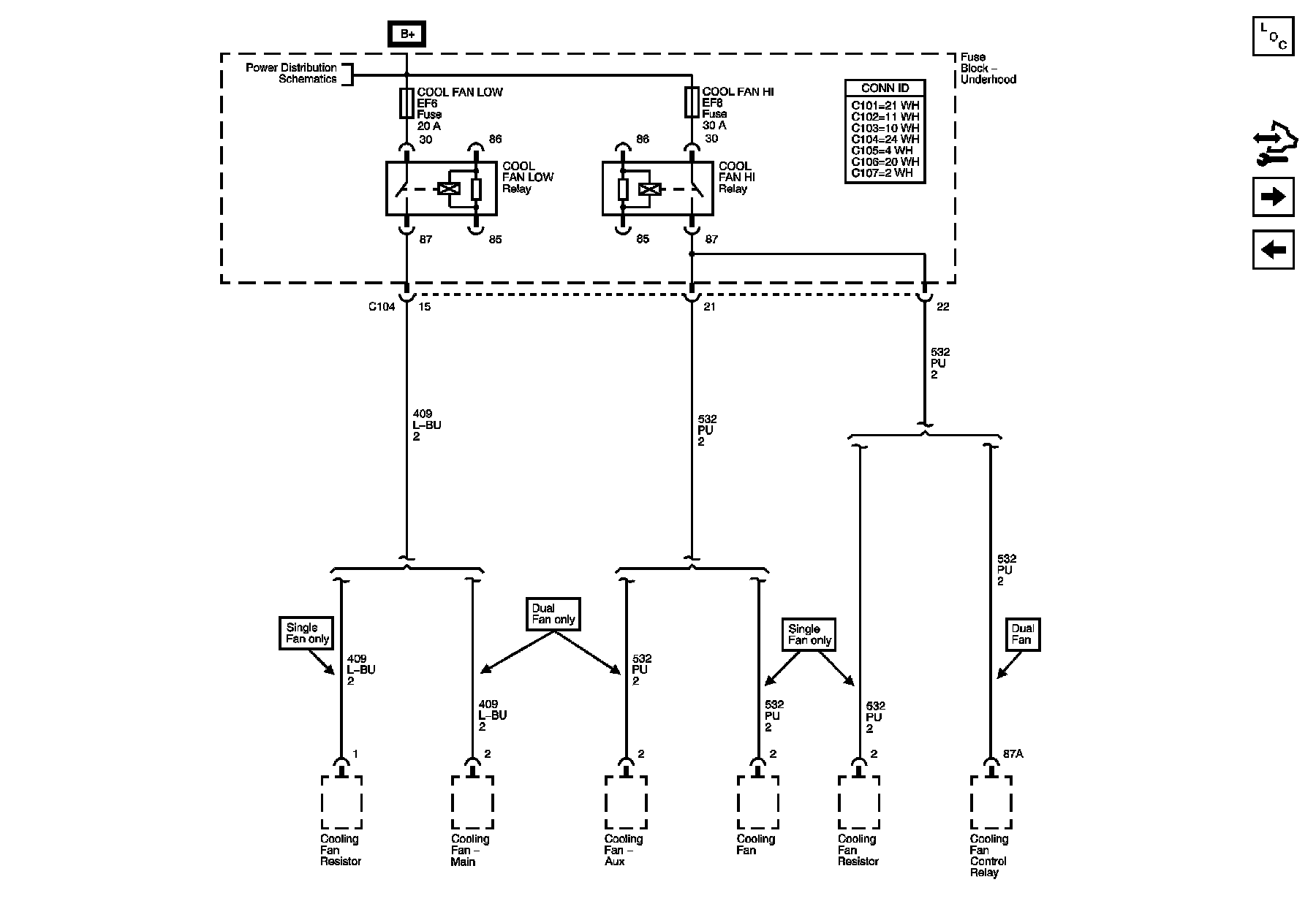

Underhood Fuse Block - COOL FAN LOW and COOL FAN HI Fuses

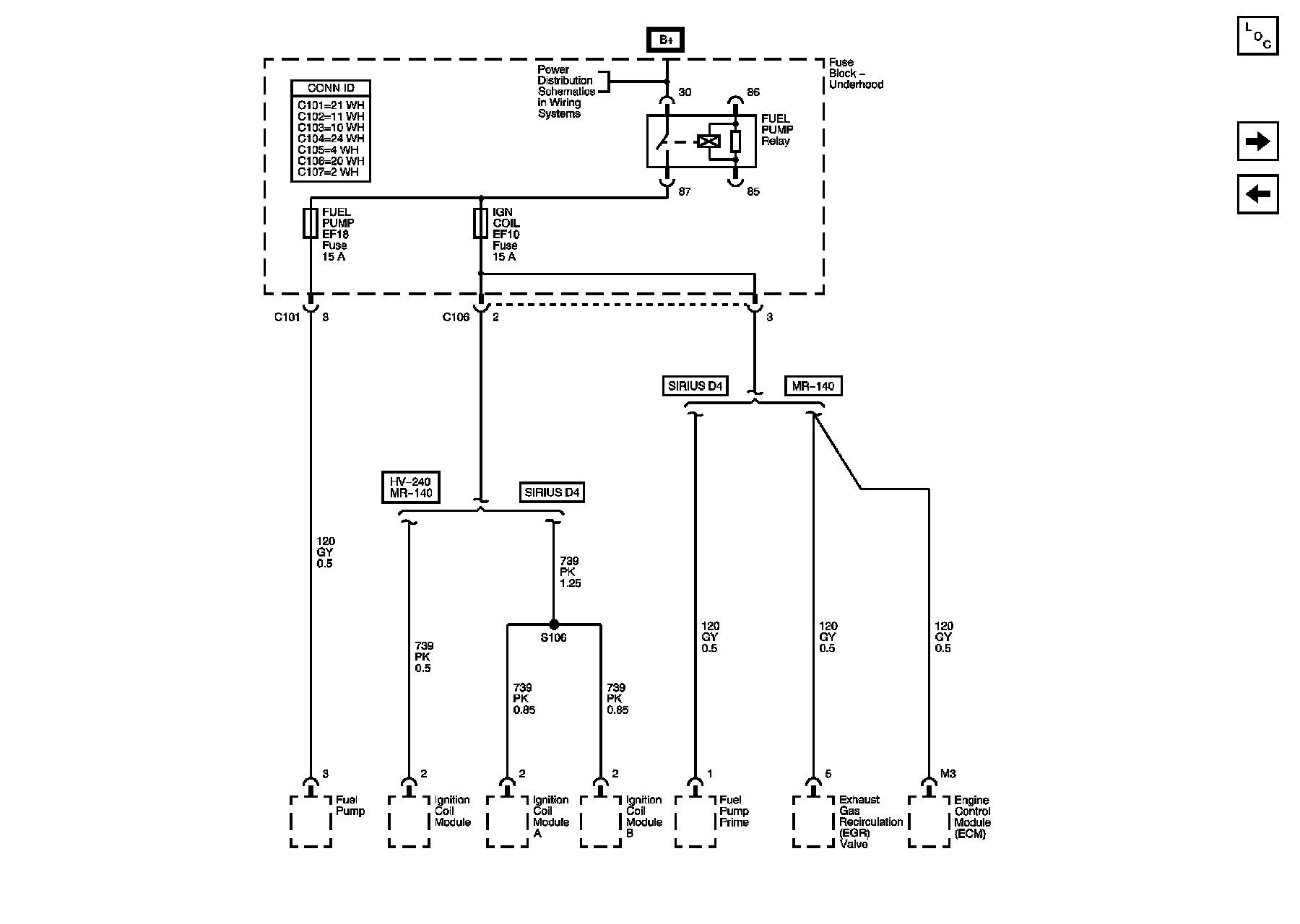

Underhood Fuse Block - FUEL PUMP Relay and FUEL PUMP and IGN COIL Fuses

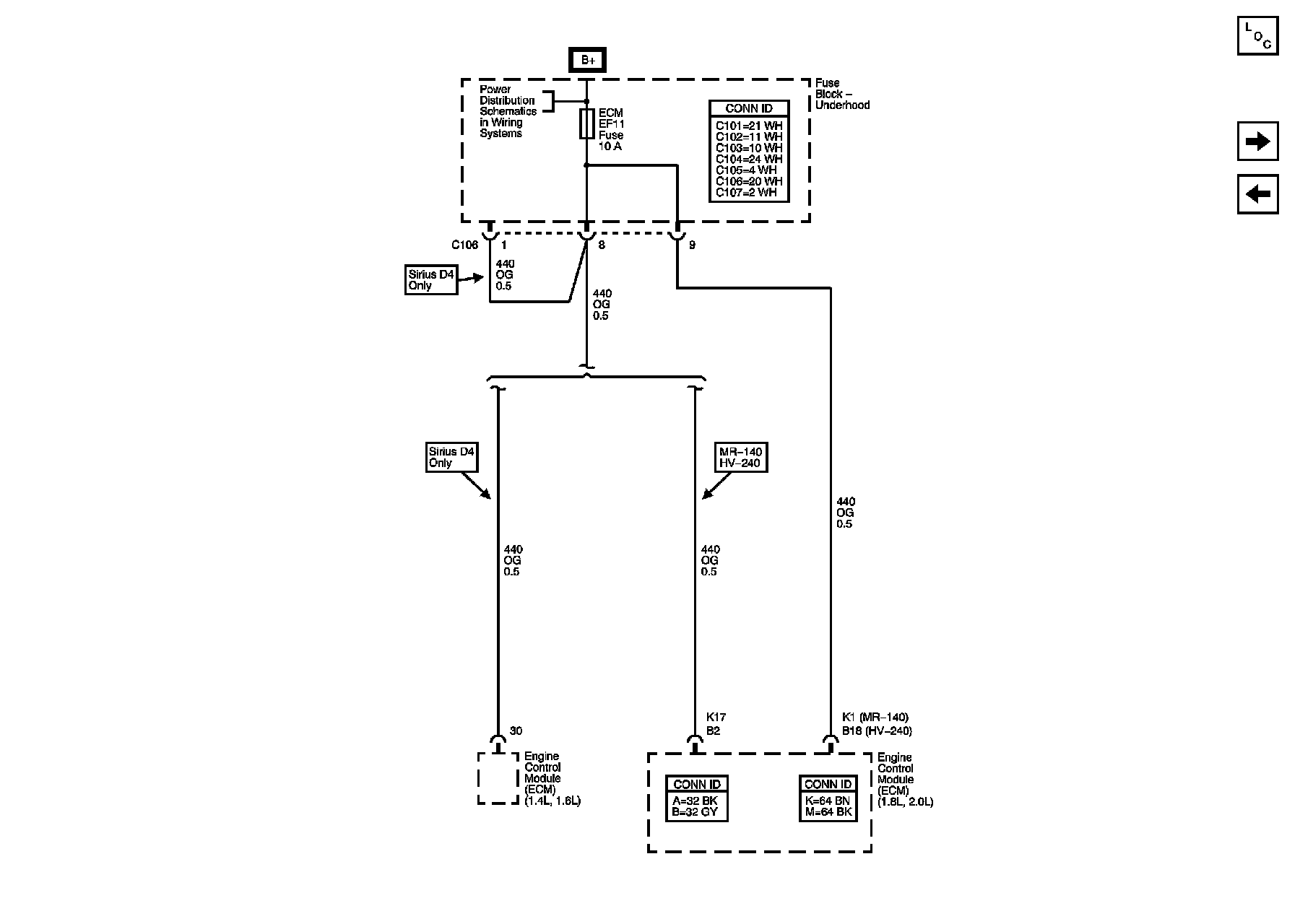

Underhood Fuse Block - ECM Fuse

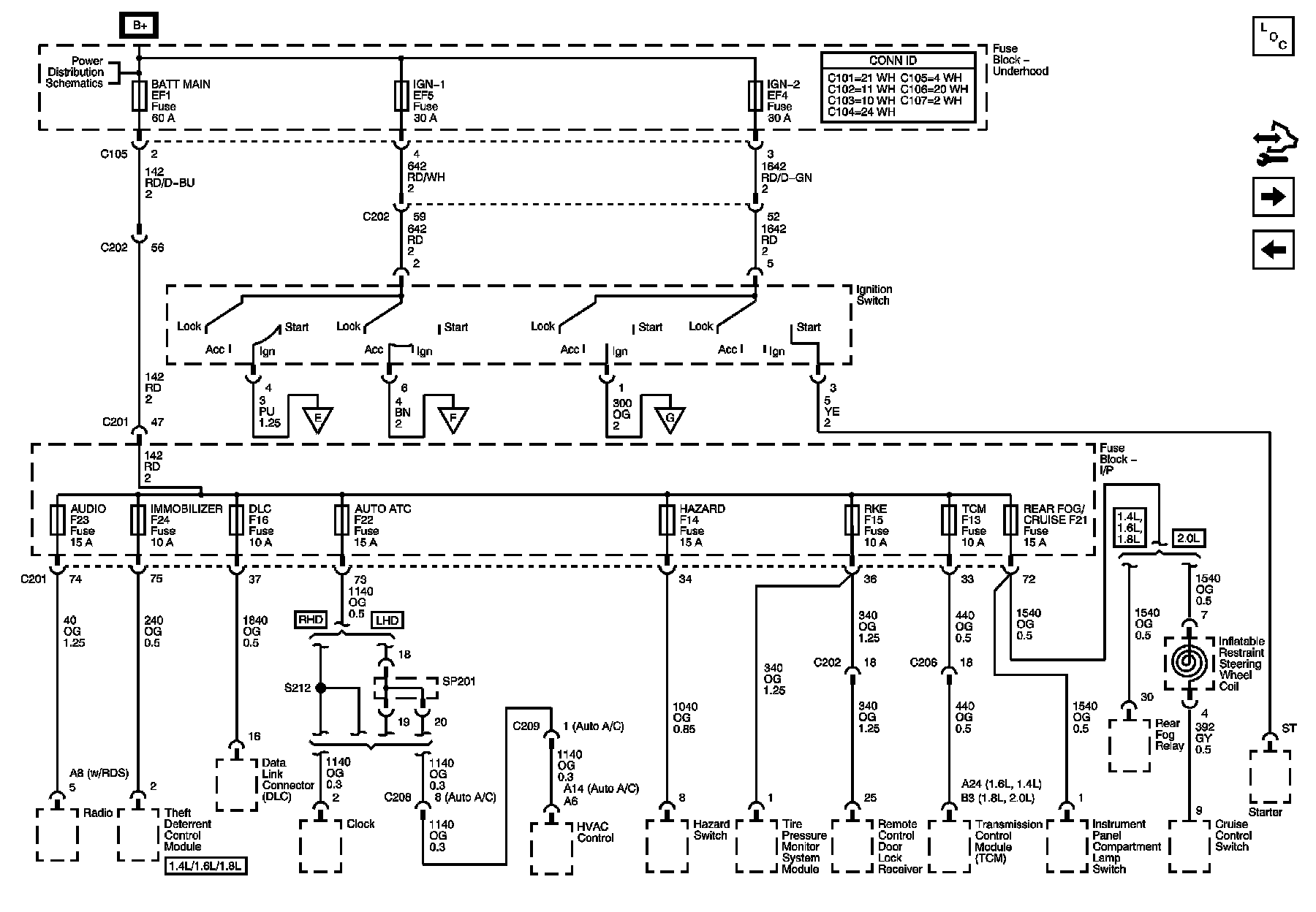

Underhood Fuse Block - BATT PWR, IGN 1 and IGN 2 Fuses, Ignition Switch, I/P Fuse Block - RADIO, IMMOBILIZER, DLC, AUTO A/C, HAZARD LAMPS, RKE, TCM, and REAR FOG/CRUISE Fuses

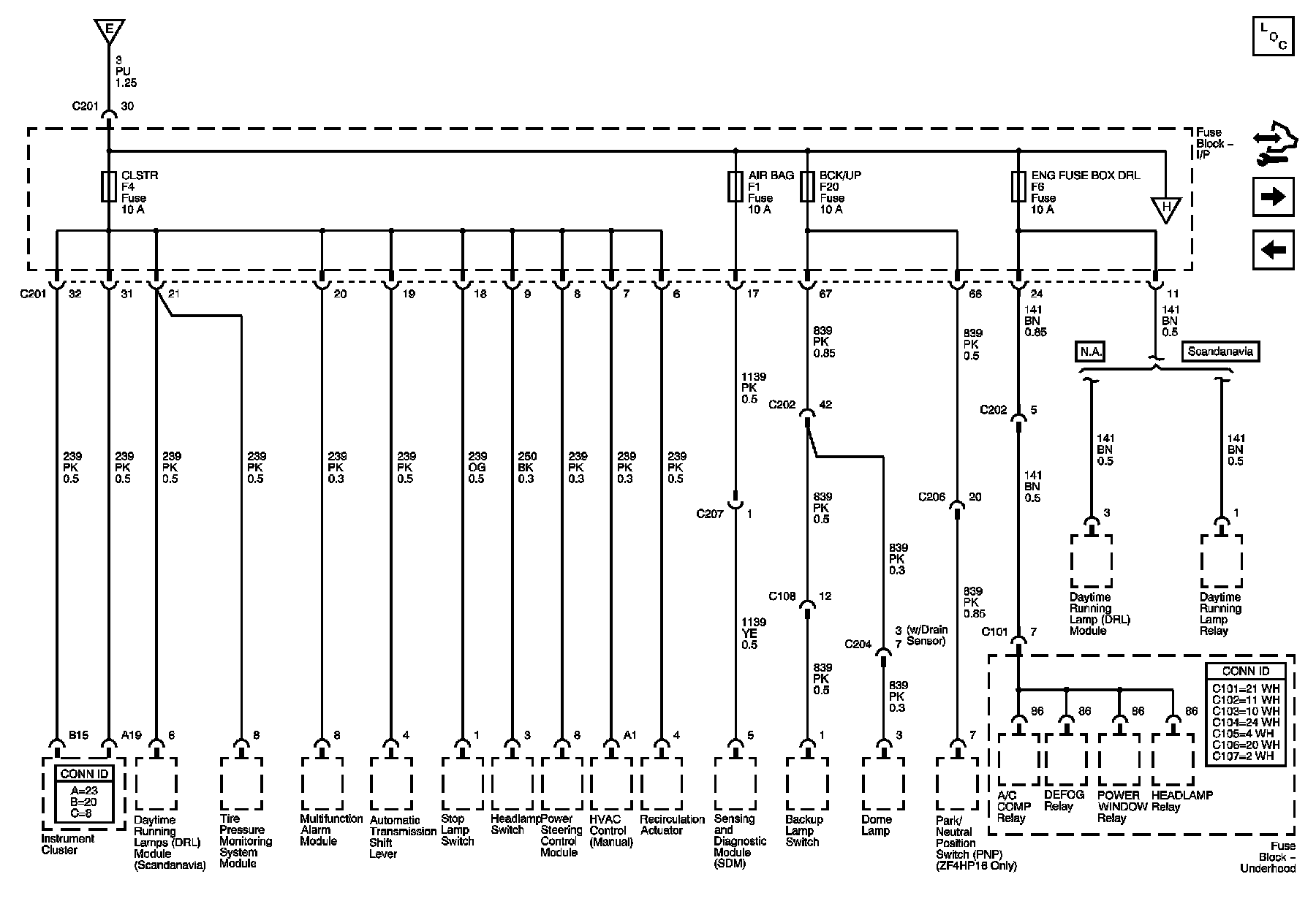

I/P Fuse Block - CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses

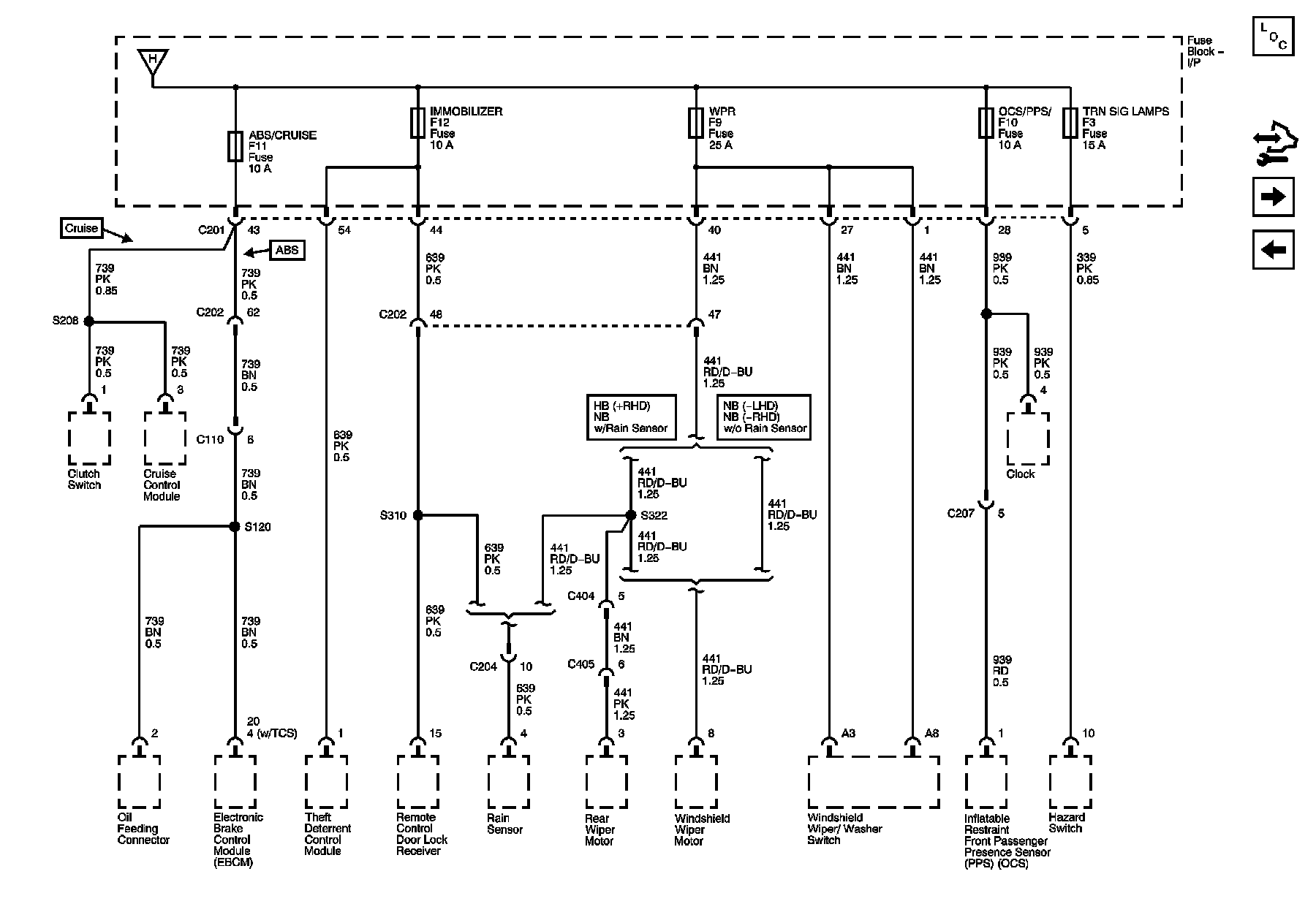

I/P Fuse Block - ABS, IMMOBILIZER, WPR, and TRN SIG LAMPS Fuses

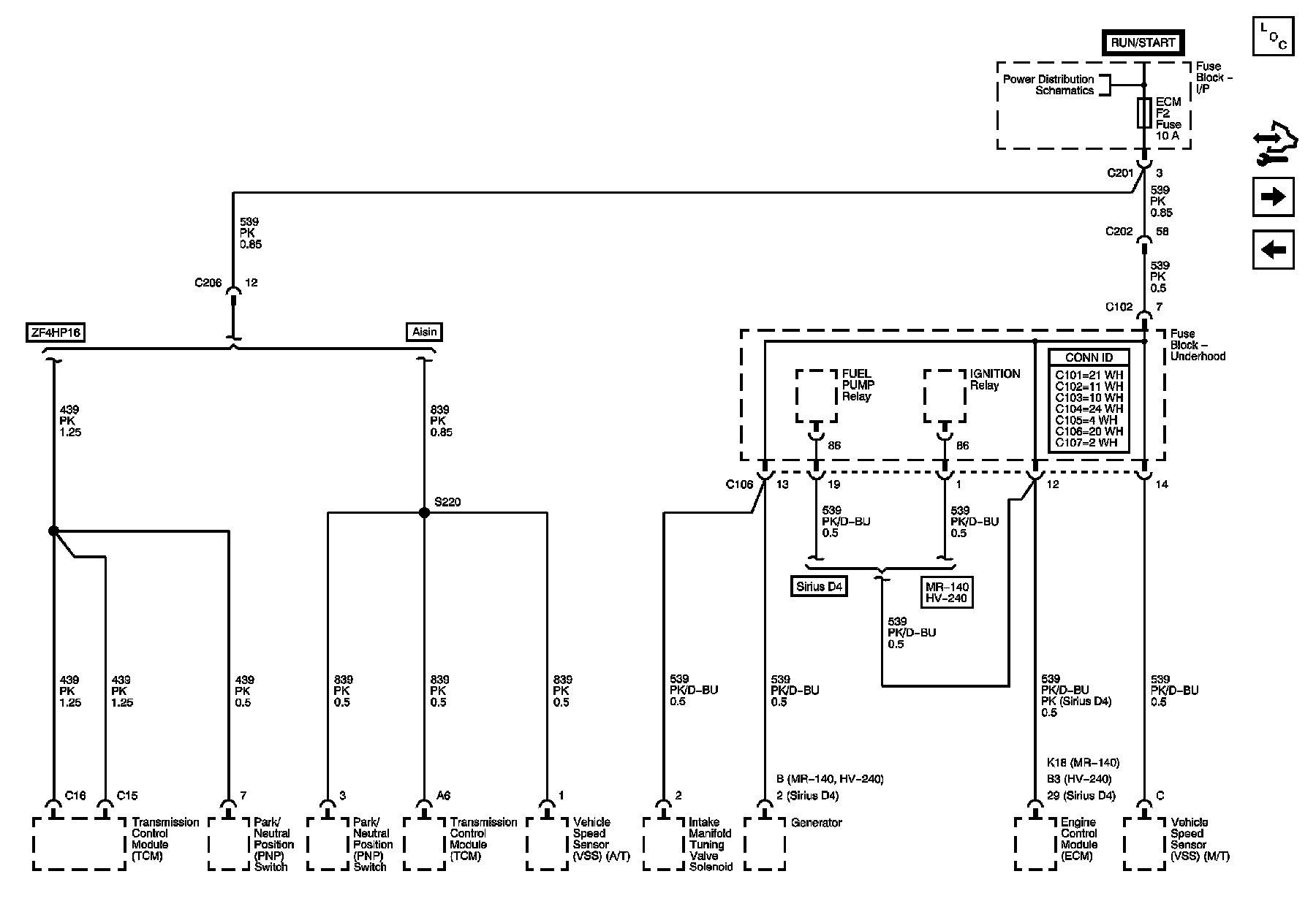

I/P Fuse Block - ECM Fuse

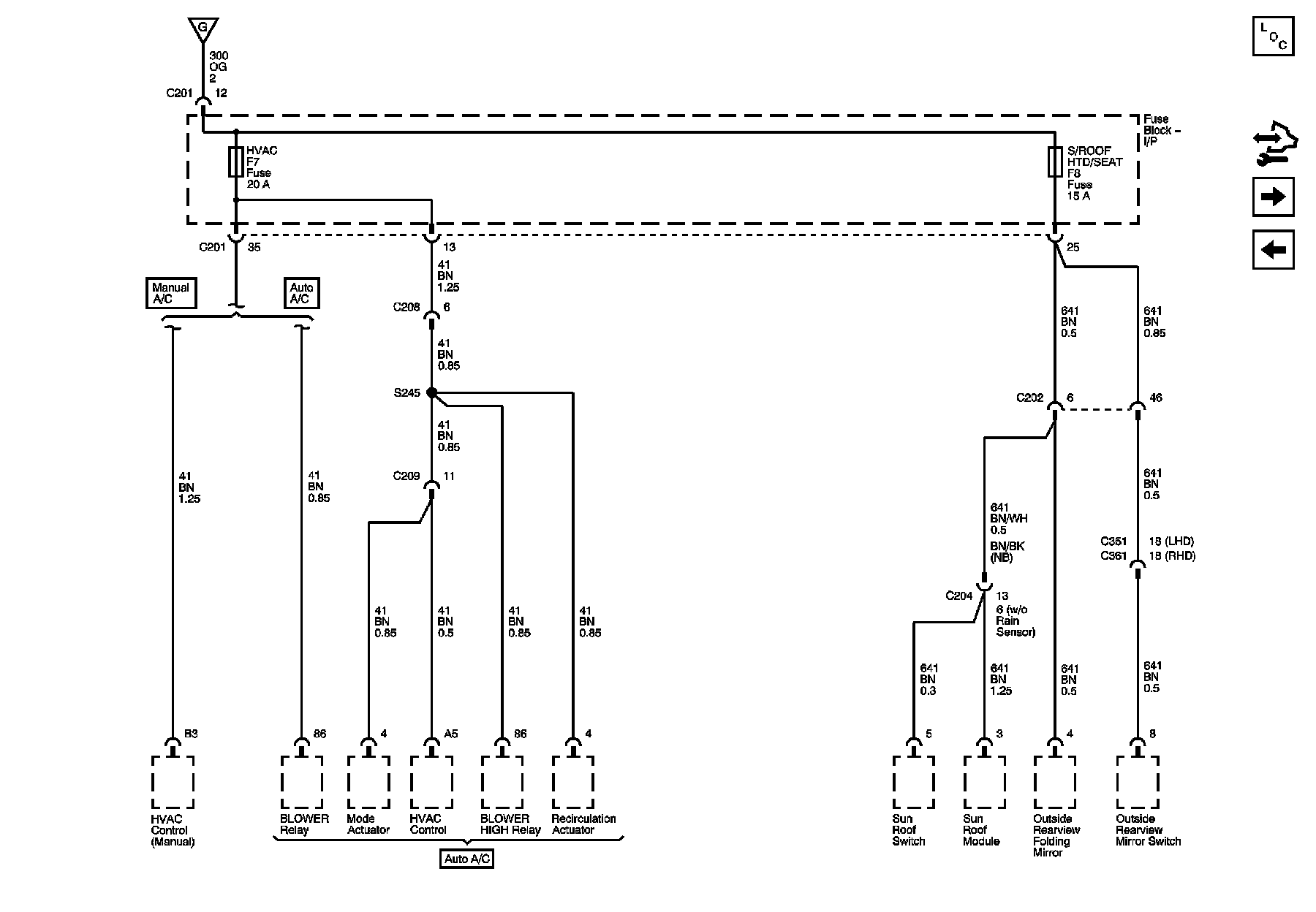

I/P Fuse Block - HVAC and S/ROOF HTD/SEAT Fuses

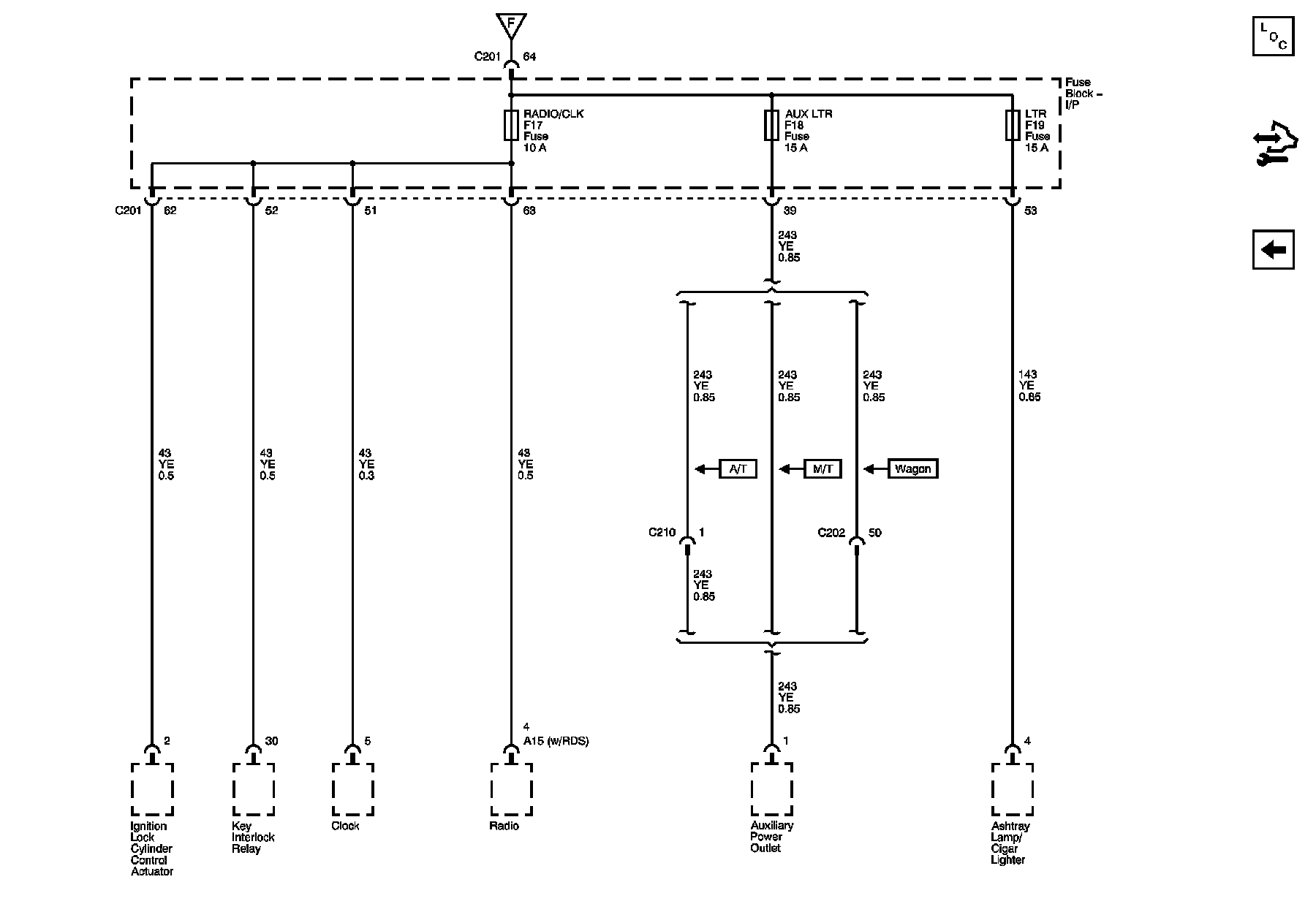

I/P Fuse Block - RADIO/CLK, AUX LTR, and LTR Fuses
