Engine Controls Schematics - Without Throttle Actuator Control

ENGINE CONTROLS SCHEMATICS - Without Throttle Actuator Control

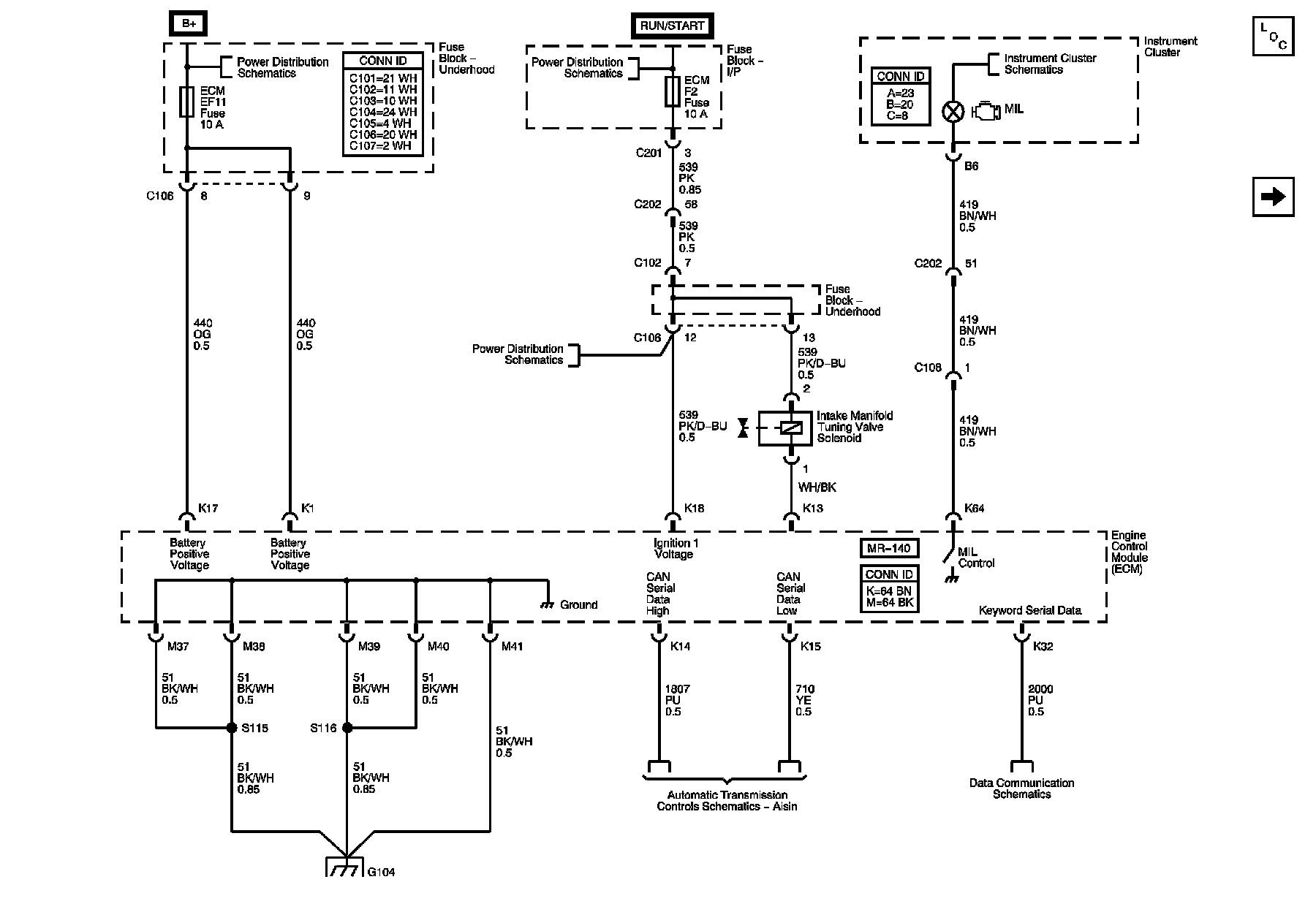

Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL)

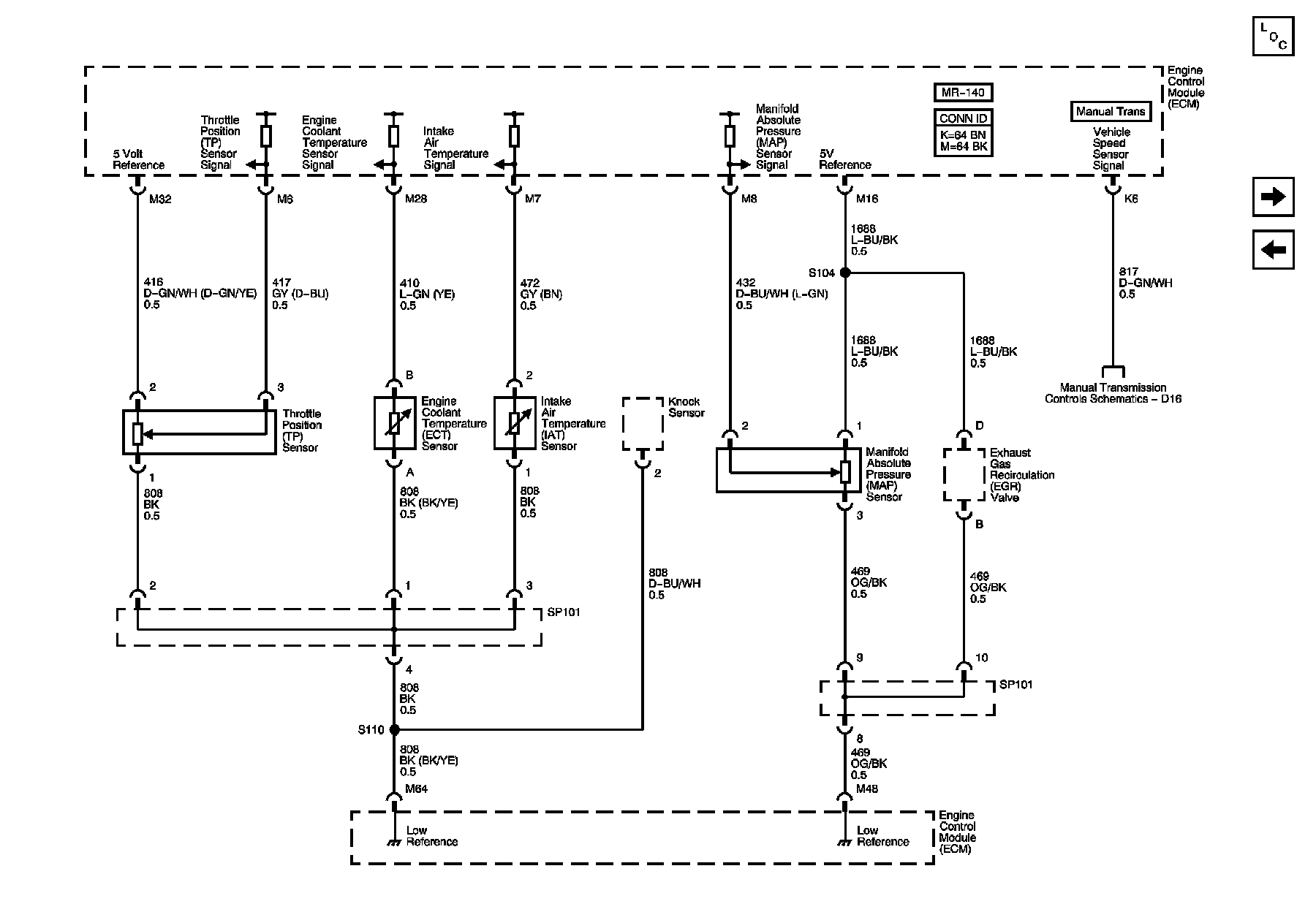

Engine Data Sensors - Pressure and Temperature

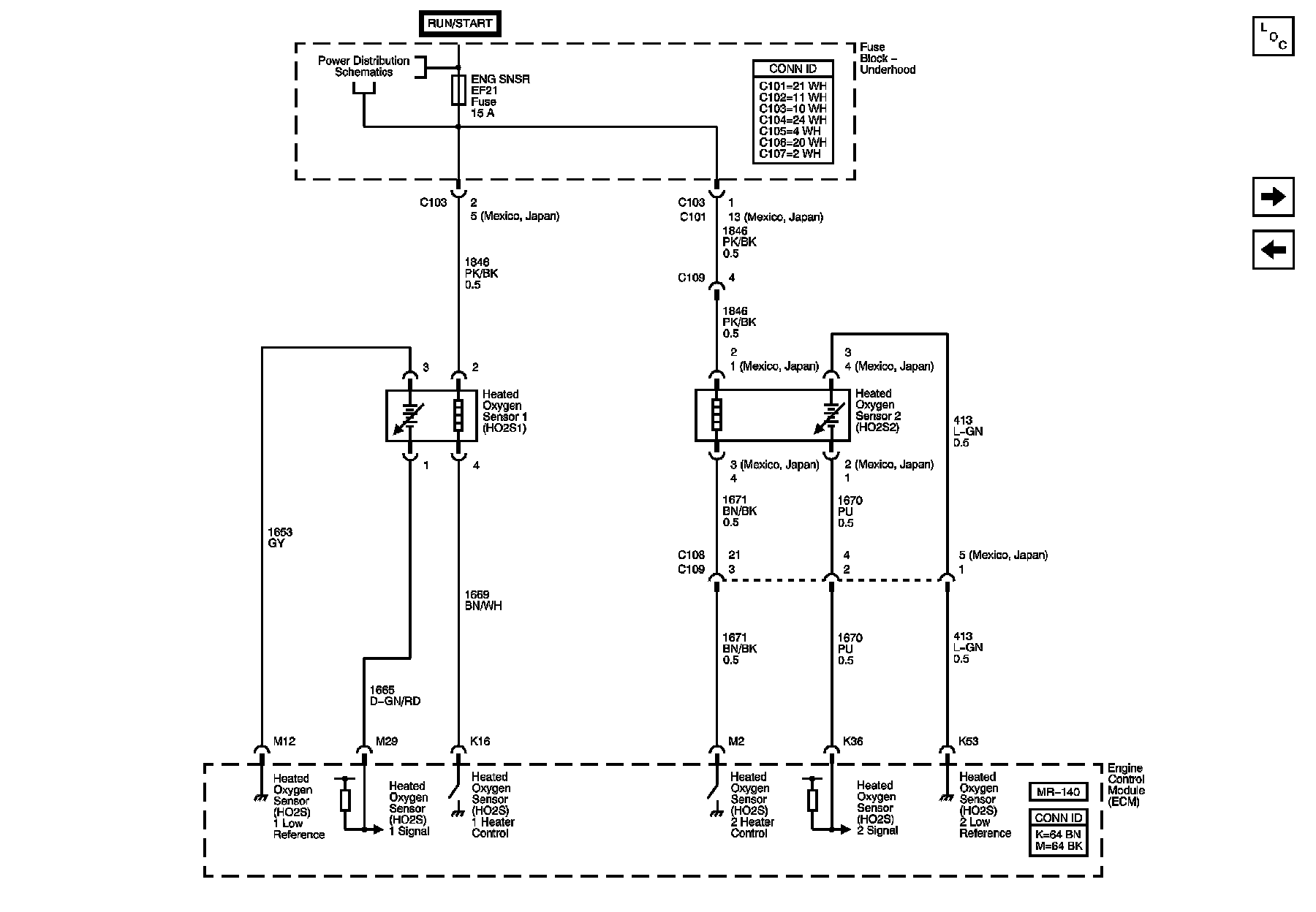

Oxygen Sensors (O2S)

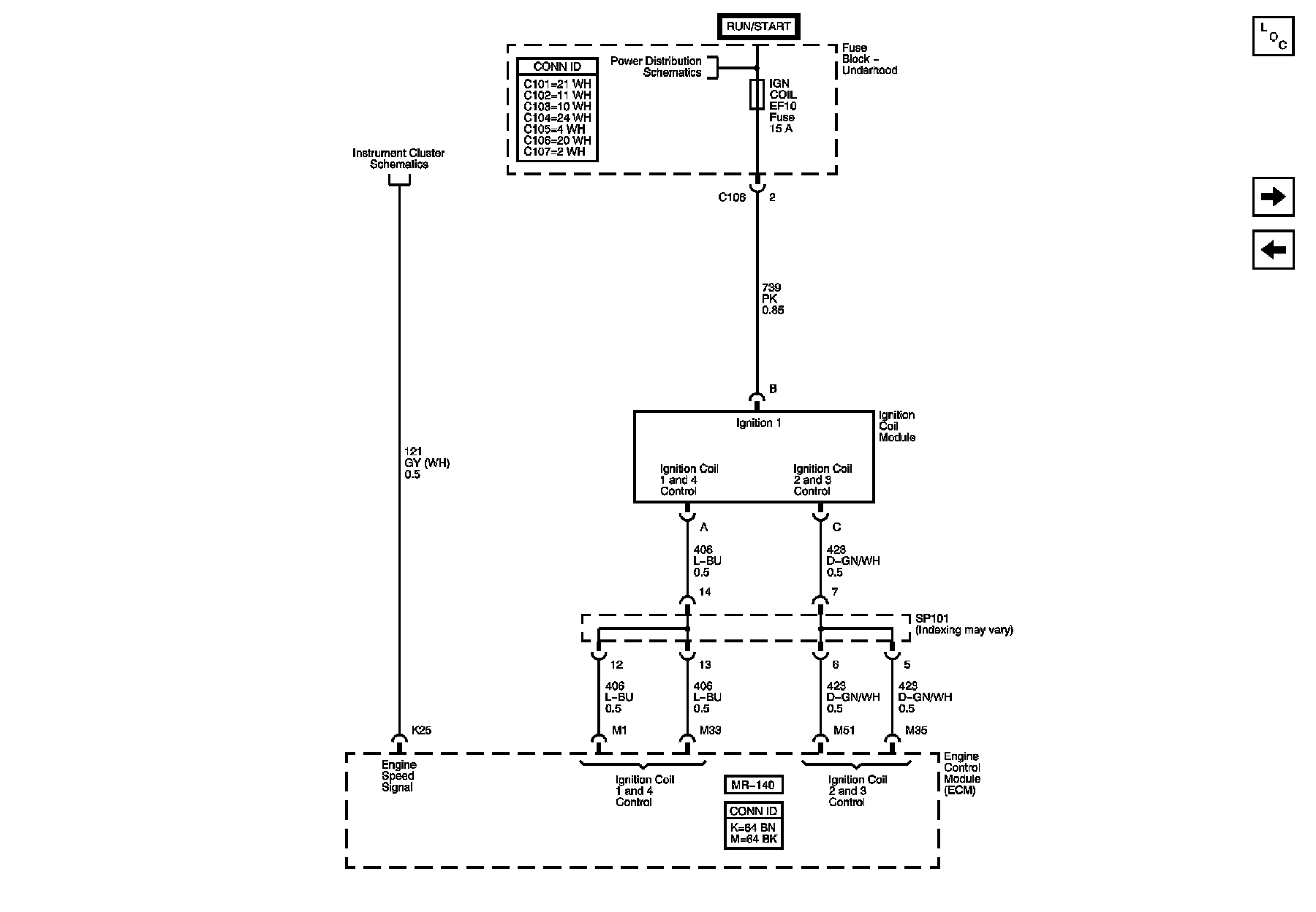

Ignition System

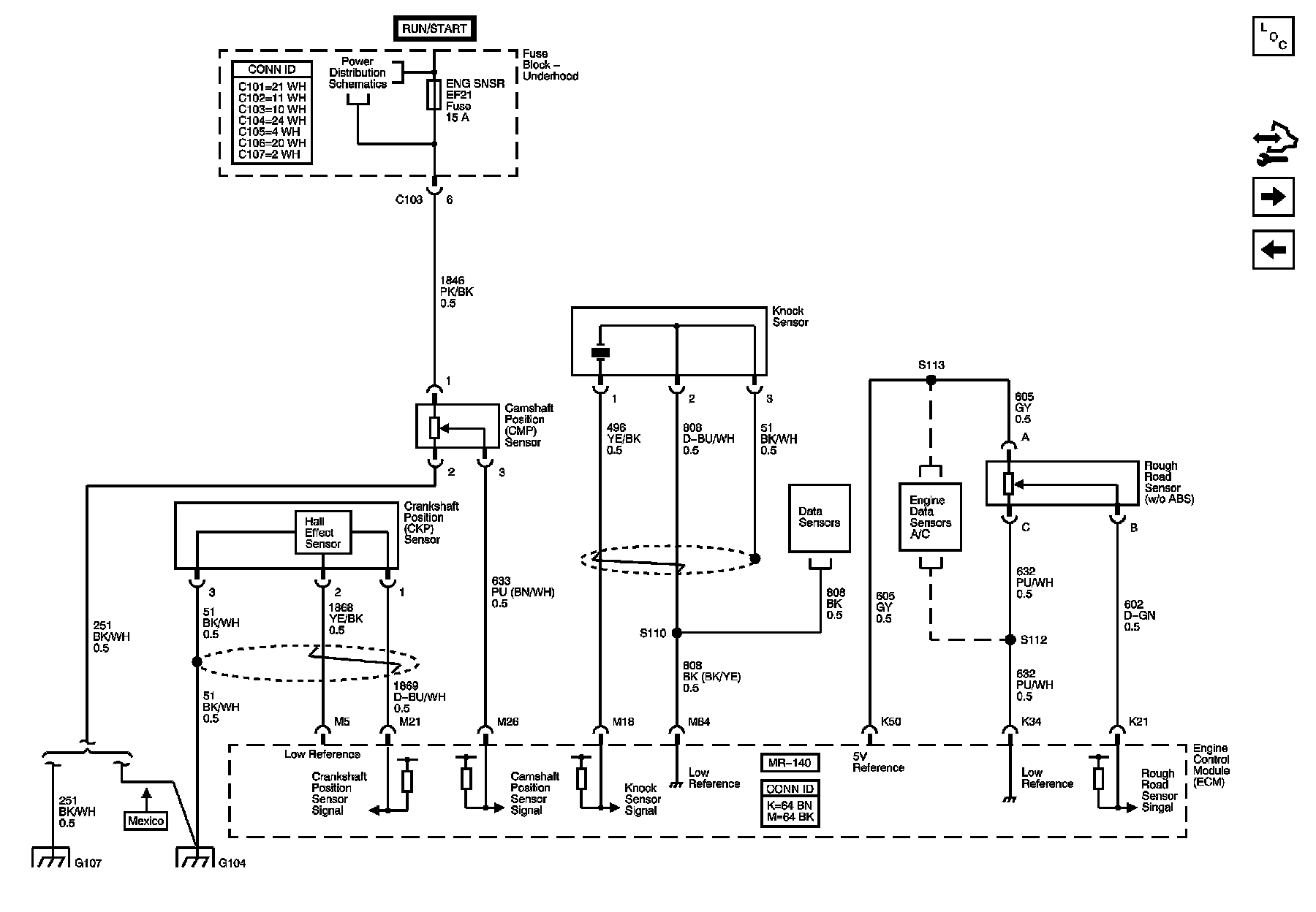

CKP, CMP, Knock, Rough Road Sensors

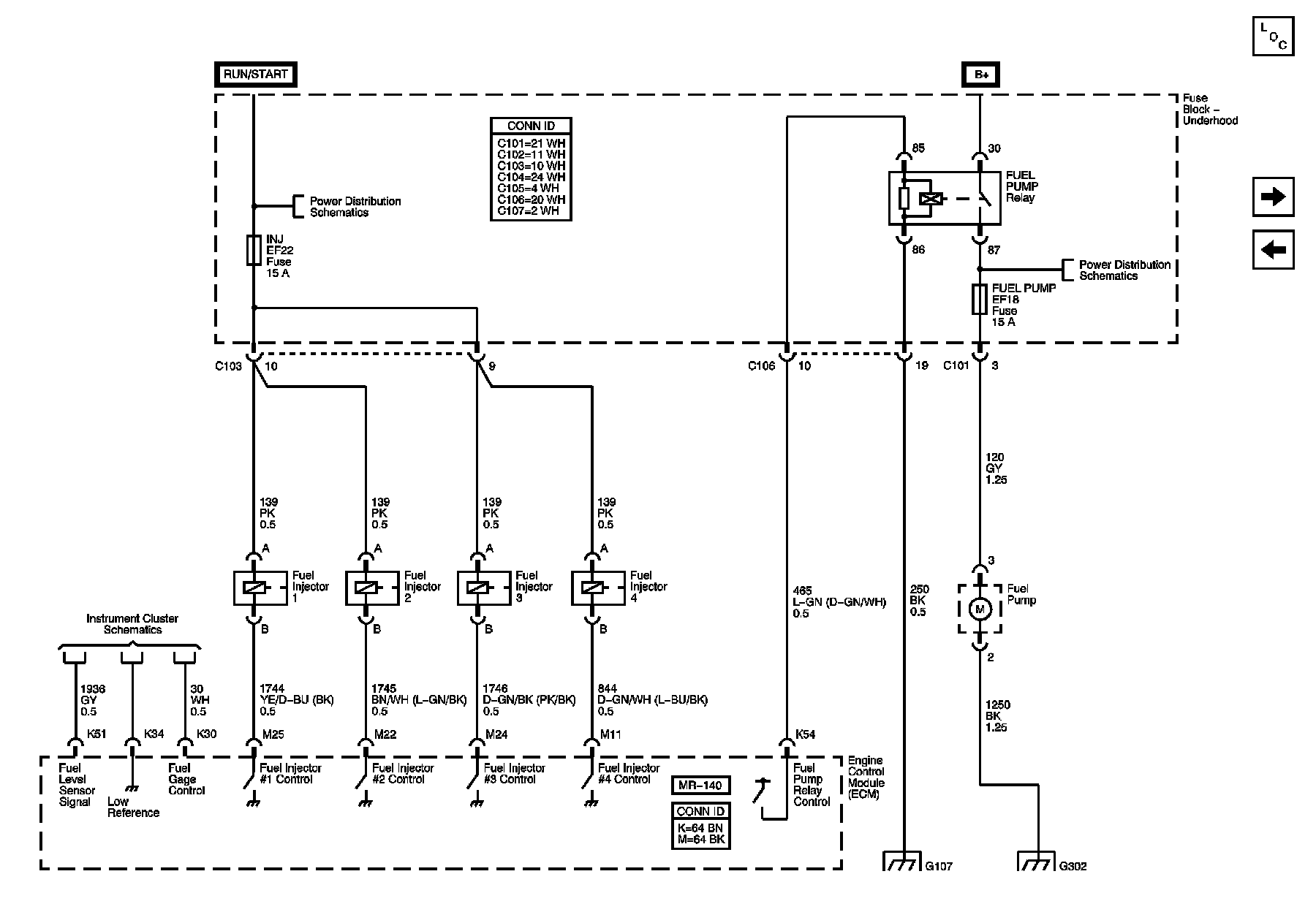

Fuel Pump and Fuel Injectors

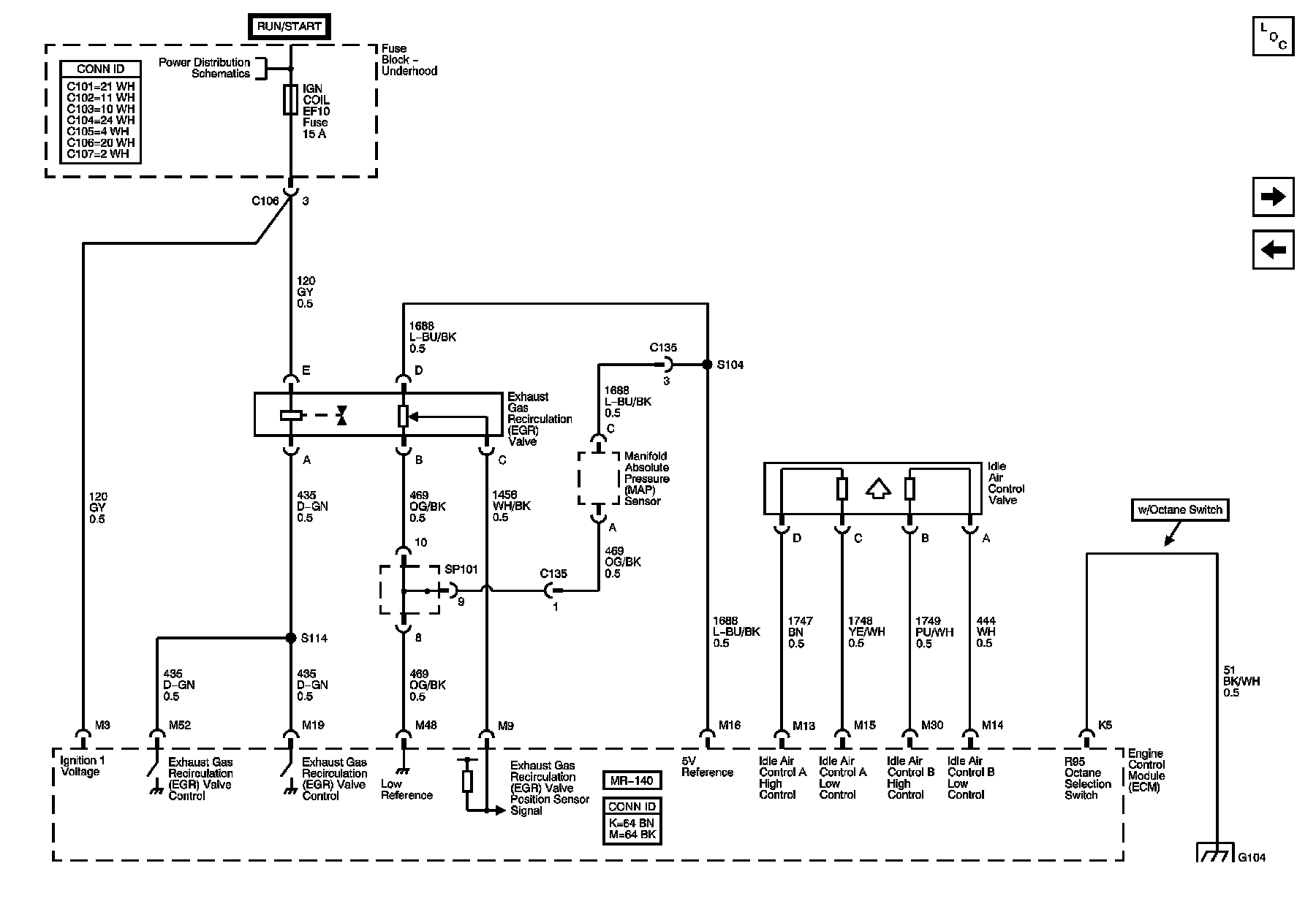

Fuel Controls - EVAP Controls

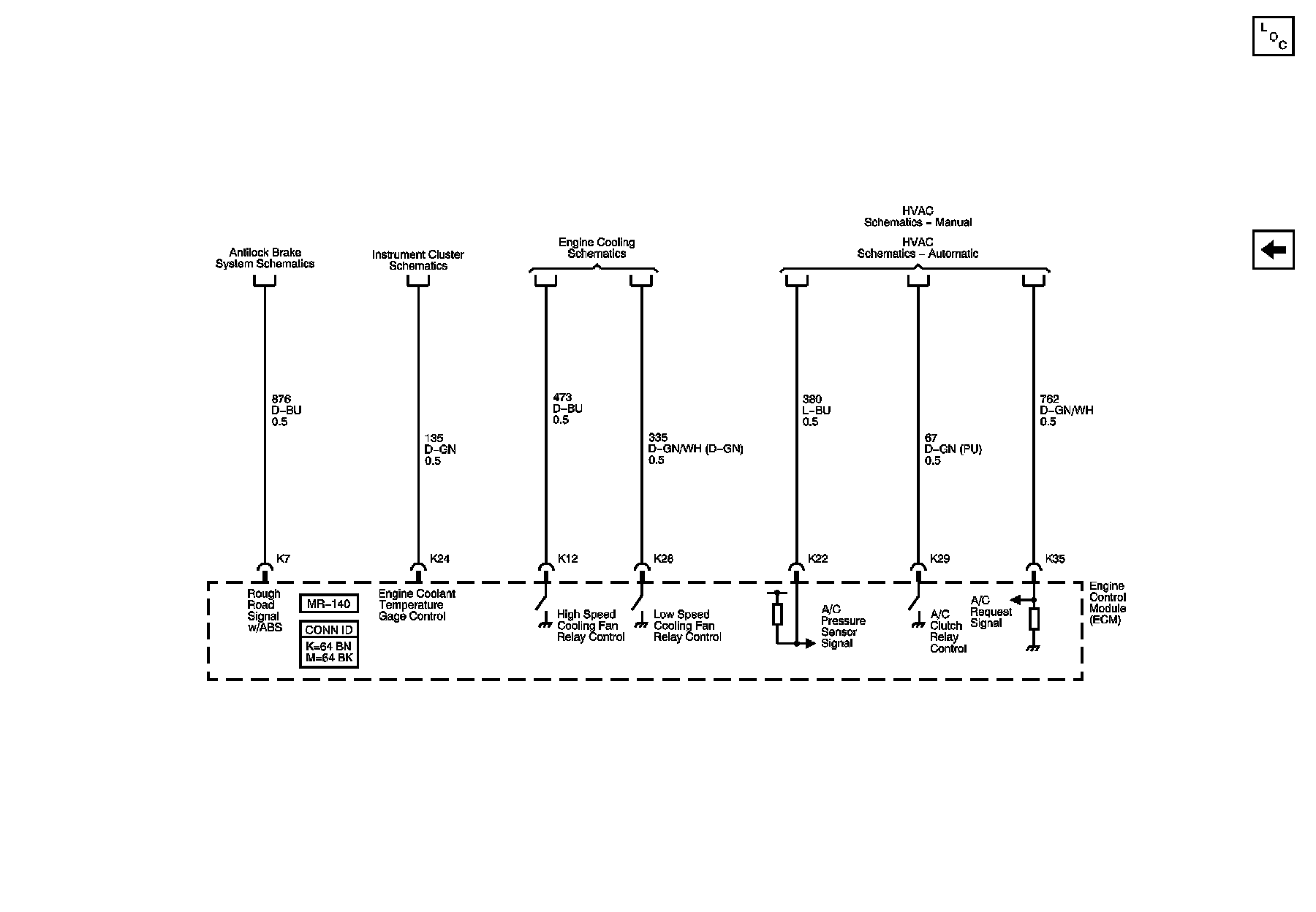

Device Controls







Controlled/Monitored Subsystem References
