Headlights/Daytime Running Lights (DRL) Schematics




Headlights/Daytime Running Lights (DRL) Schematics

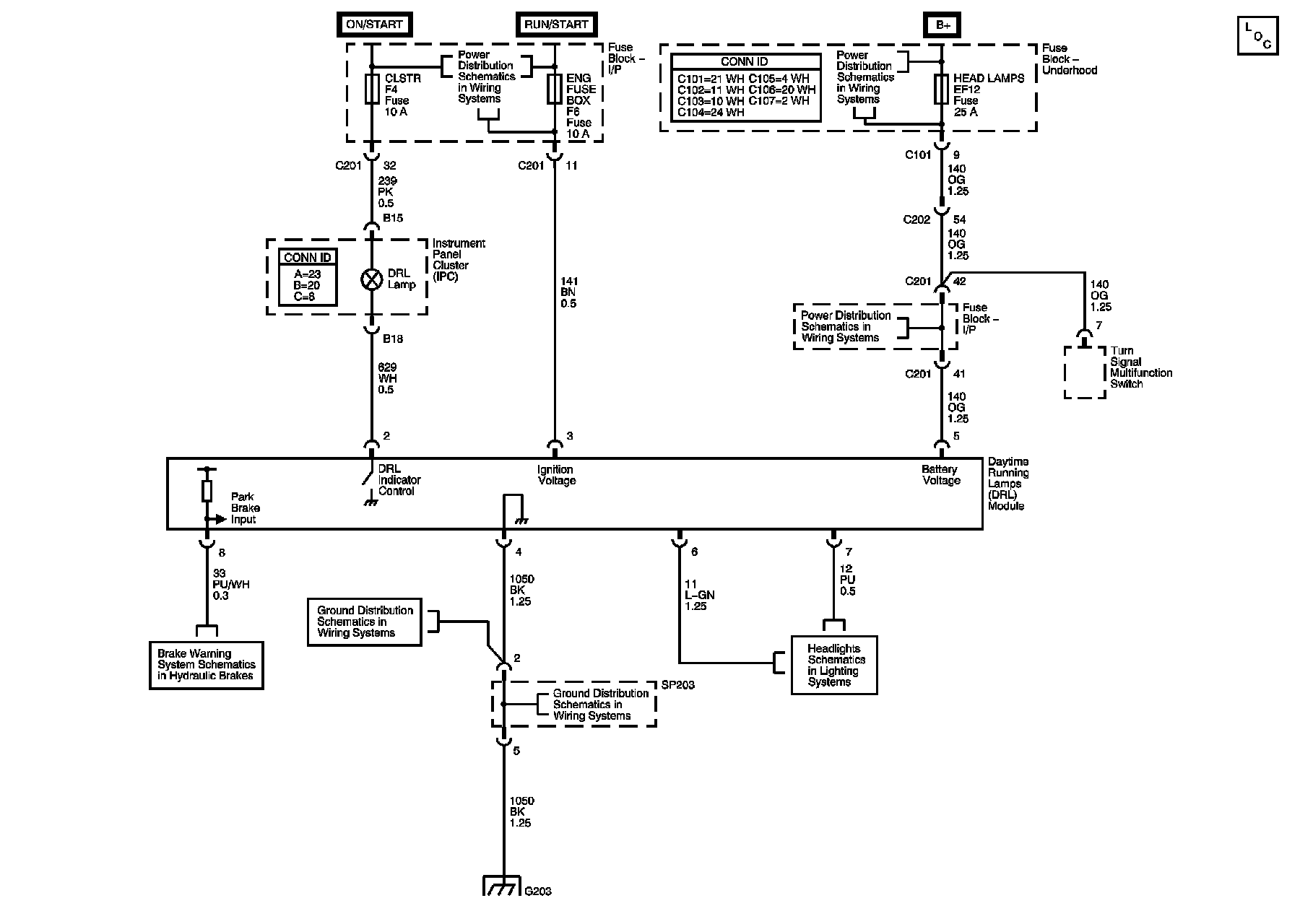

Daytime Running Lamps - North America

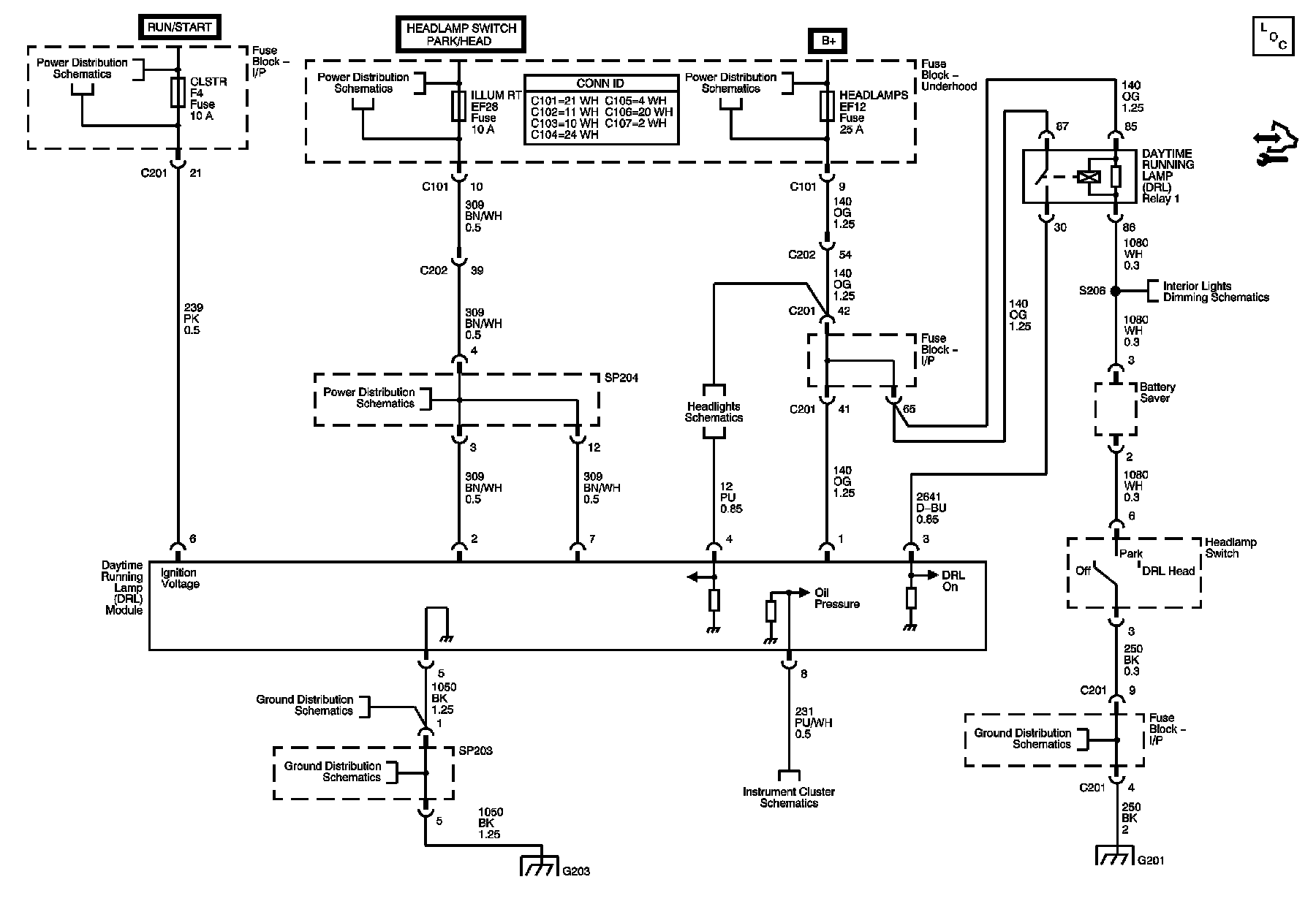

Daytime Running Lamps - Scandinavia
