Headlights Schematics

Headlights Schematics

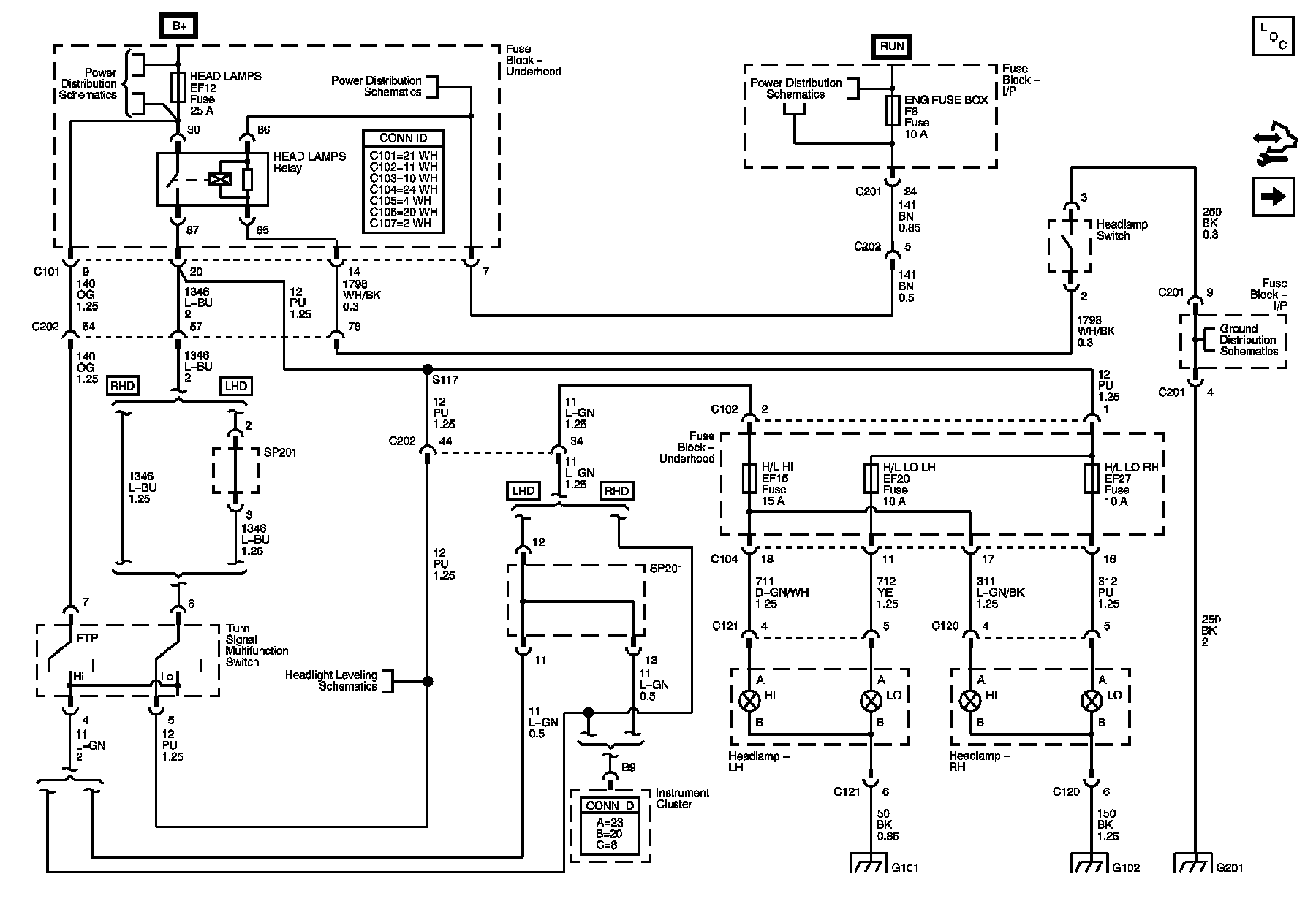

Headlamps - w/o Daytime Running Lamps

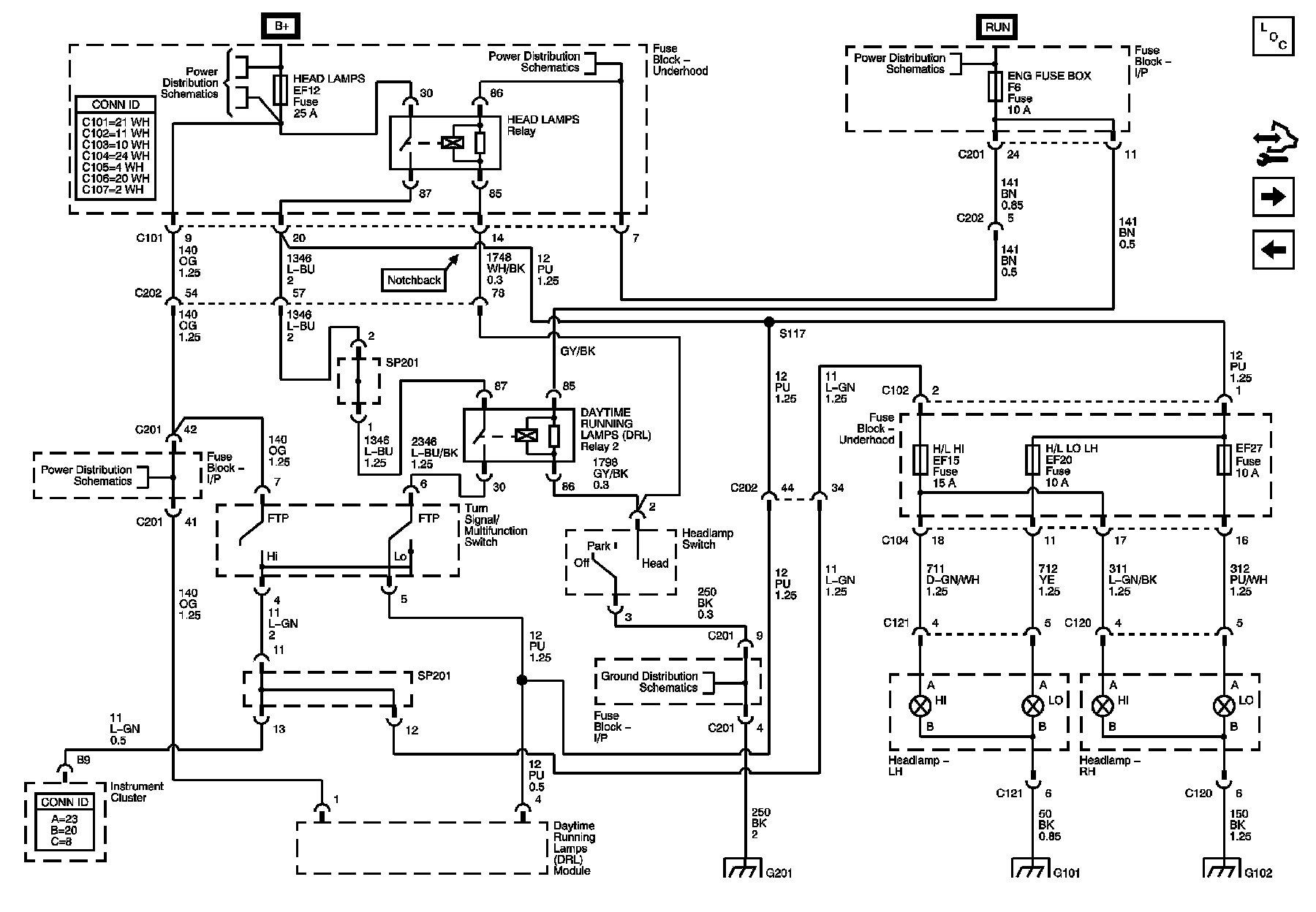

Headlamps - w/Scandinavia Daytime Running Lamps

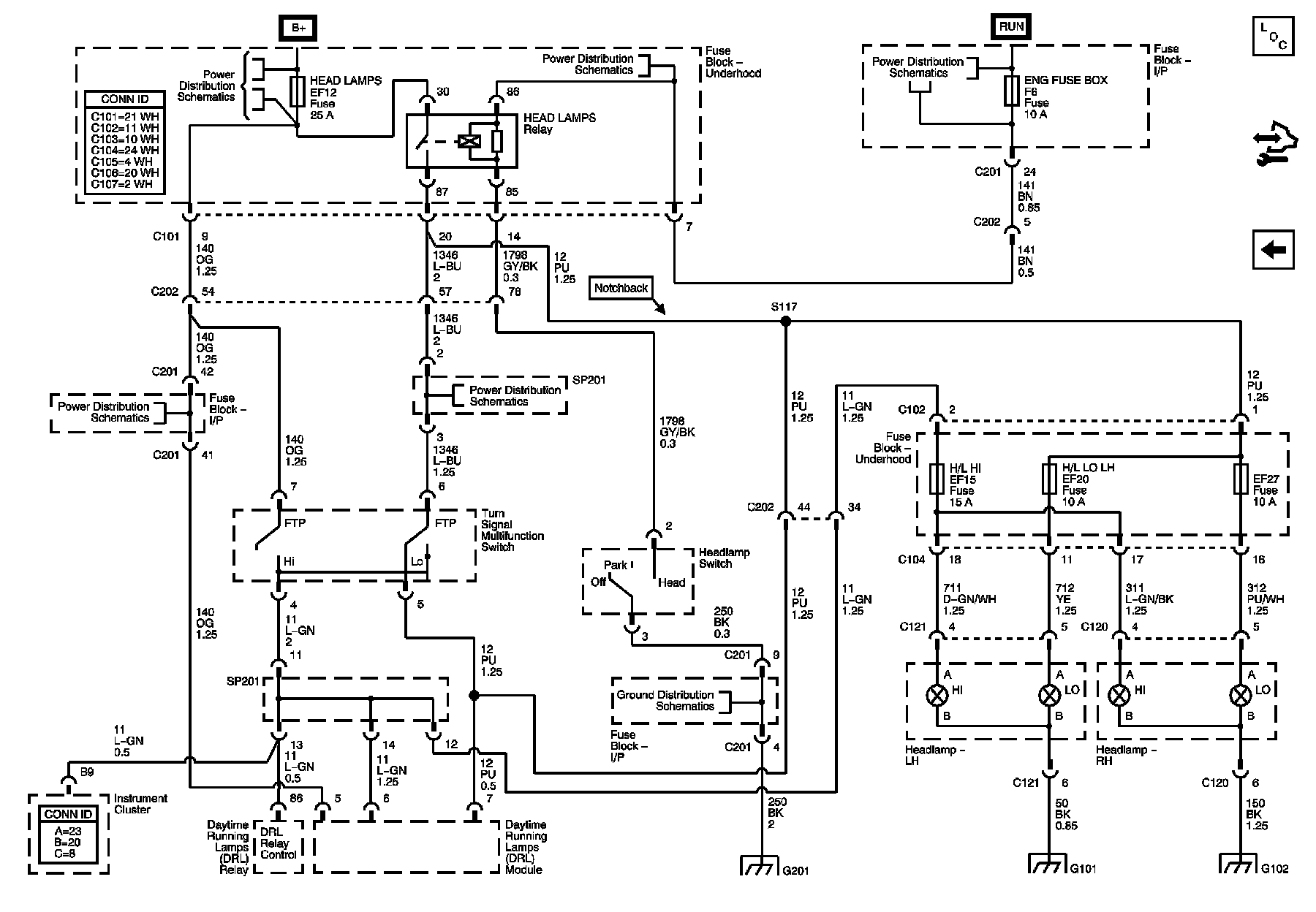

Headlamps - w/North American Daytime Running Lamps
