Exterior Lights Schematics




Exterior Lights Schematics

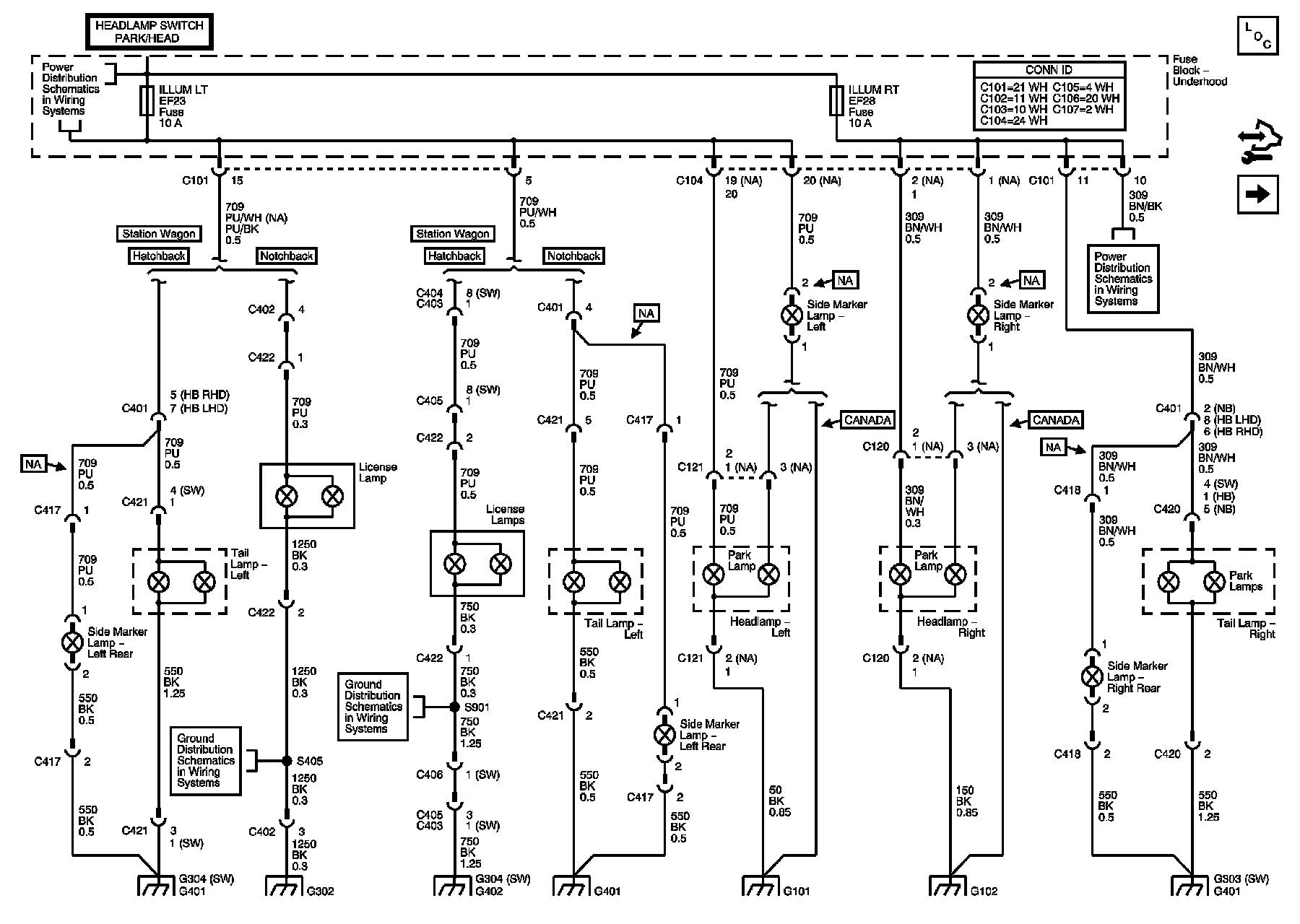

Park Lamps and License Plate Lamps

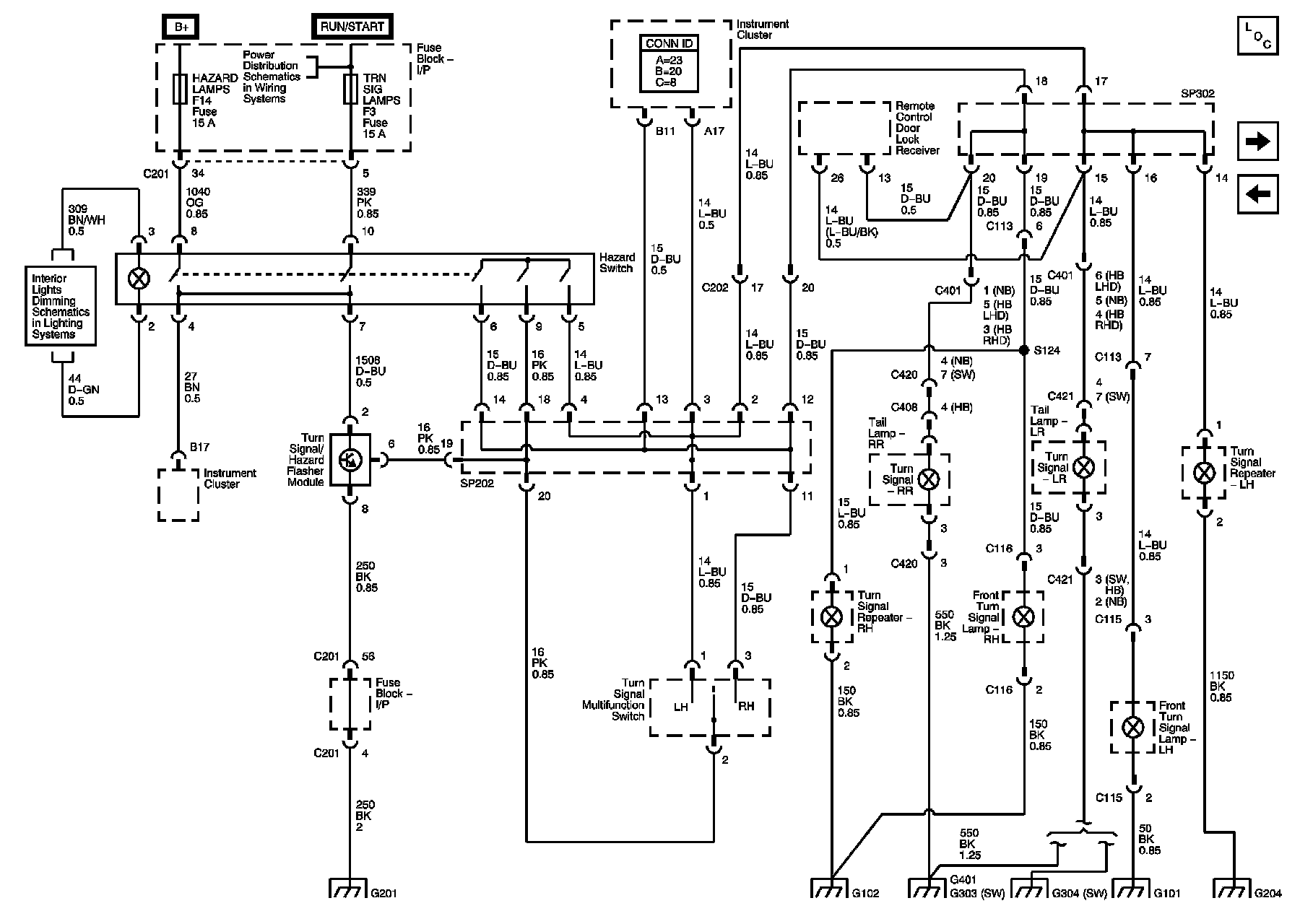

Turn and Hazard Lamps - North America

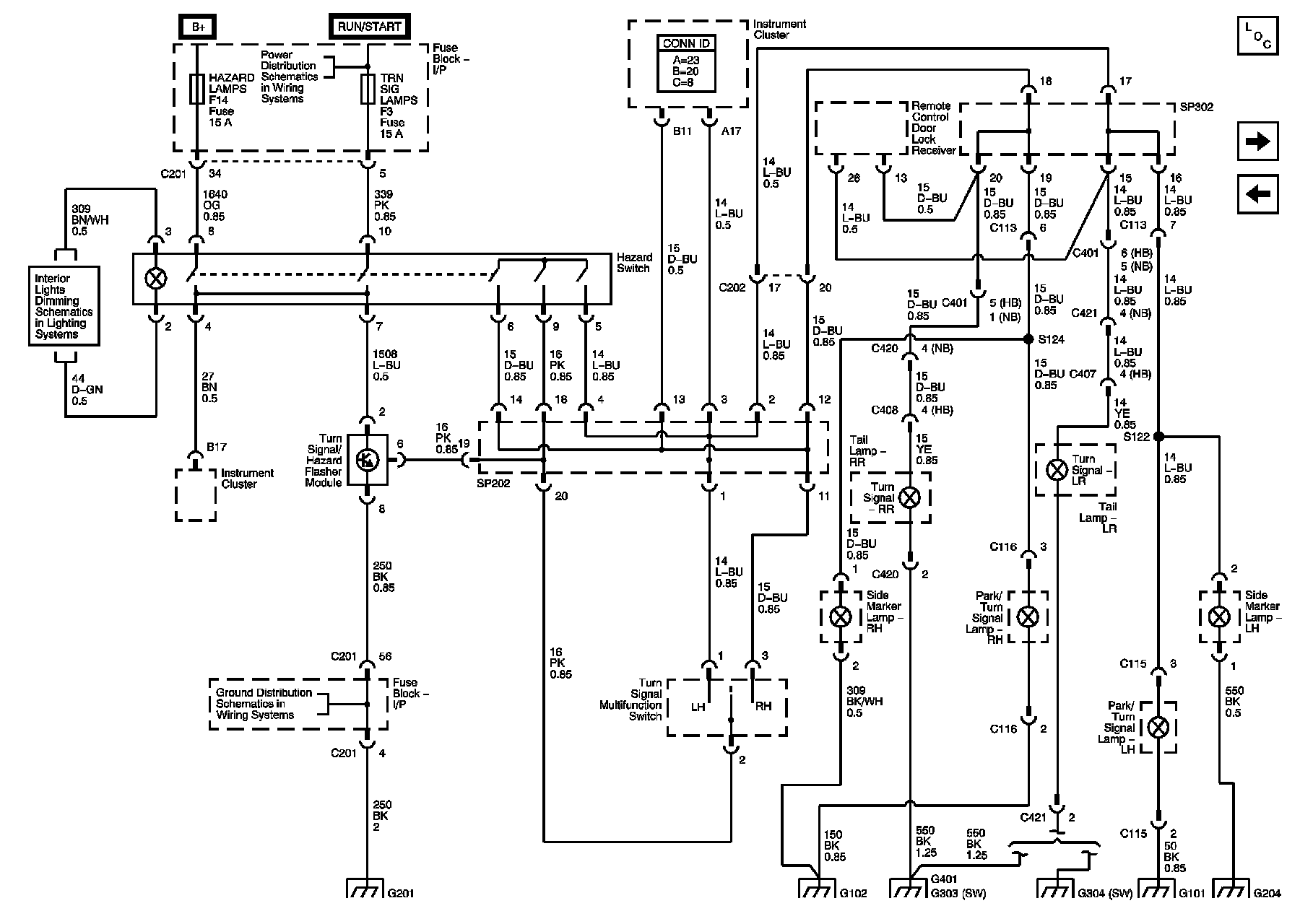

Turn and Hazard Lamps - Except North America

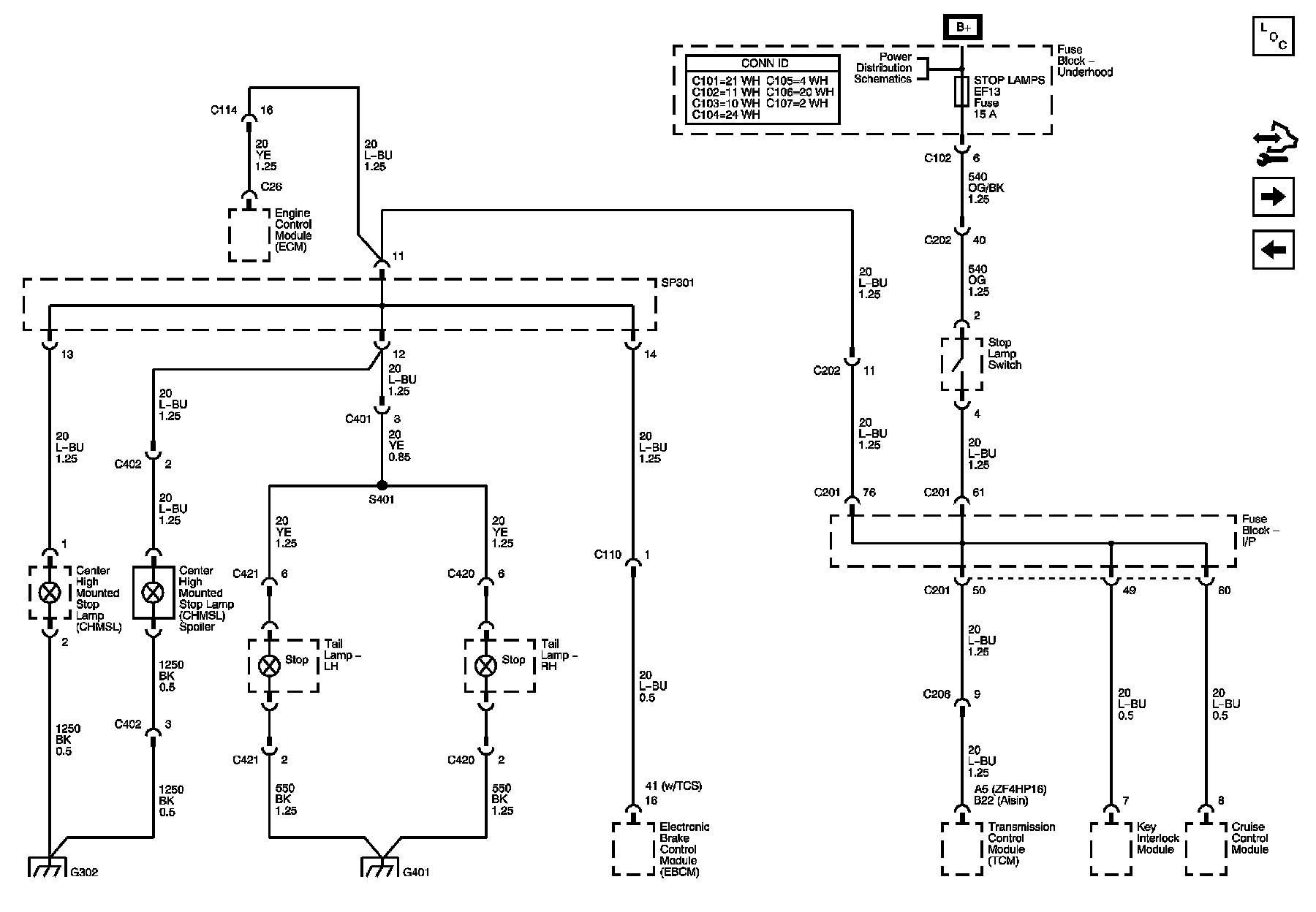

Stop Lamps - Notchback

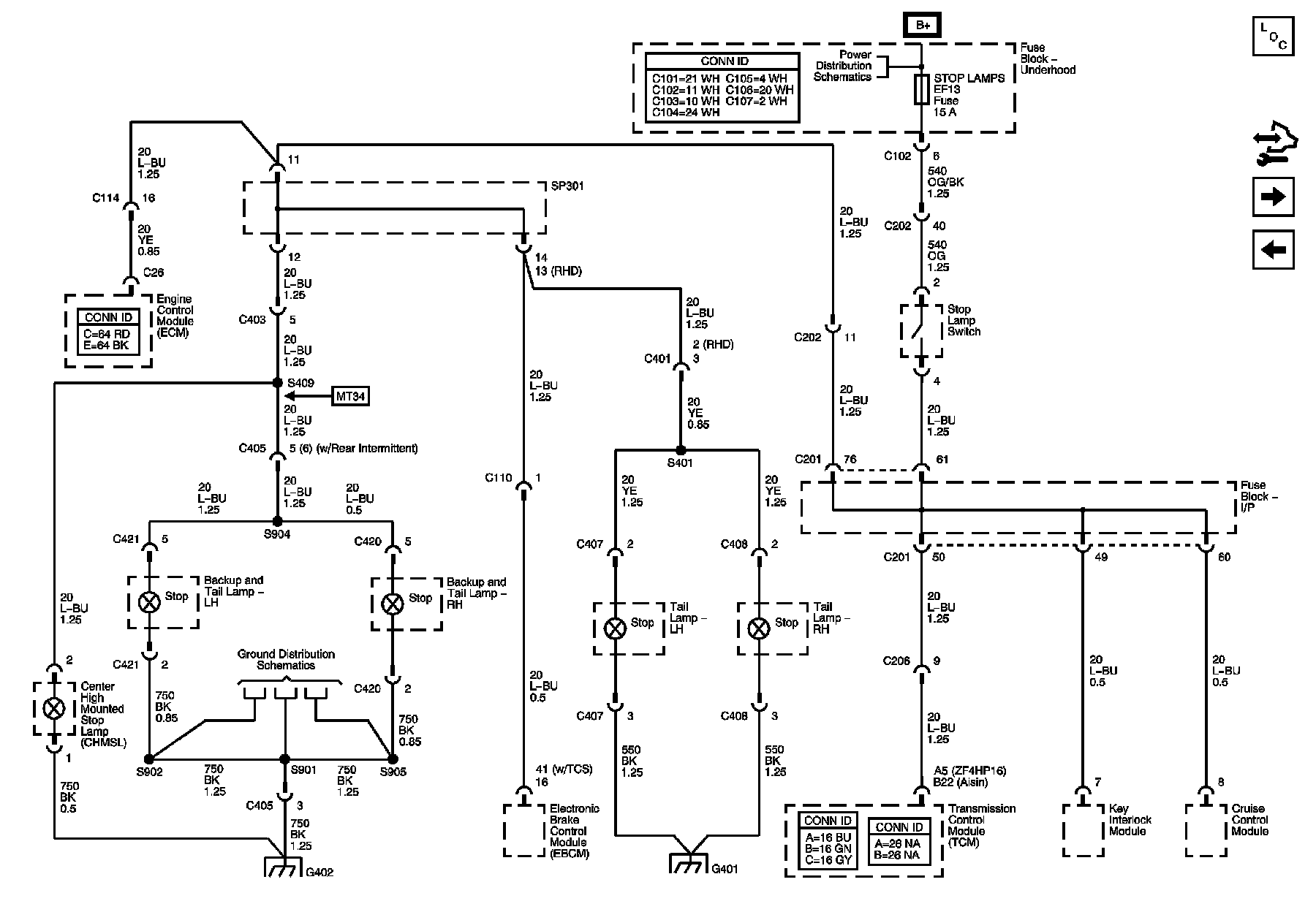

Stop Lamps - Hatchback

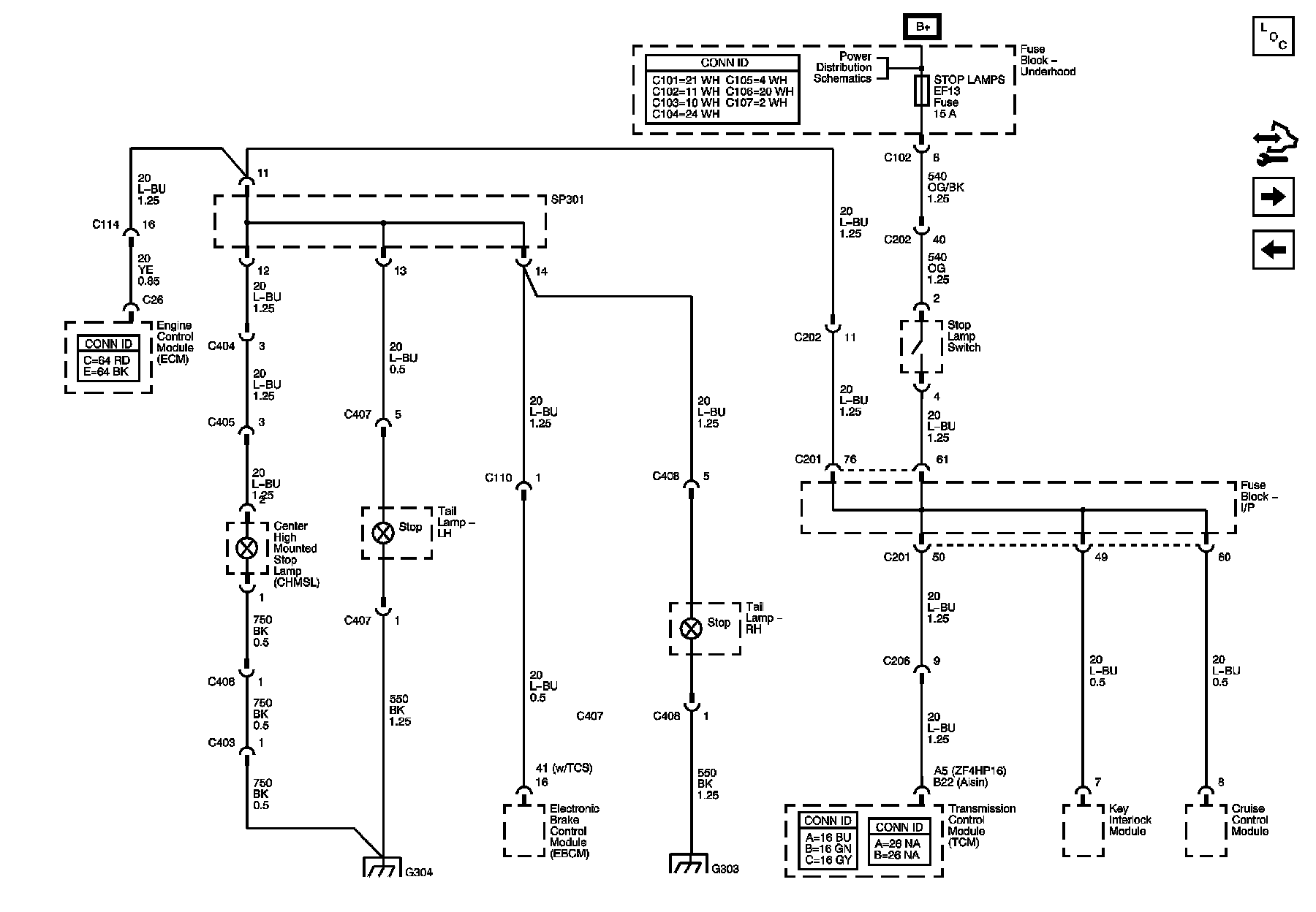

Stop Lamps - Station Wagon

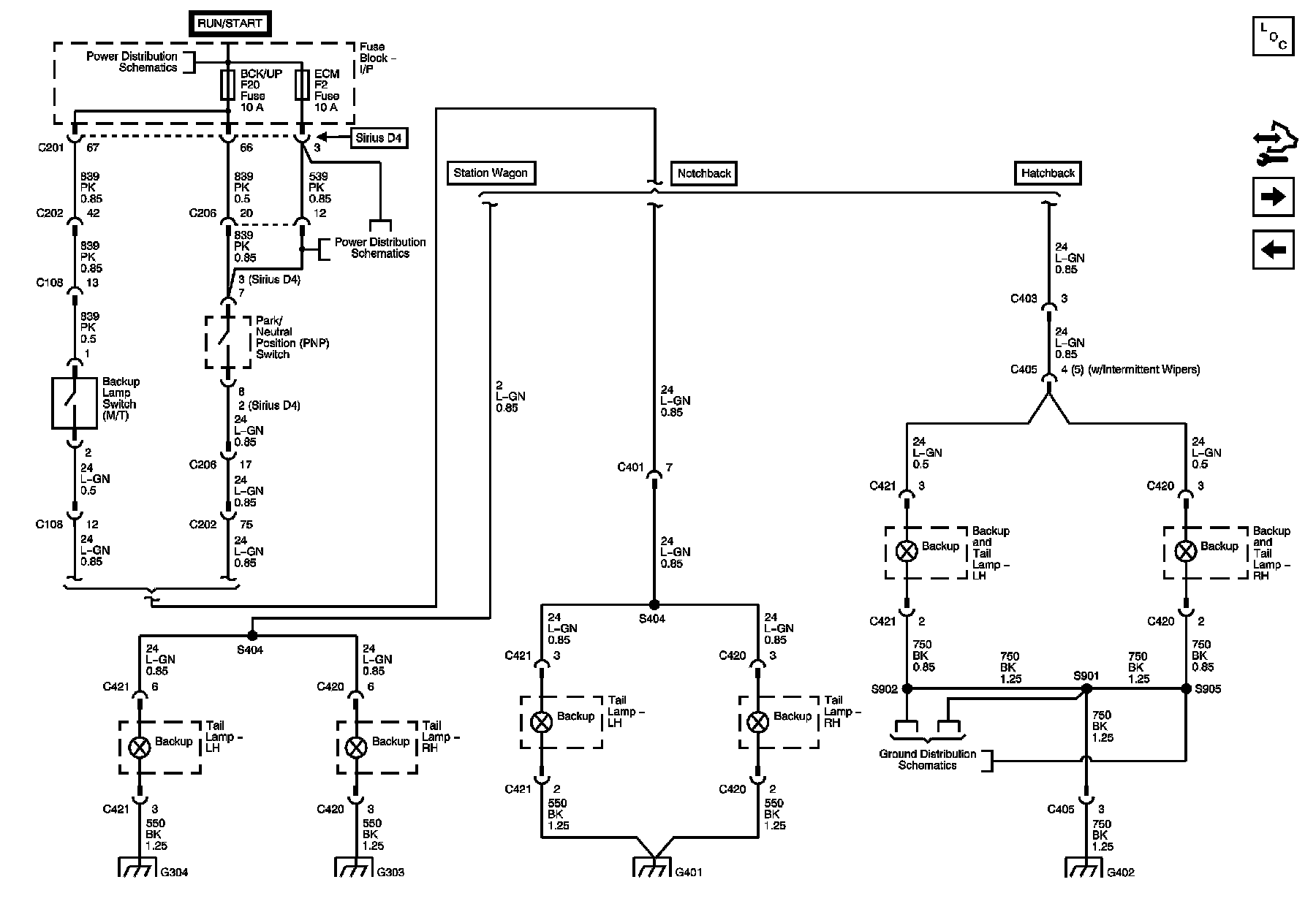

Backup Lamps

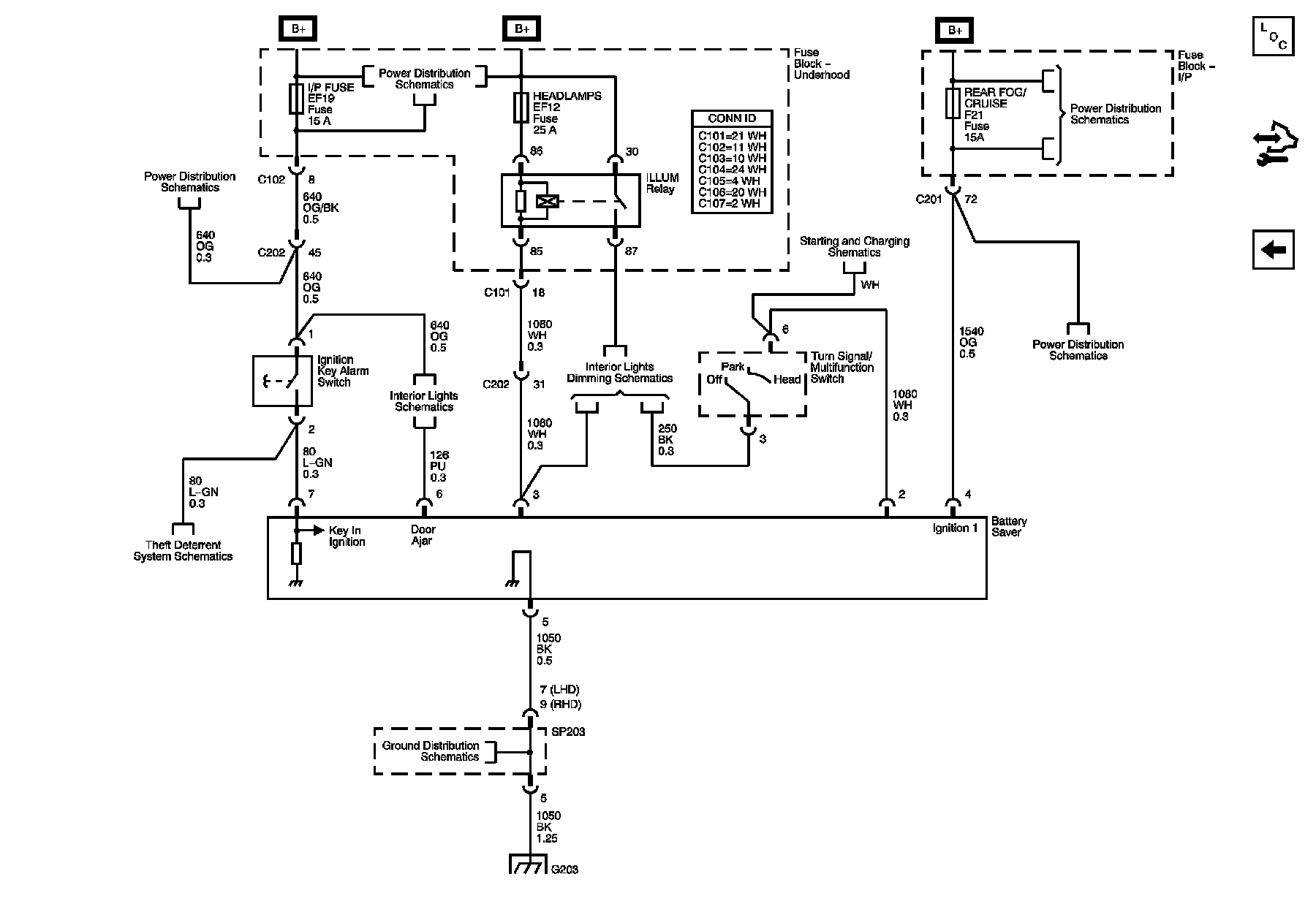

Battery Saver
