Home >> Chevrolet >> 2007 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster Schematics

Instrument Cluster Schematics




Instrument Cluster Schematics

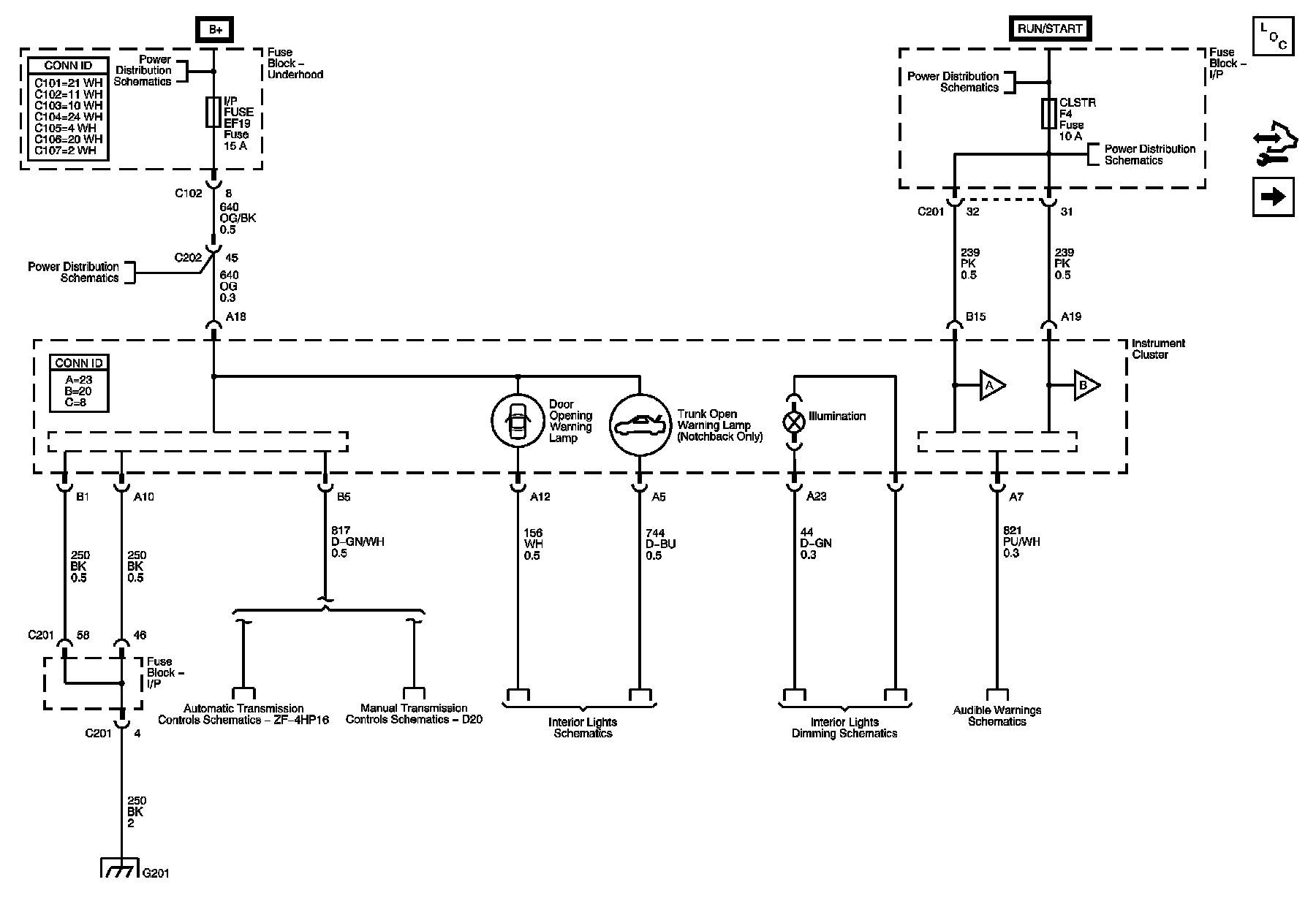

Power, Ground, I/P Illumination, Door Open Indicators

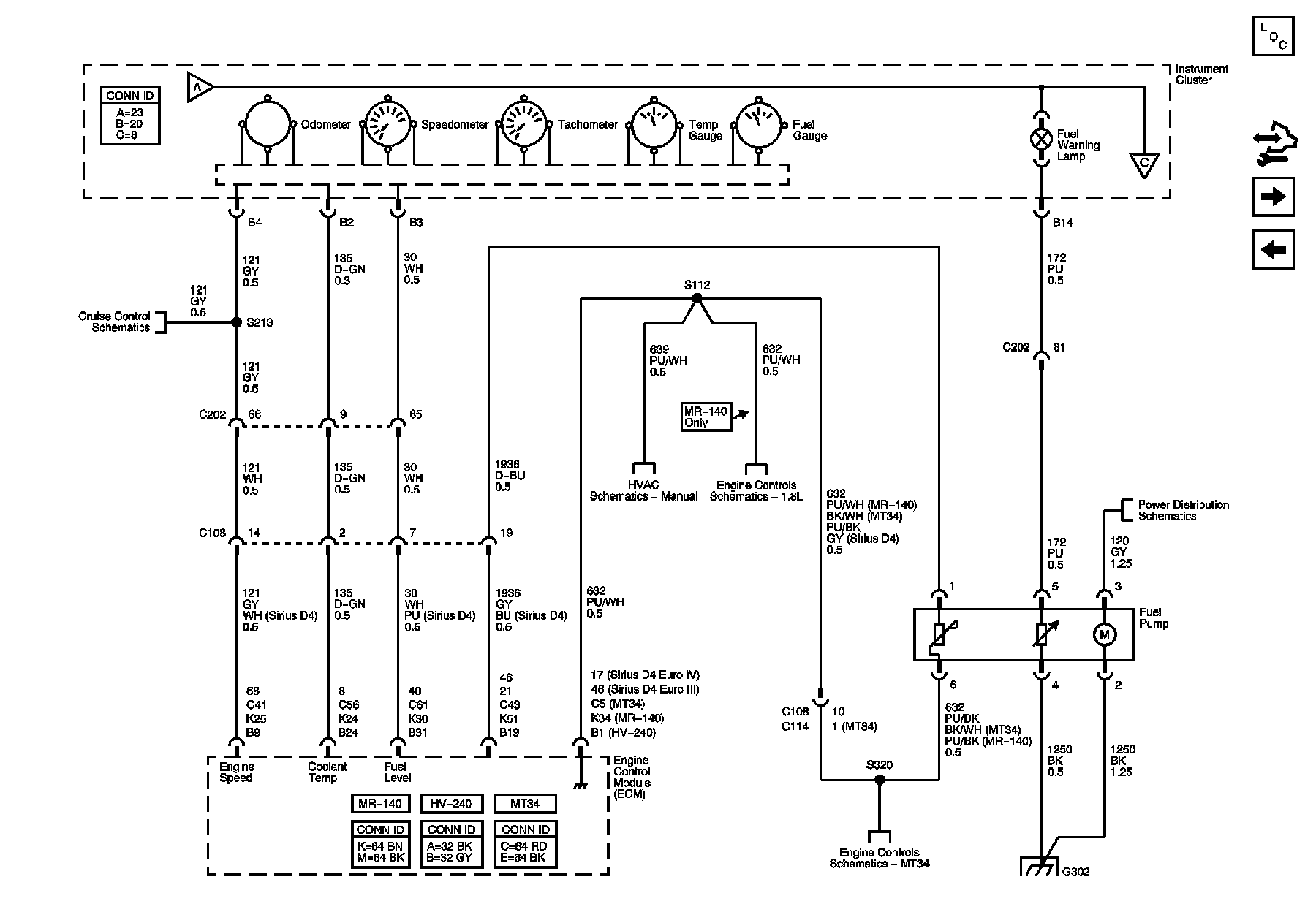

Gages

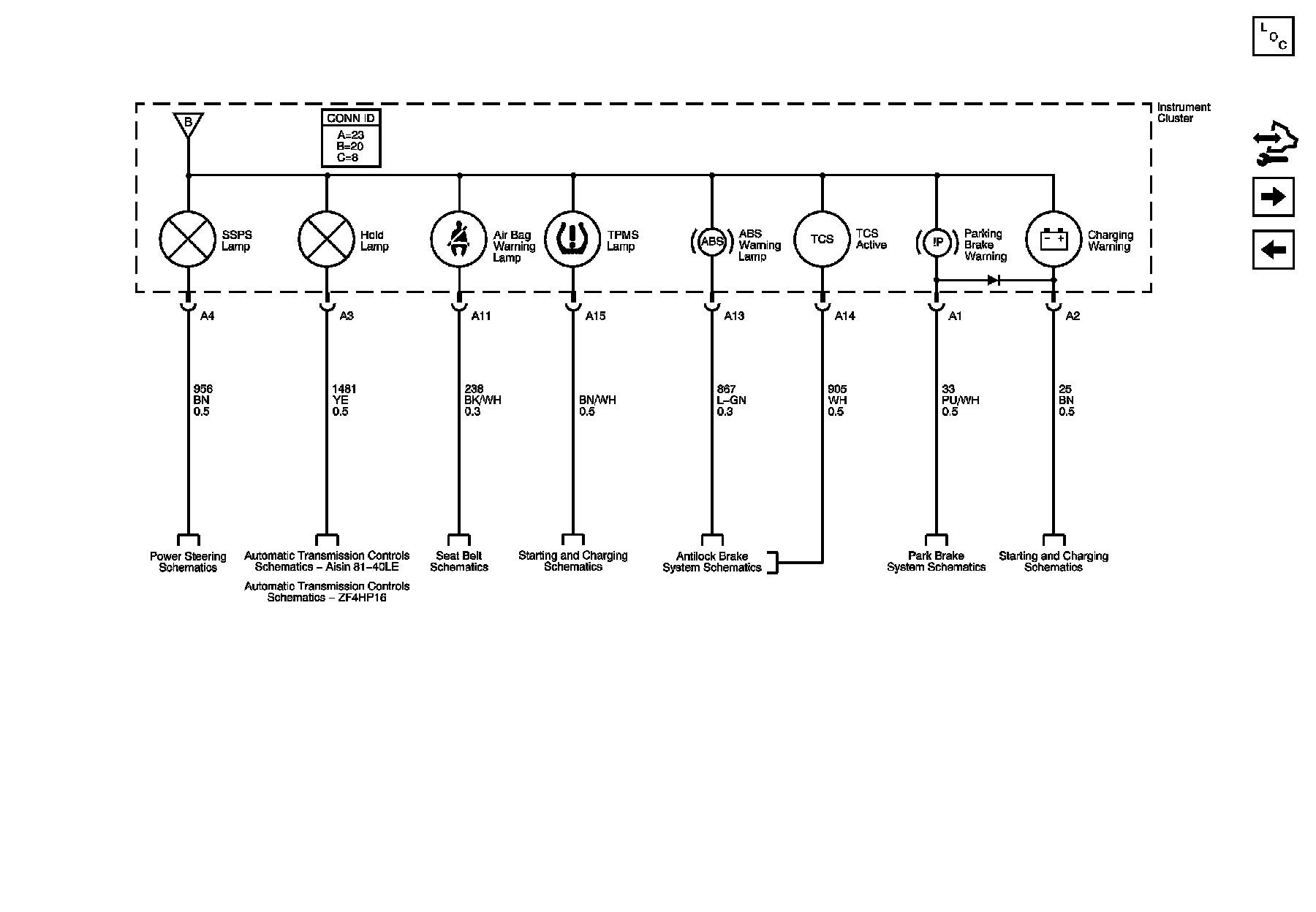

Power Steering, Shift Program, Air Bag, TPMS, ABS, TCS, Park Brake, and Charging Warning Lamps





Air Bag, MIL Lamp, Oil Pressure, DRL, Cruise, and Fog Lamp Indicators

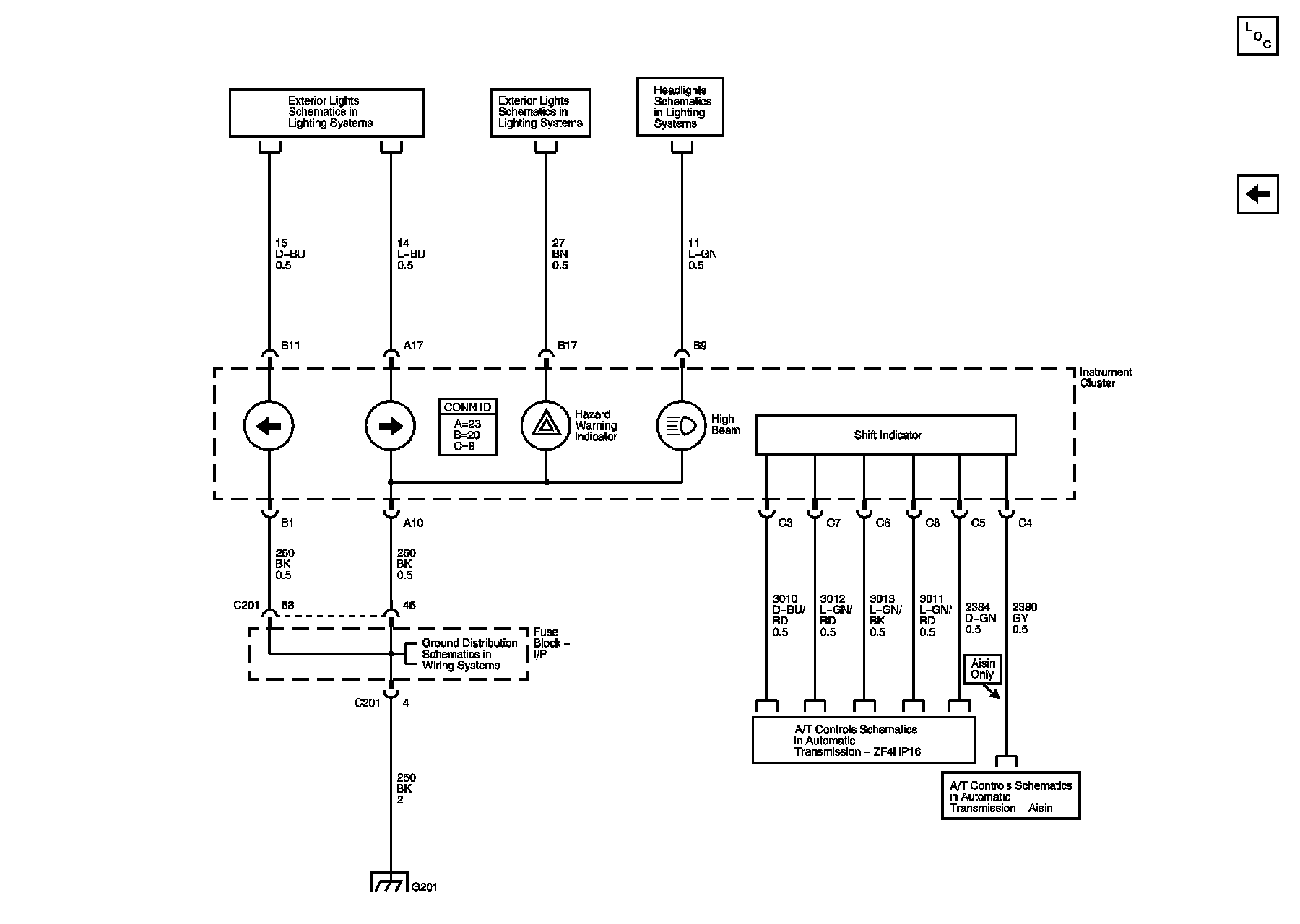

Turn Signal, Hazard, and High Beam Indicators - PRNDL Illumination
