Cruise Control Schematics (w/o Throttle Actuator Control)




Cruise Control Schematics (w/o Throttle Actuator Control)

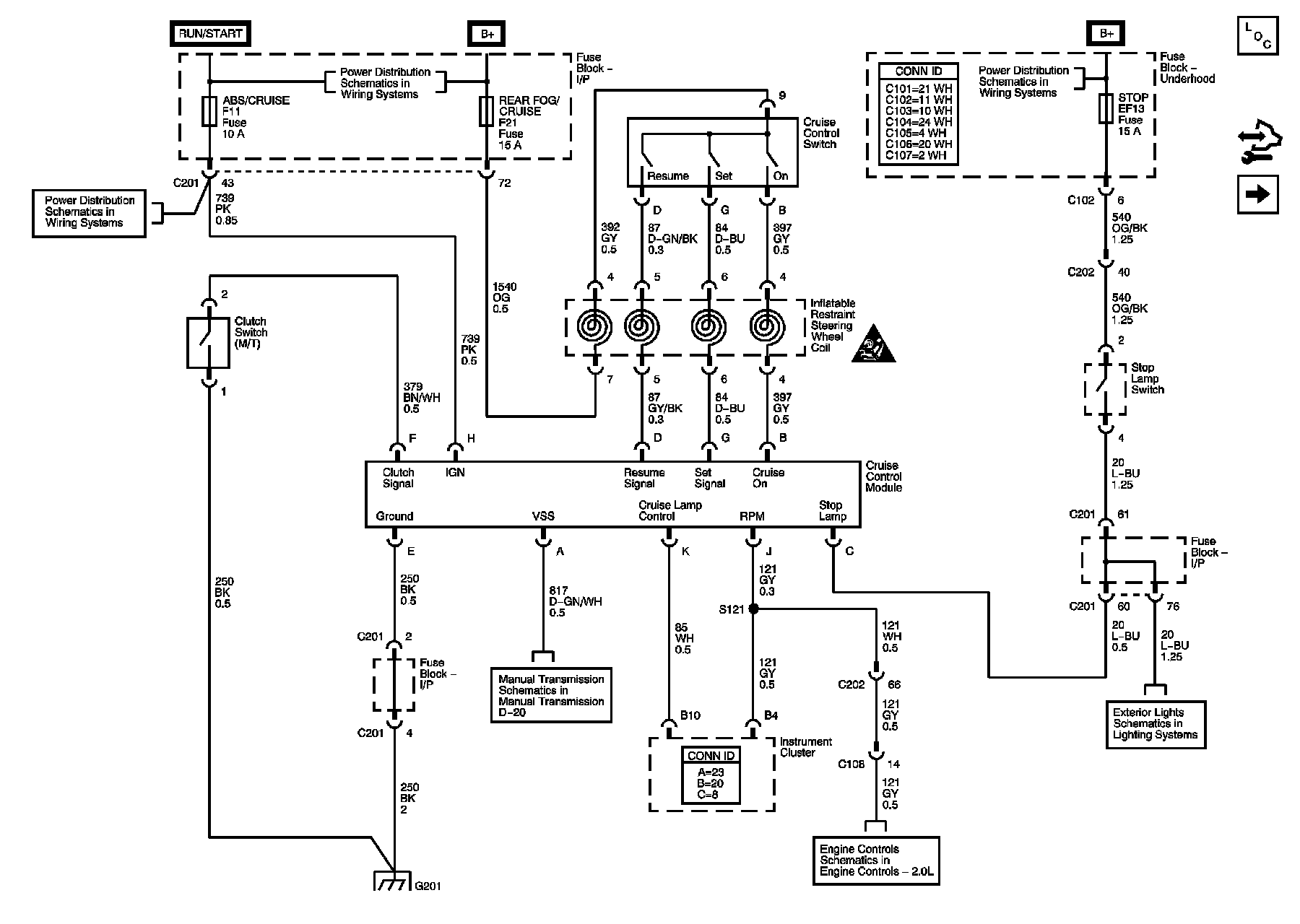

Manual Transmission

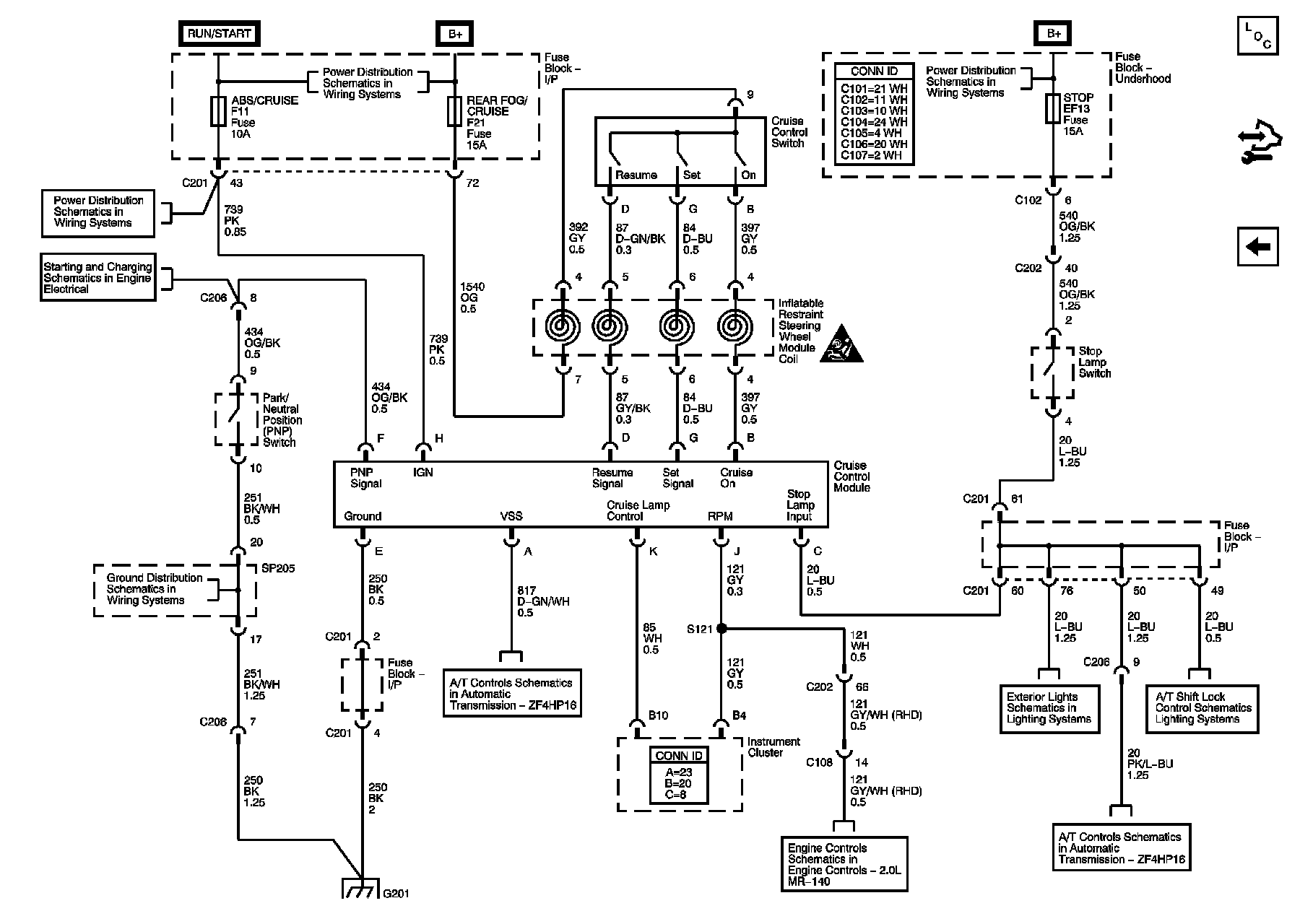

Automatic Transmission
