Chevrolet
>>
2007
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>

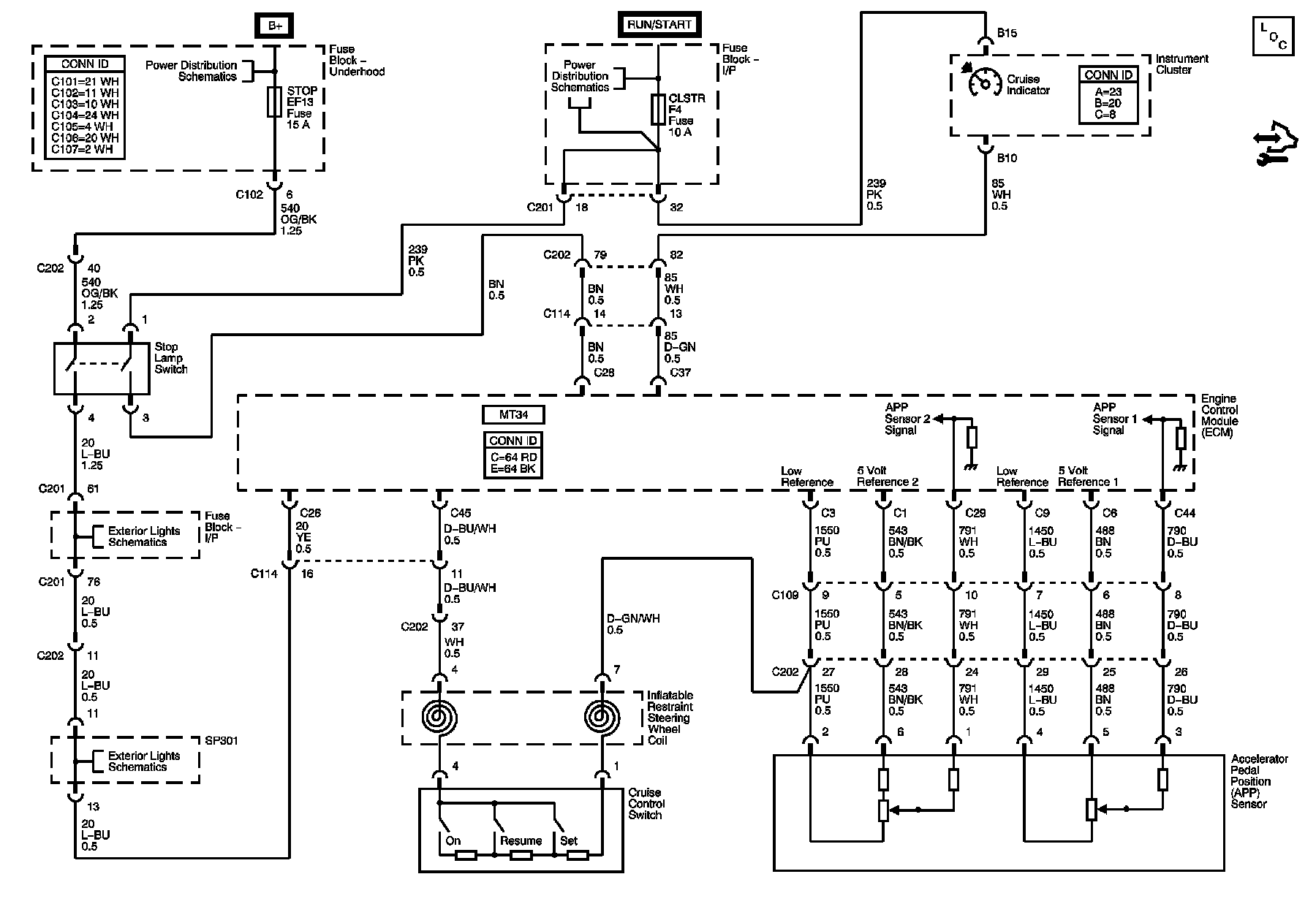

Cruise Control Schematics (w/ Throttle Actuator Control)
Cruise Control Schematics (w/ Throttle Actuator Control)
Cruise Control
Schematics (w/ Throttle Actuator Control)
