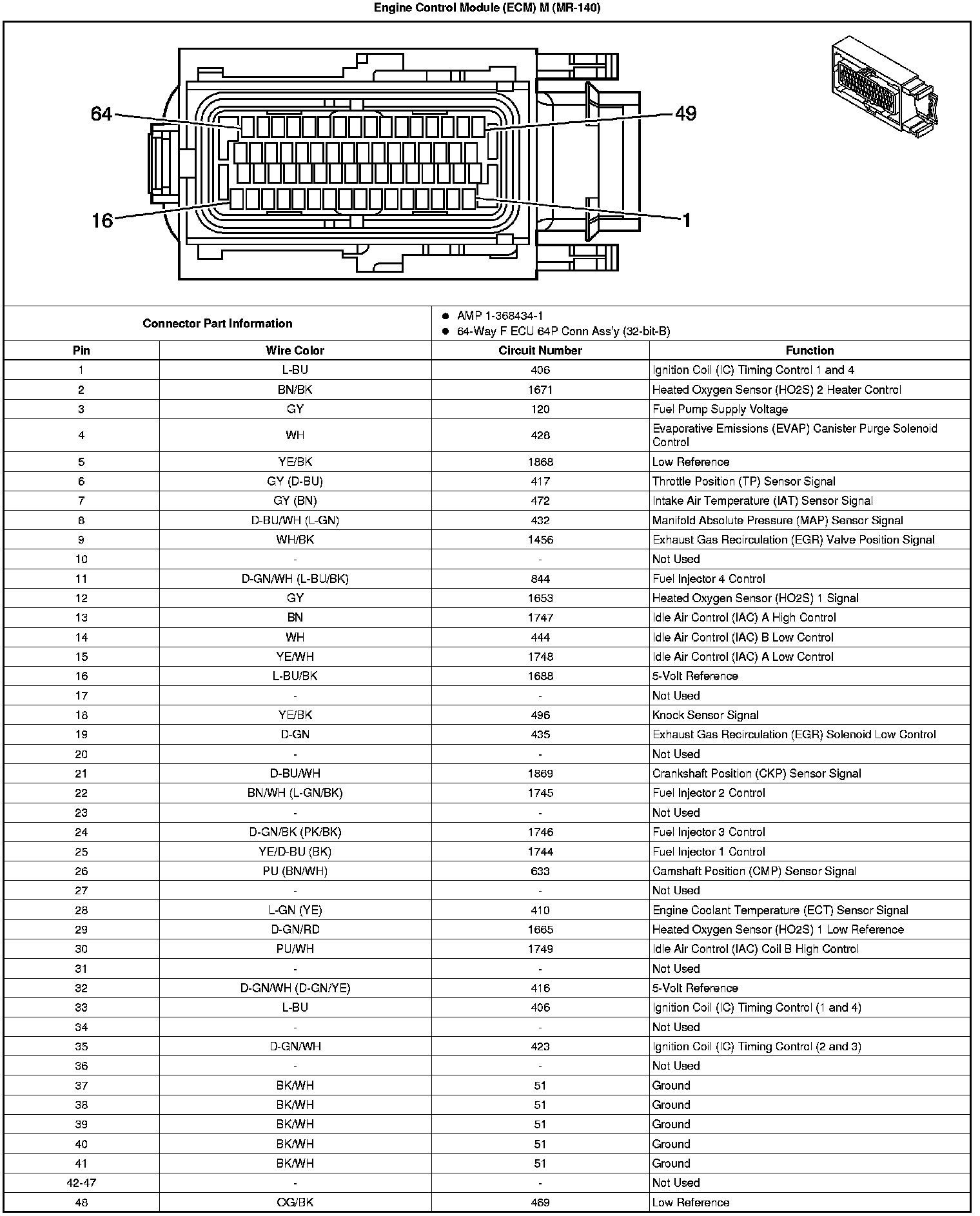

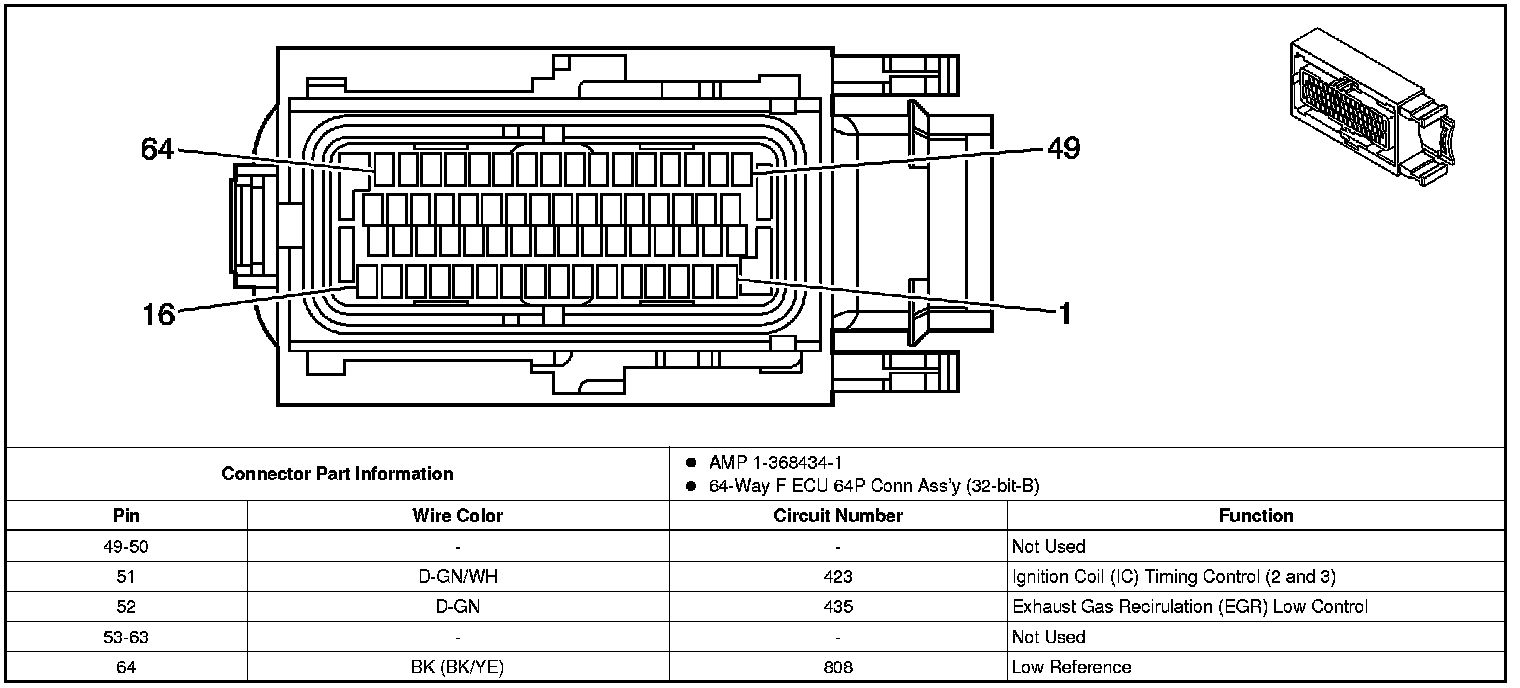

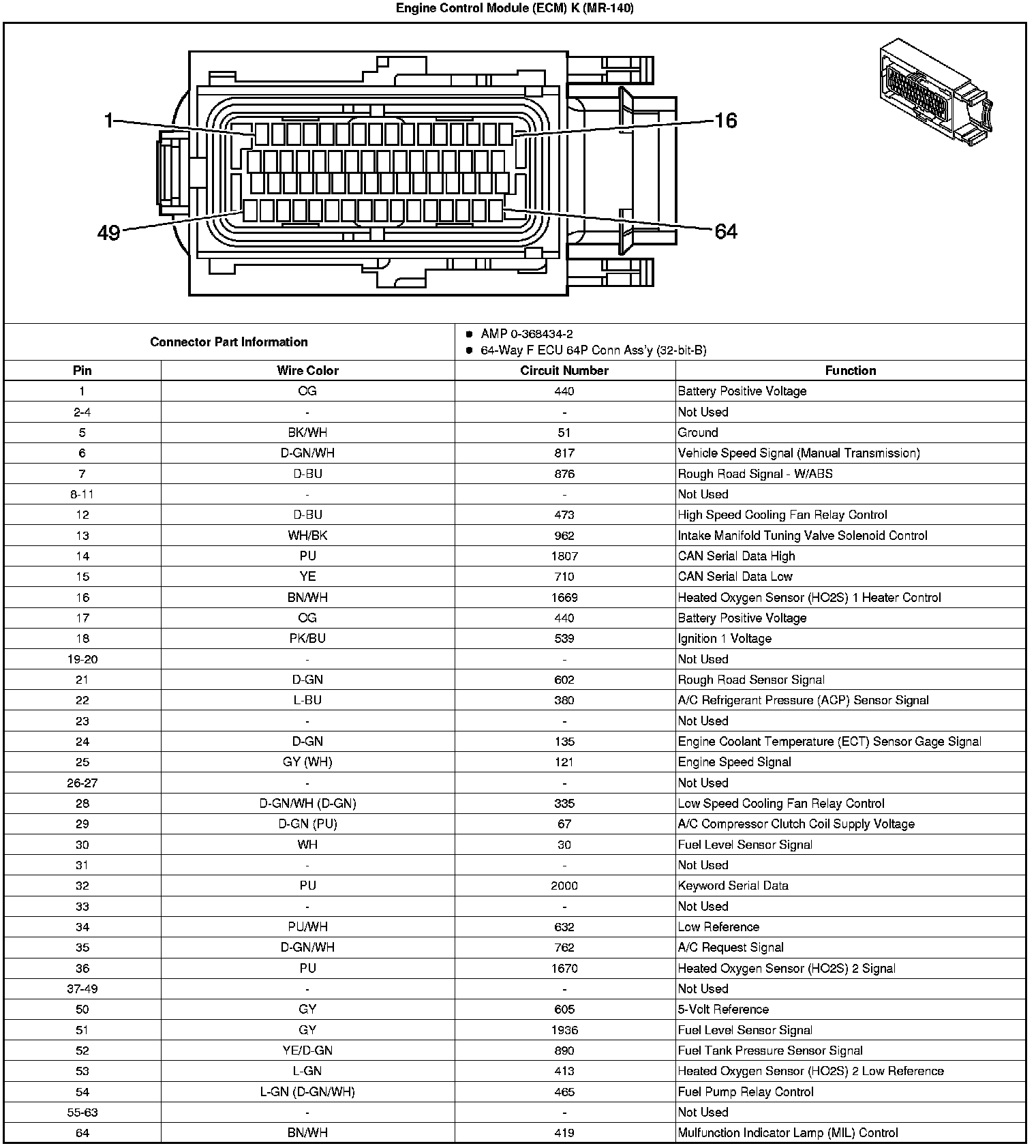

Engine Control Module Connector End Views (w/o Throttle Actuator Control)
Engine Control Module Connector End Views (w/o Throttle Actuator Control)
Engine Control Module
Connector End Views (w/o Throttle Actuator Control)
